Youngs Tank 5 compartment 6000 Gallon Tank

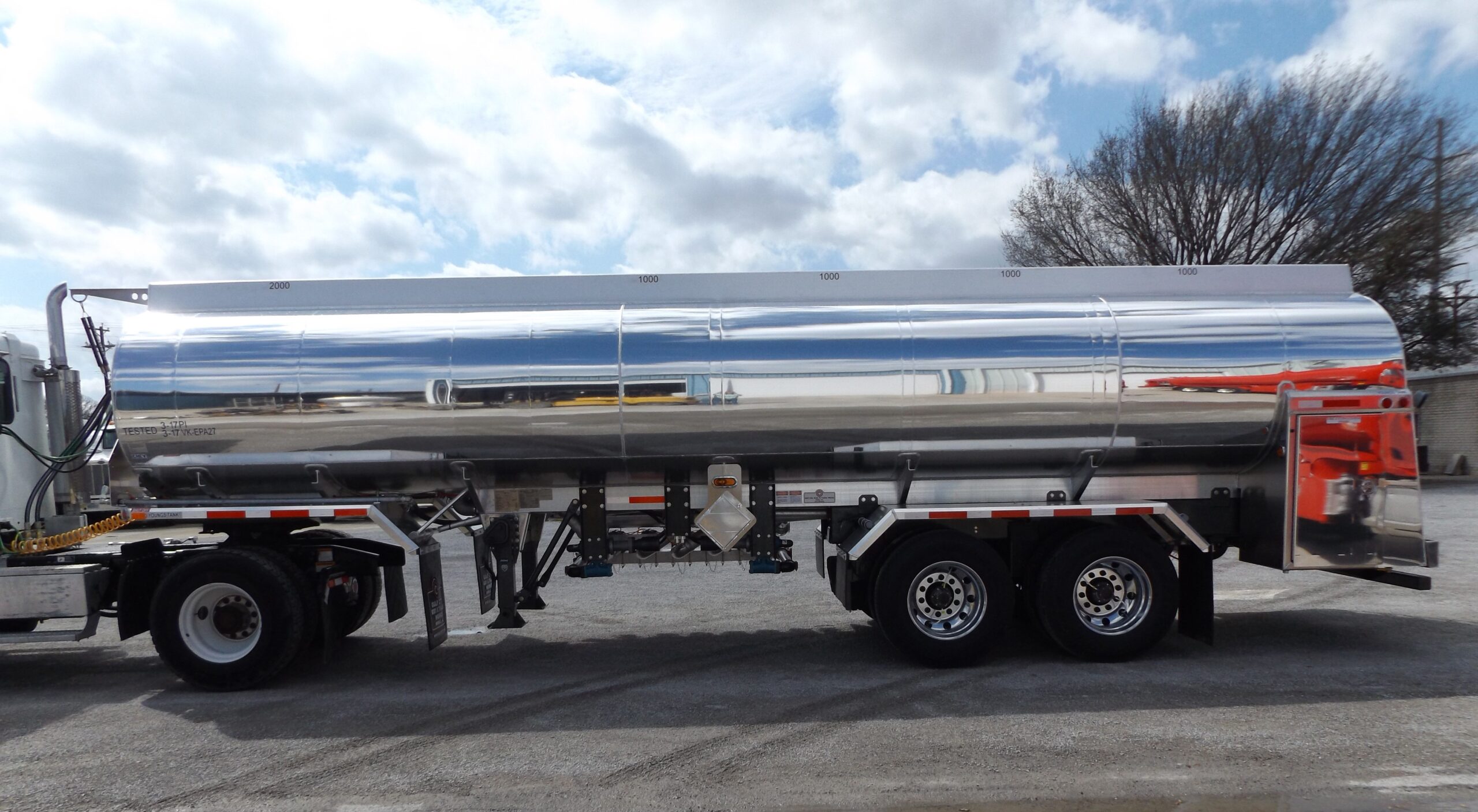

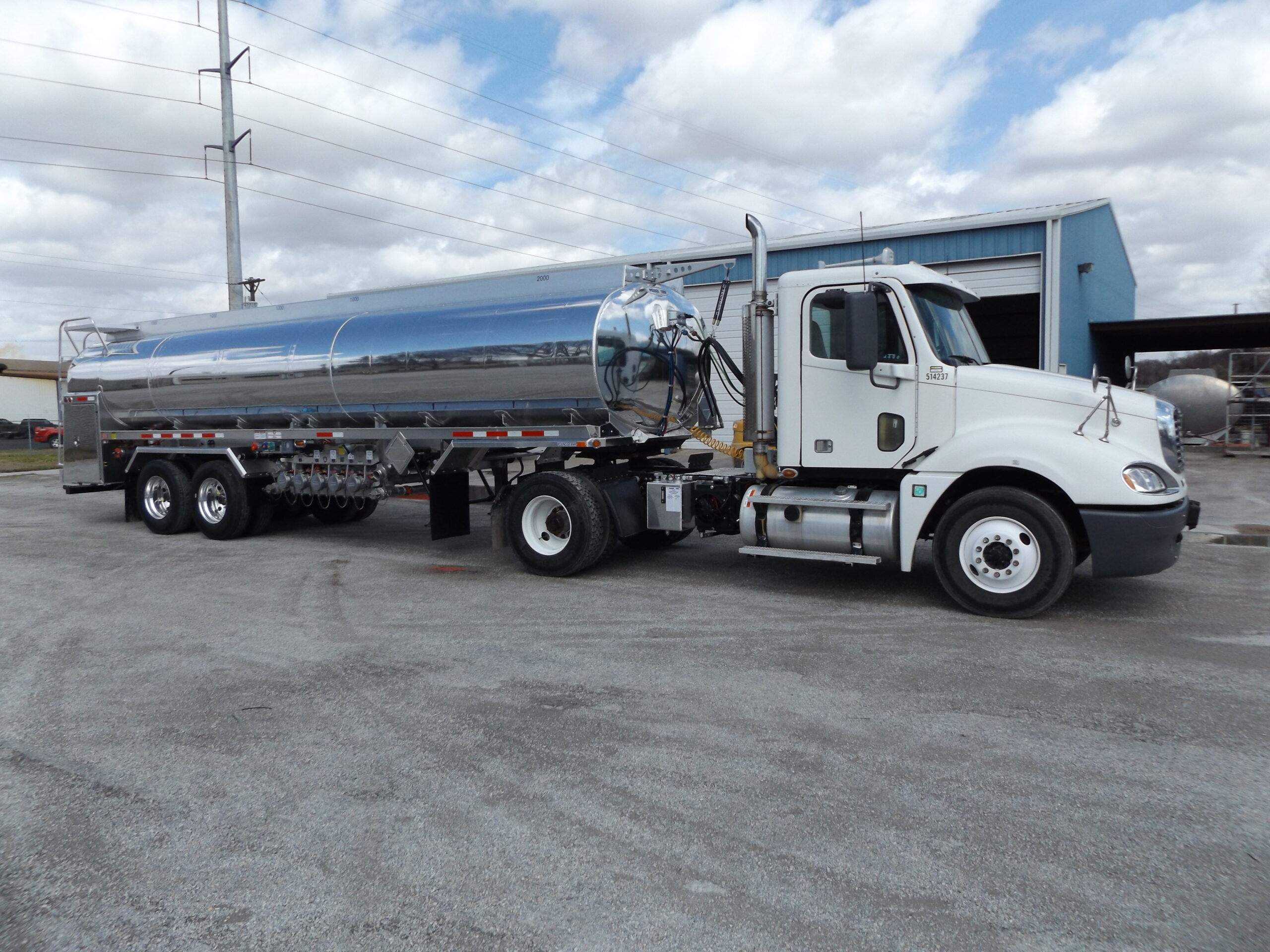

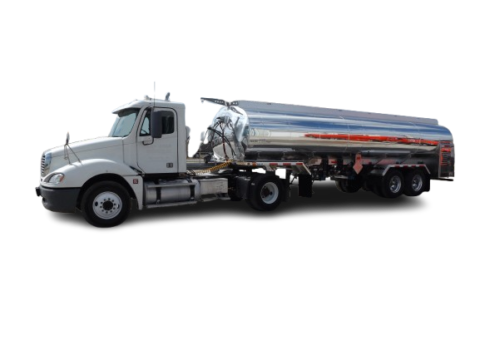

6000 Gallon SuperTanker

This durable 5-compartment, 6,000-gallon tank is built for efficient liquid transport and optimized product separation. Designed for performance, reliability, and compliance, it’s ideal for multi-product delivery applications.

Product Gallery

Specifications

Type

Straight Elliptical Trailer

Capacity

6,000 Gallons (+75 Gallon Minimum Outage for Chevron/Motiva)

Plus

75 Gallons Minimum Outage for Chevron/Motiva

DOT MC

406

Commodity

Petroleum Products

Average Weight

6.7 lbs/gallon

Construction

Aluminum 5454-H32 Shell (.190″ thick), 5454-O Heads (.190″/.225″ thick)

Number of compartments

5

Heads

Double

Compartment Specs

Tailored to Customer Needs

Ladder

Rear, curbside of rear door; 2′ x 3′ serrated grating platform at top

Bumper

DOT spec with underride tube and rear tow hook

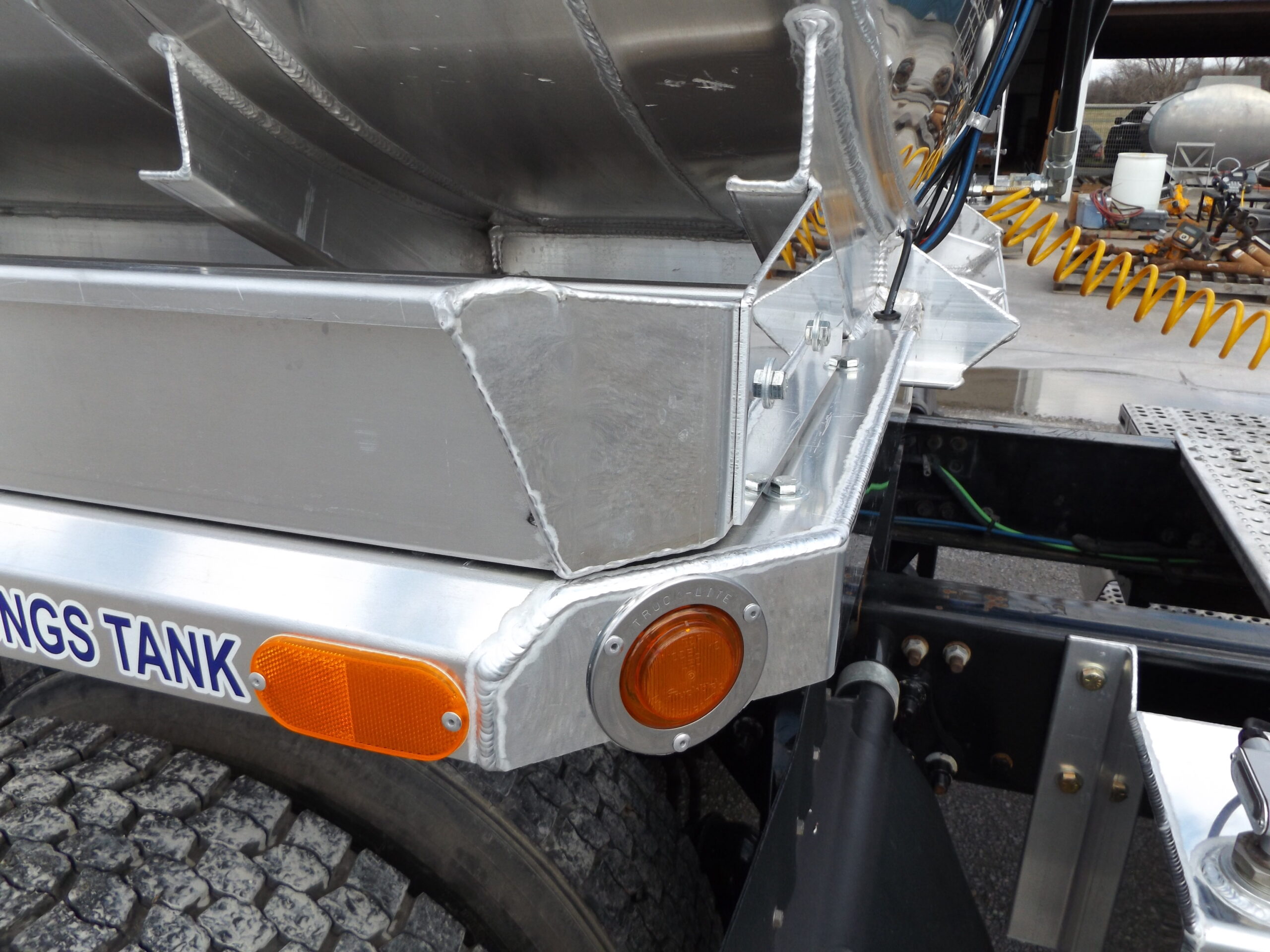

Fenders

Front and rear aluminum, Jeep-style

Mud Flaps

Yes

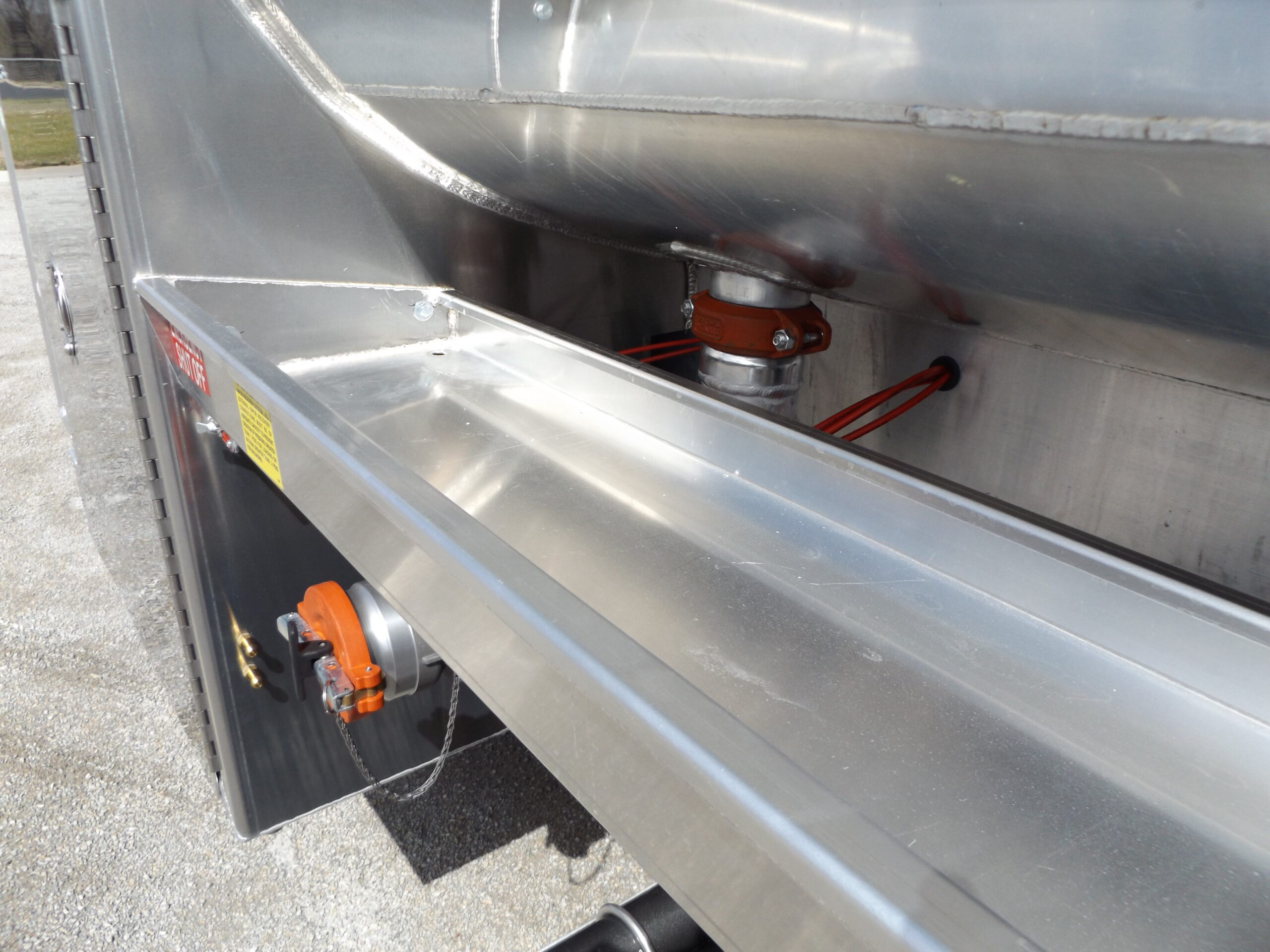

Hose Tubes

(1) Full-length hose tray on curbside

Wheels

8.25 x 22.5, 10-hole aluminum (BF)

Tires

11R x 22.5 Dunlap

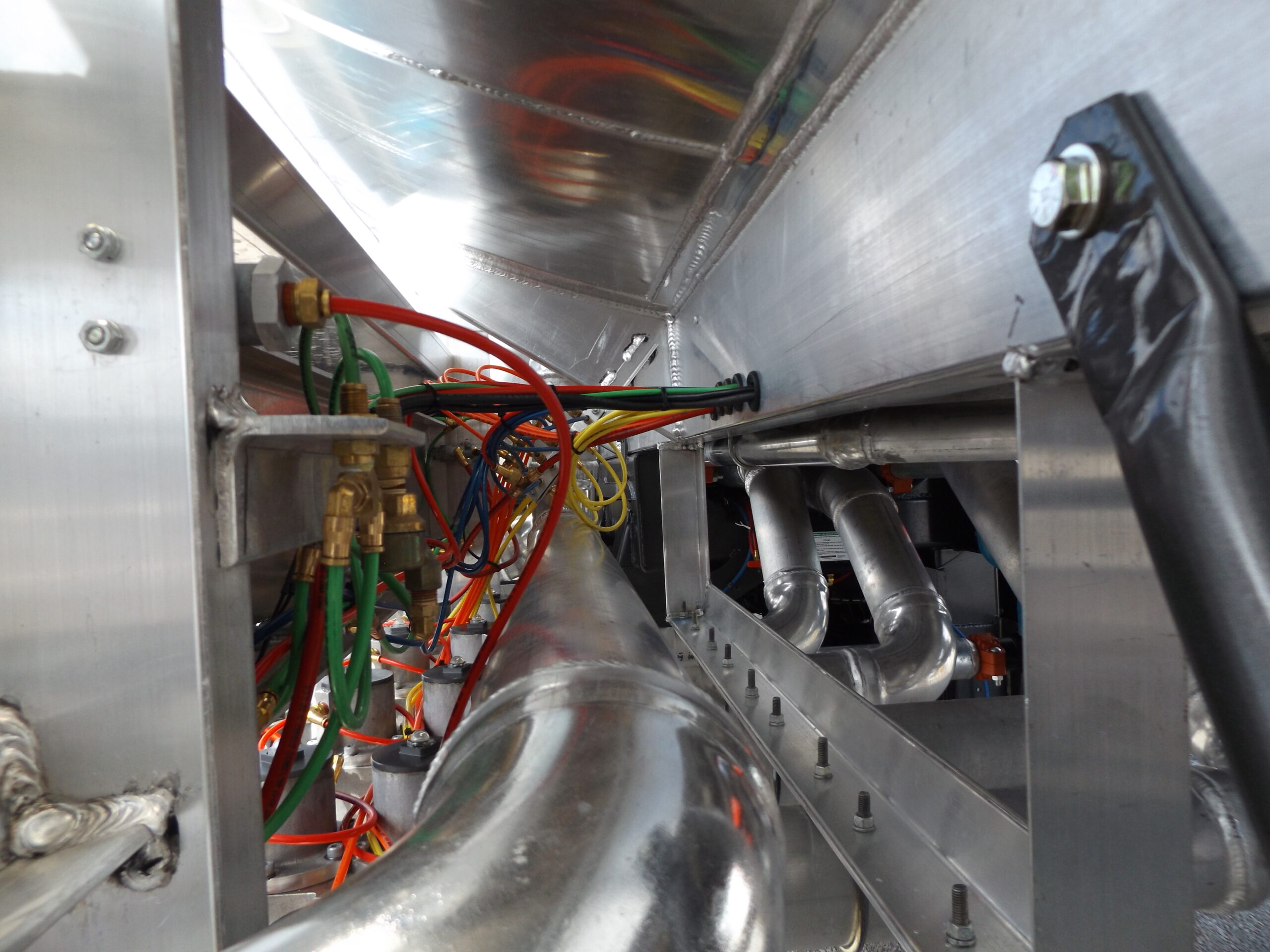

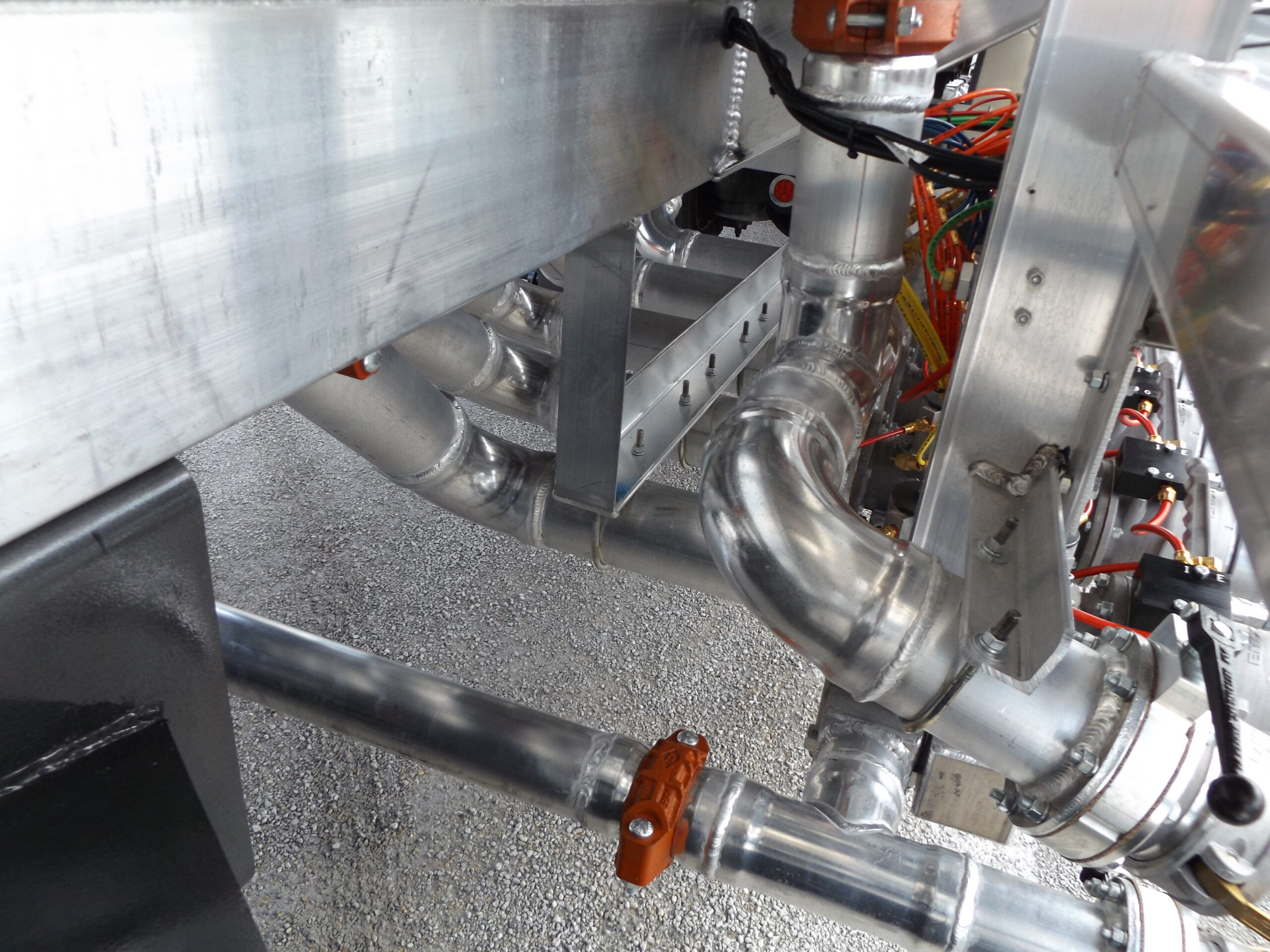

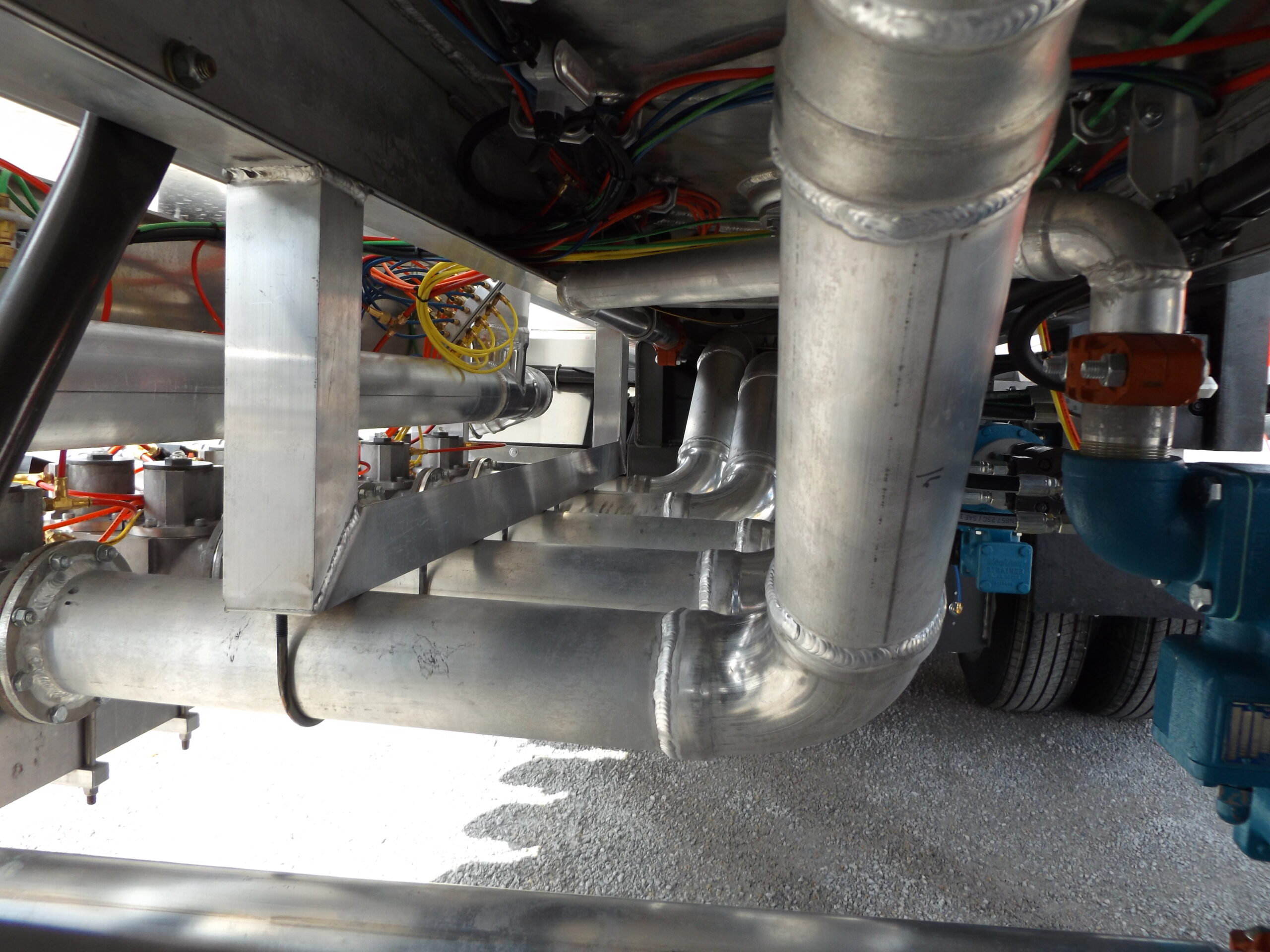

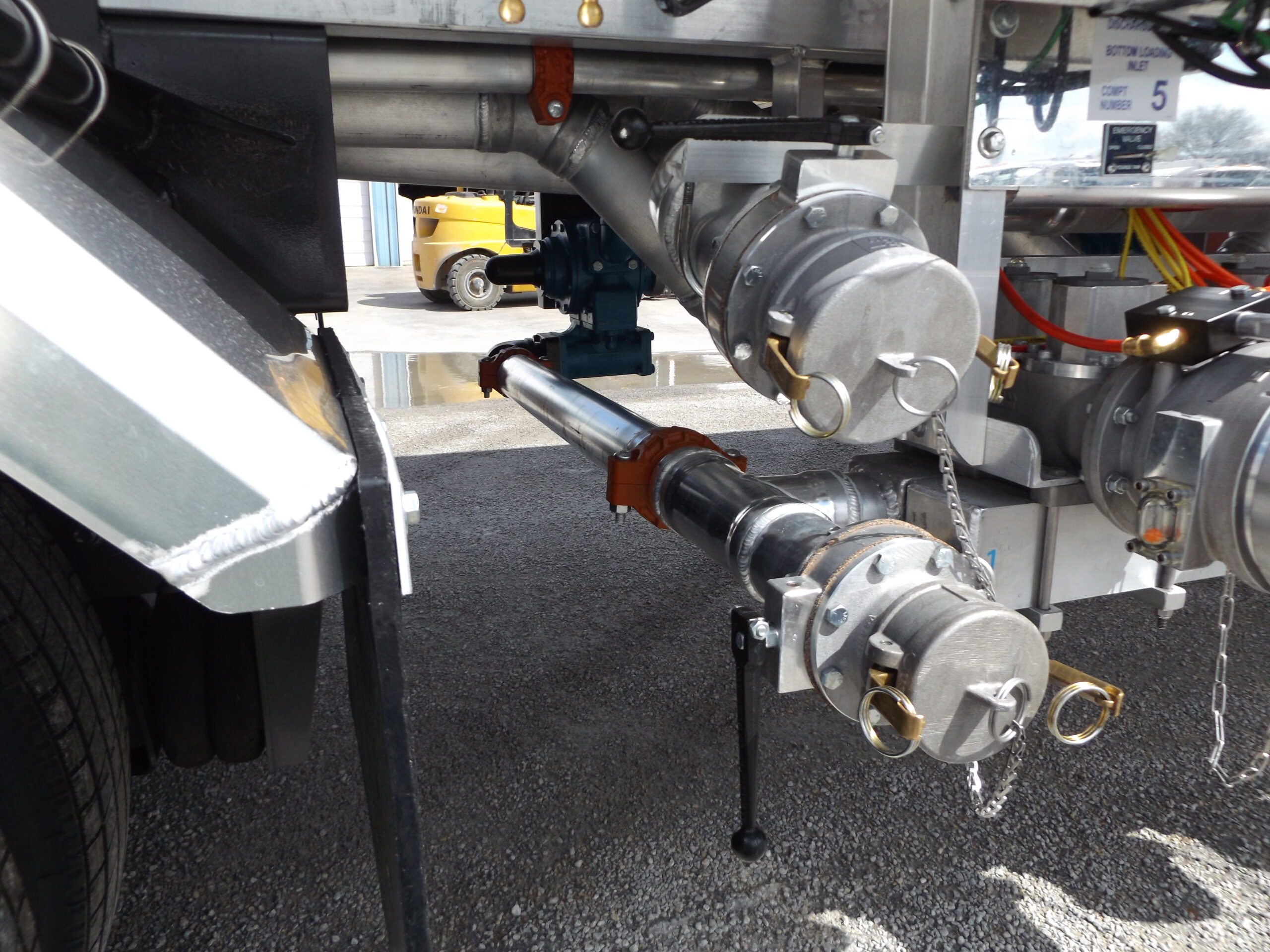

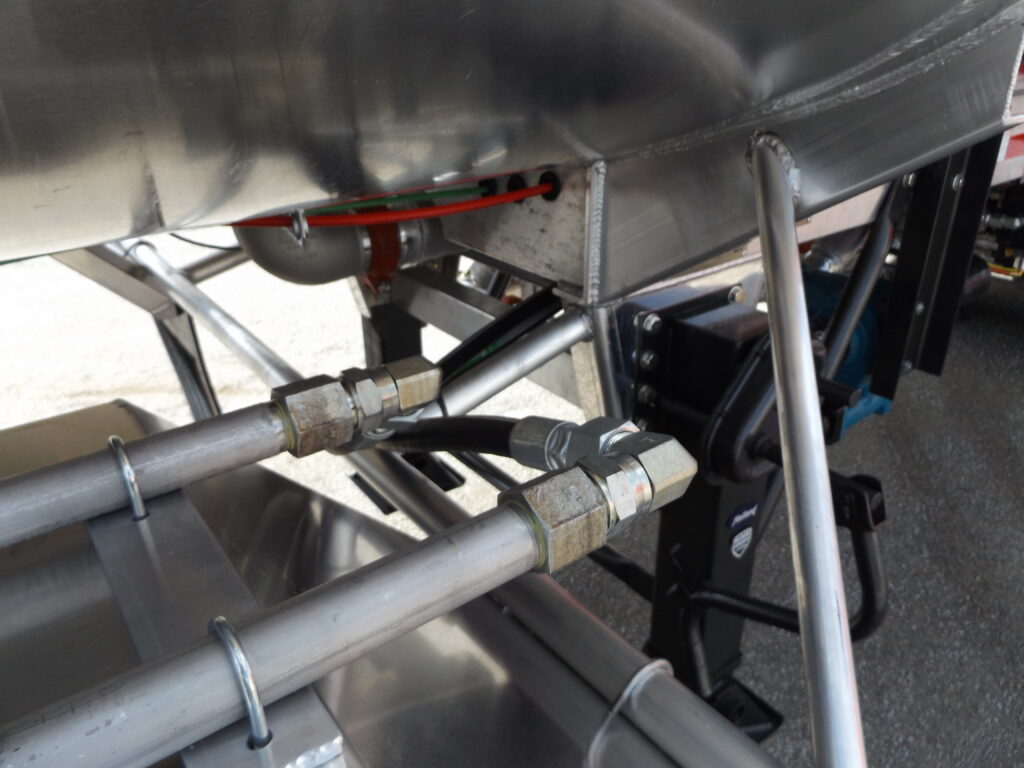

Piping

4″ Aluminum to curbside

Vents

3″ Vapor recovery, sequential air-activated

Connectors

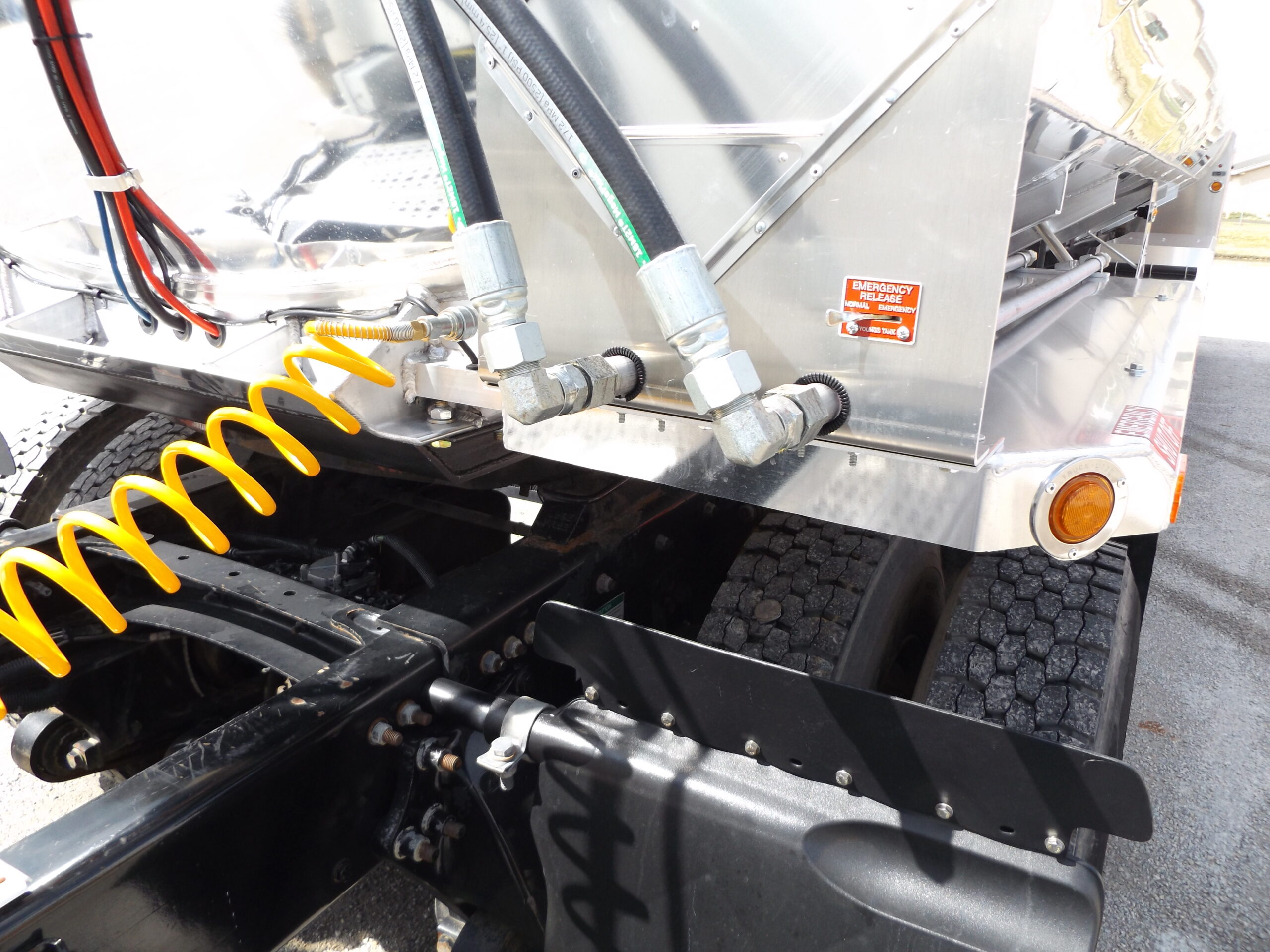

Berg 7-way nose box at 4:00 position

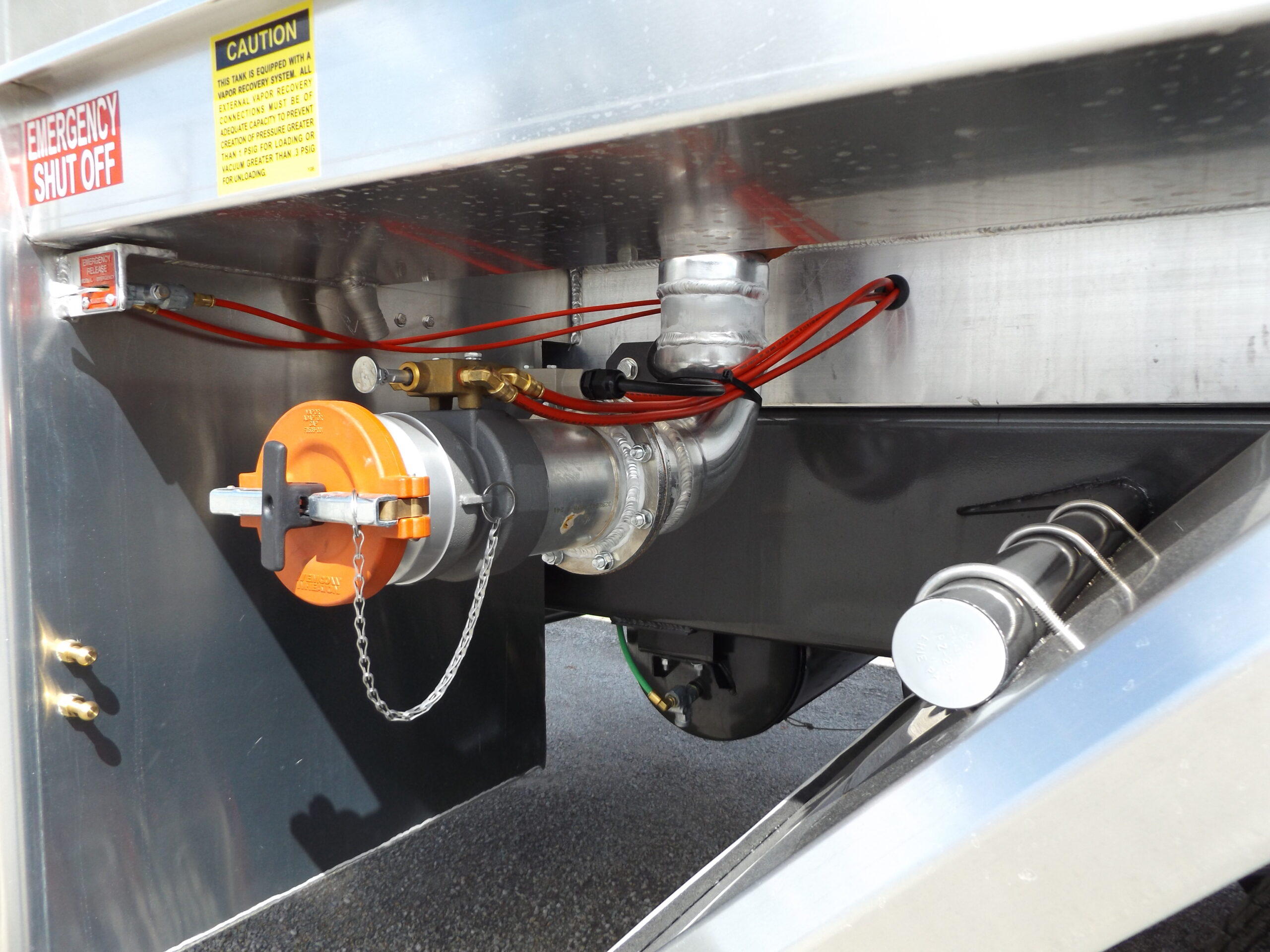

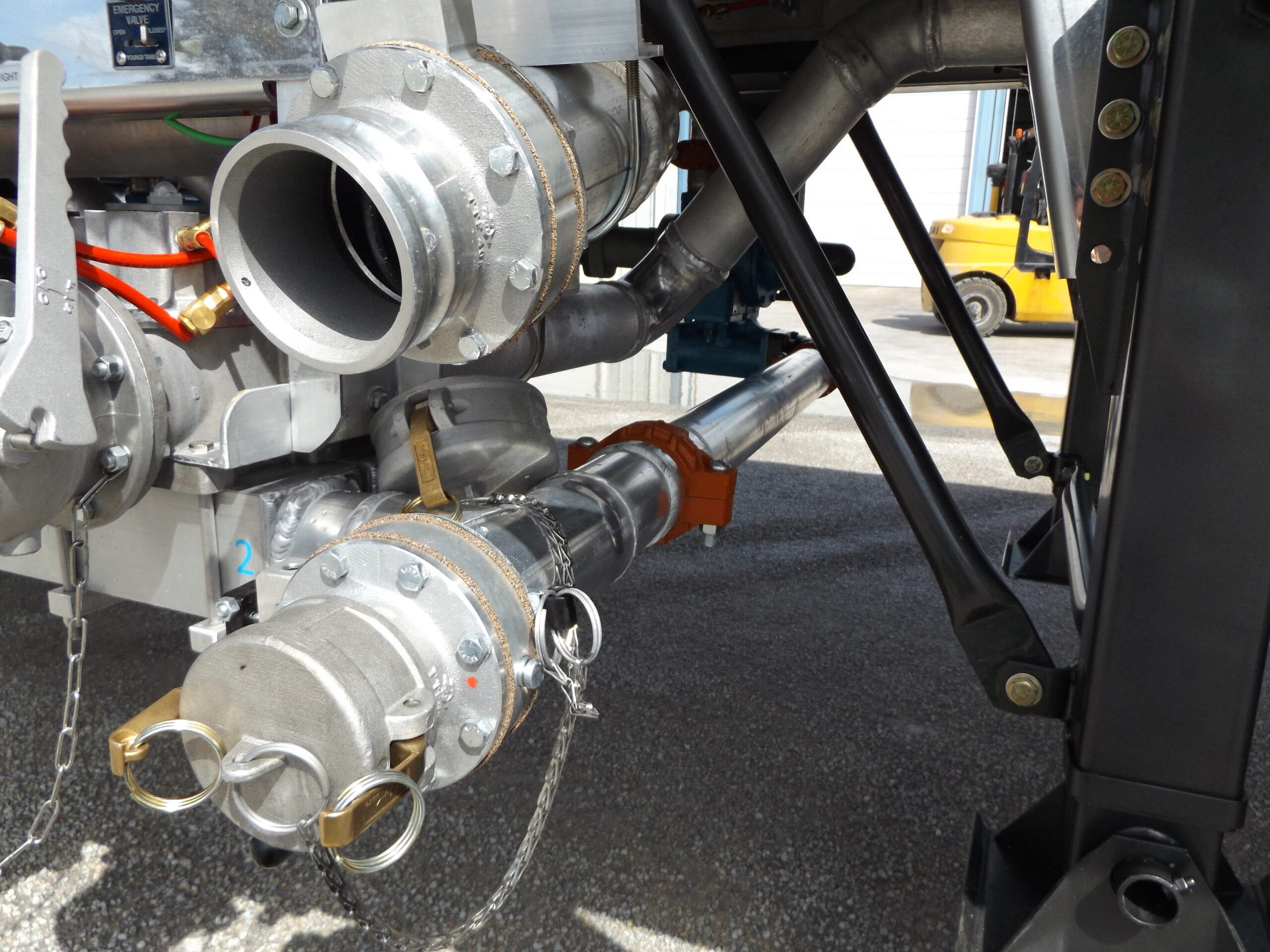

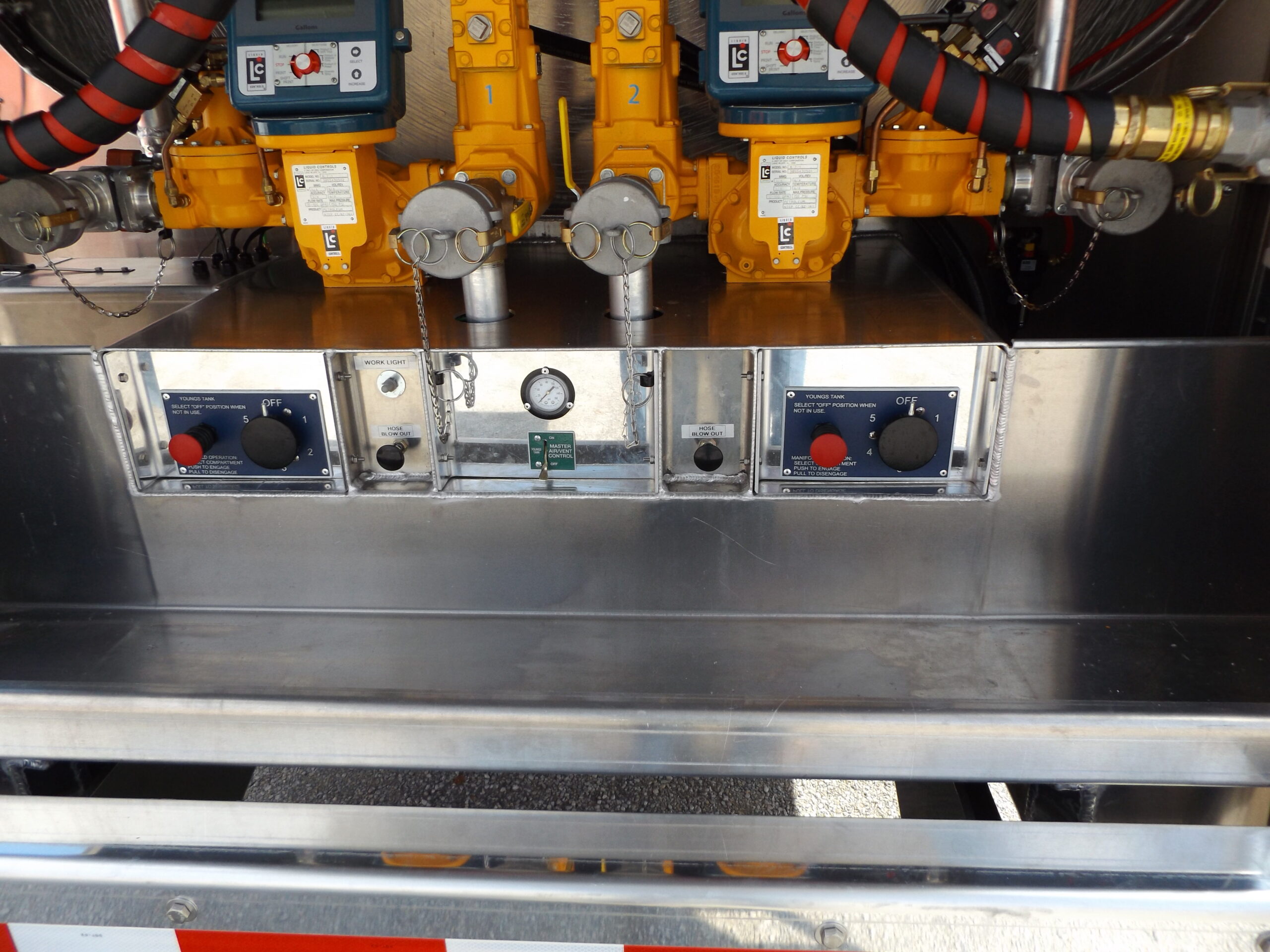

Valves

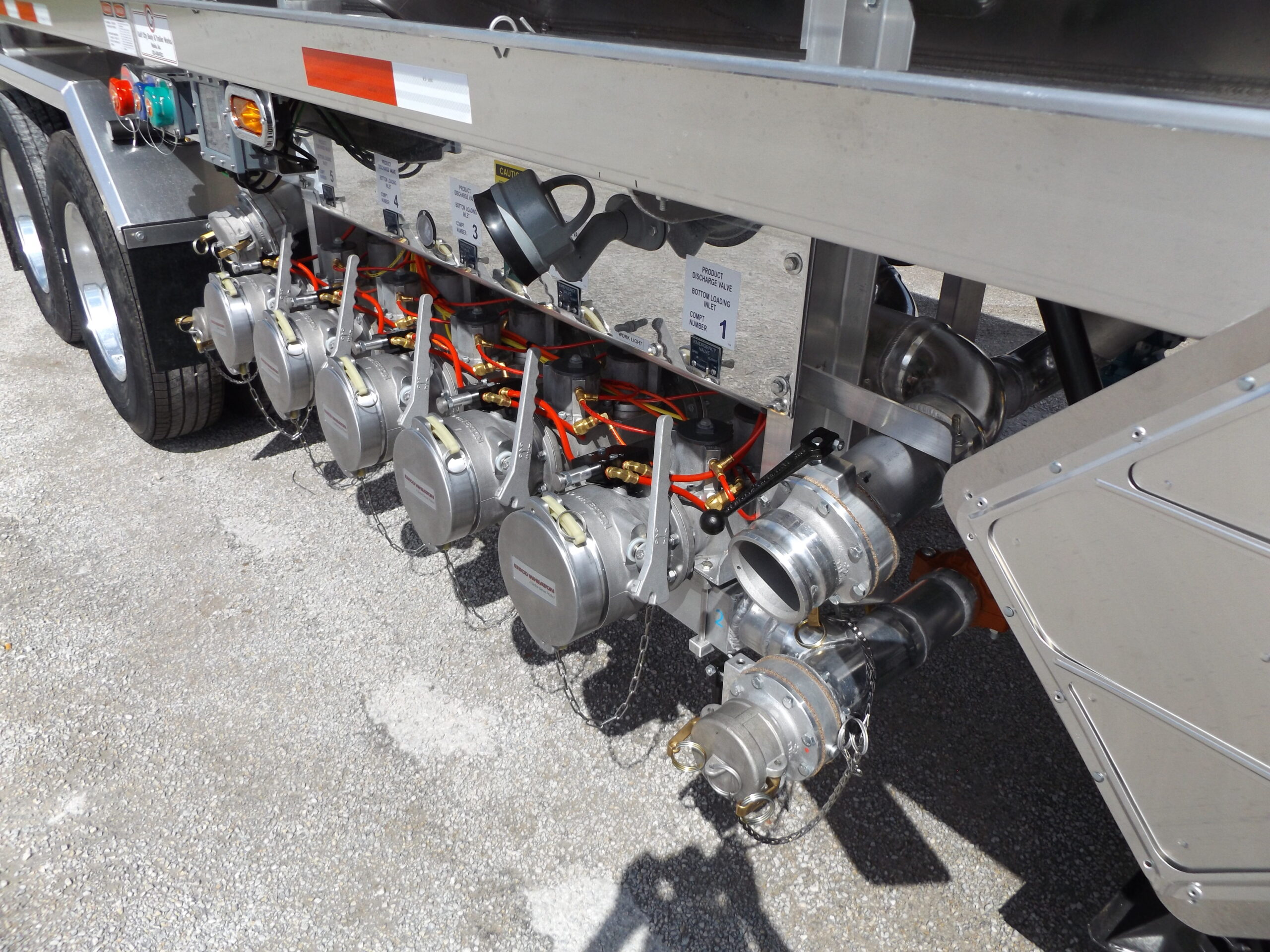

Openable adapters with (2) 4″ x 3″ unloading spouts; Betts dual air manifold behind bottom load adapters

Emergency Valves

4″ Air-operated

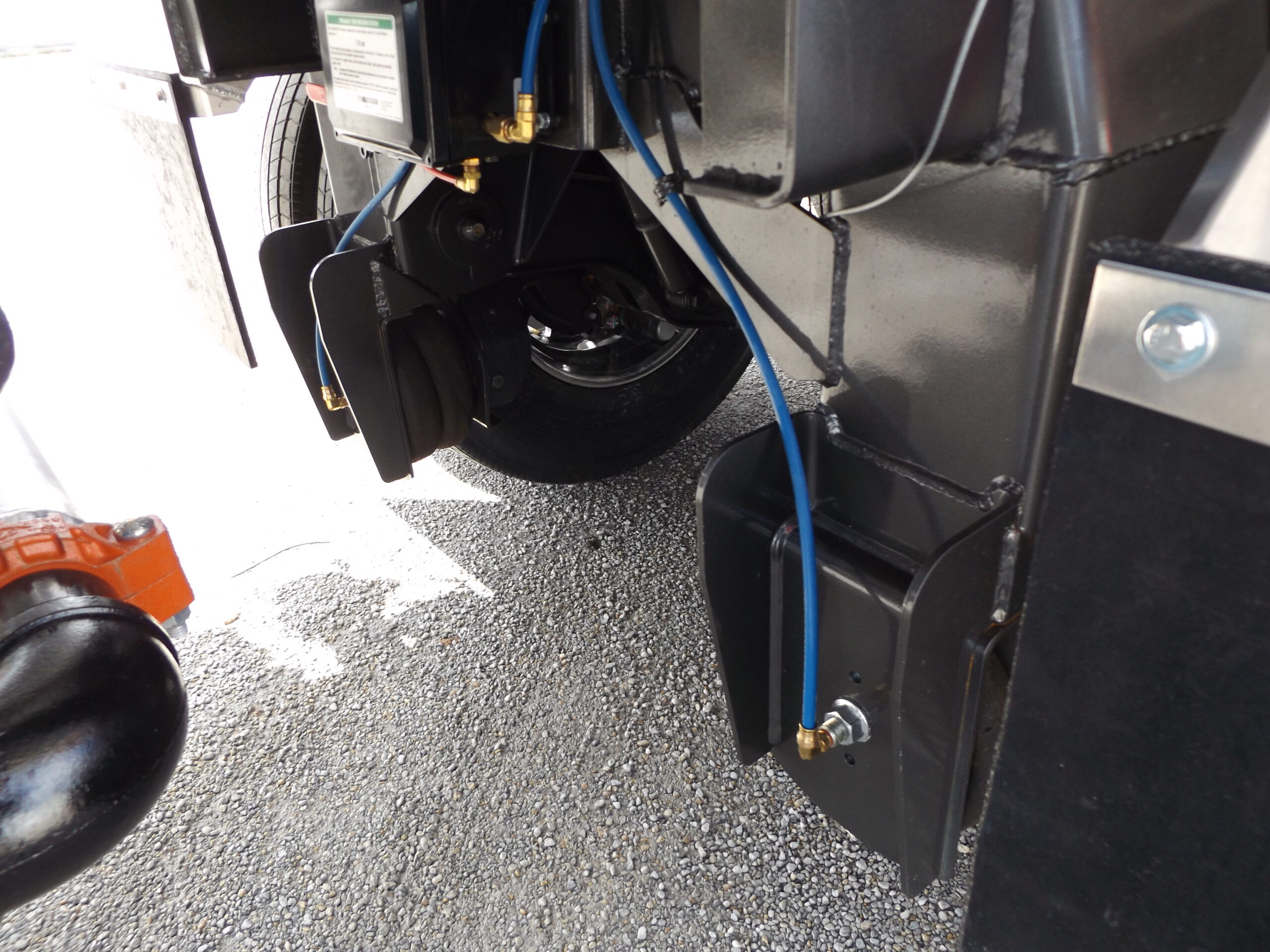

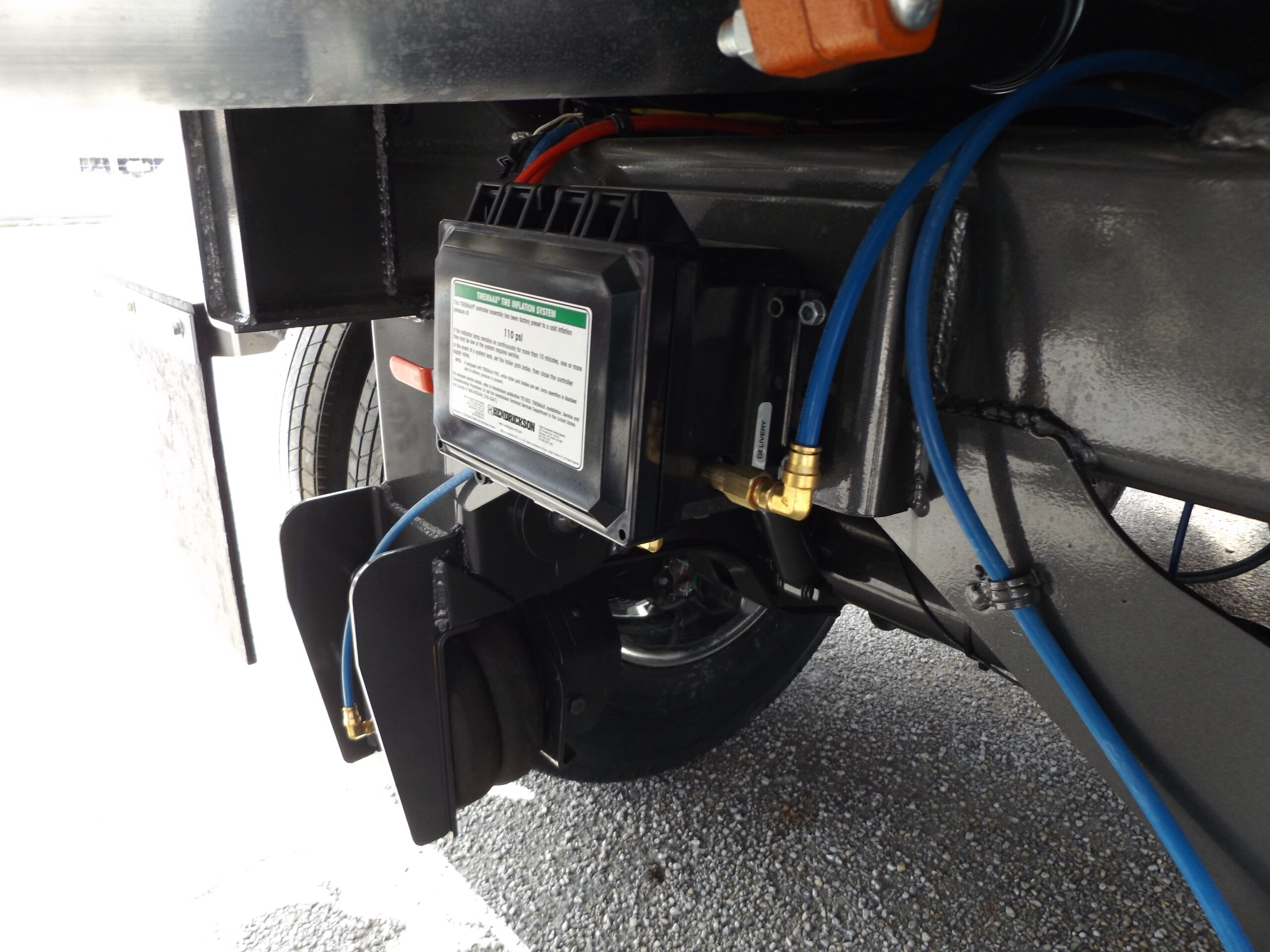

Suspension

Hendrickson AAT25K-HLS

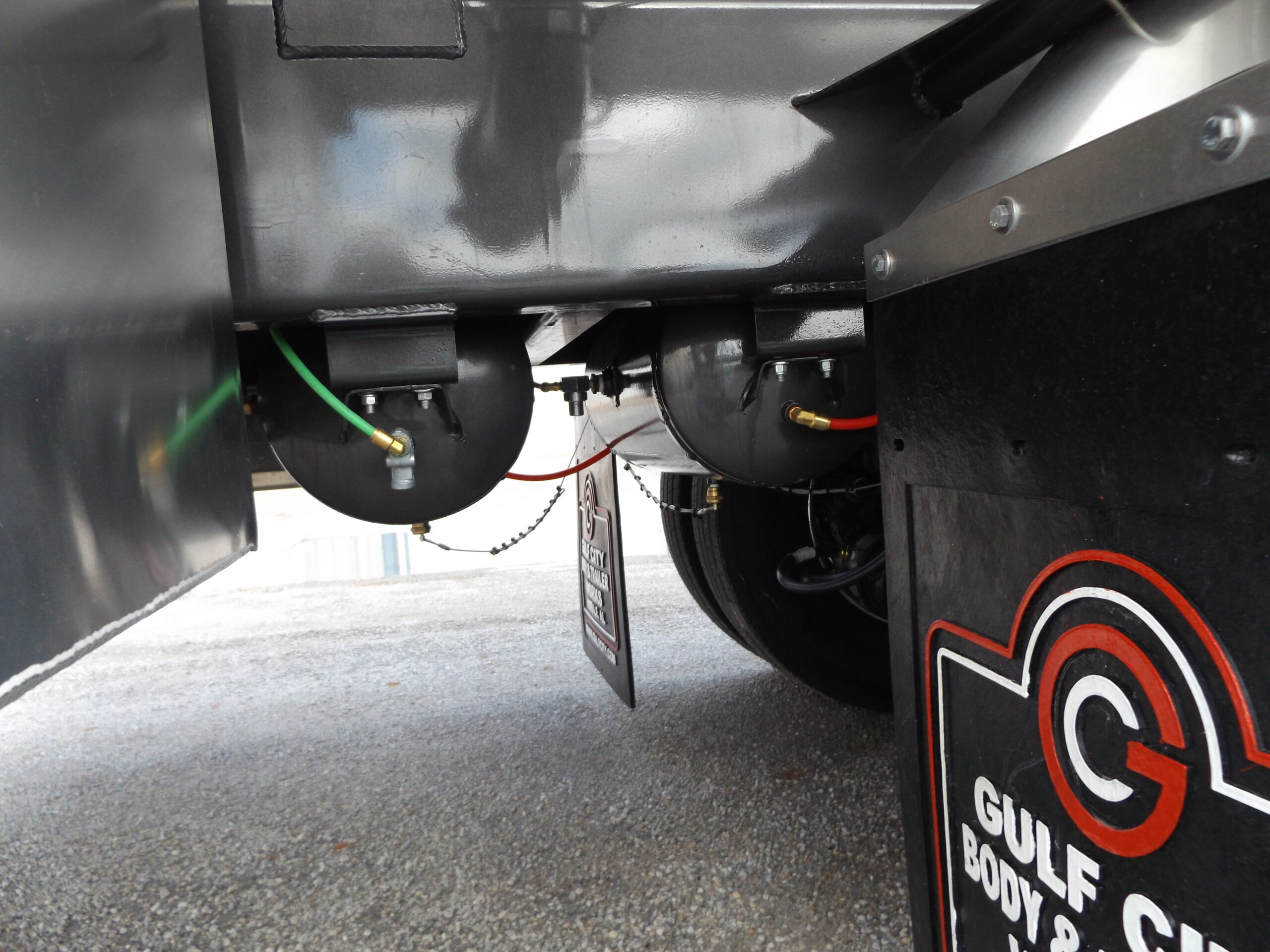

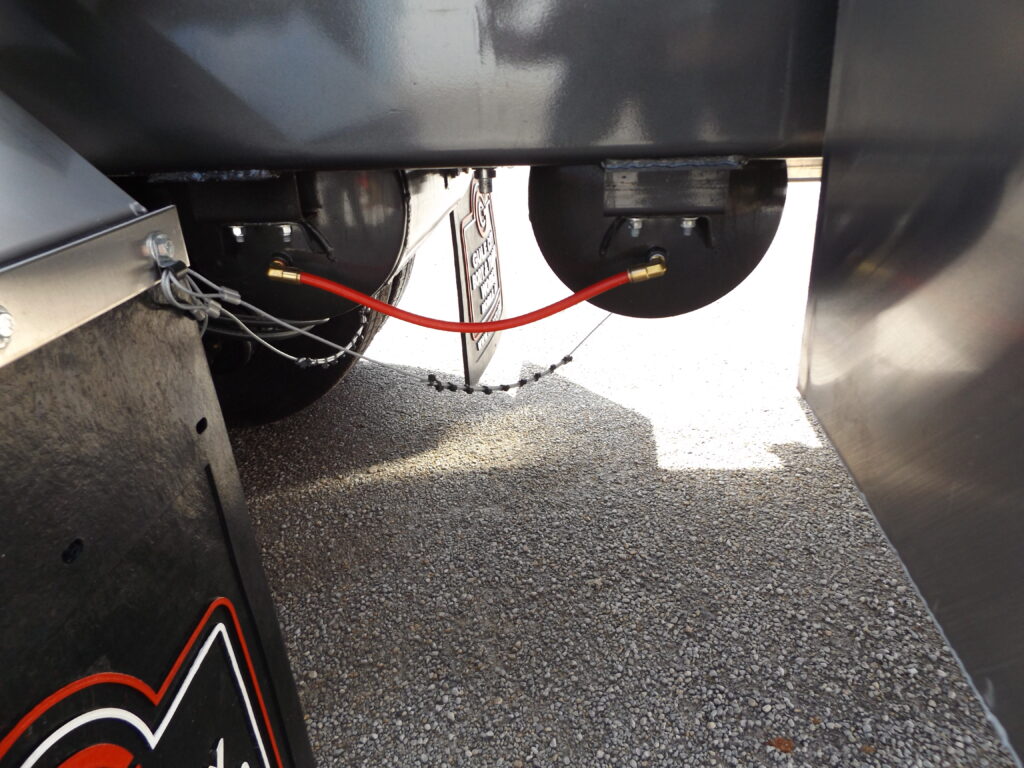

Brakes

Drum

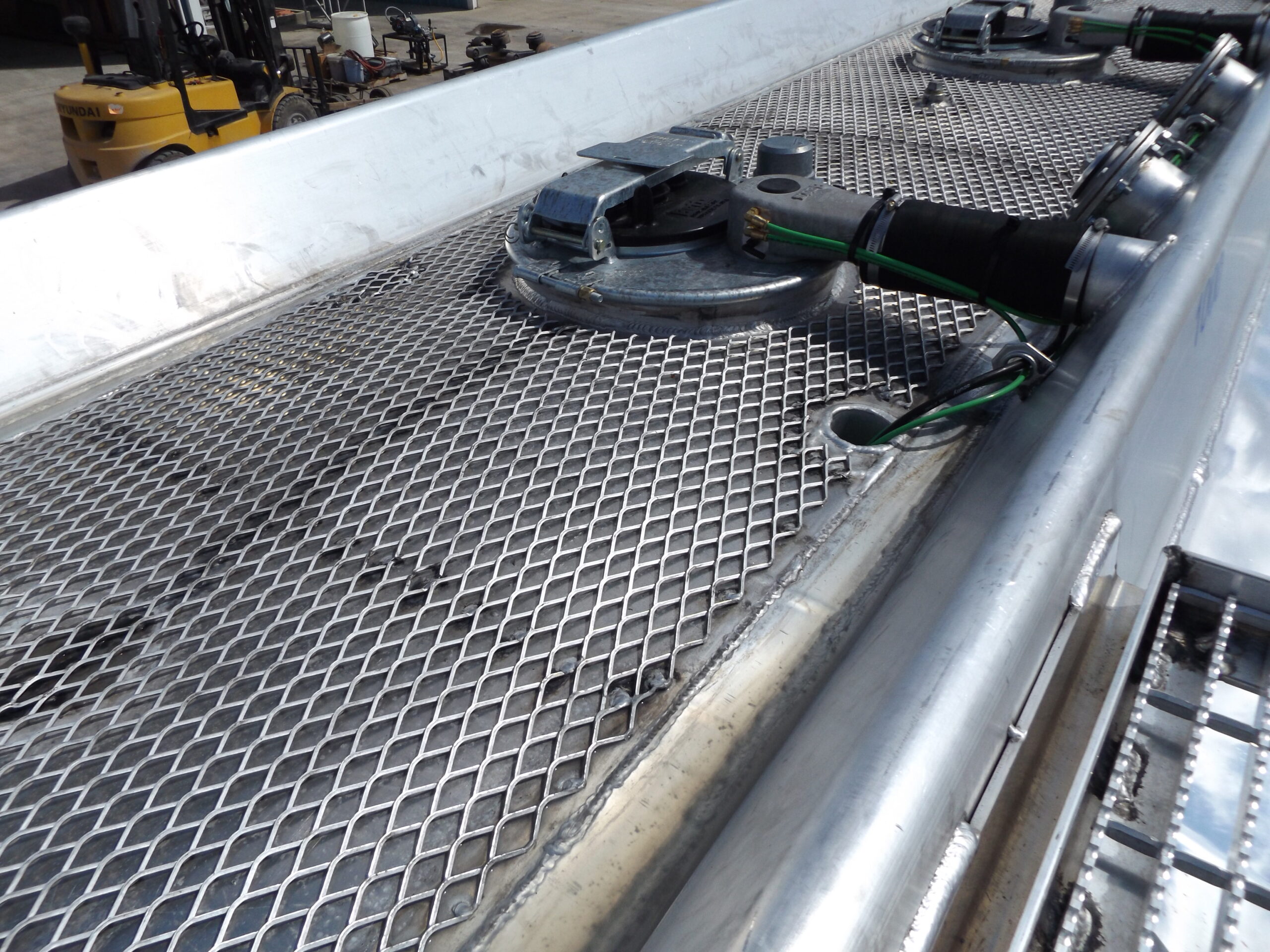

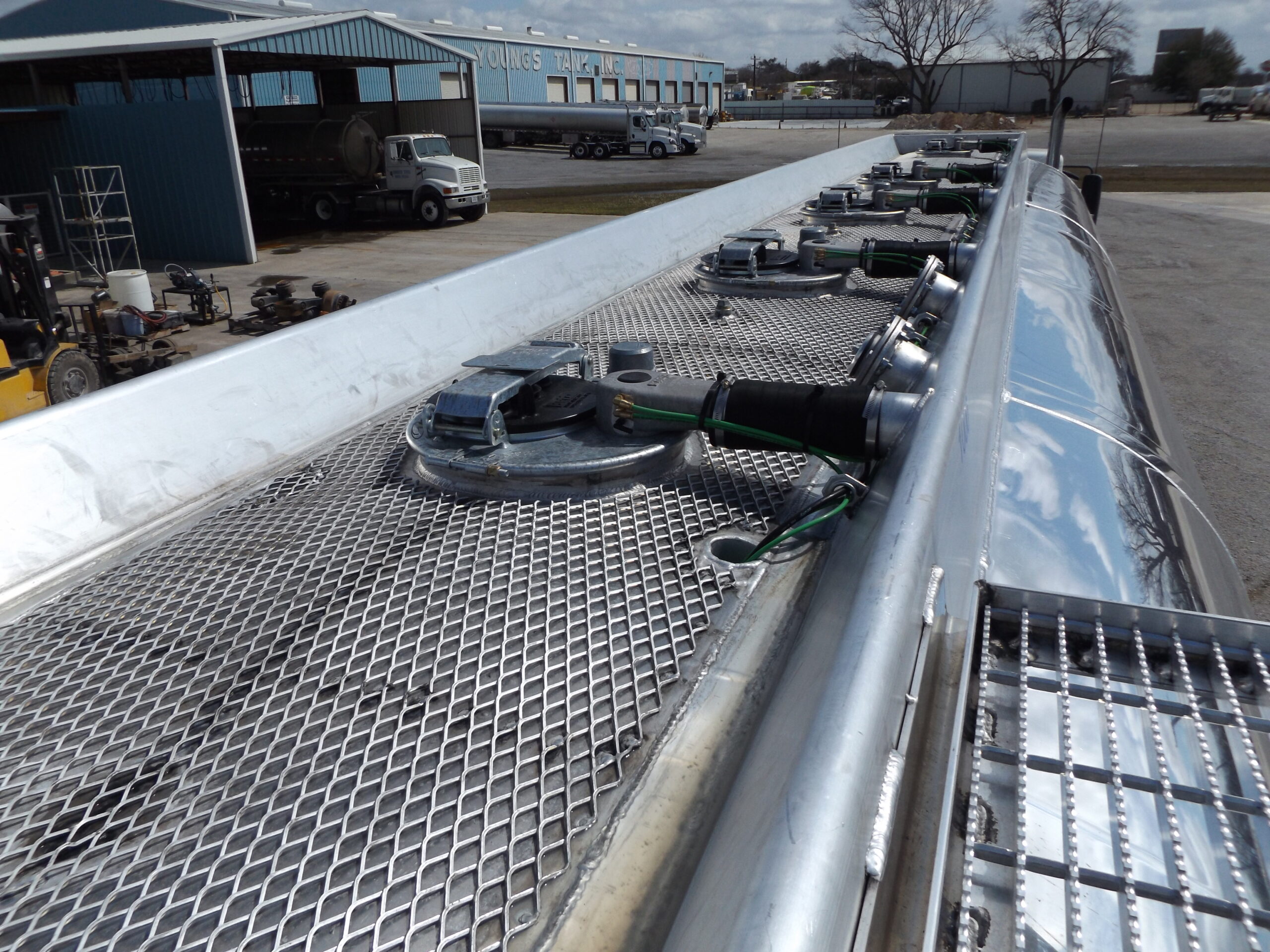

Walkway

Expanded metal at top

Domes

TIONA 16″ with 10″ PAF

Upper Coupler

Bolted and adjustable (3″)

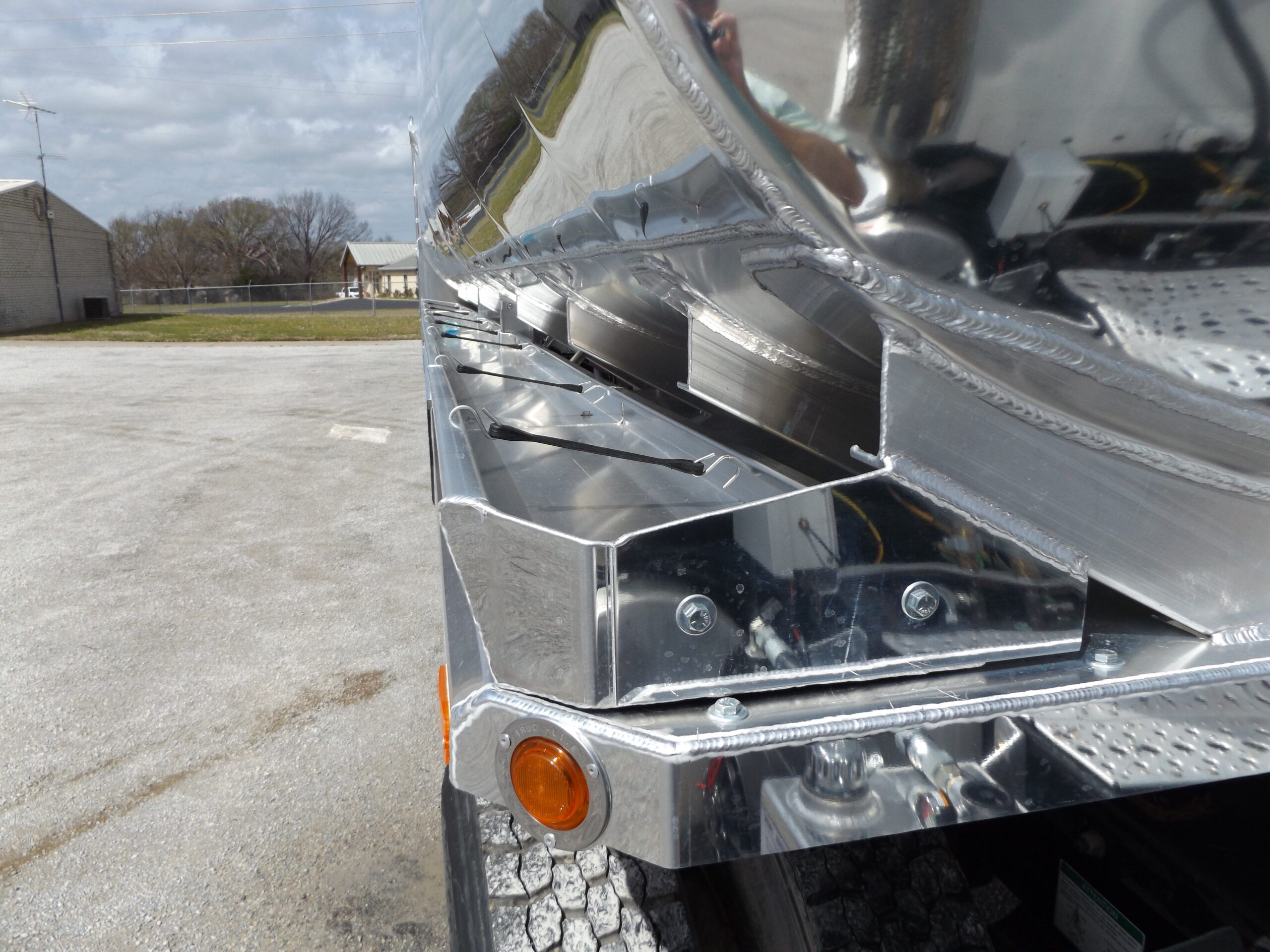

Flashing

Full-length vapor-proof

Landing Legs

Binkley 2-speed (50K)

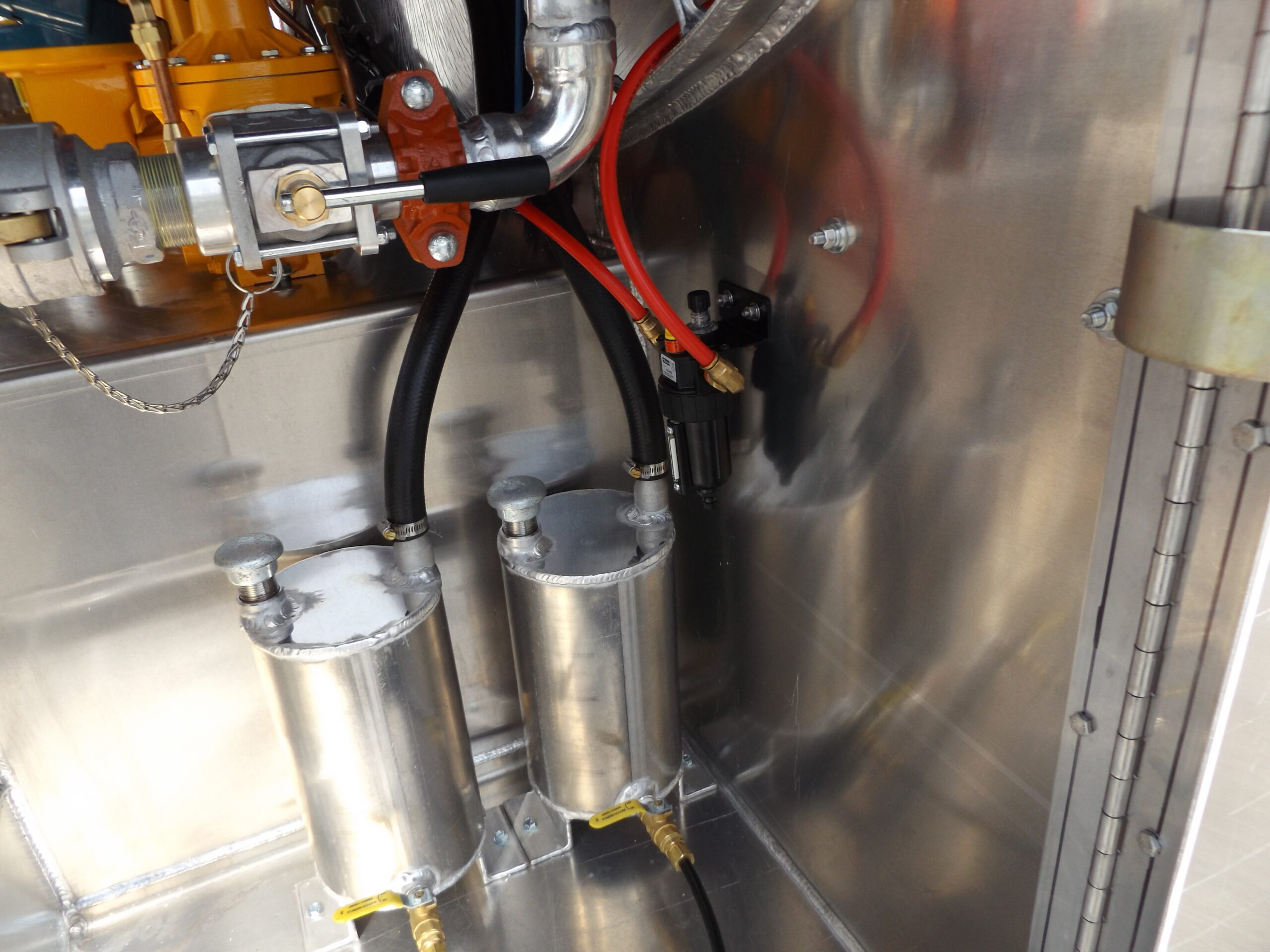

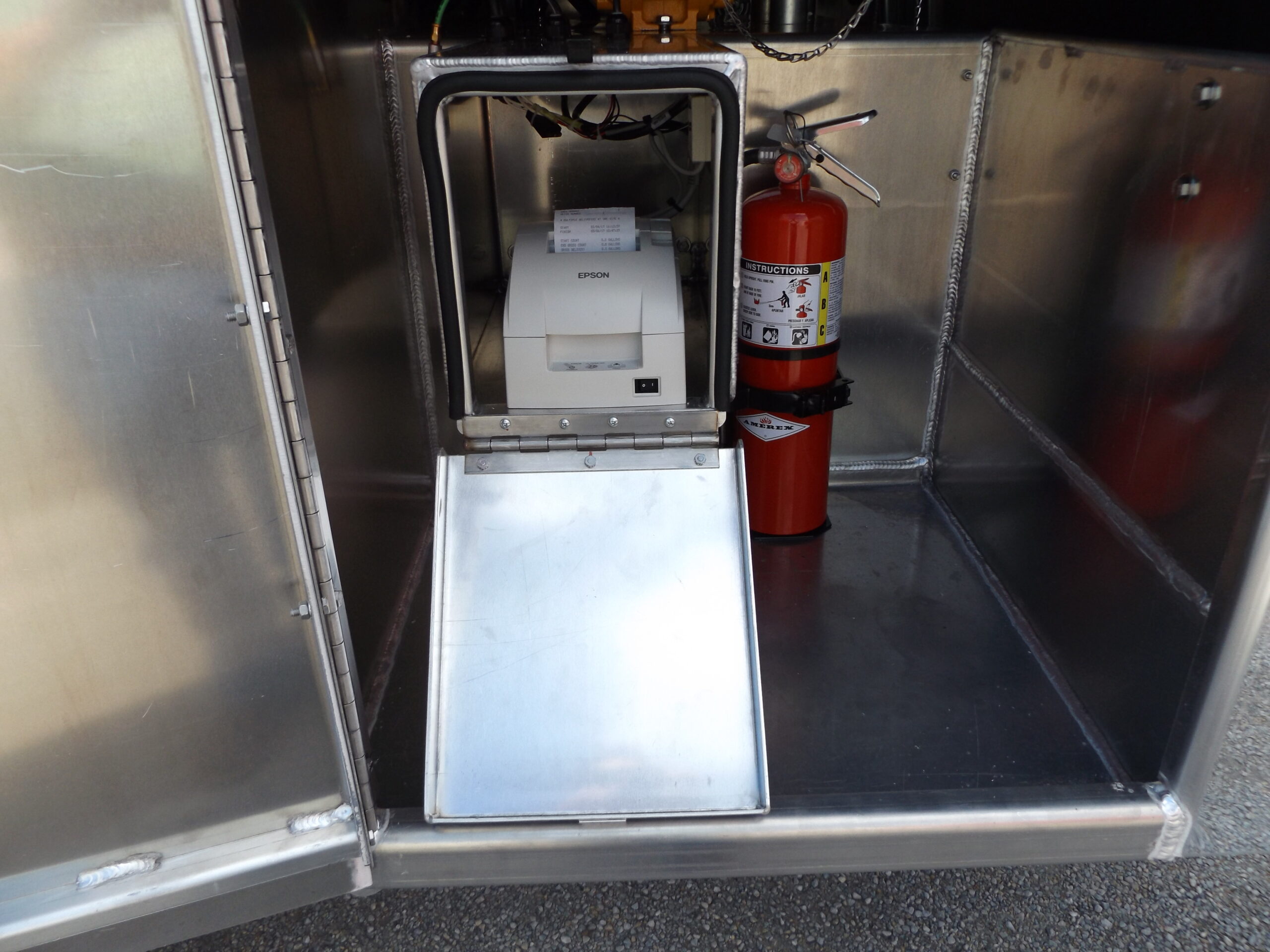

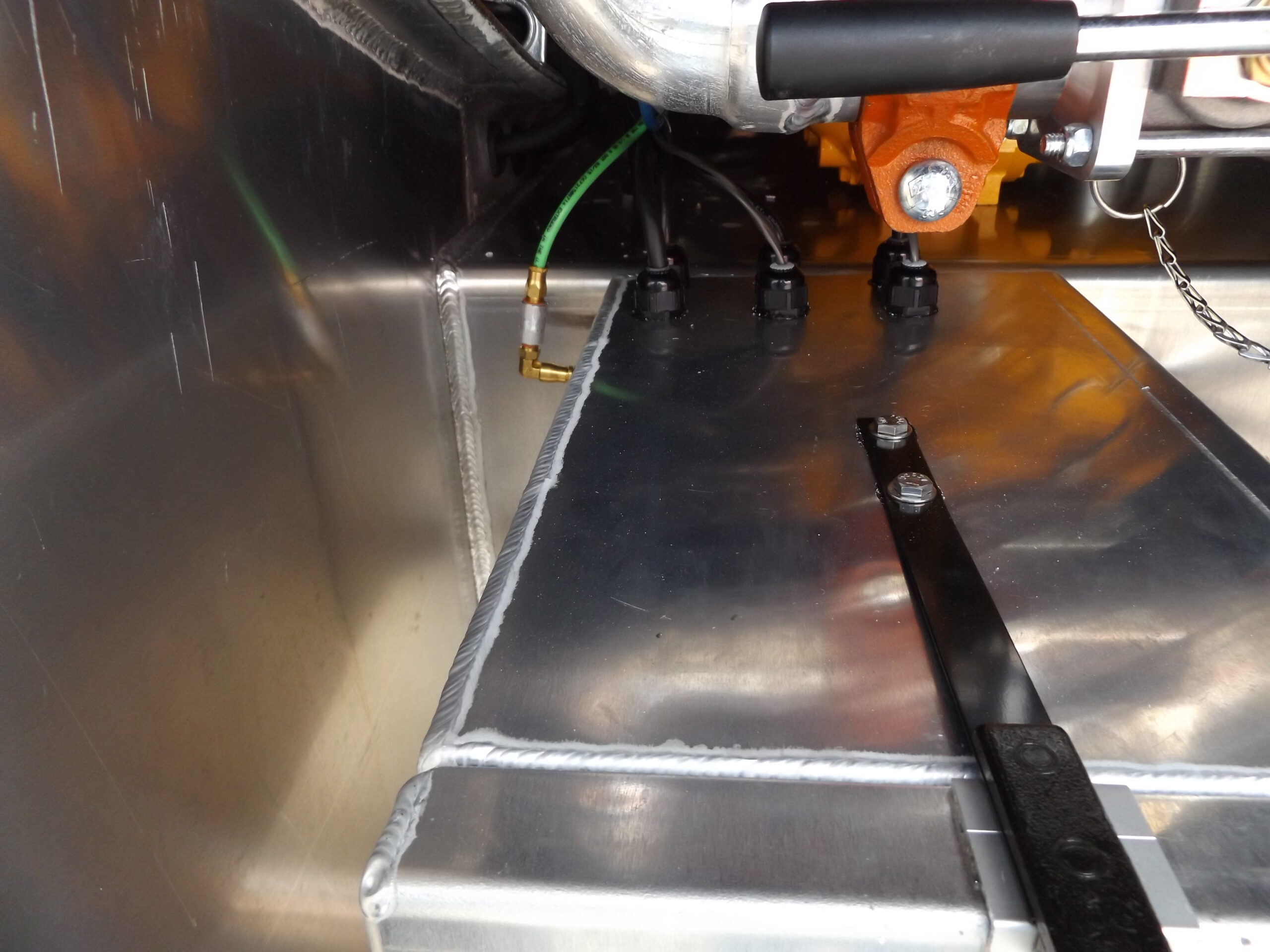

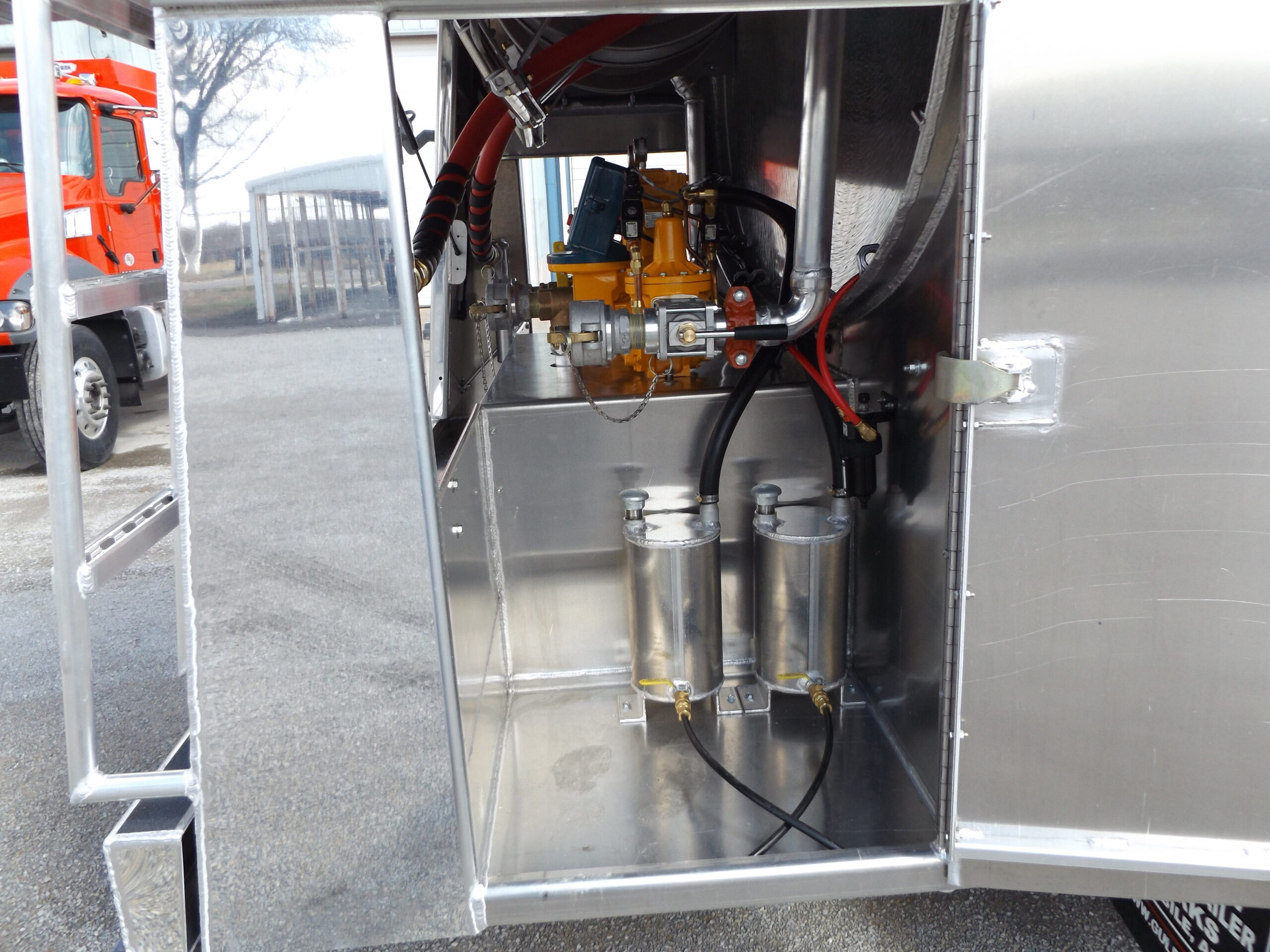

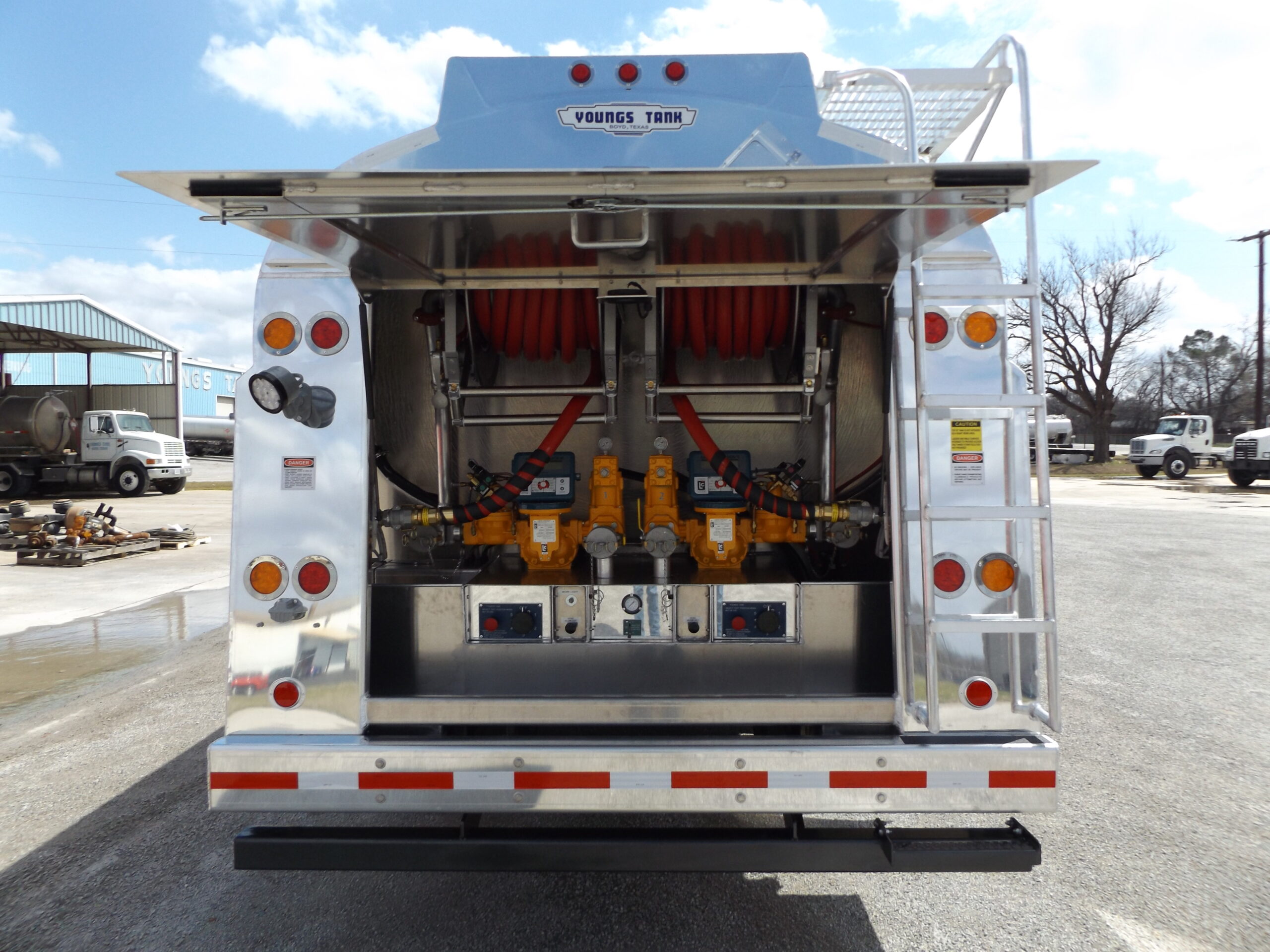

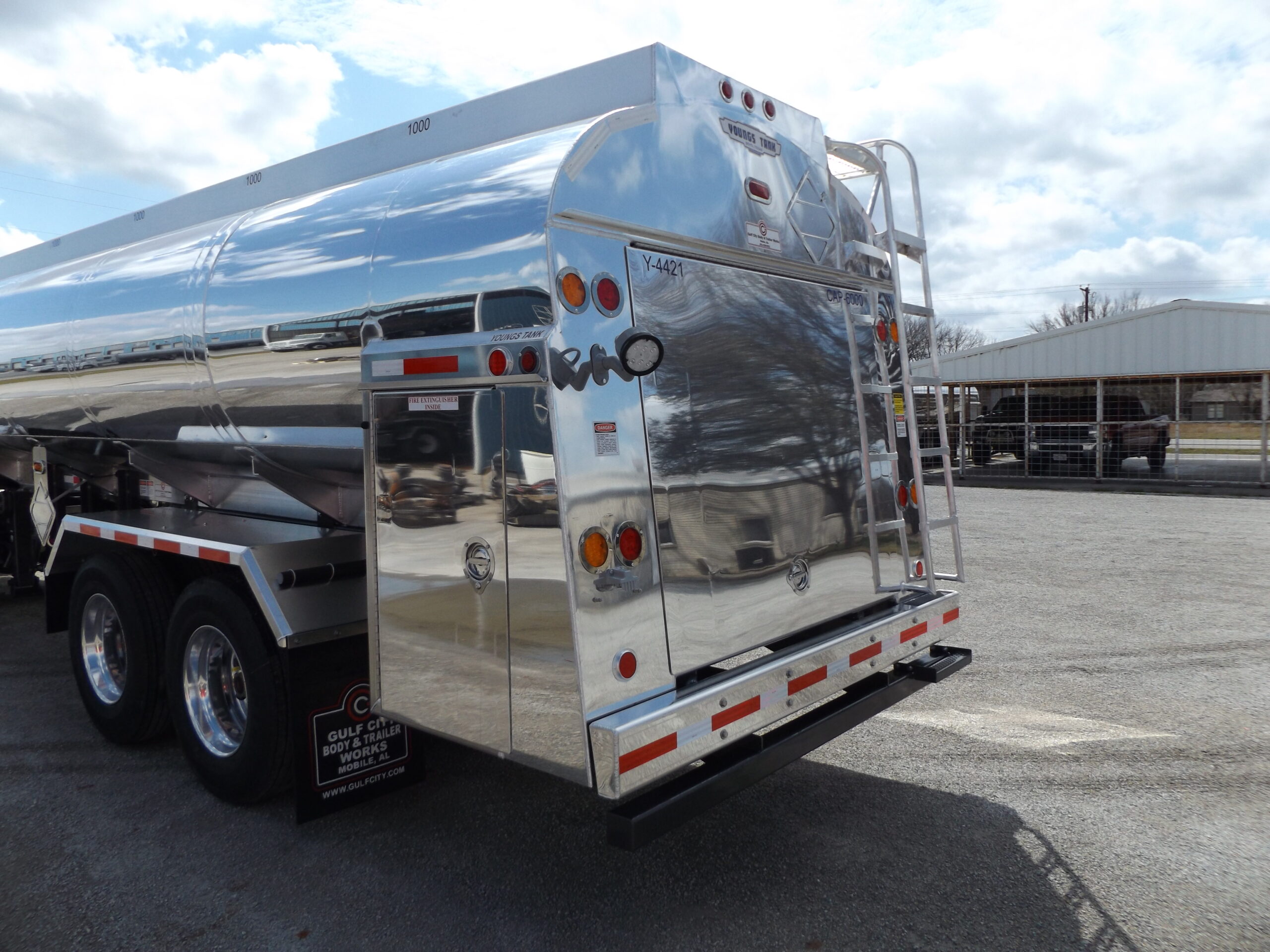

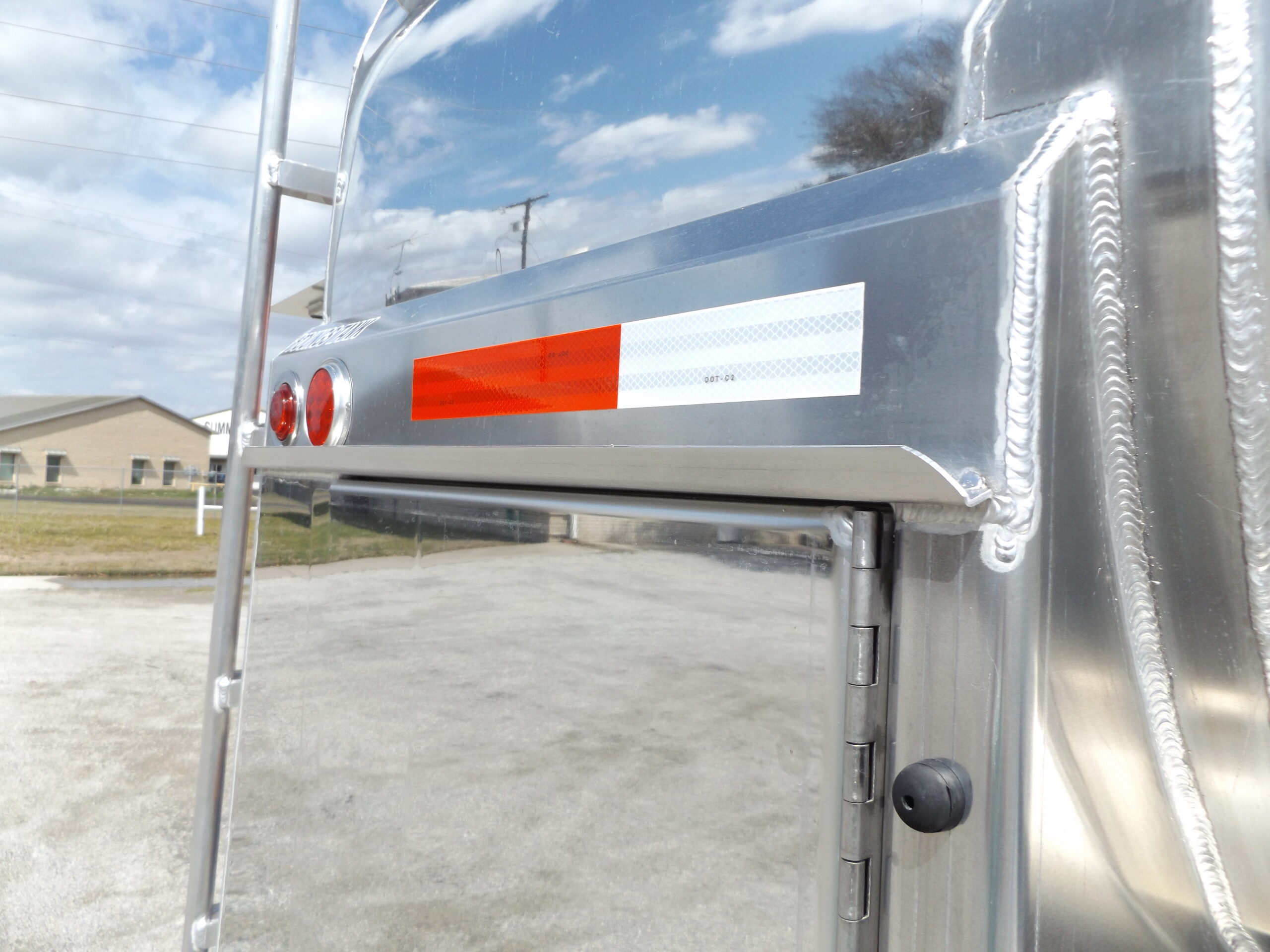

Cabinets

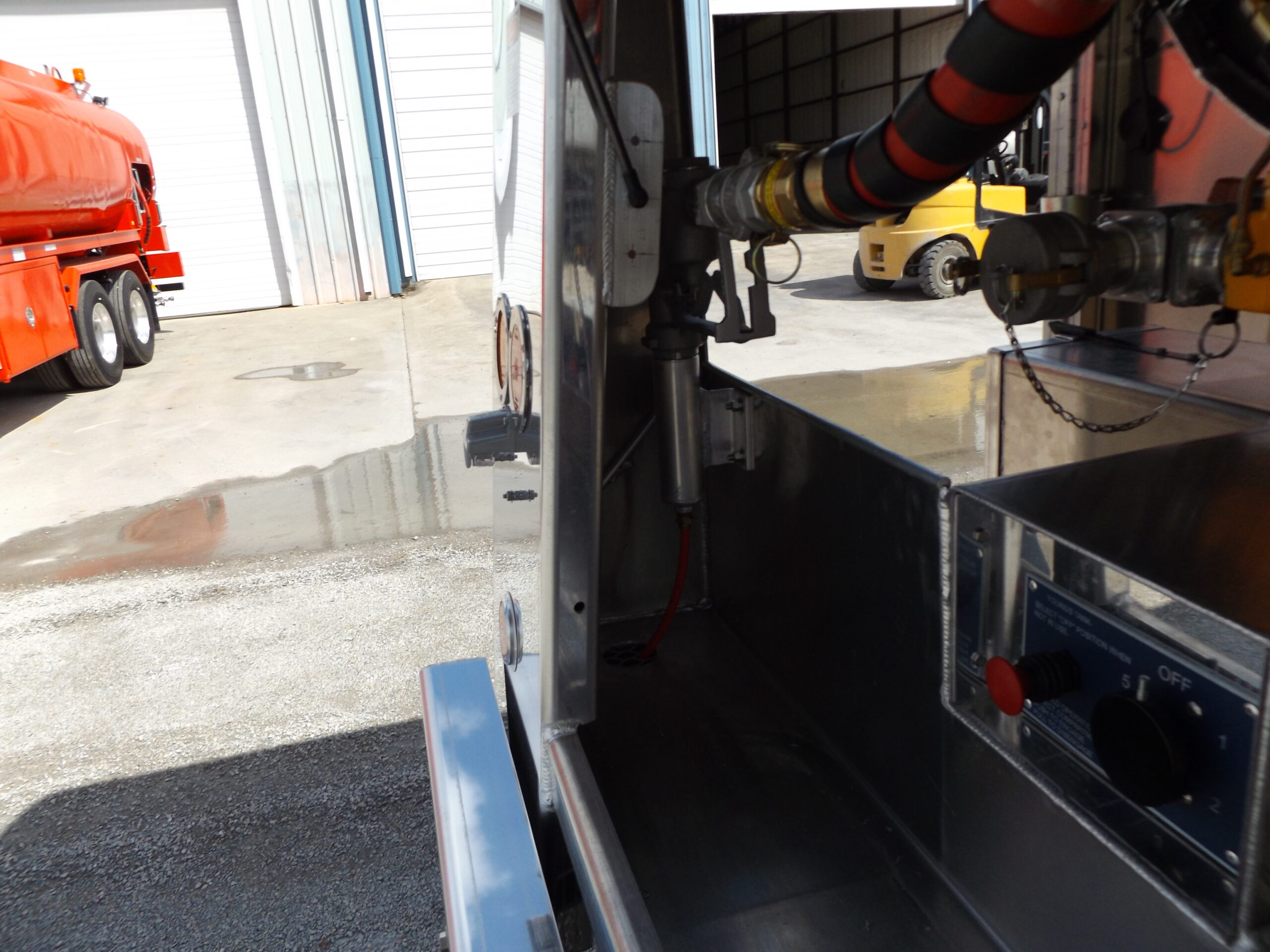

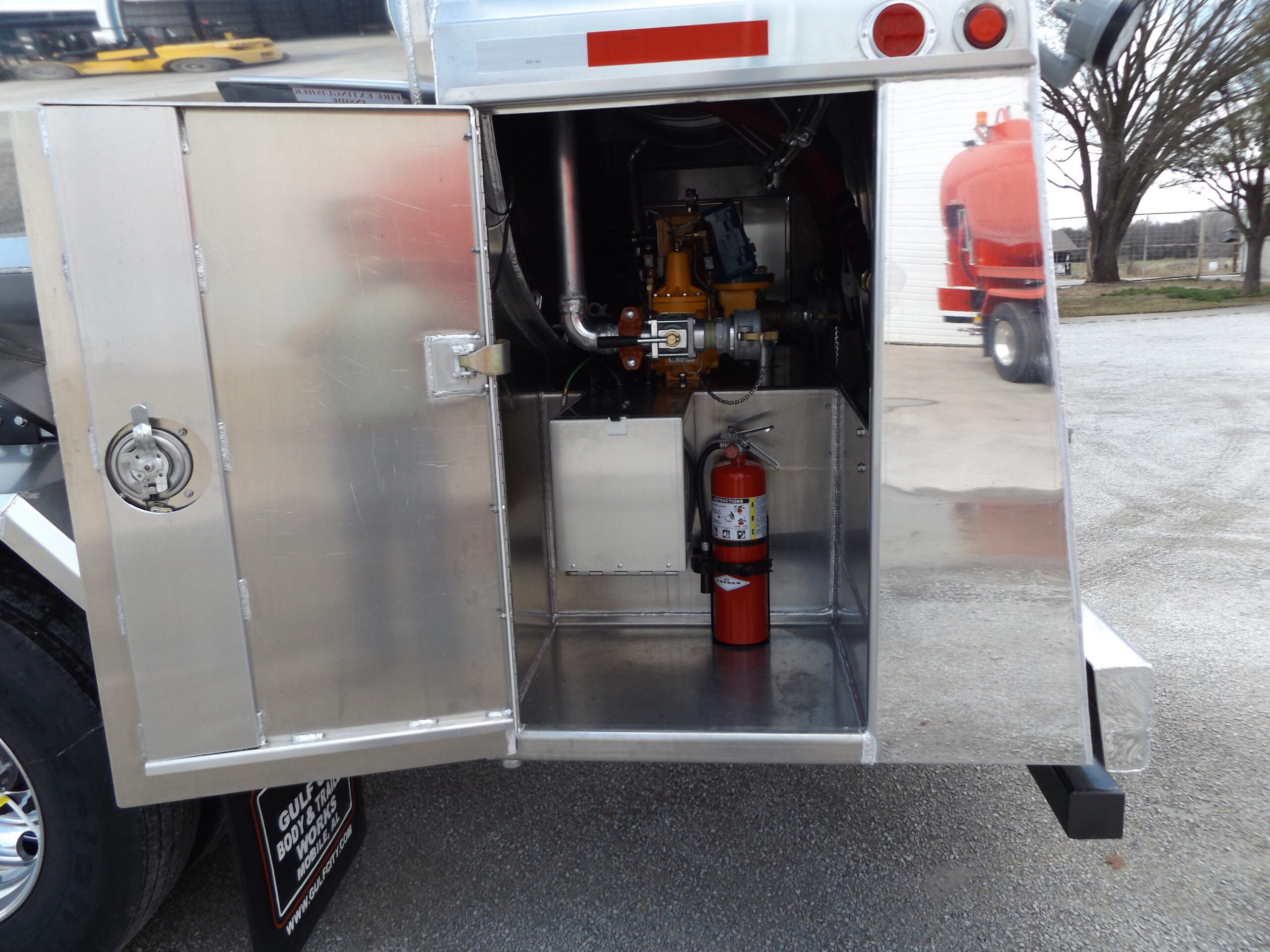

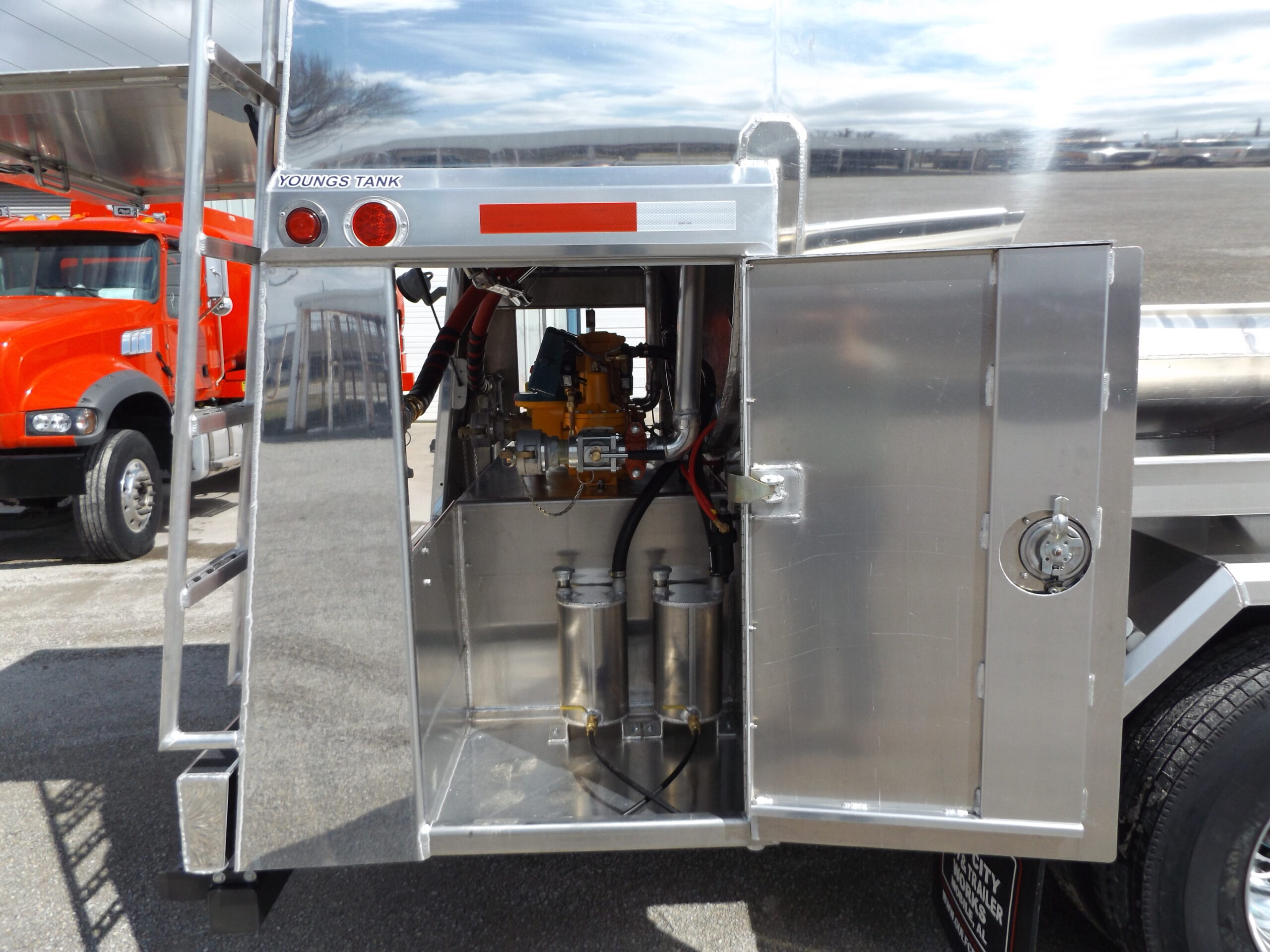

(1) Rear cabinet with lift-up door supported by gas springs; additional cabinets on each side of rear

Strapping

Texas Regulation (6,000 and 5,400 gallons); not approved by Weights and Measures

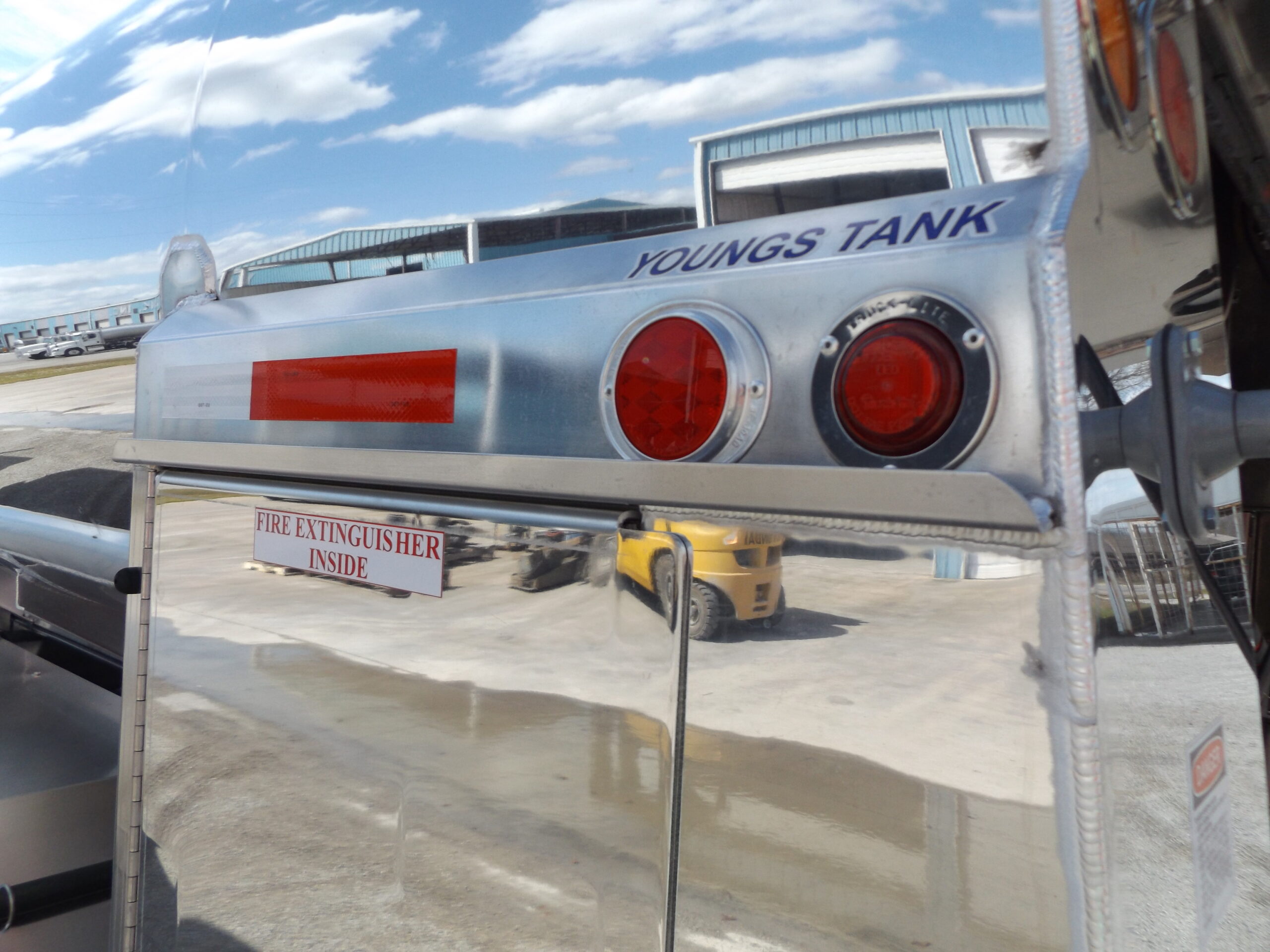

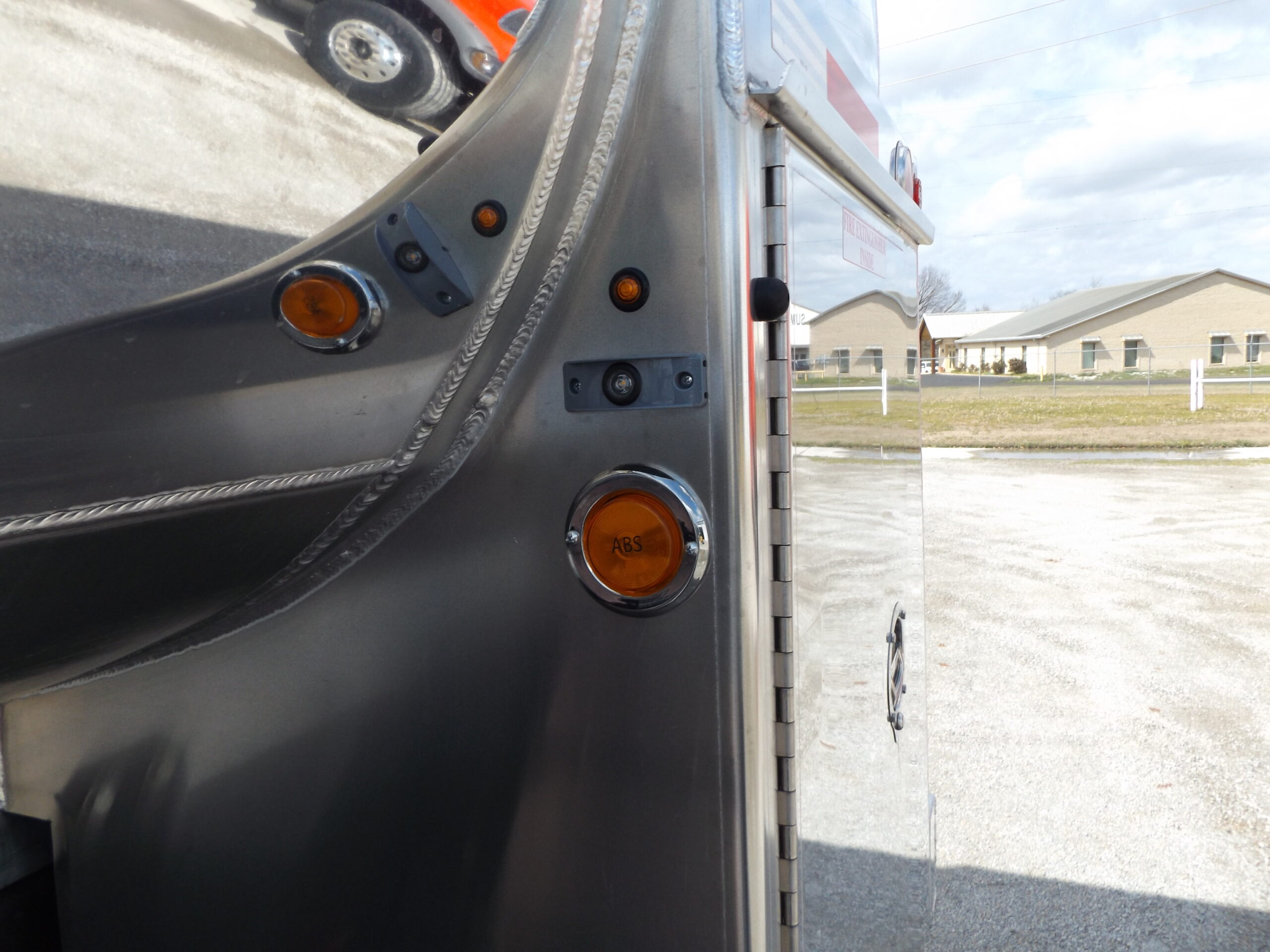

Lights

Truck-Lite LED system with DOT reflectors

Markers

(2) Per compartment, set at rated capacity (not sealed); static cables

Paint & Number

Steel parts painted

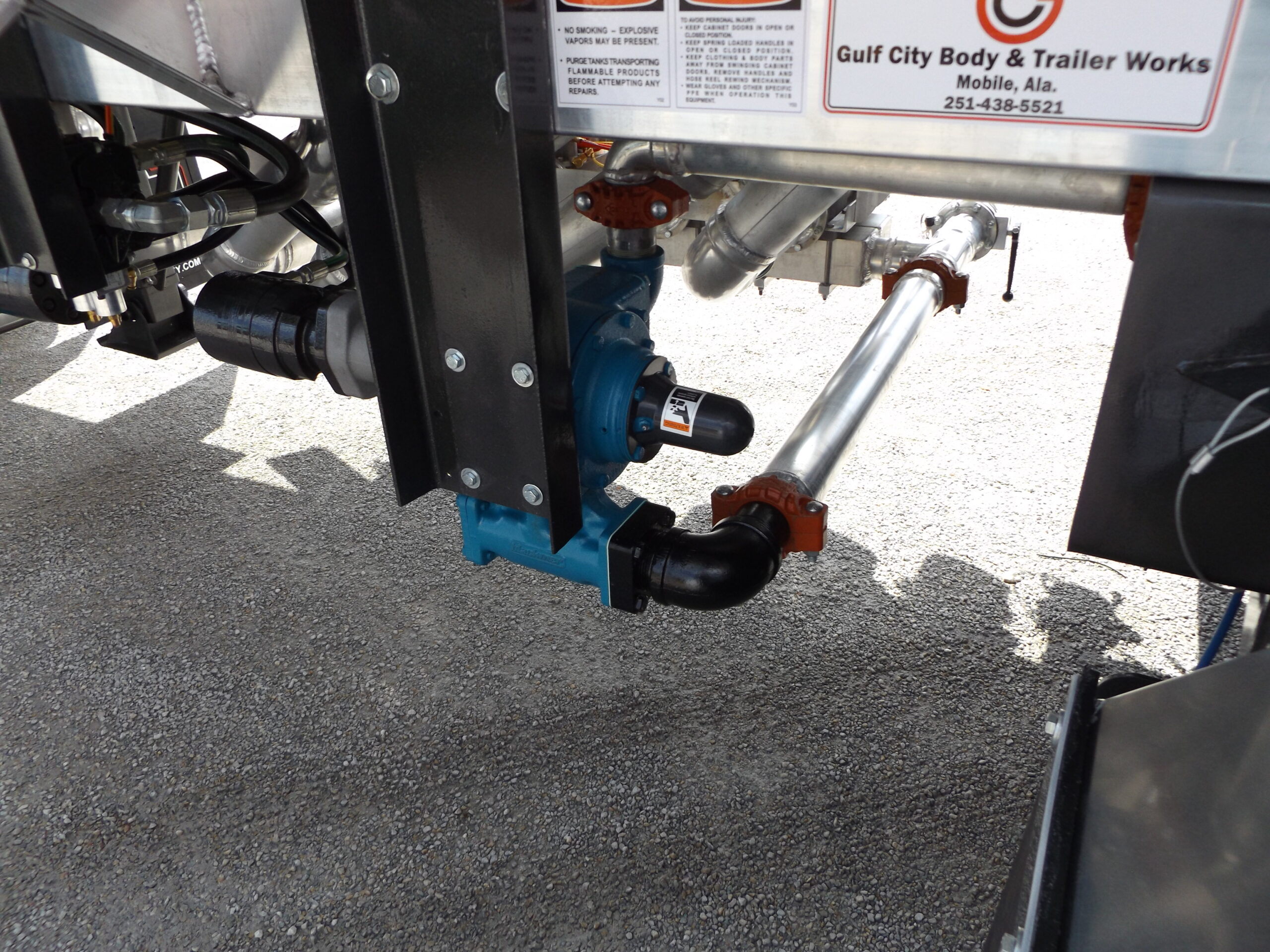

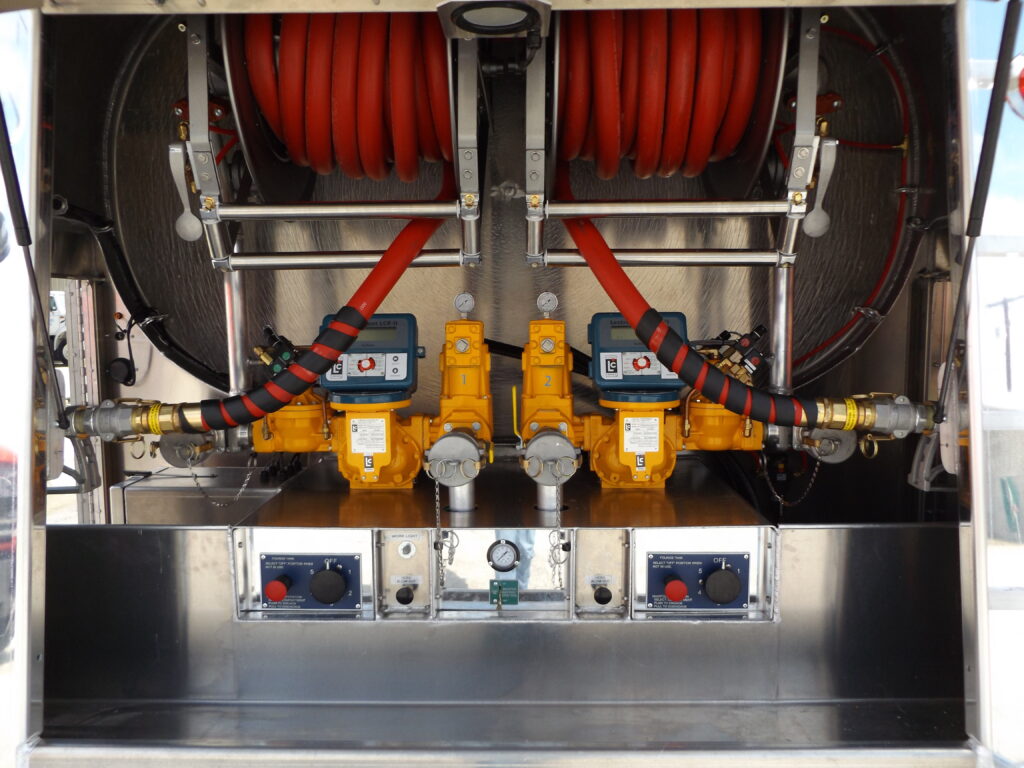

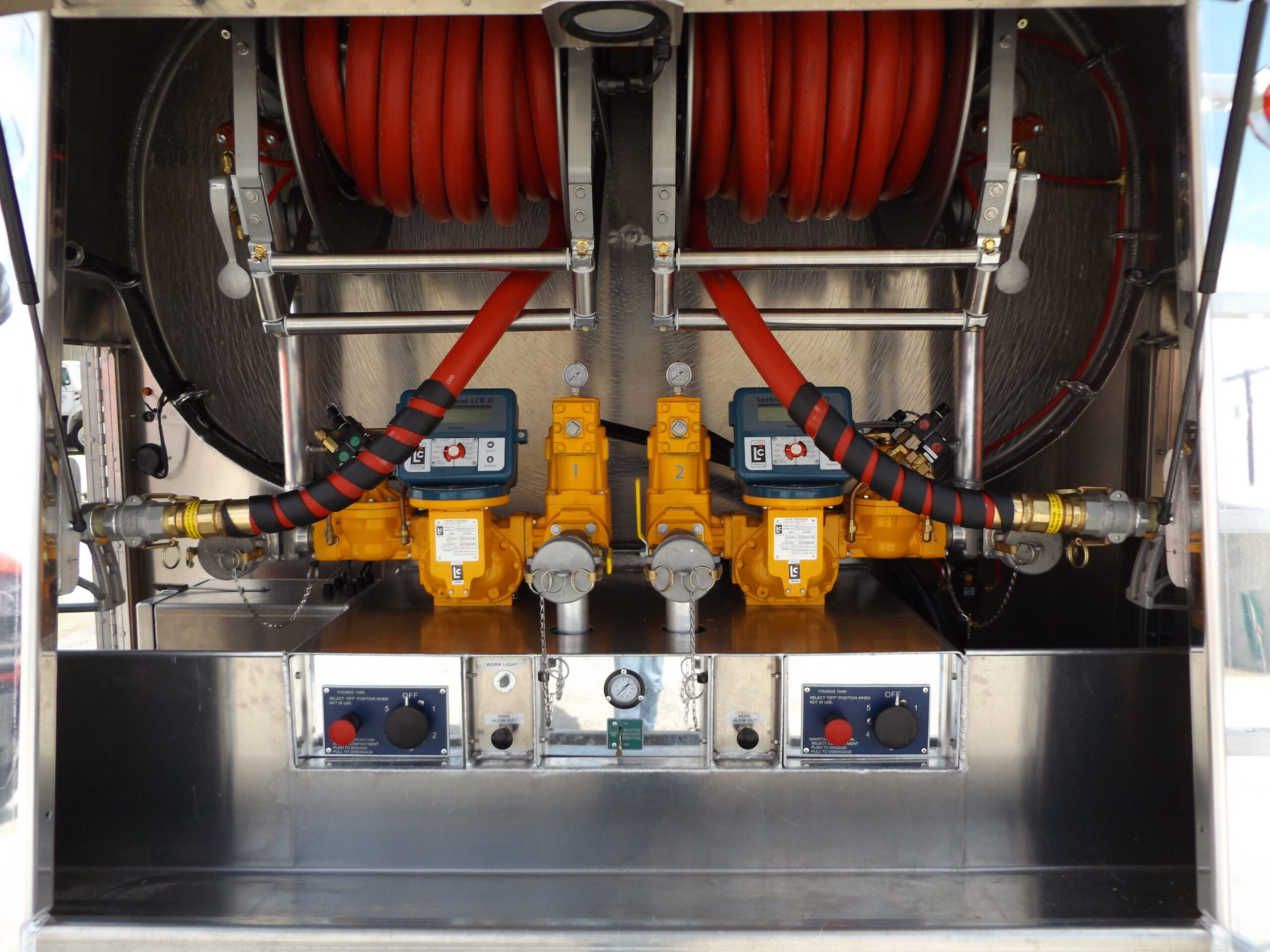

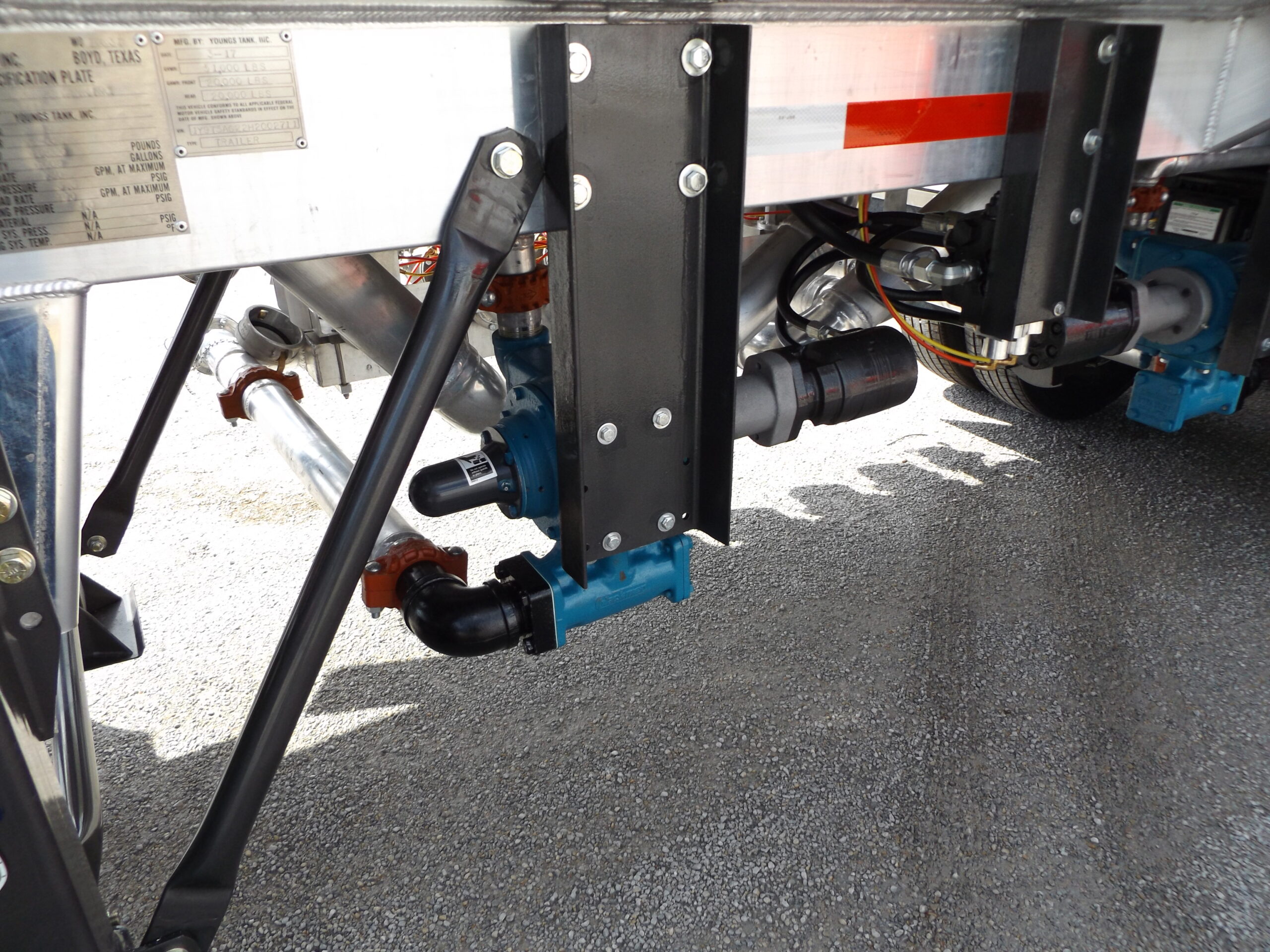

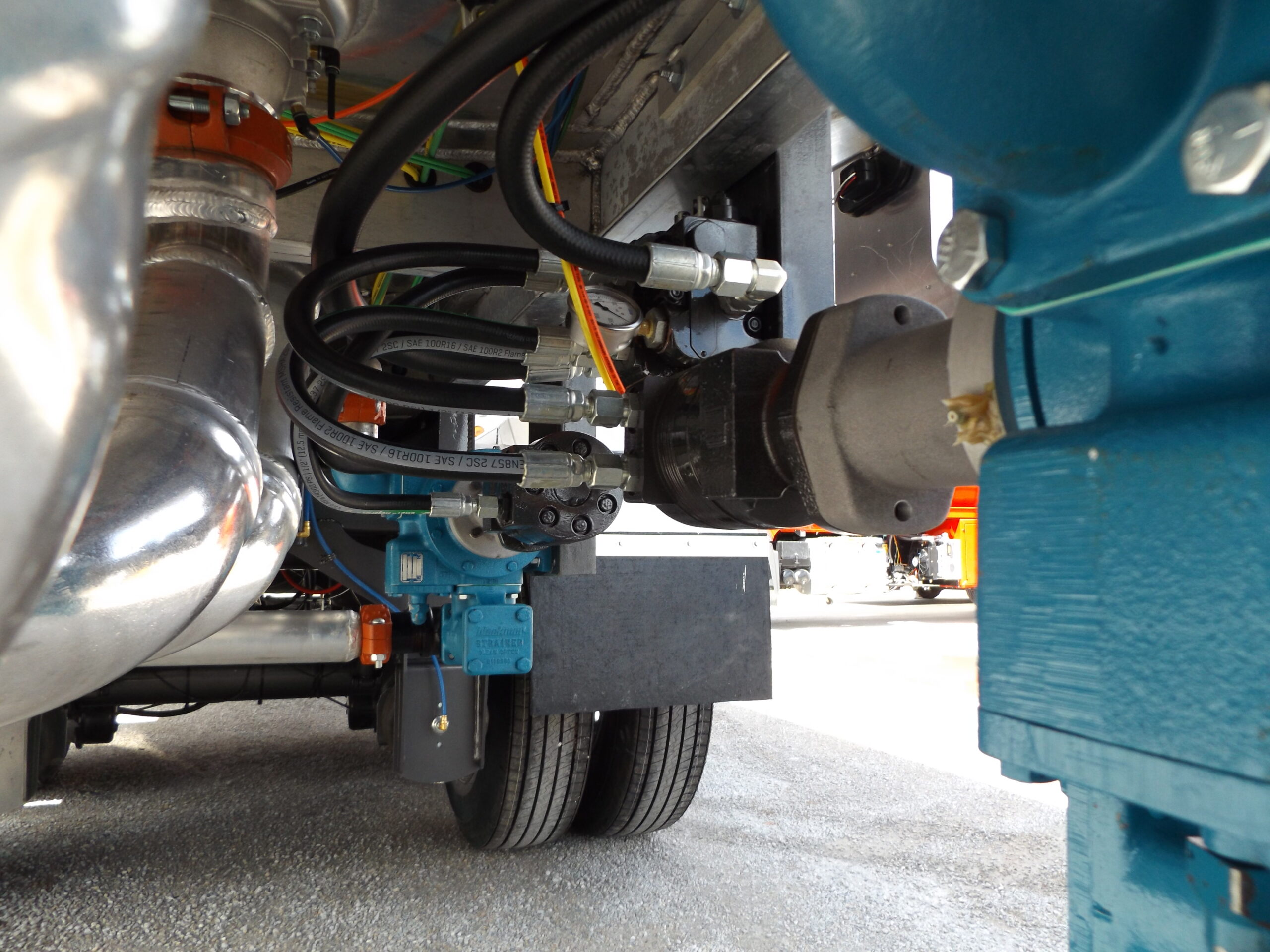

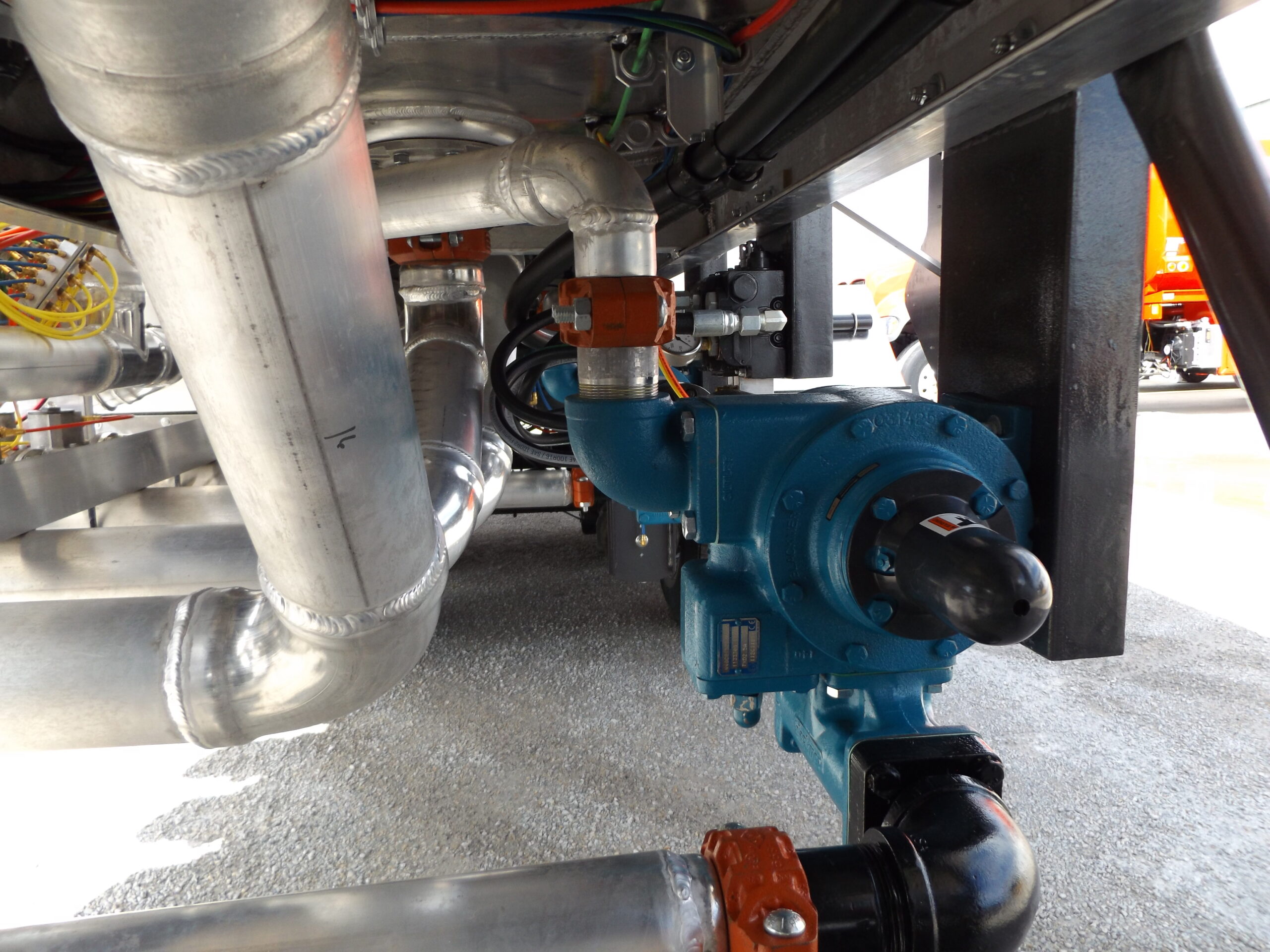

Pump

Single pumping, delivery at rear

Special Equipment

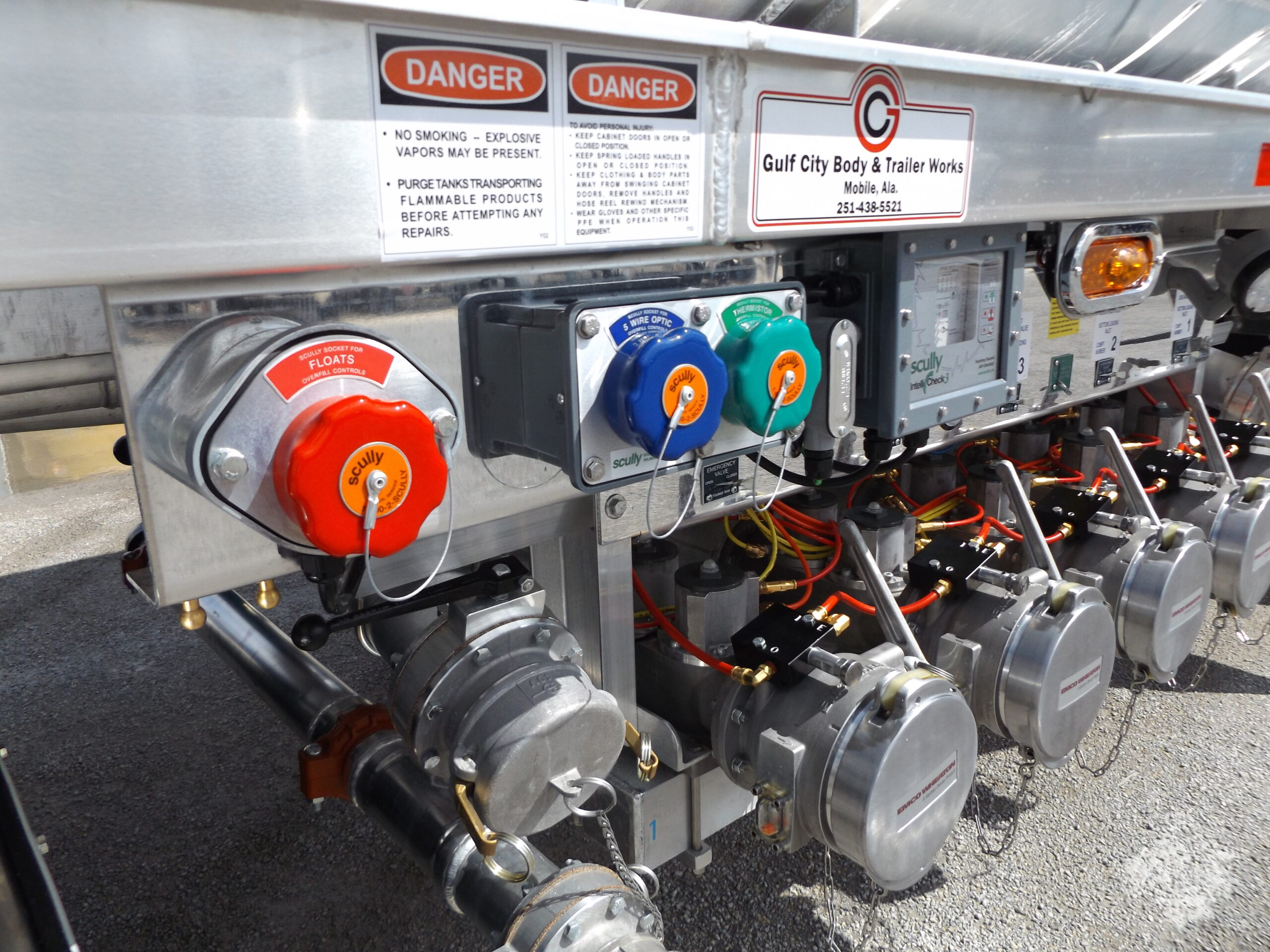

– Bottom loading with vapor recovery system at rear
– Outlets each side of bottom load adapters
– Scully IntelliCheck Overfill with (2) sockets
– Auxiliary input tied to vent system (vents must be open for Scully permit)
– Limit switch on rear vapor
– Float socket
– Ground Hog
– (2) Pair brass static lugs
– (4) Placards
– Rear cabinet light
– DOT tests and inspections
– ¼” theoretical calibration chart
– DOT plate
– Lift axle
