Youngs tank 5000gallon

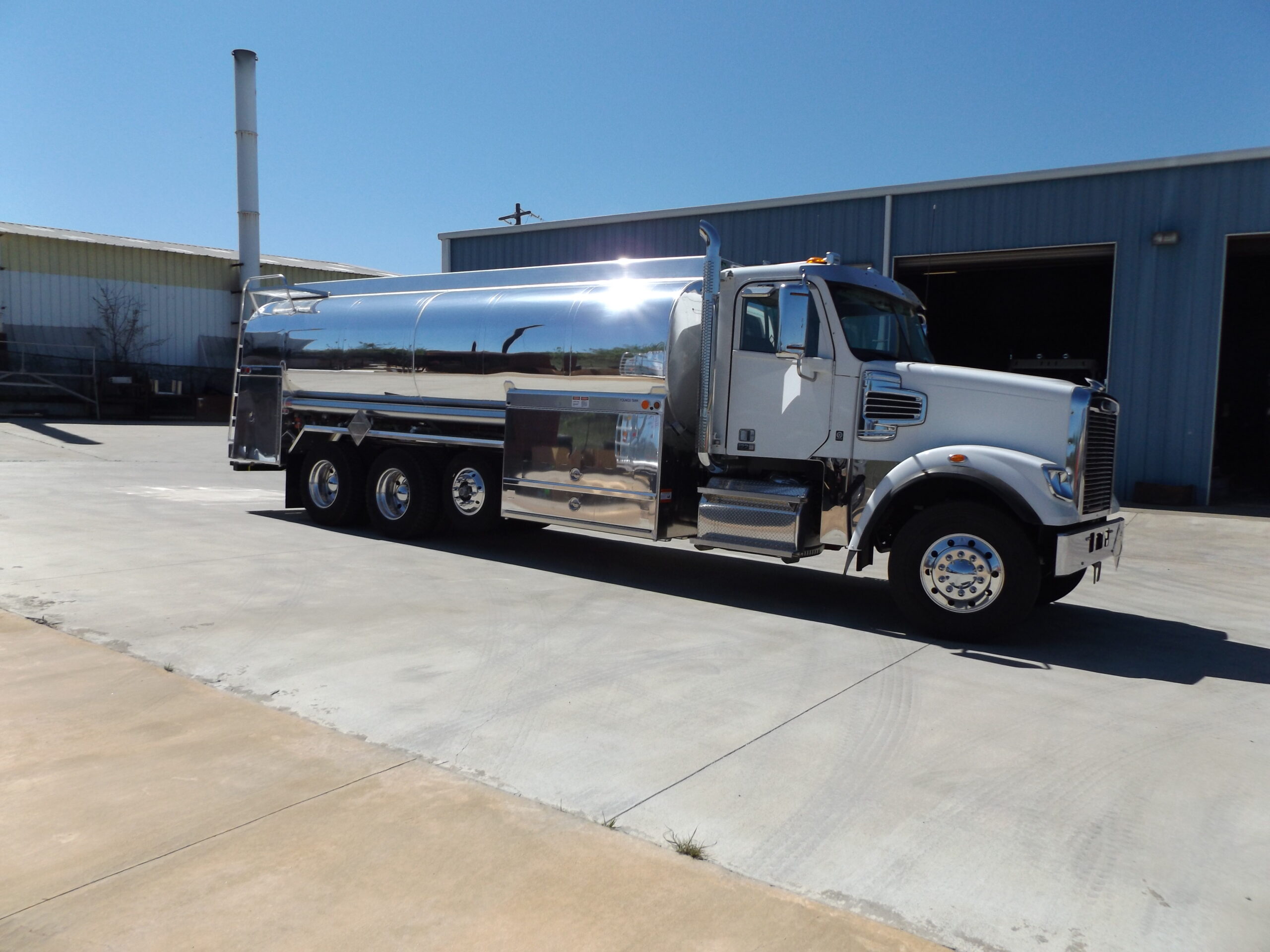

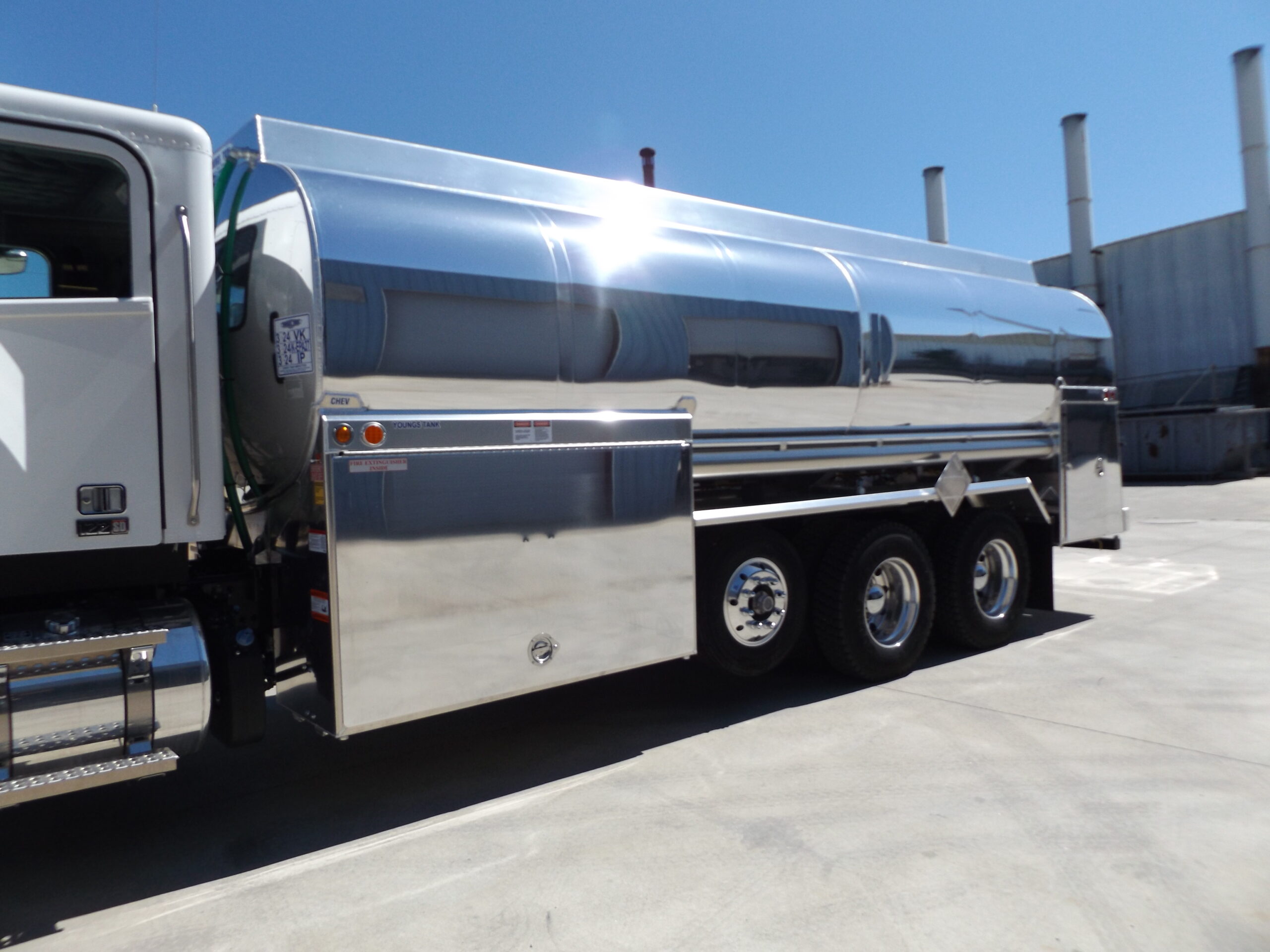

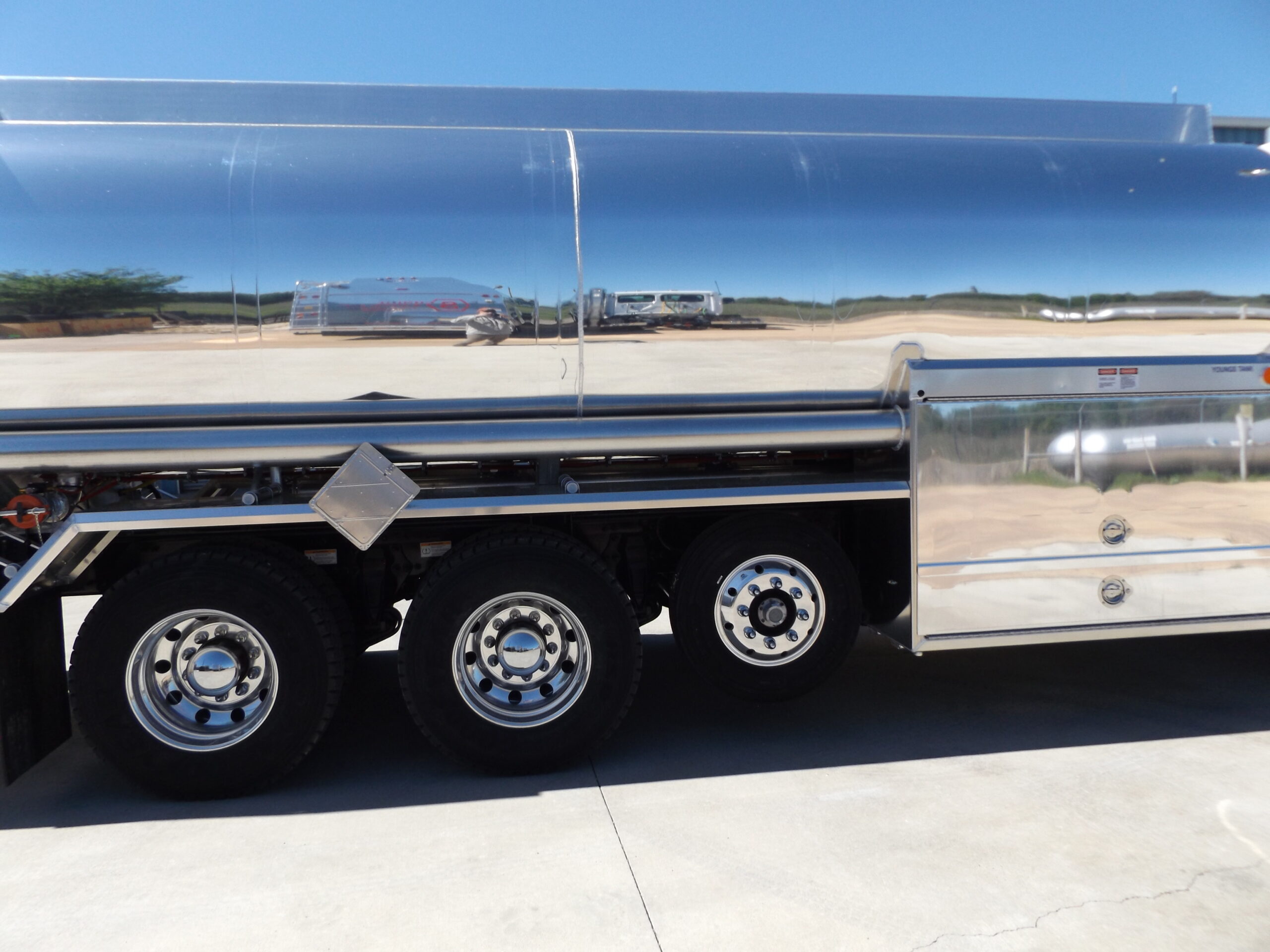

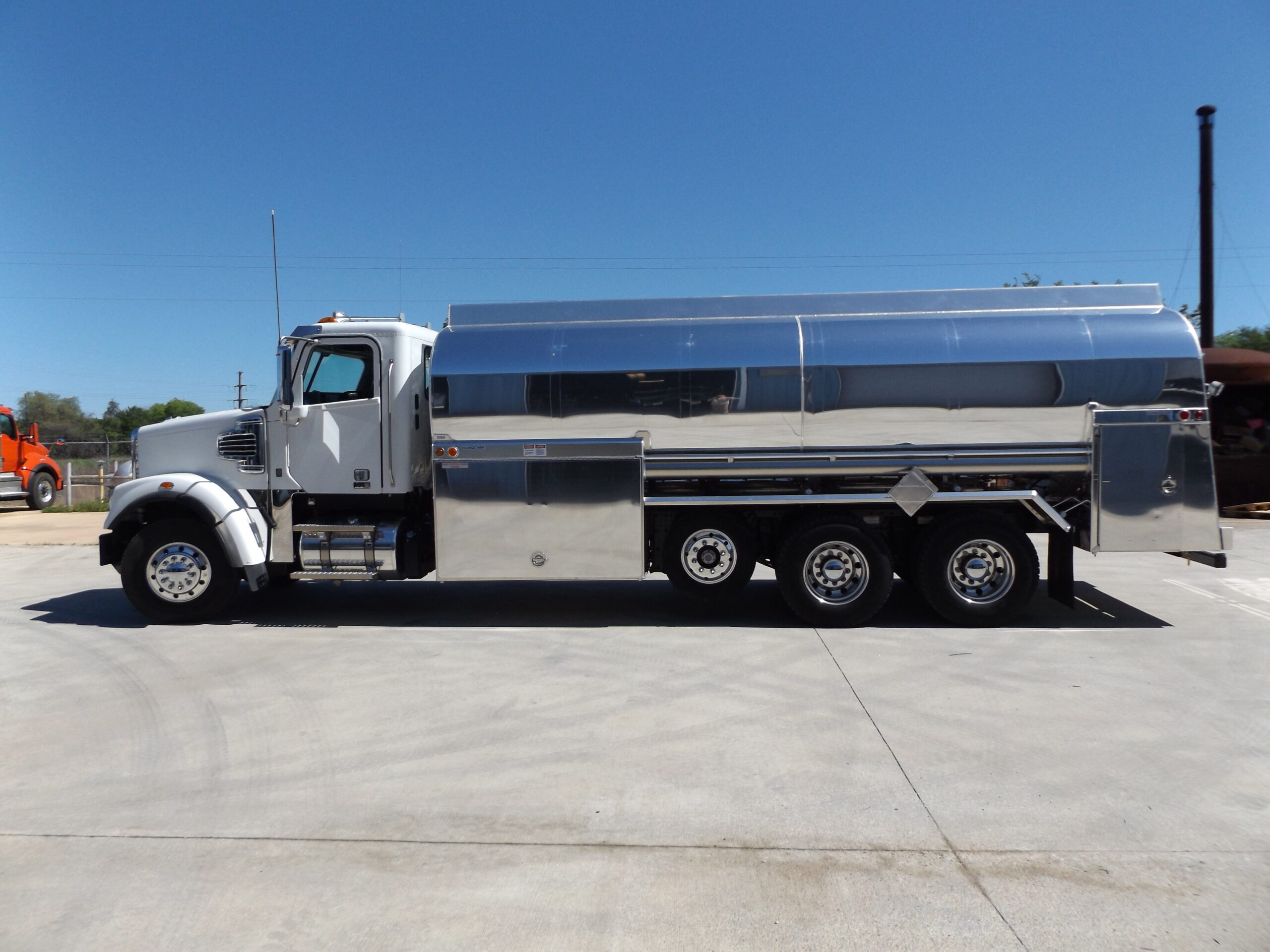

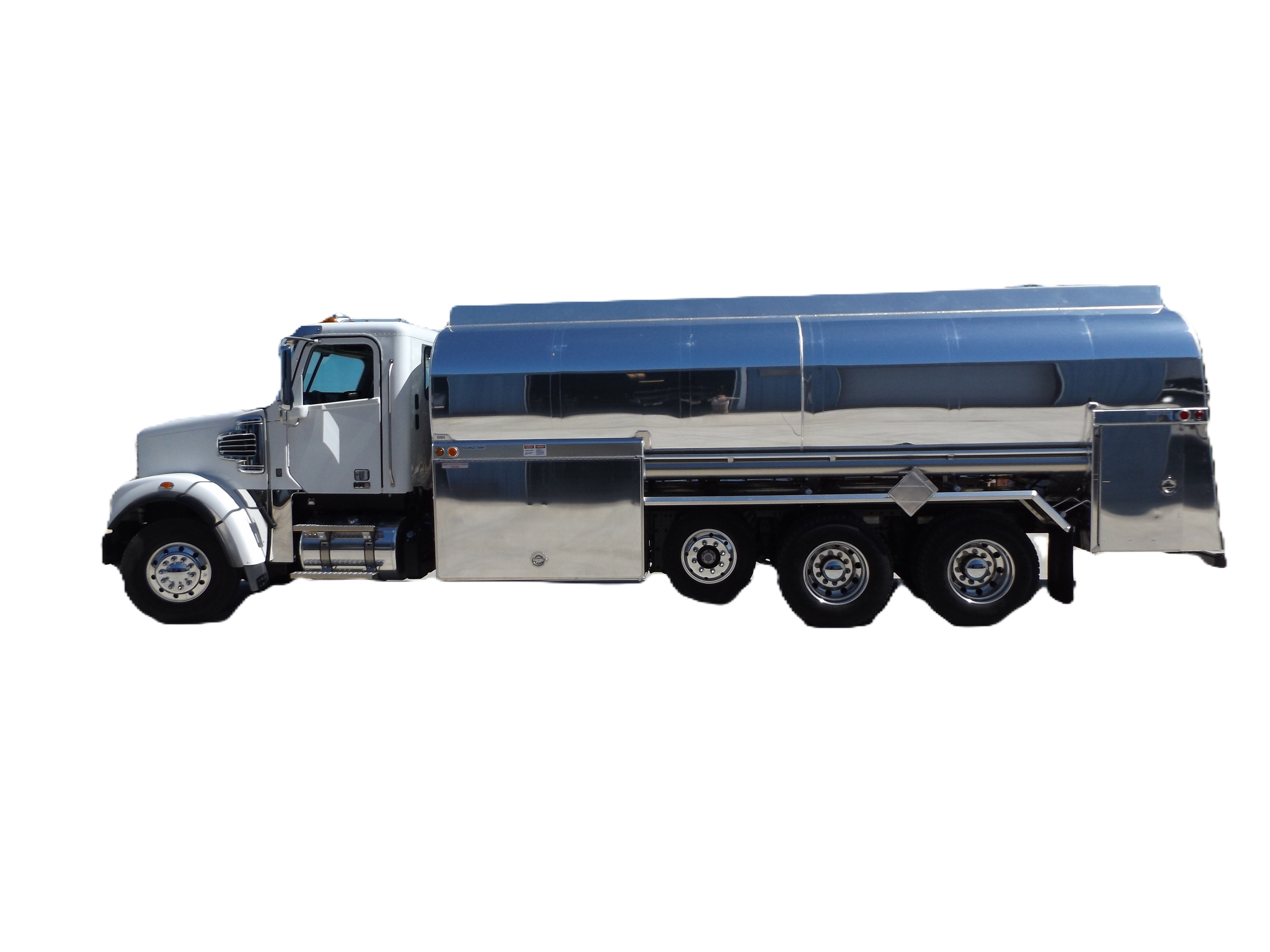

5 Compartment 5000 Gallon Bobtail Tank

This durable 5-compartment, 5,000-gallon tank is built for efficient liquid transport and optimized product separation. Designed for performance, reliability, and compliance, it’s ideal for multi-product delivery applications.

Product Gallery

Specifications

Type

Straight Elliptical Truck Tank

Capacity

5,000 Gallons

Plus

75 Gallons (Chevron Specifications)

DOT MC

406

Commodity

Petroleum Products

Average Weight

6.7 lbs/gallon

Construction

Aluminum 5454-H32 Shell (.190/.250″), 5454-O Heads (.190″) Bright Finish on Shell & End Heads

Number of compartments

5

Heads

Double

Compartment Specs

Tailored to Customer Needs

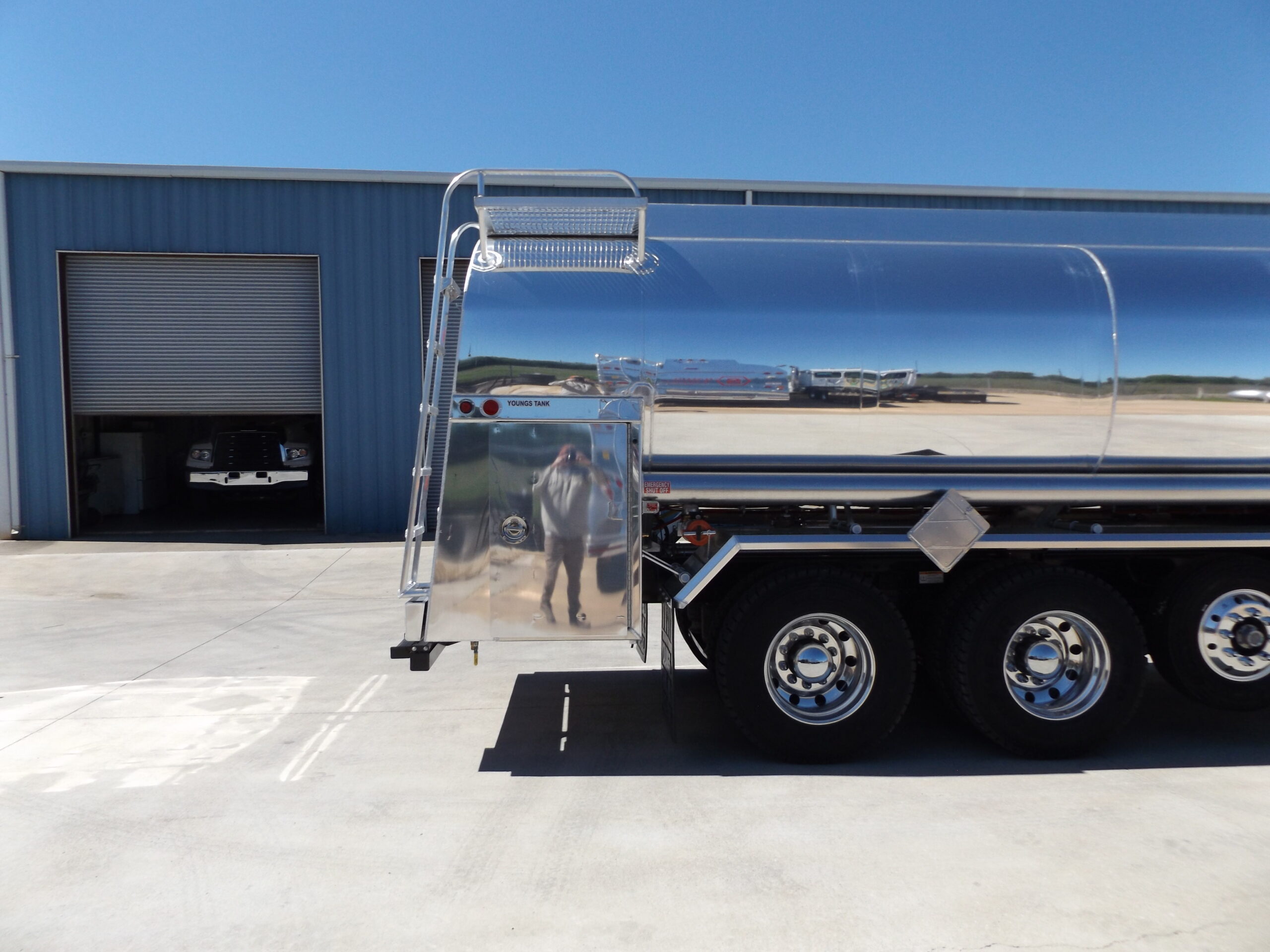

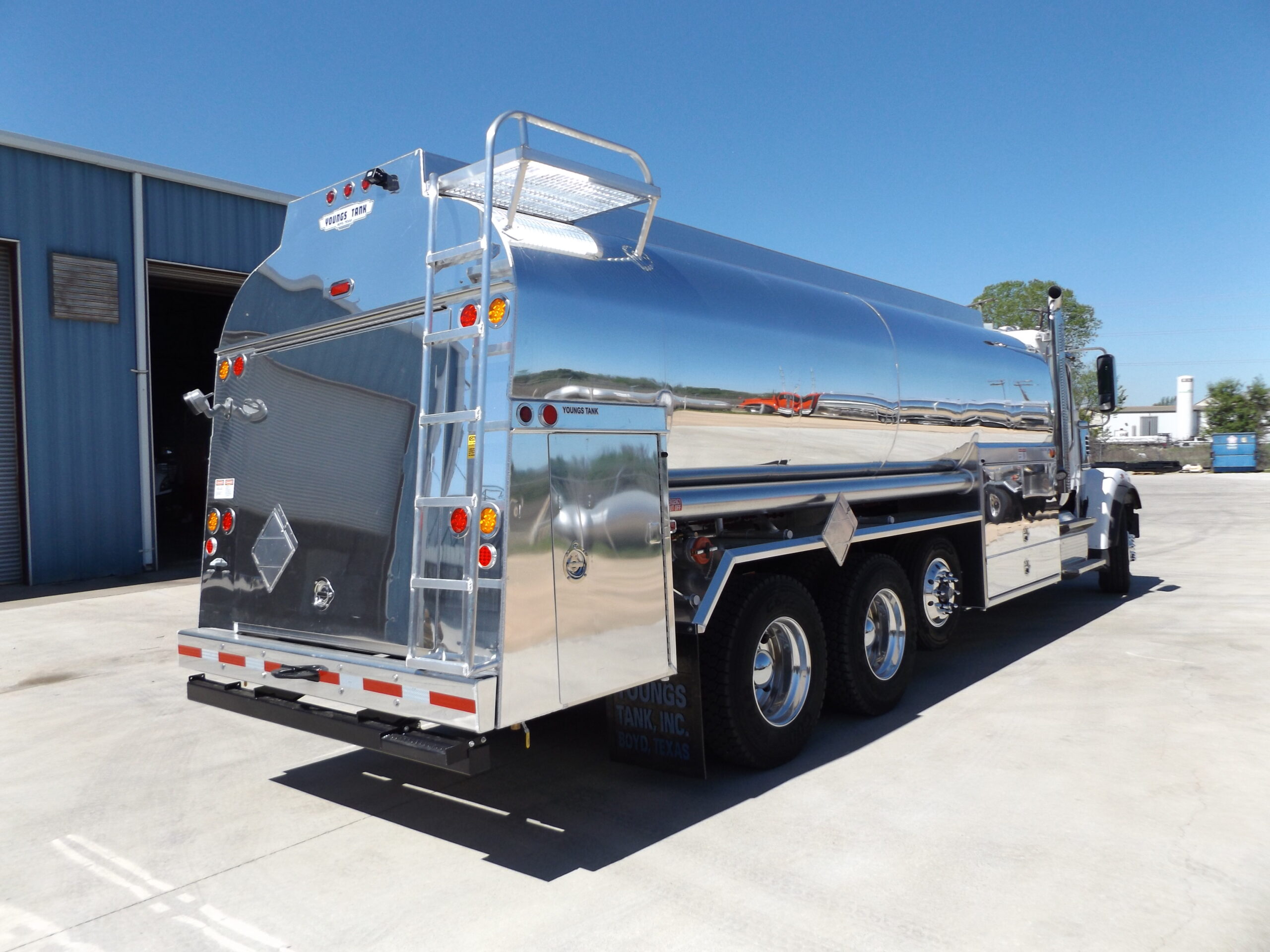

Ladder

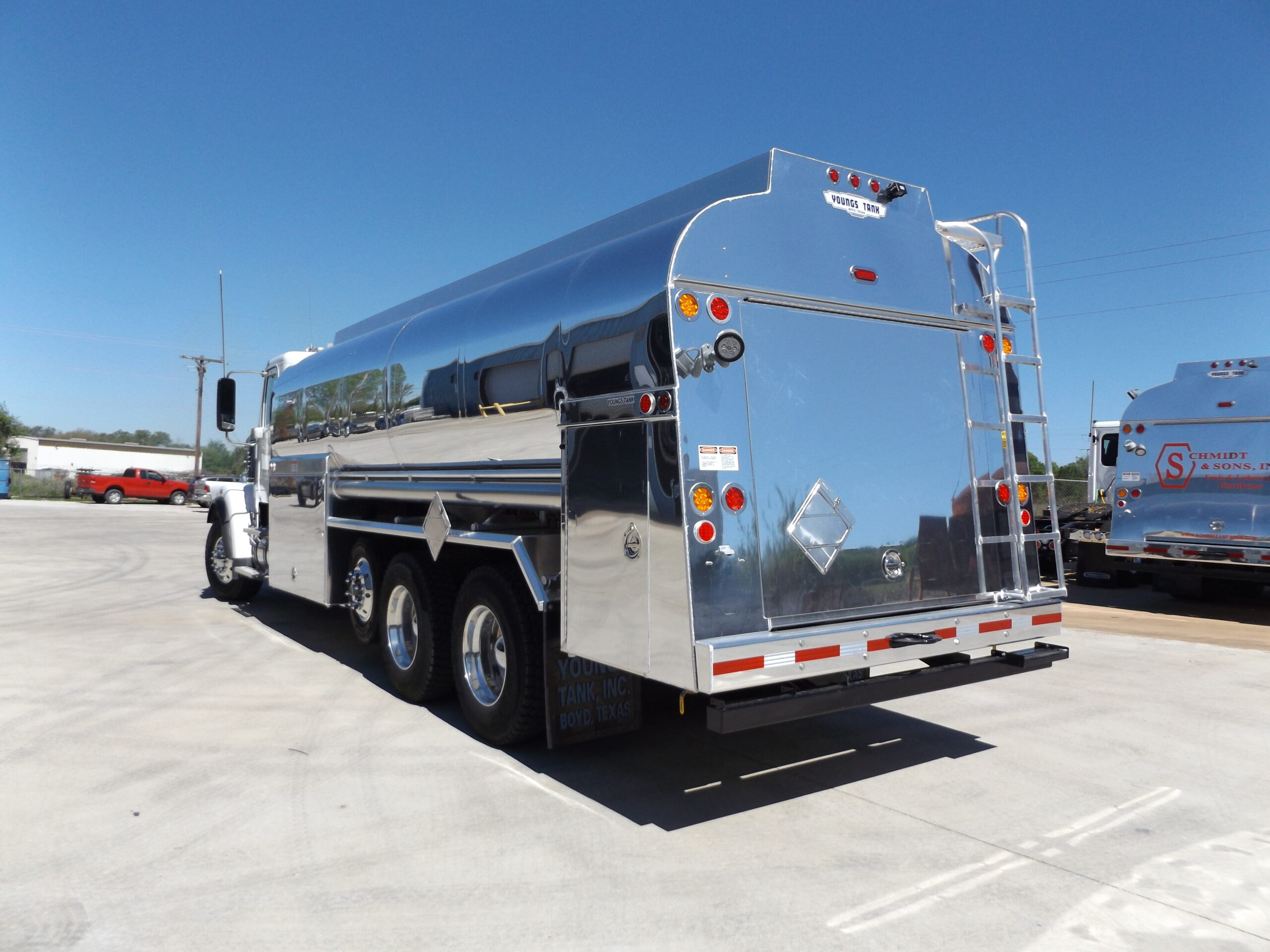

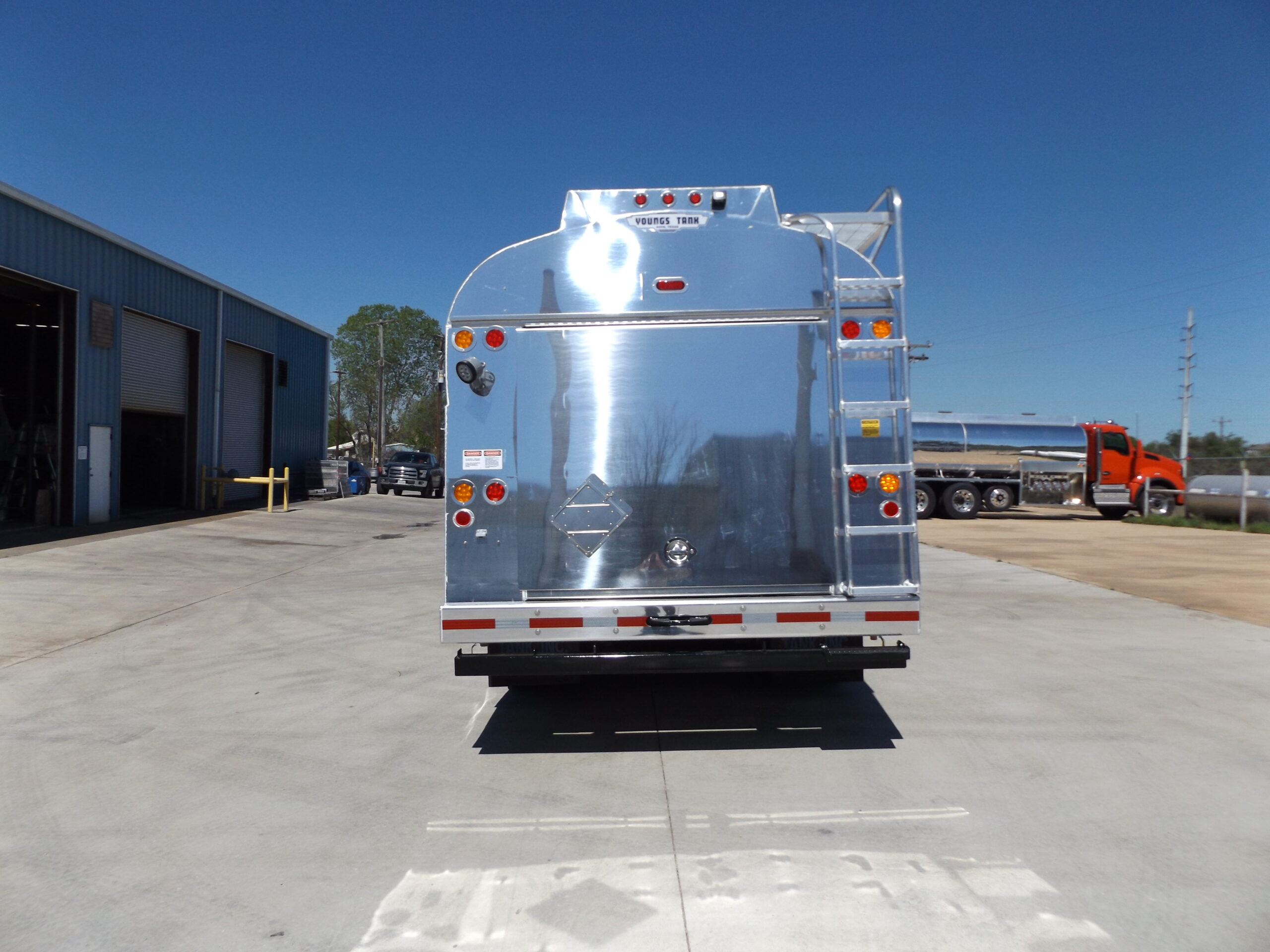

Rear-mounted

Bumper

DOT Specification – Aluminum

Fenders

Jeep Style

Mud Flaps

Yes

Hose Tubes

(1) 7″ each side, opens to tray in front cabinet

Piping

3″ Aluminum to curbside

Vents

3″ Emco Wheaton Sequential (Vapor Recovery)

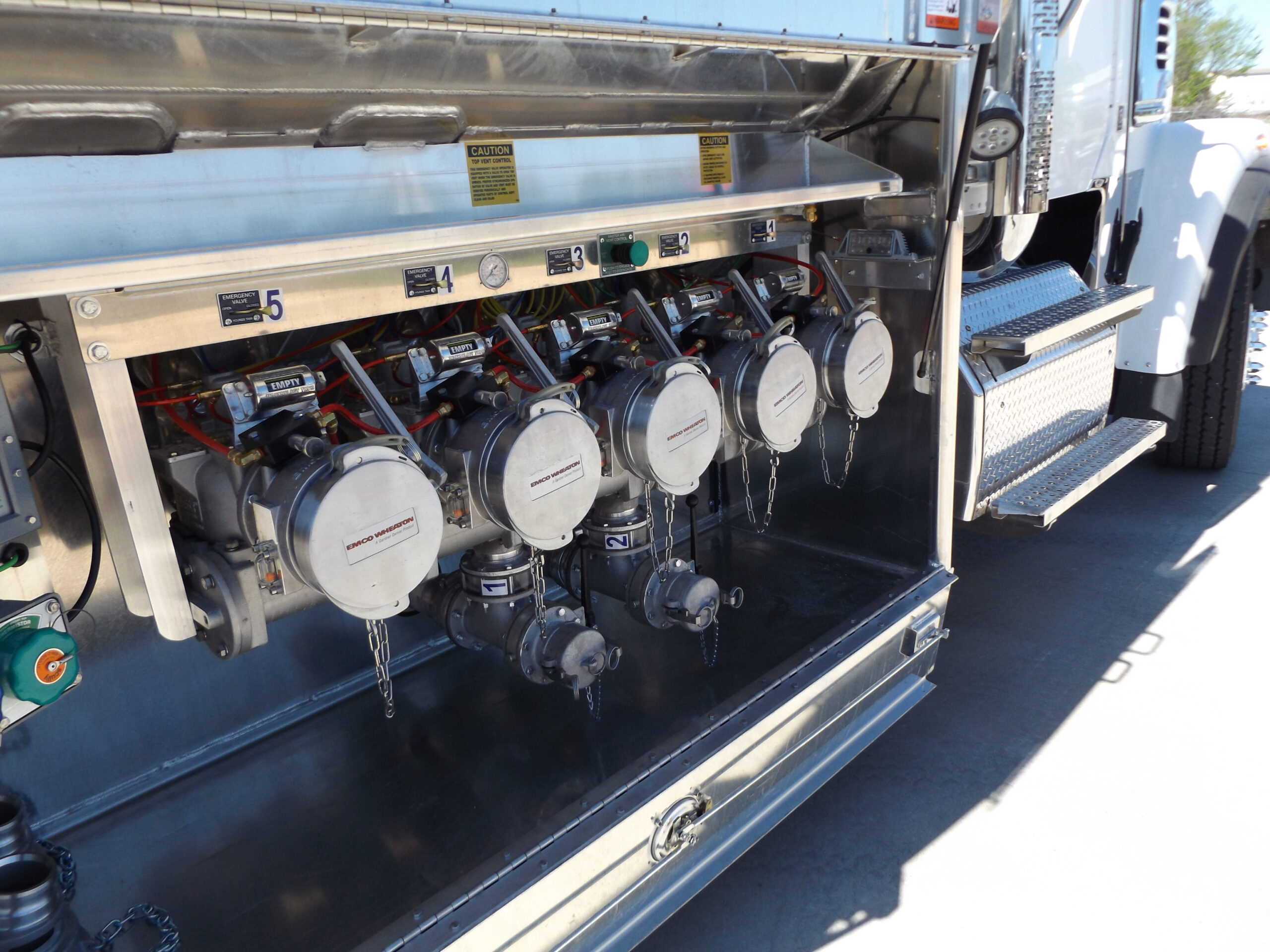

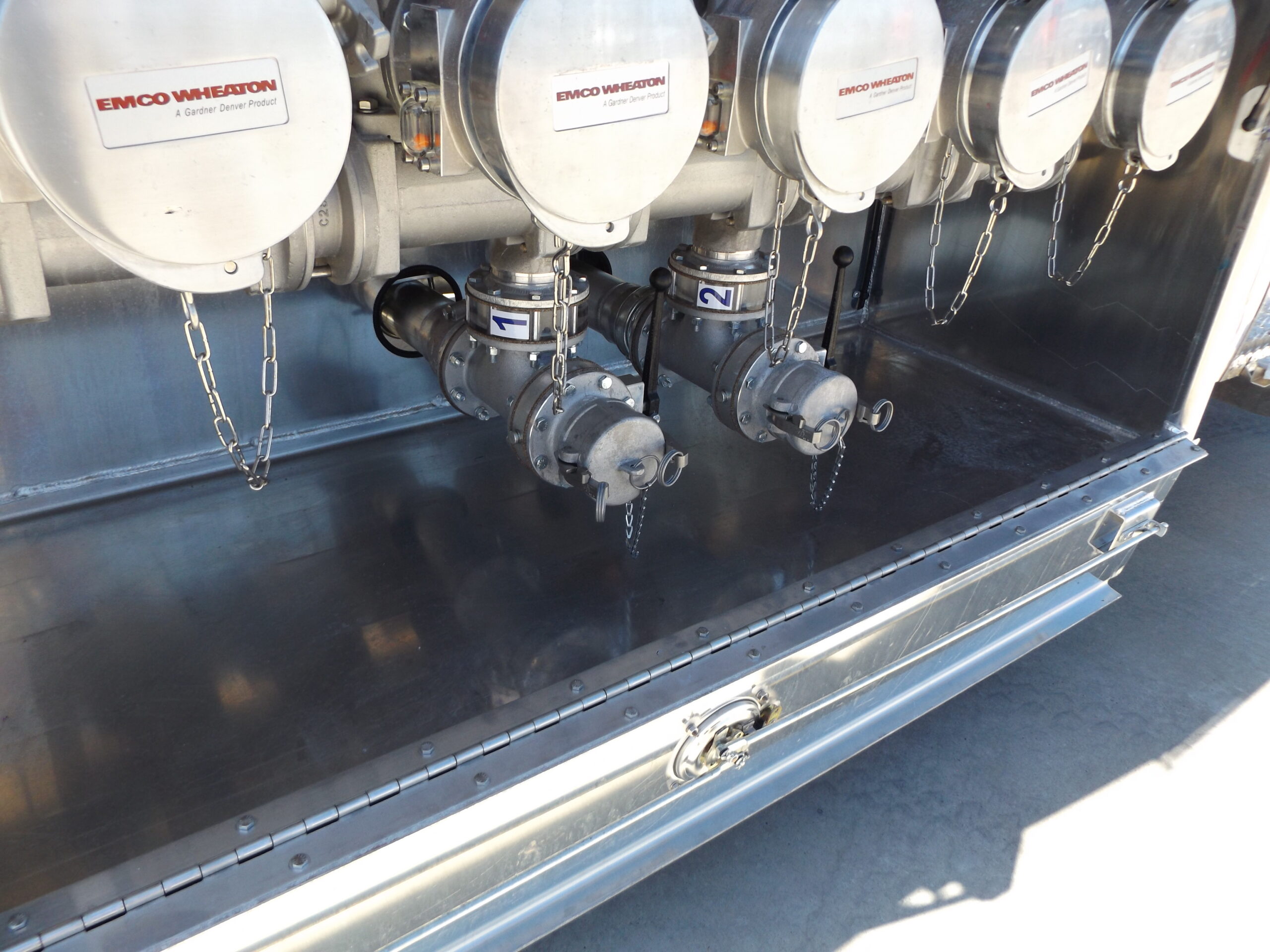

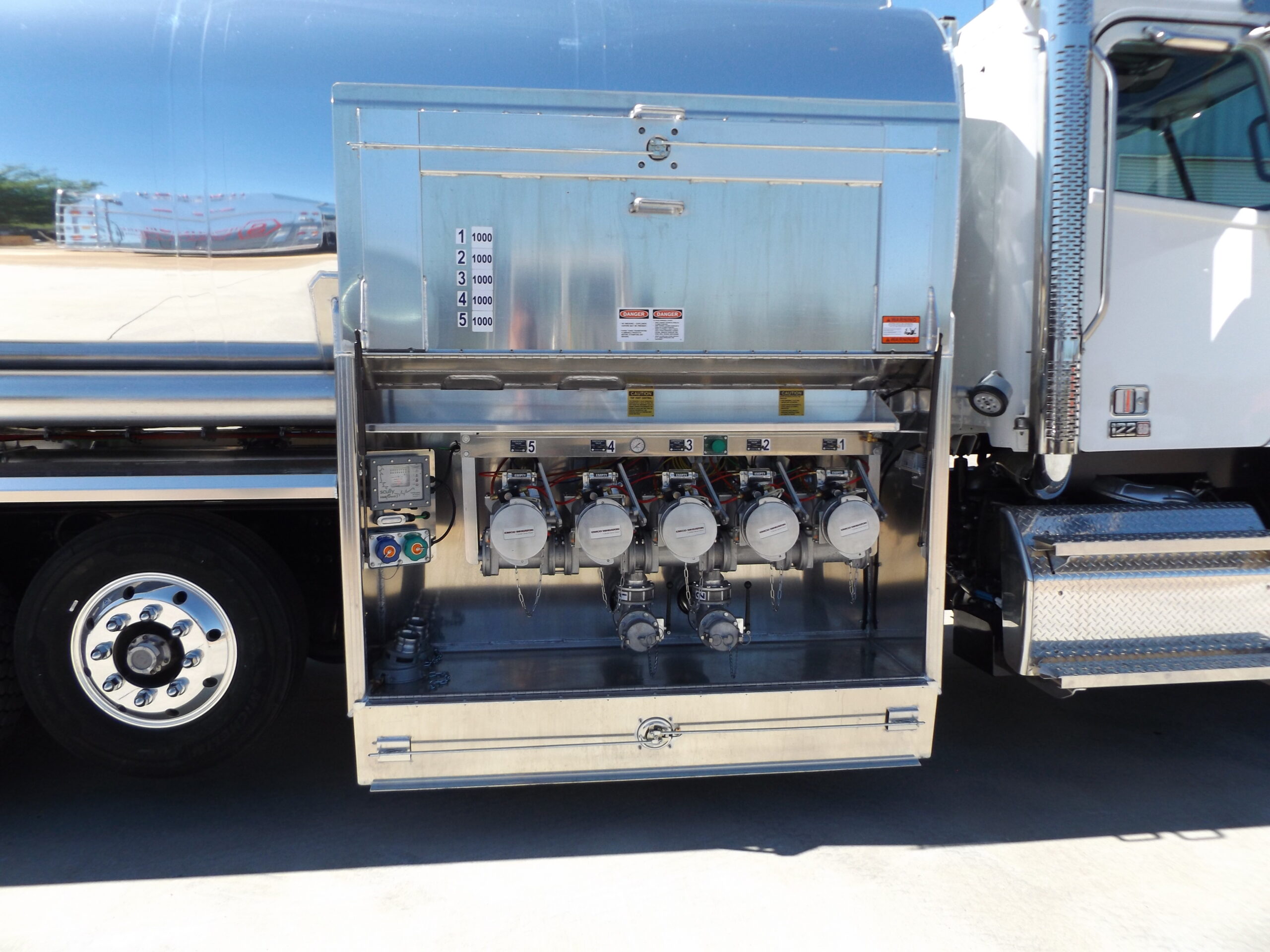

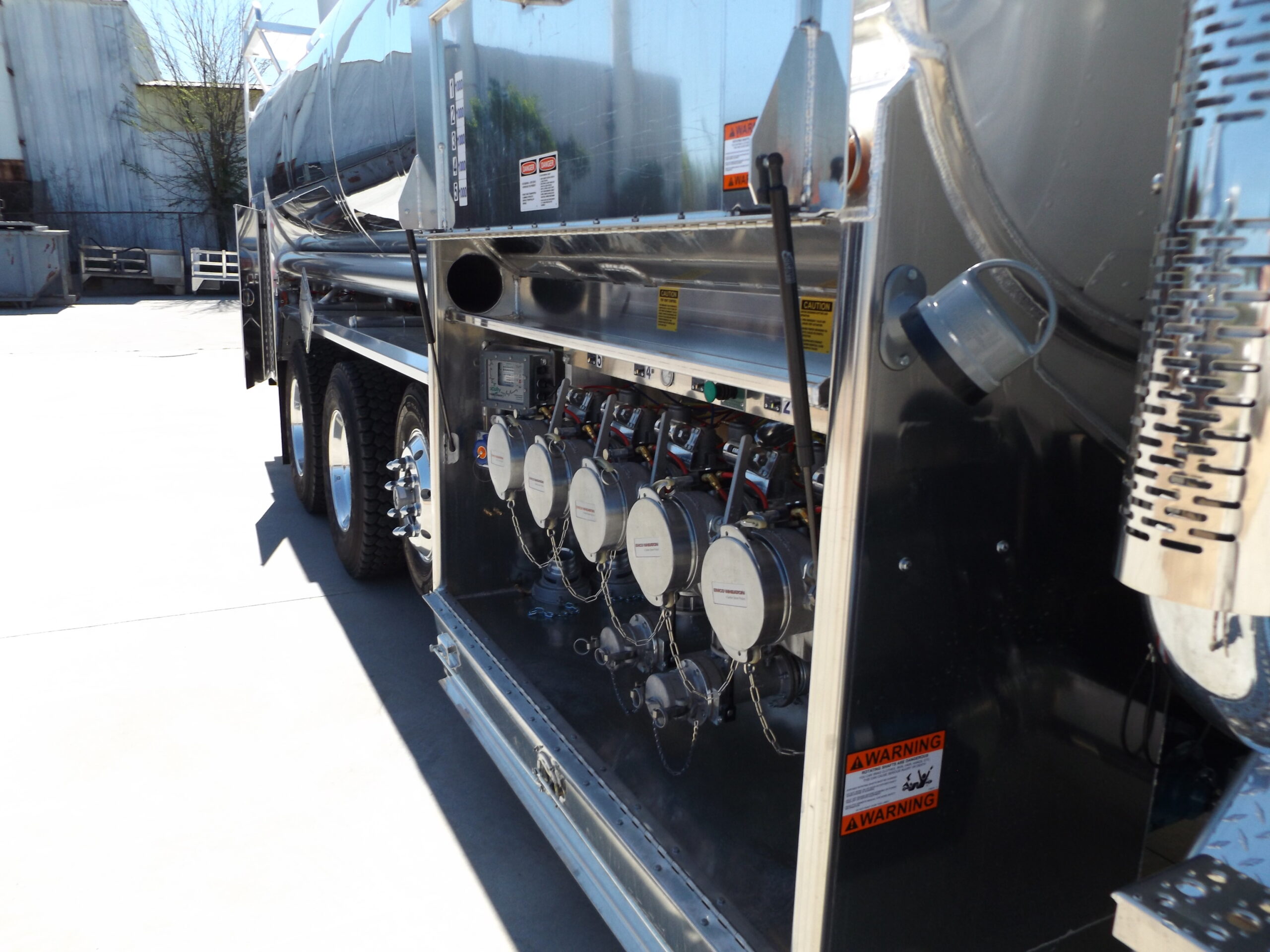

Valves

Openable adapters with Emco-Wheaton air-controlled manifold

Emergency Valves

3″ air emergency valves, air remotes at curbside front and rear

Walkway

Expanded metal at top

Domes

TIONA 16″ with 10″ PAF (vent and sensor compatible)

Flashing

Full-length vapor proof with Betts in/out breathing vents

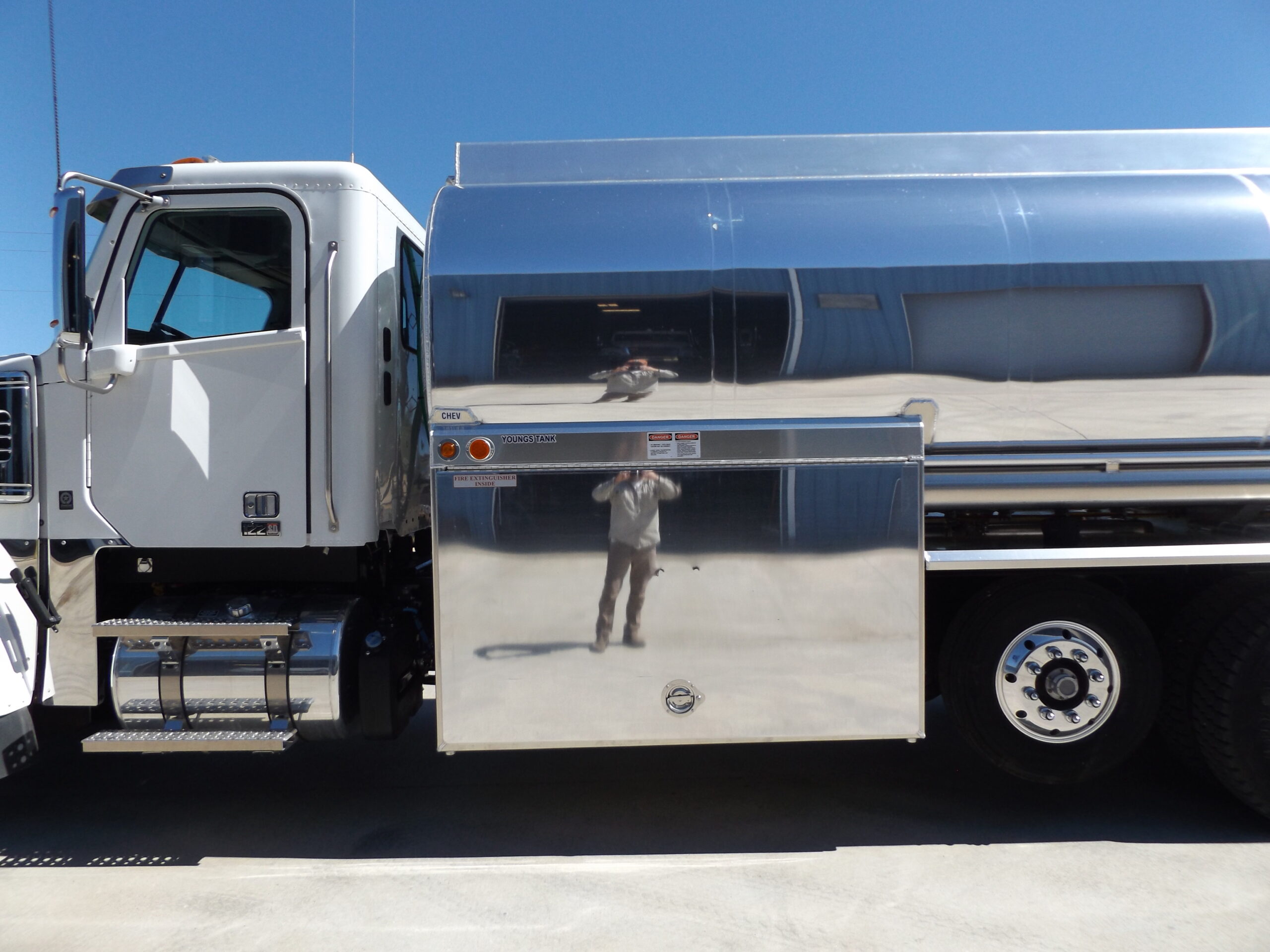

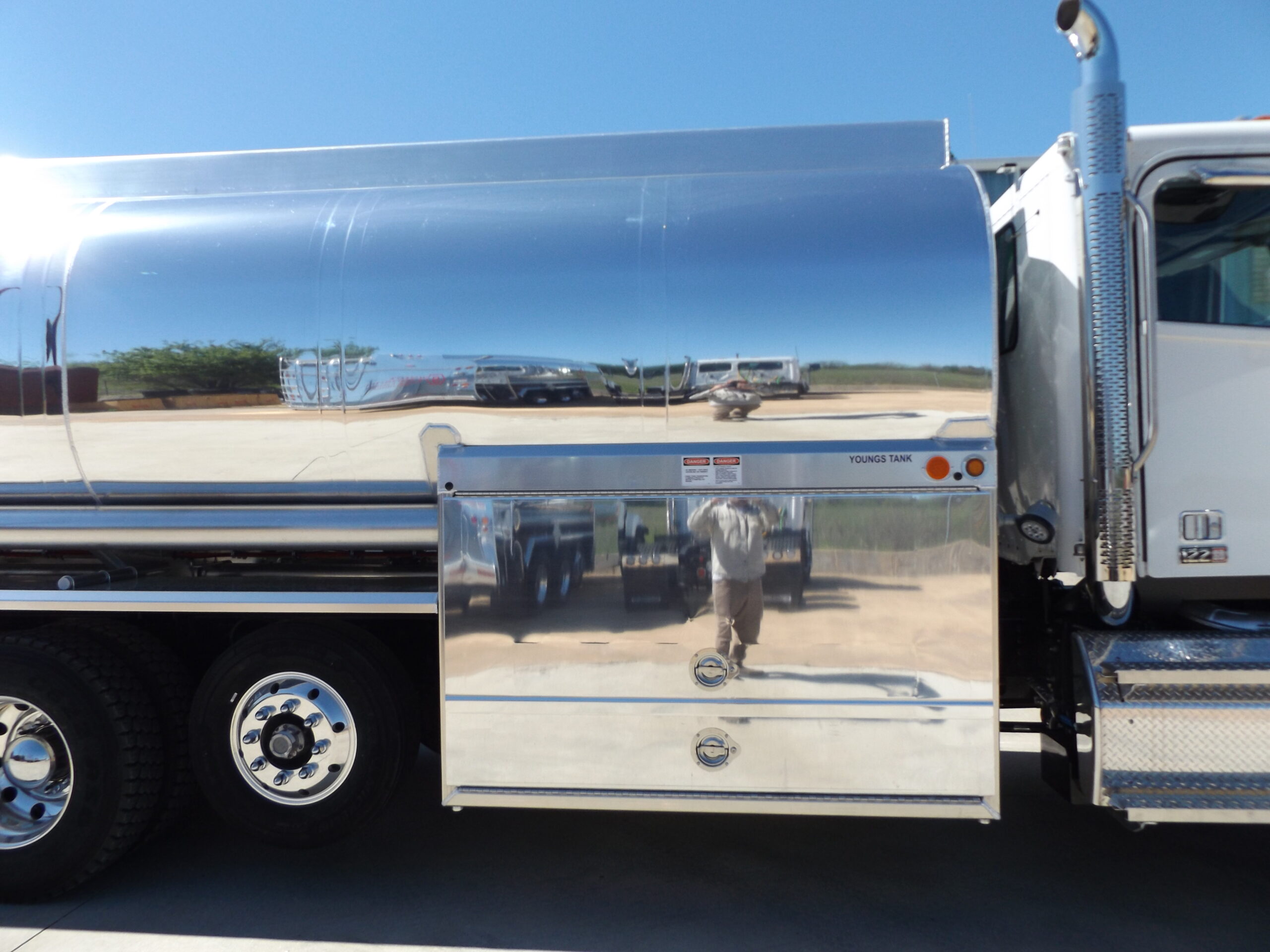

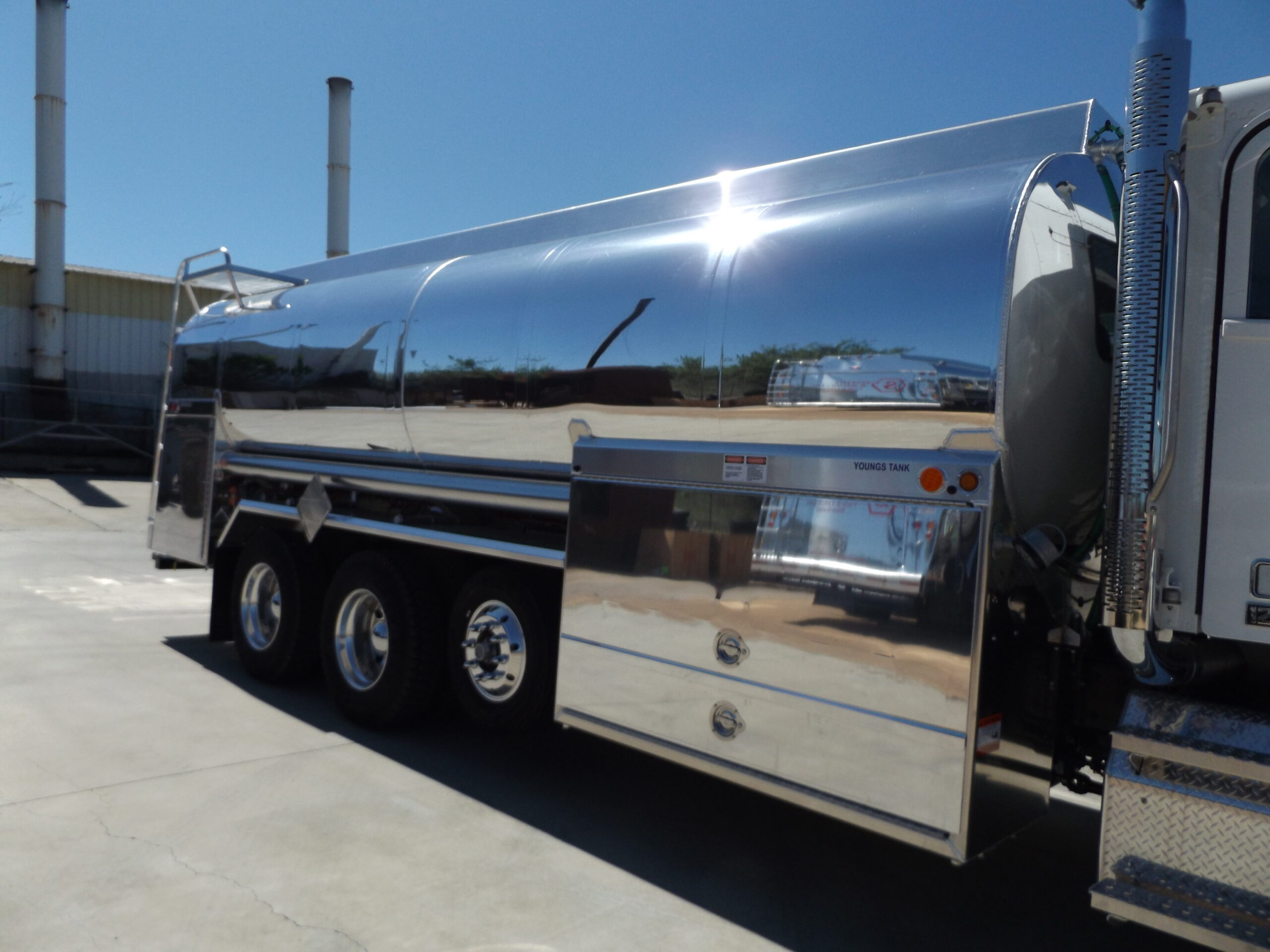

Cabinets

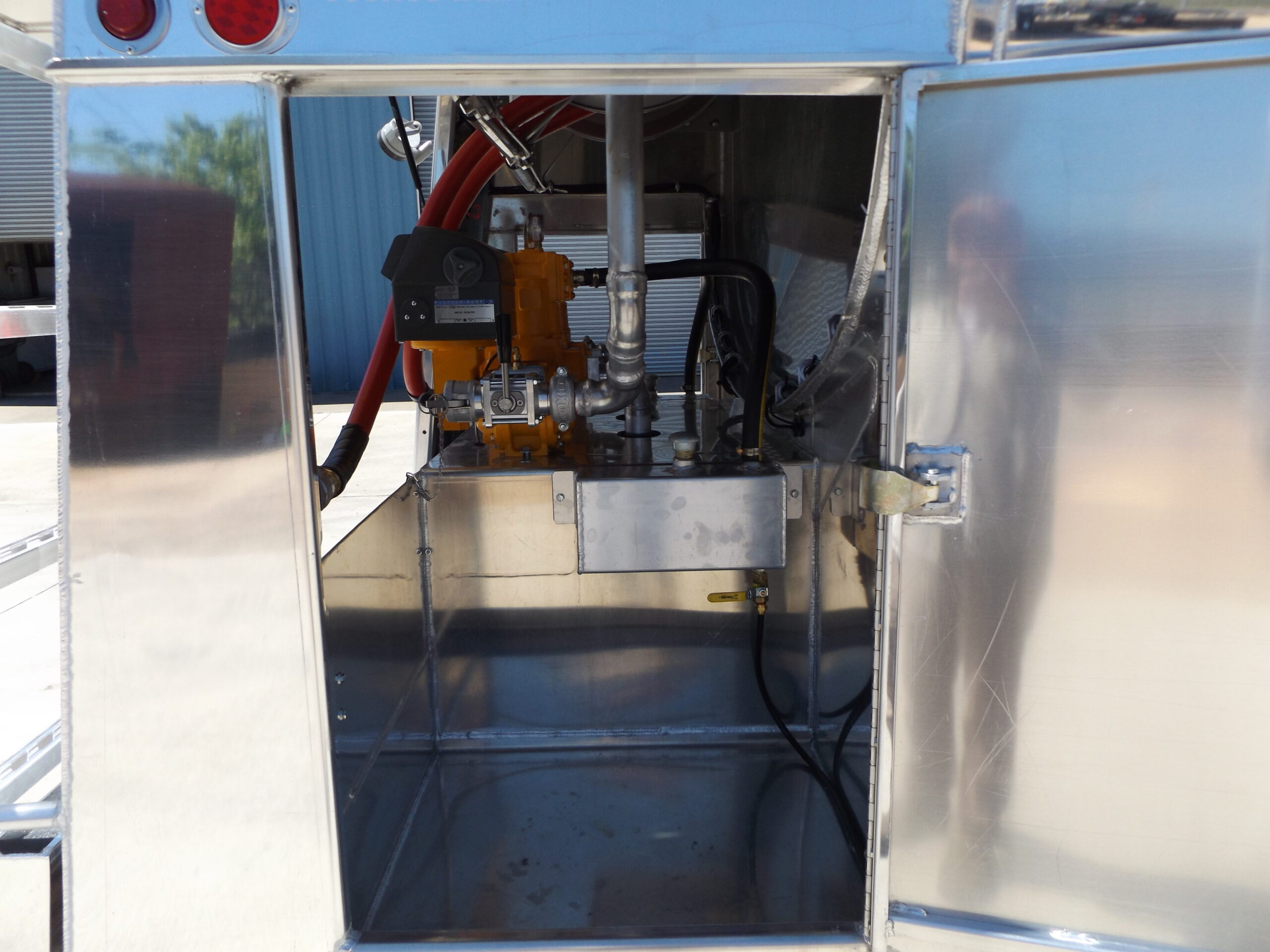

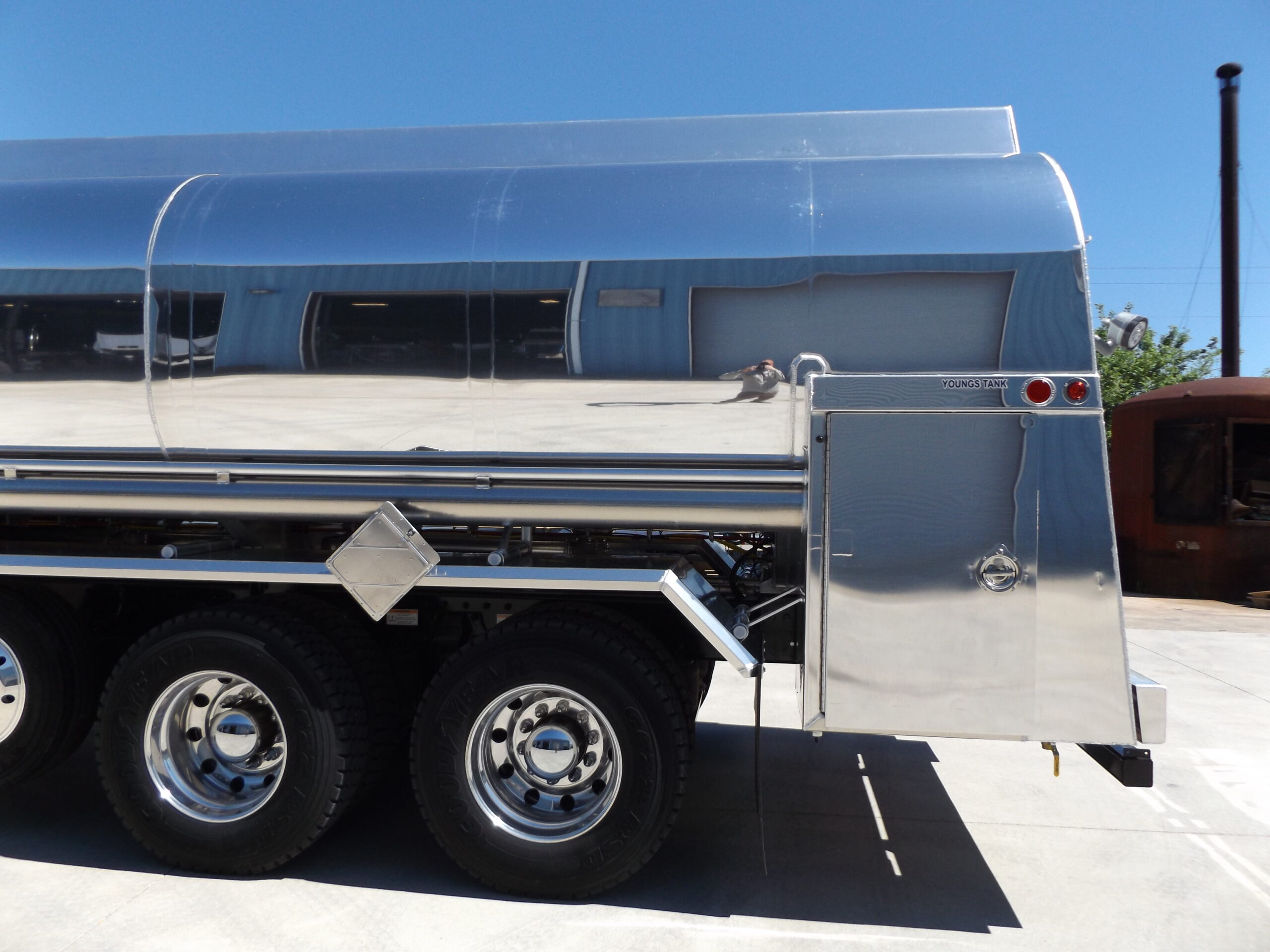

(1) Fully enclosed each side; (1) rear with swing-up door (gas spring supported) and side doors

Strapping

Texas Regulation (4500 and 3800 gallons)

Lights

Truck-Lite LED with DOT reflectors

Markers

(2) Each compartment, set at rated capacity (not sealed); static cables

Paint & Number

Steel parts painted black

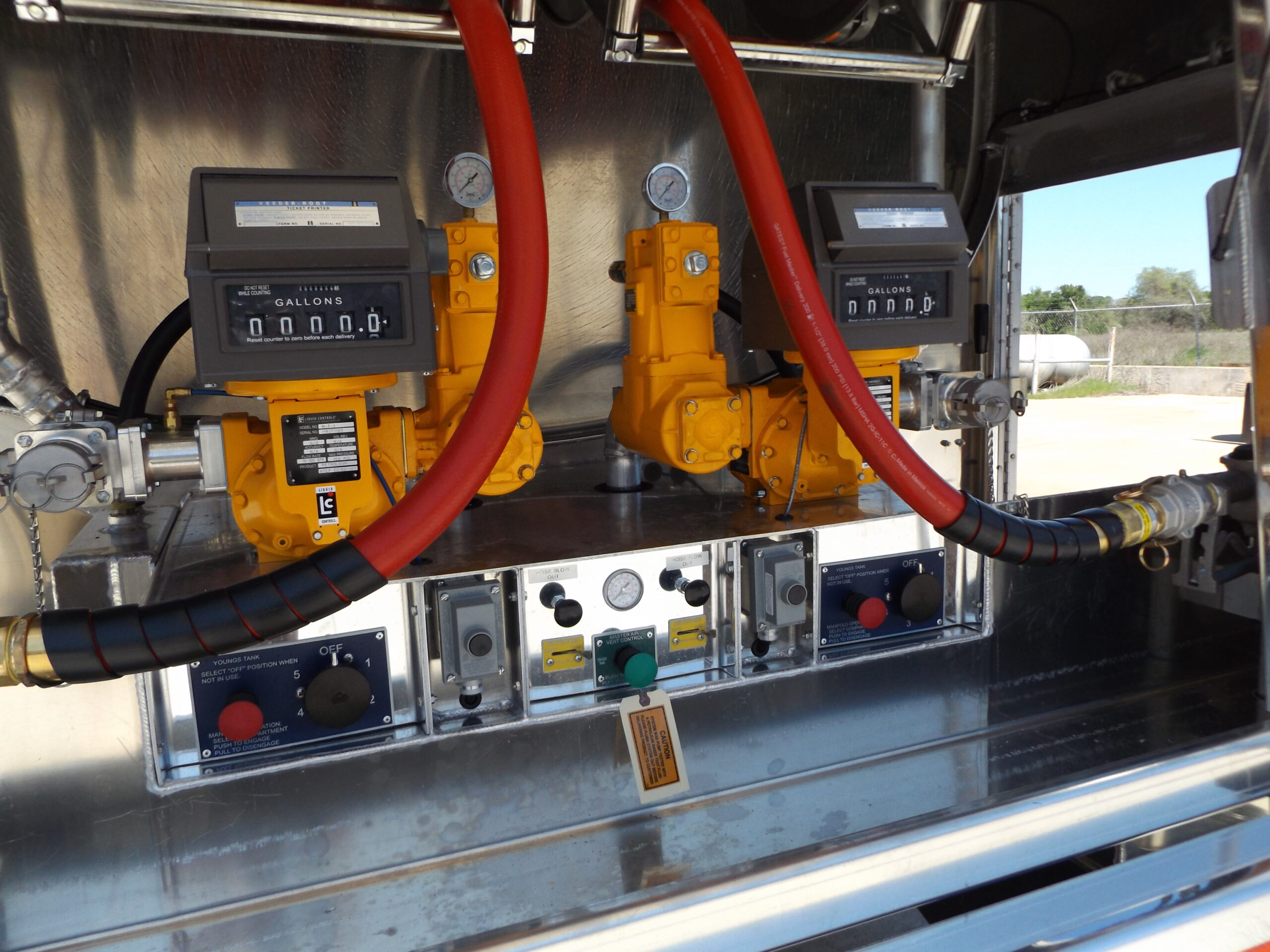

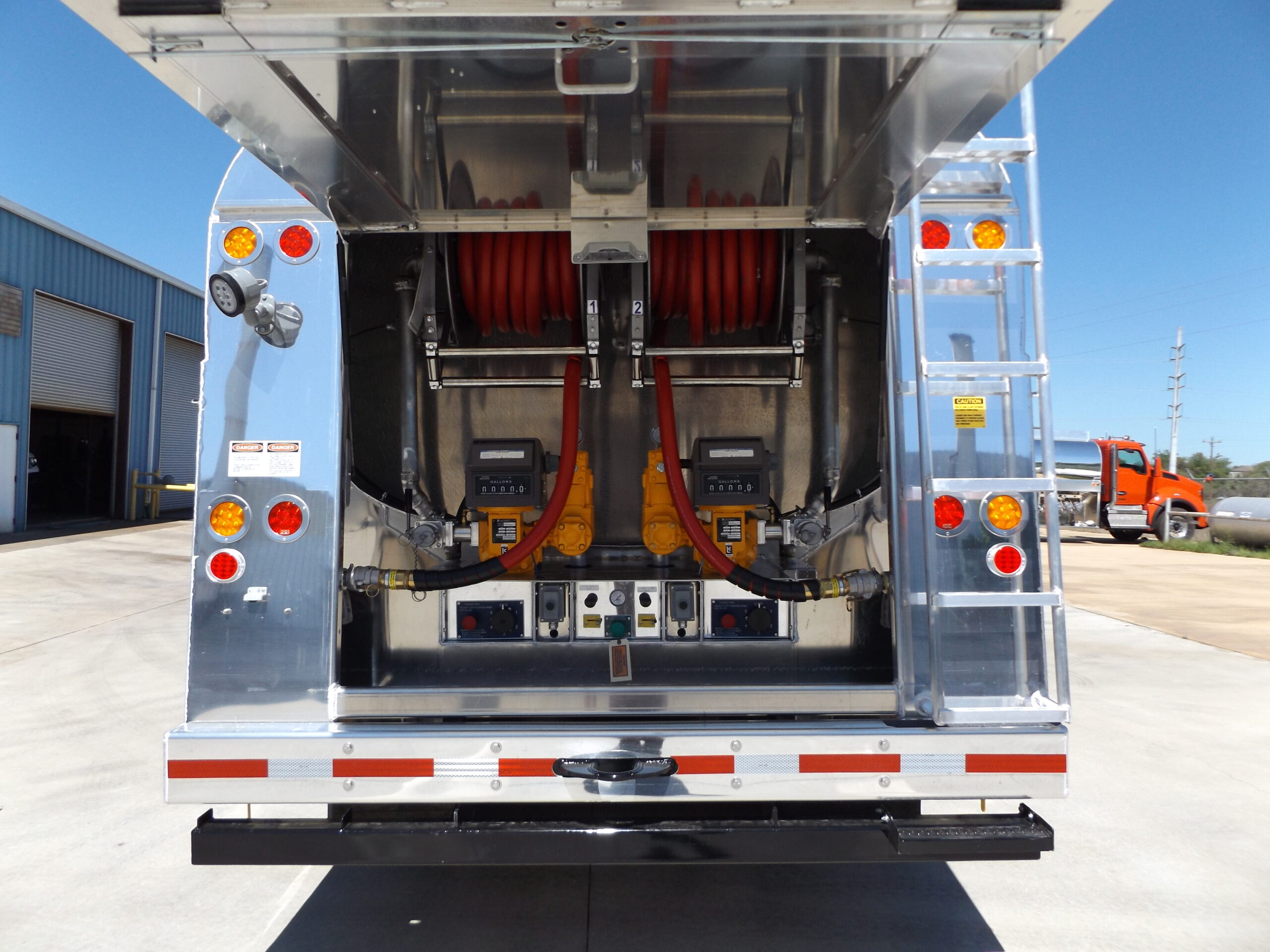

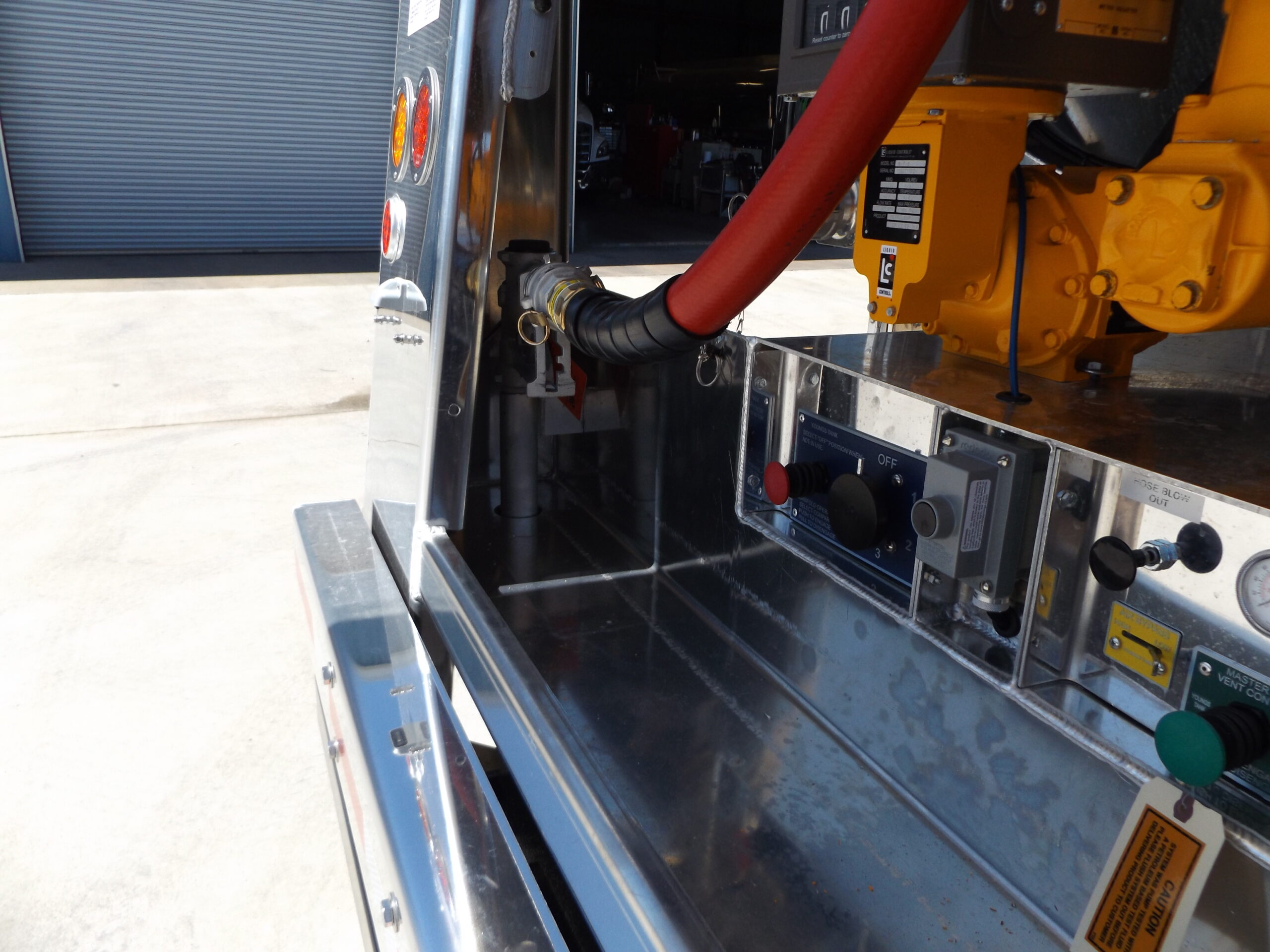

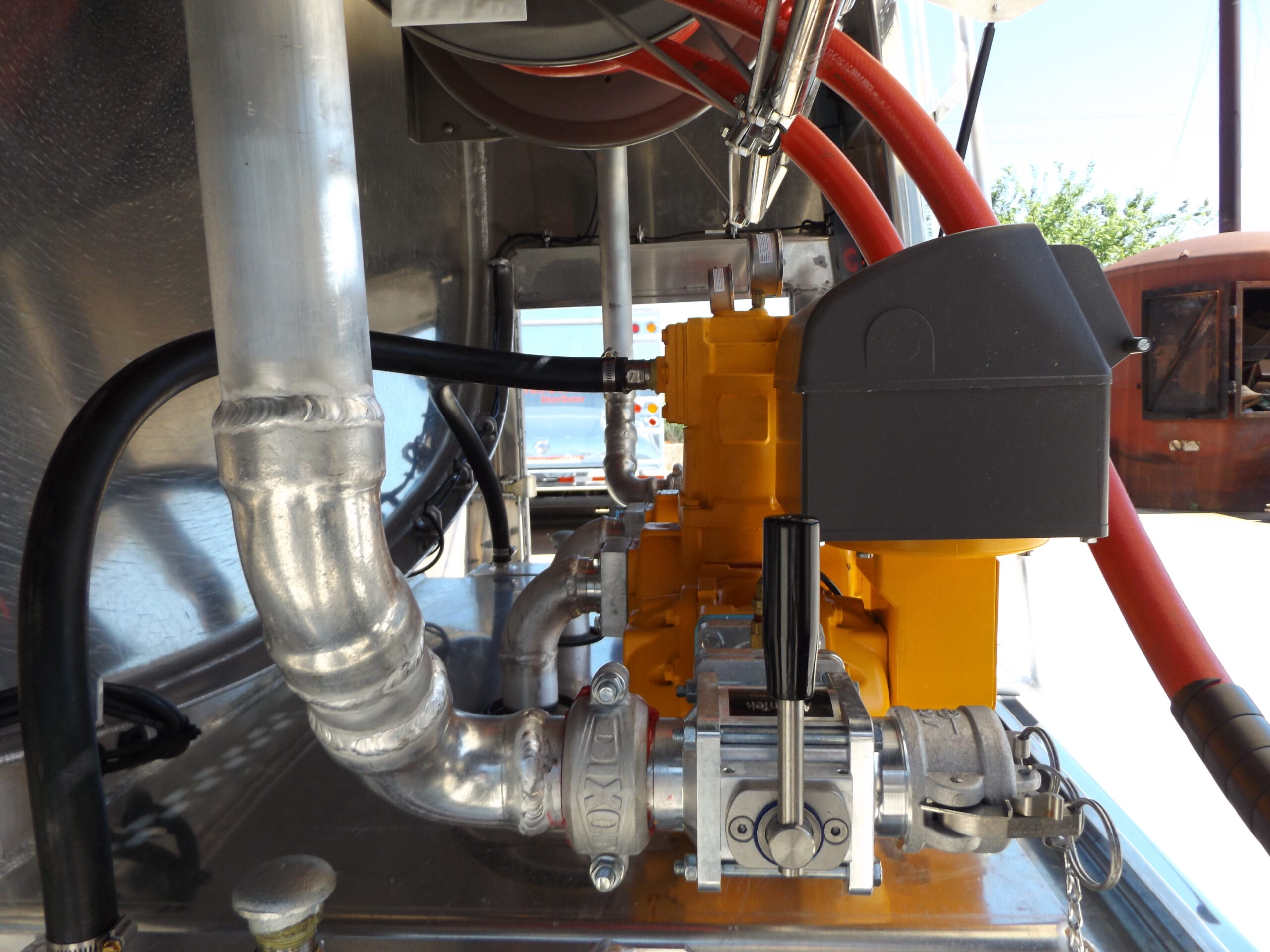

Pump

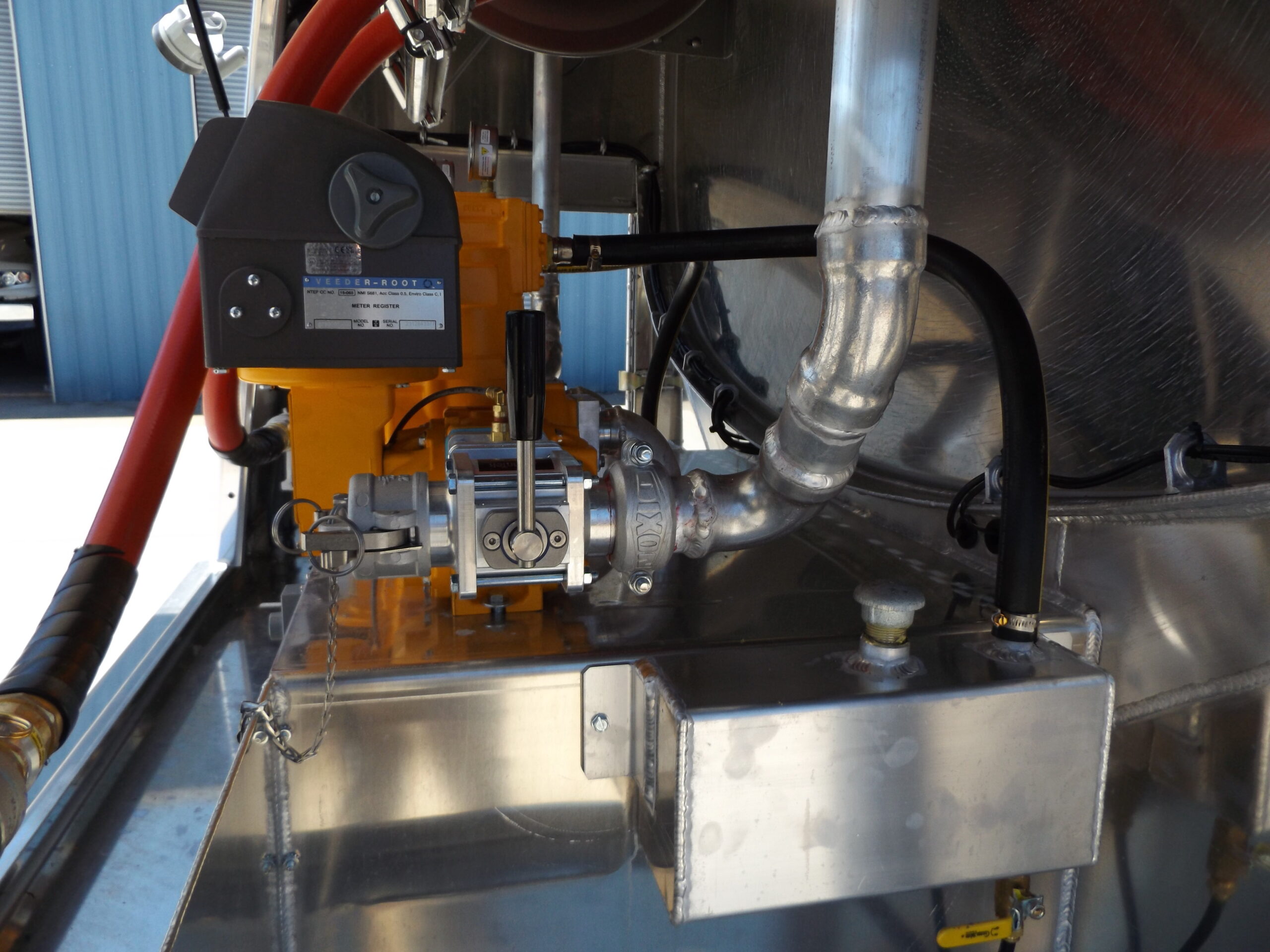

Dual pumping – delivery at rear

Special Equipment

– Bolster-mounted truck tank
– Bottom loading with vapor recovery line outlet at rear

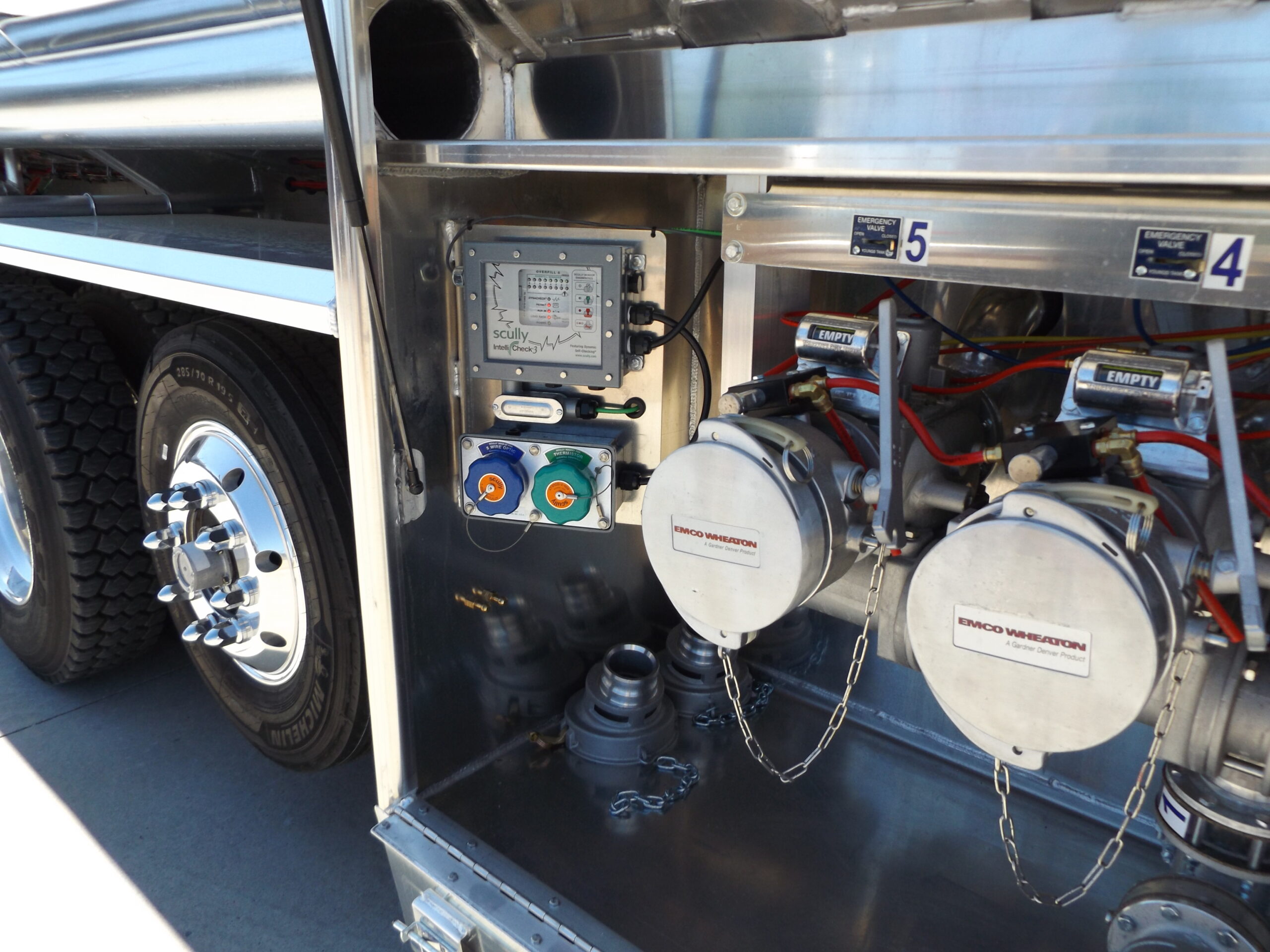

– Scully Intellicheck II with (2) sockets
– Ground Hog
– Ground balls at front and rear
– (4) KT-3 placards
– Cabinet light in rear cabinet
– DOT tests and inspections
– DOT plate
