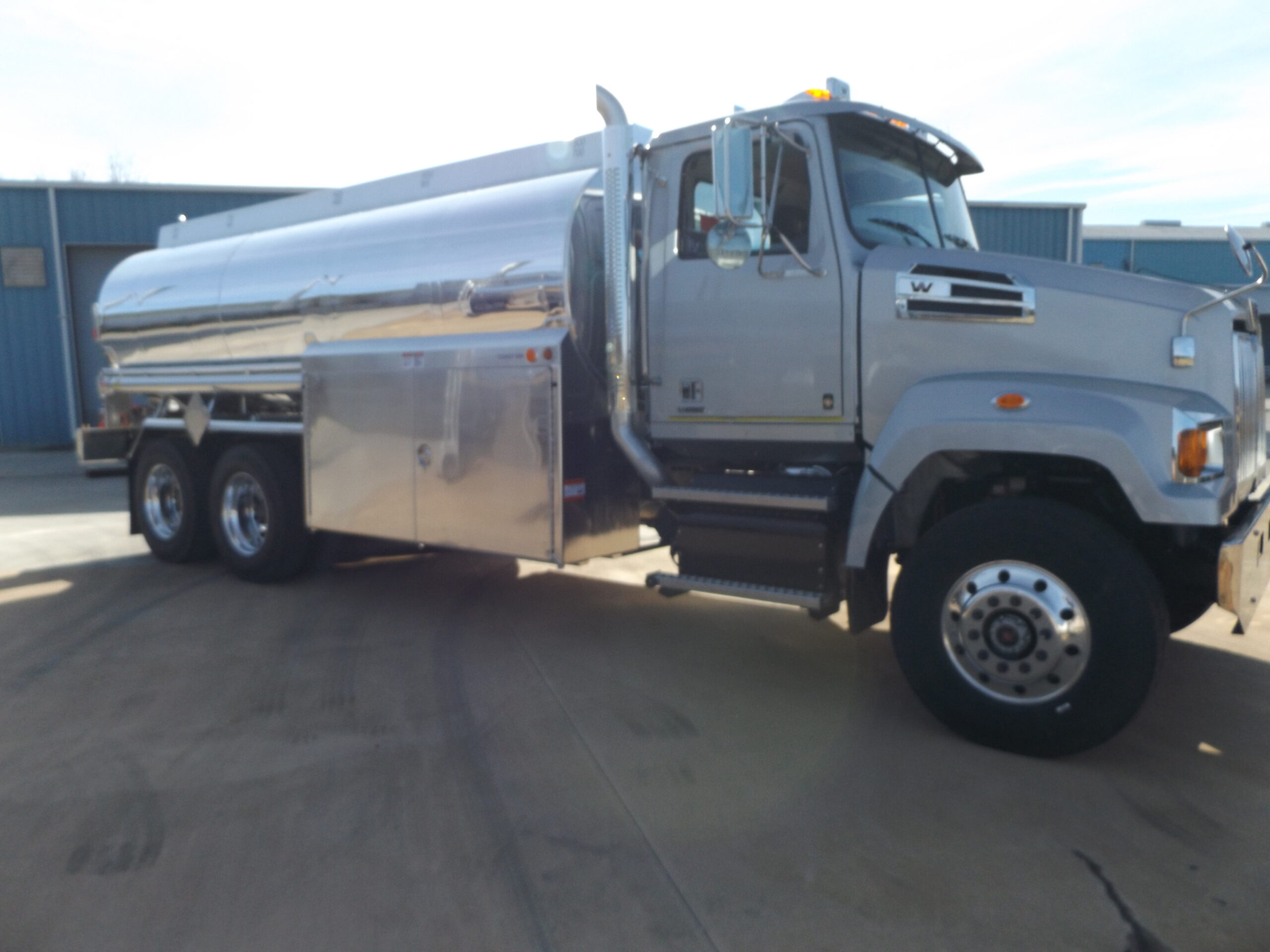

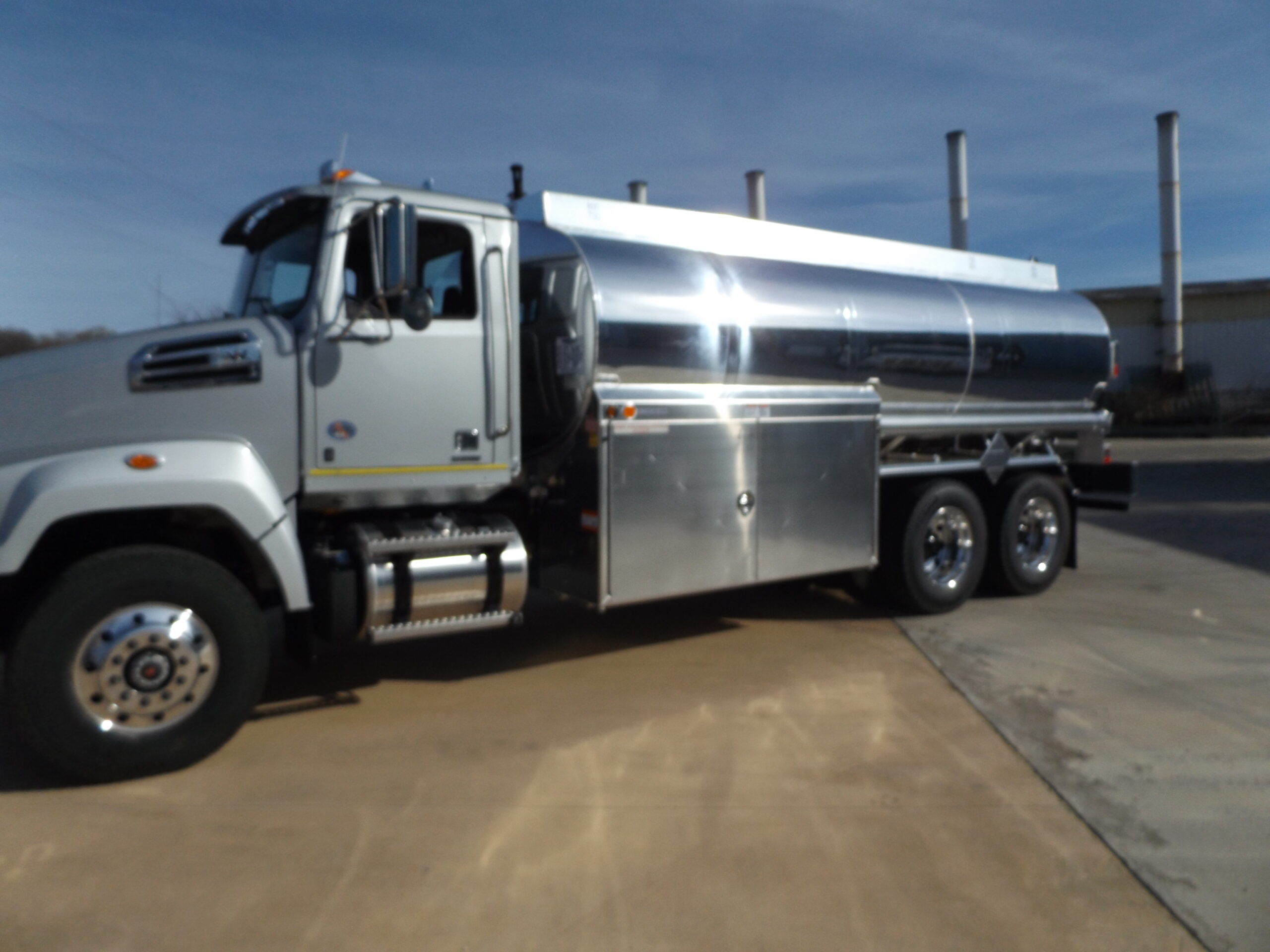

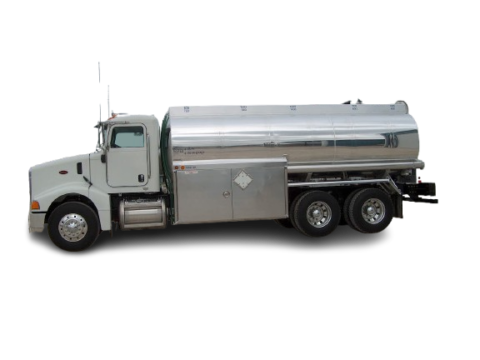

Youngs Tank 5 Compartment 4500 Gallon Side Delivery

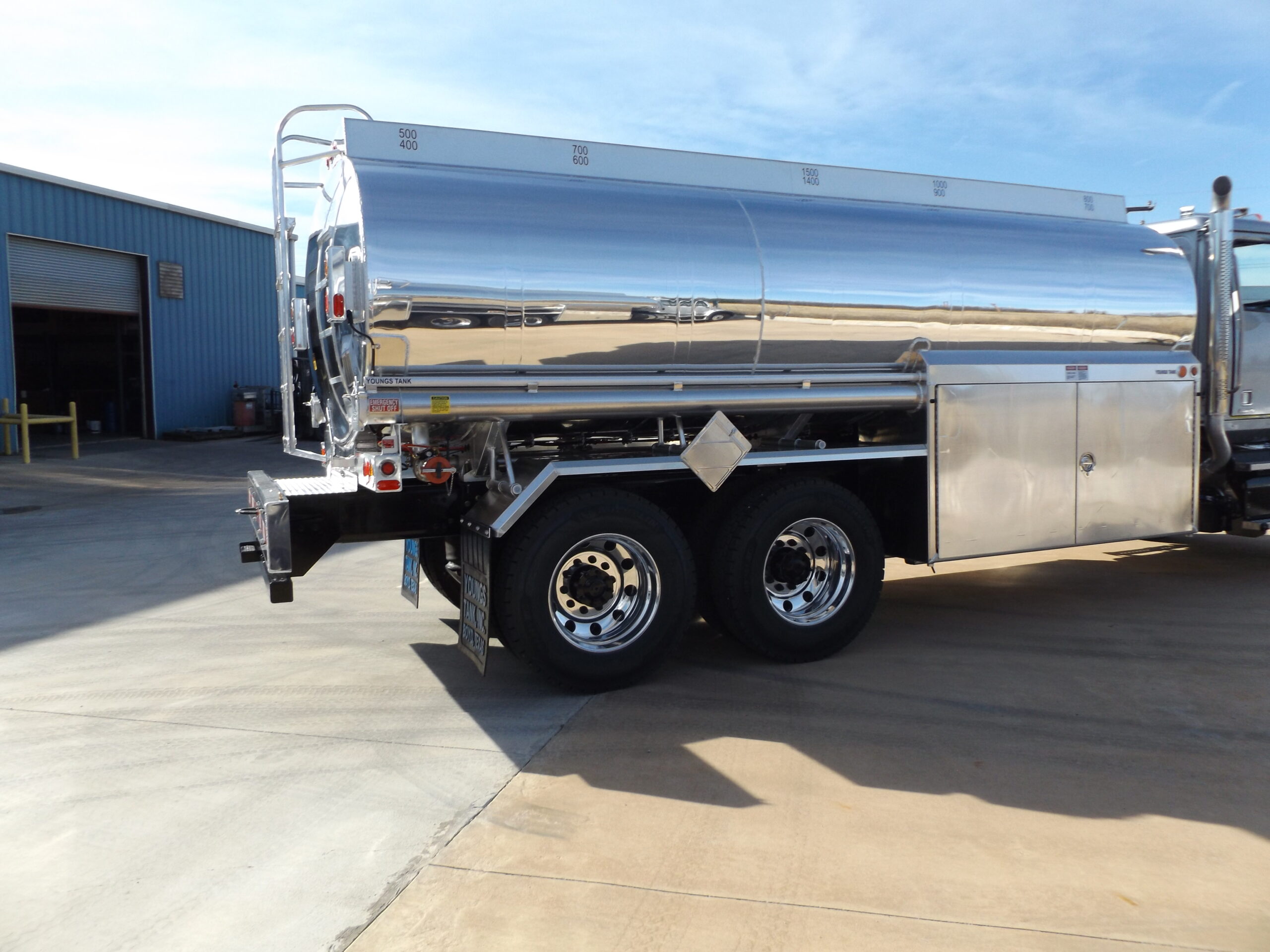

5 Compartment 4500 Gallon Side Delivery Bobtail Tank

This durable 5-compartment, 4,500-gallon tank is built for efficient liquid transport and optimized product separation. Designed for performance, reliability, and compliance, it’s ideal for multi-product delivery applications.

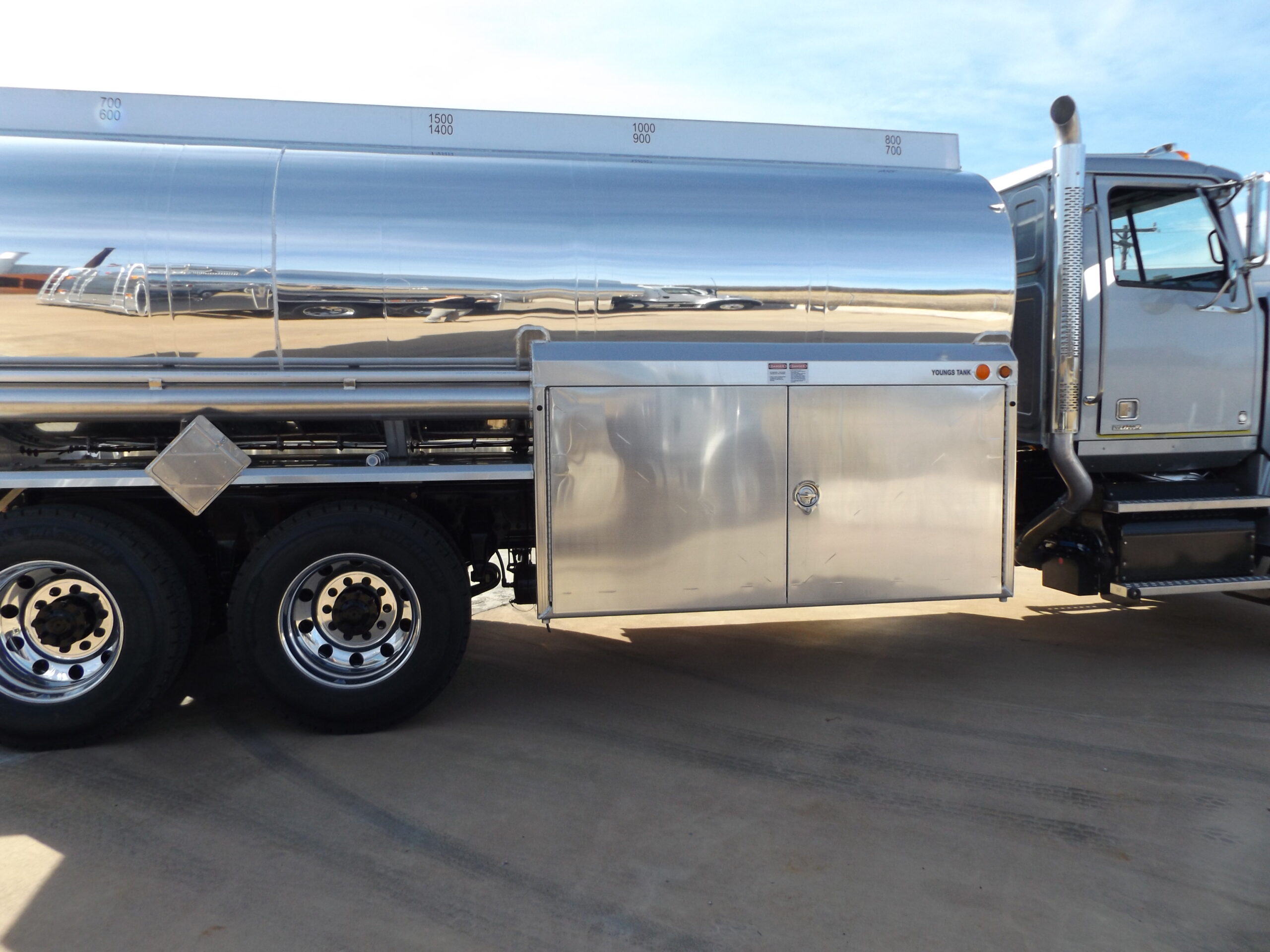

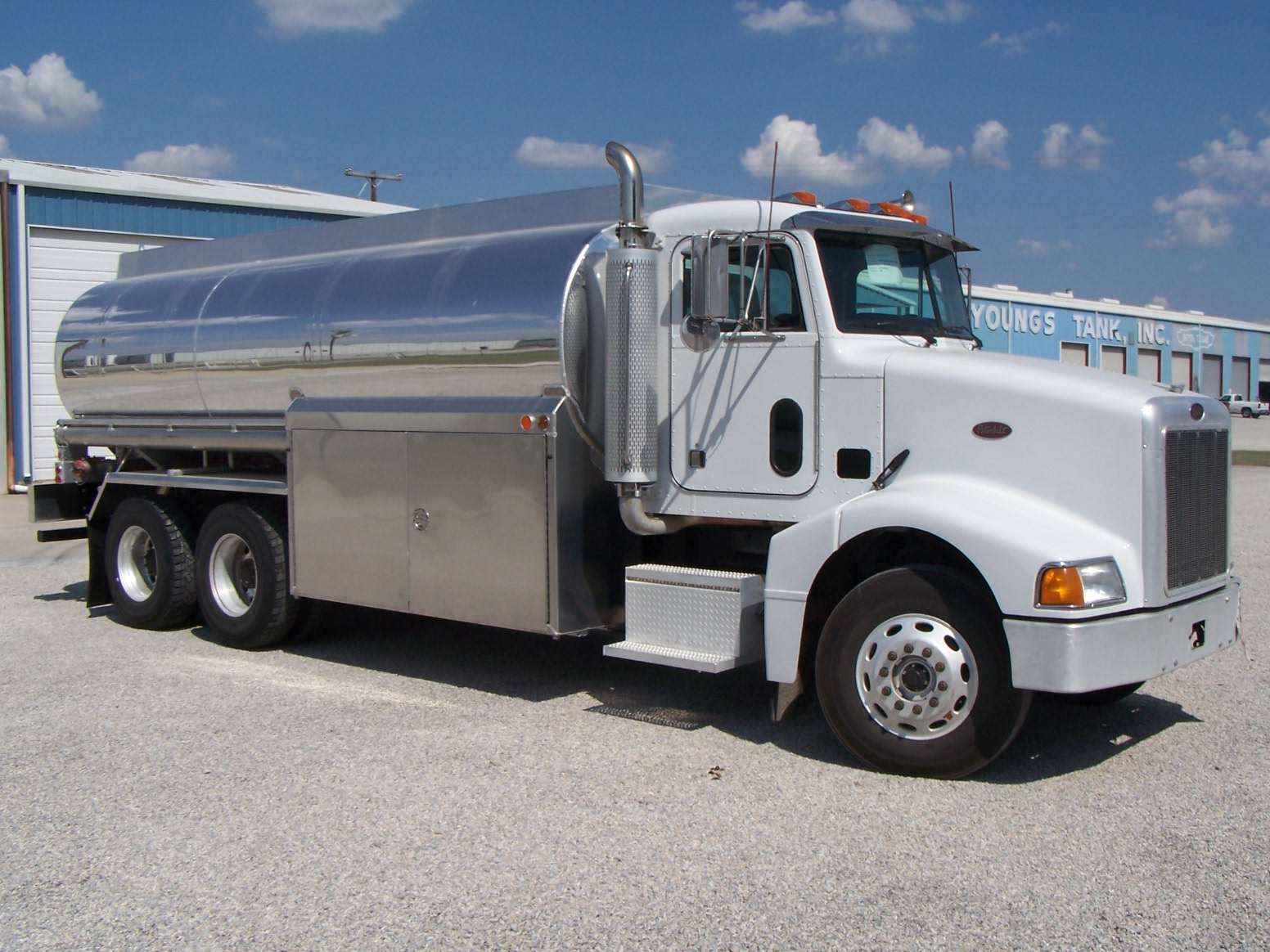

Product Gallery

Specifications

Type

Straight Elliptical Truck Tank

Capacity

4,500 Gallons

Plus

75 Gallon Minimum Outage (Chevron/Motiva)

DOT MC

406

Commodity

Petroleum Products

Average Weight

6.7 lbs/gallon

Construction

Aluminum 5454-H32 Shell (.190″), 5454-O Heads (.190″); side shell and end heads are bright finish

Number of compartments

Heads

Double

Compartment Specs

Tailored to Customer Needs

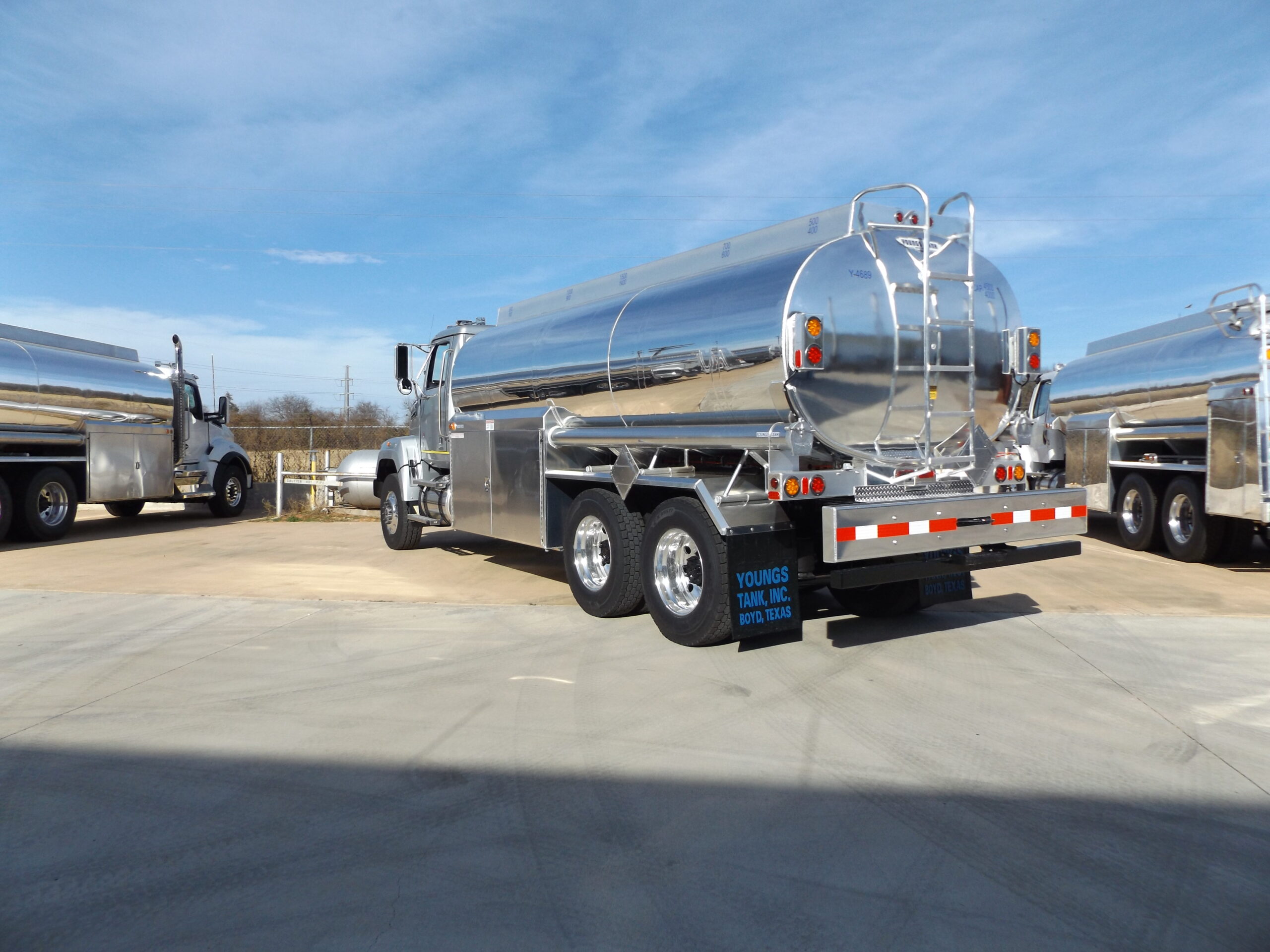

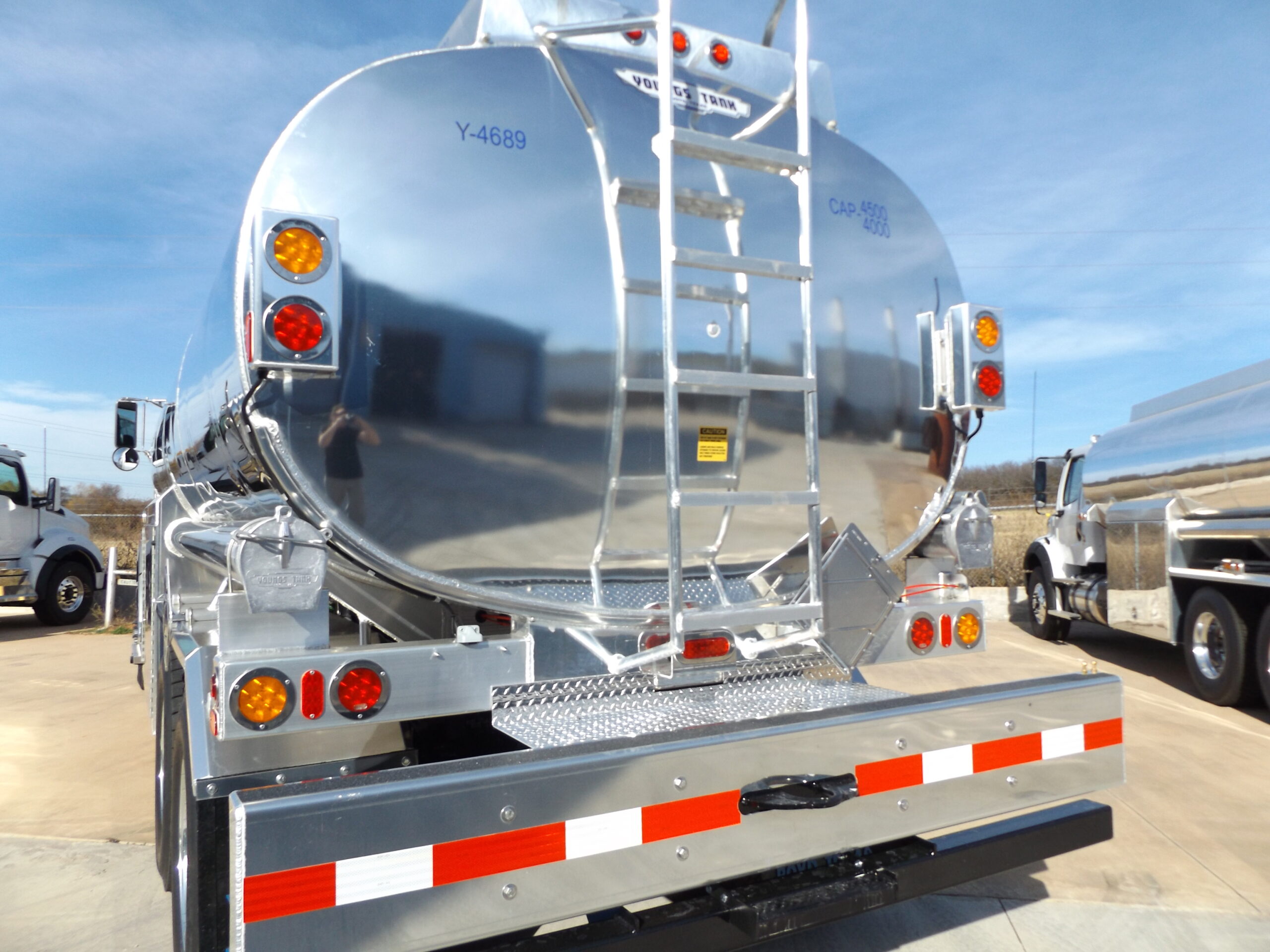

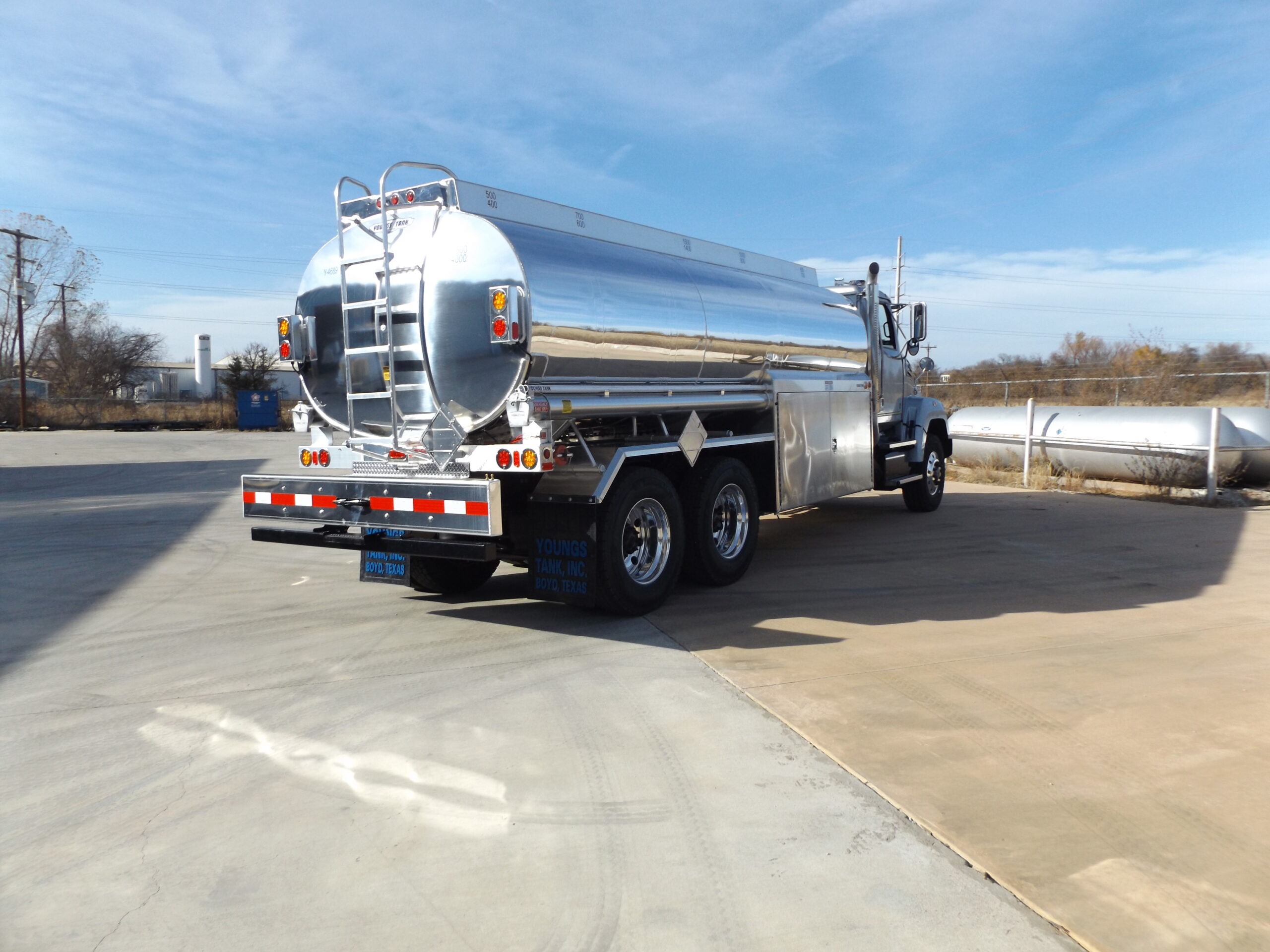

Ladder

Rear-mounted

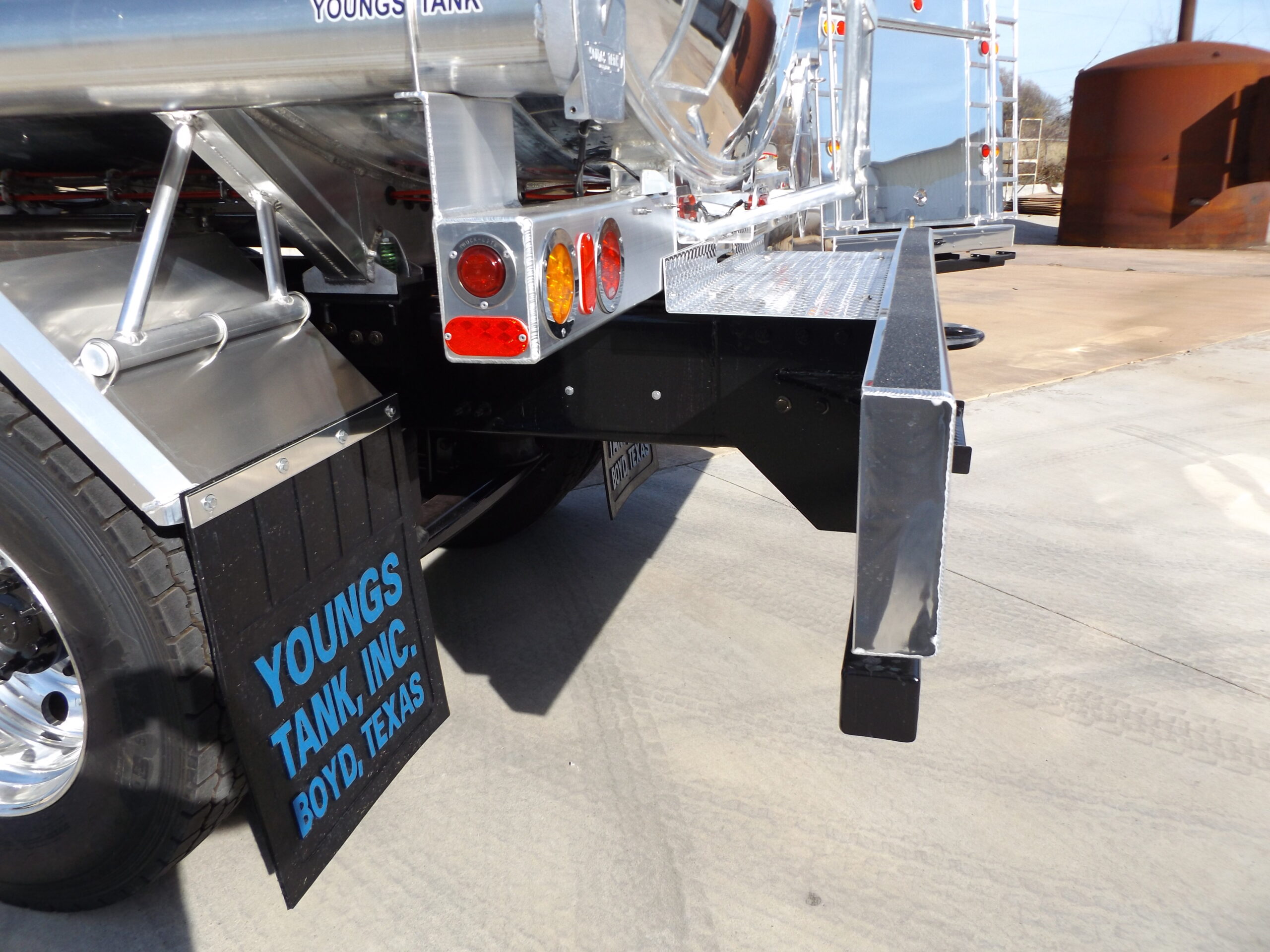

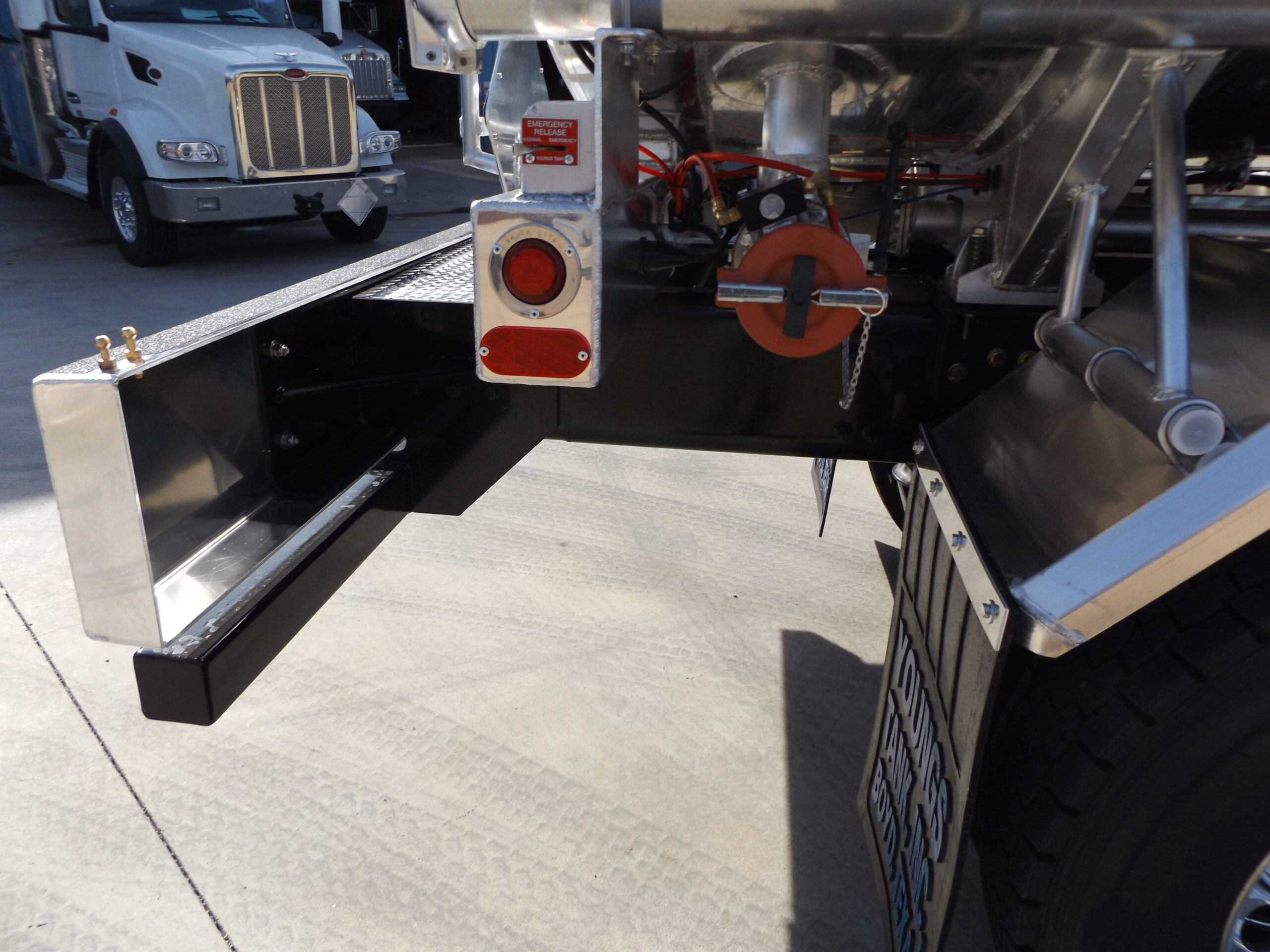

Bumper

DOT spec – aluminum outer cover with steel underride

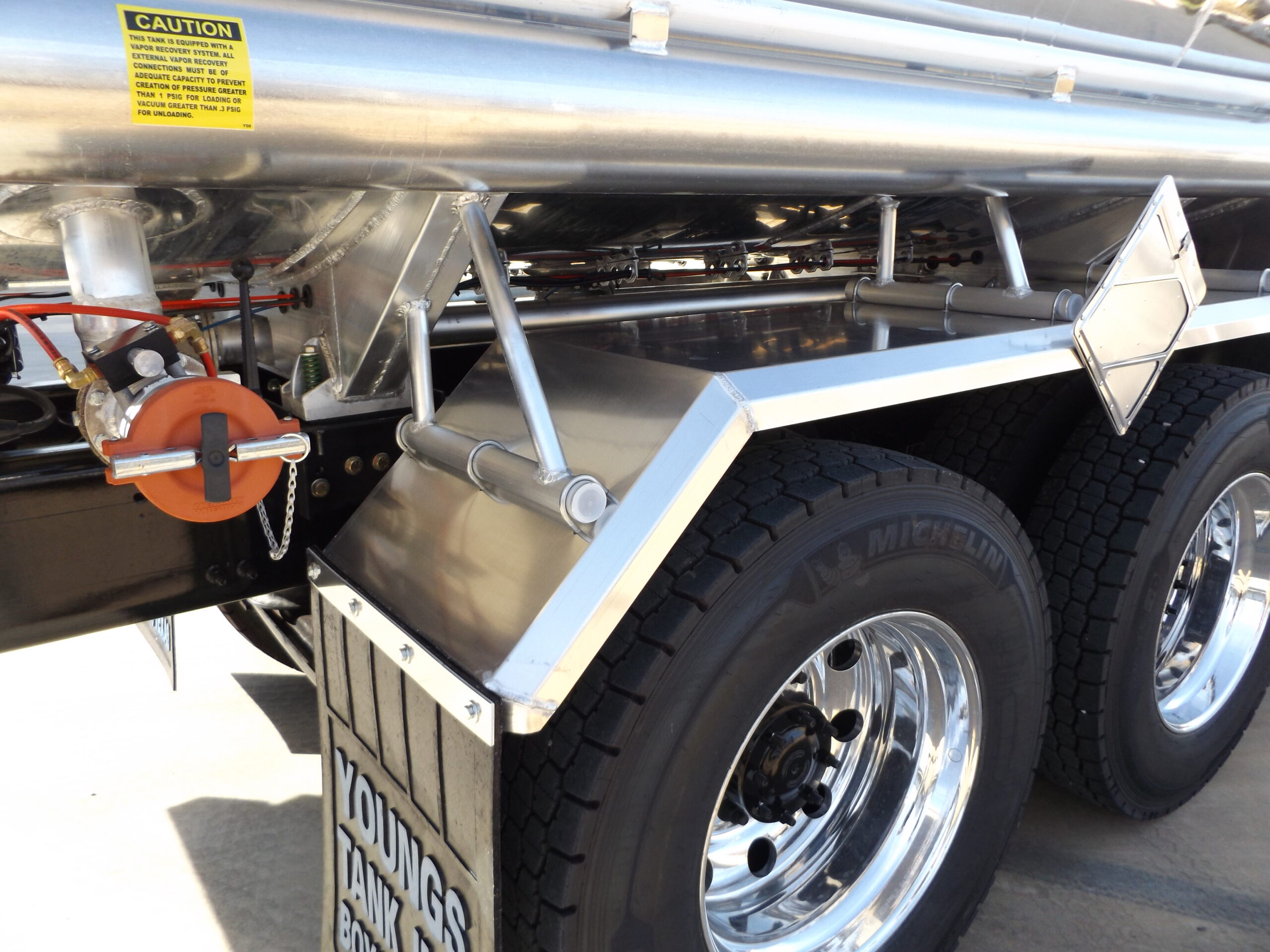

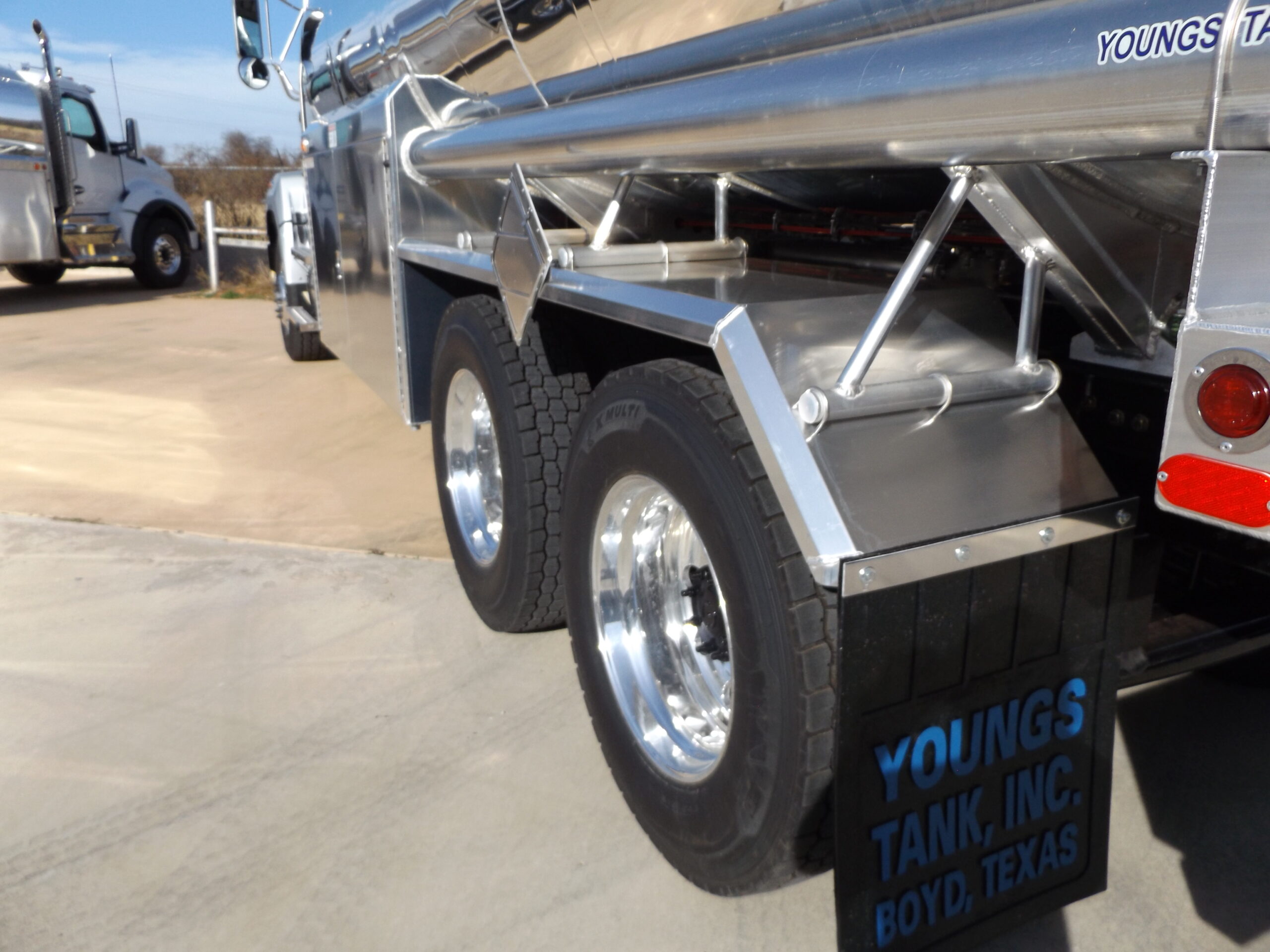

Fenders

Jeep-style, aluminum

Mud Flaps

Yes

Hose Tubes

(1) 7″ x 16′ each side; gauge stick tube at curbside

Piping

3″ Aluminum to curbside

Vents

3″ vapor recovery, air activated, sequential

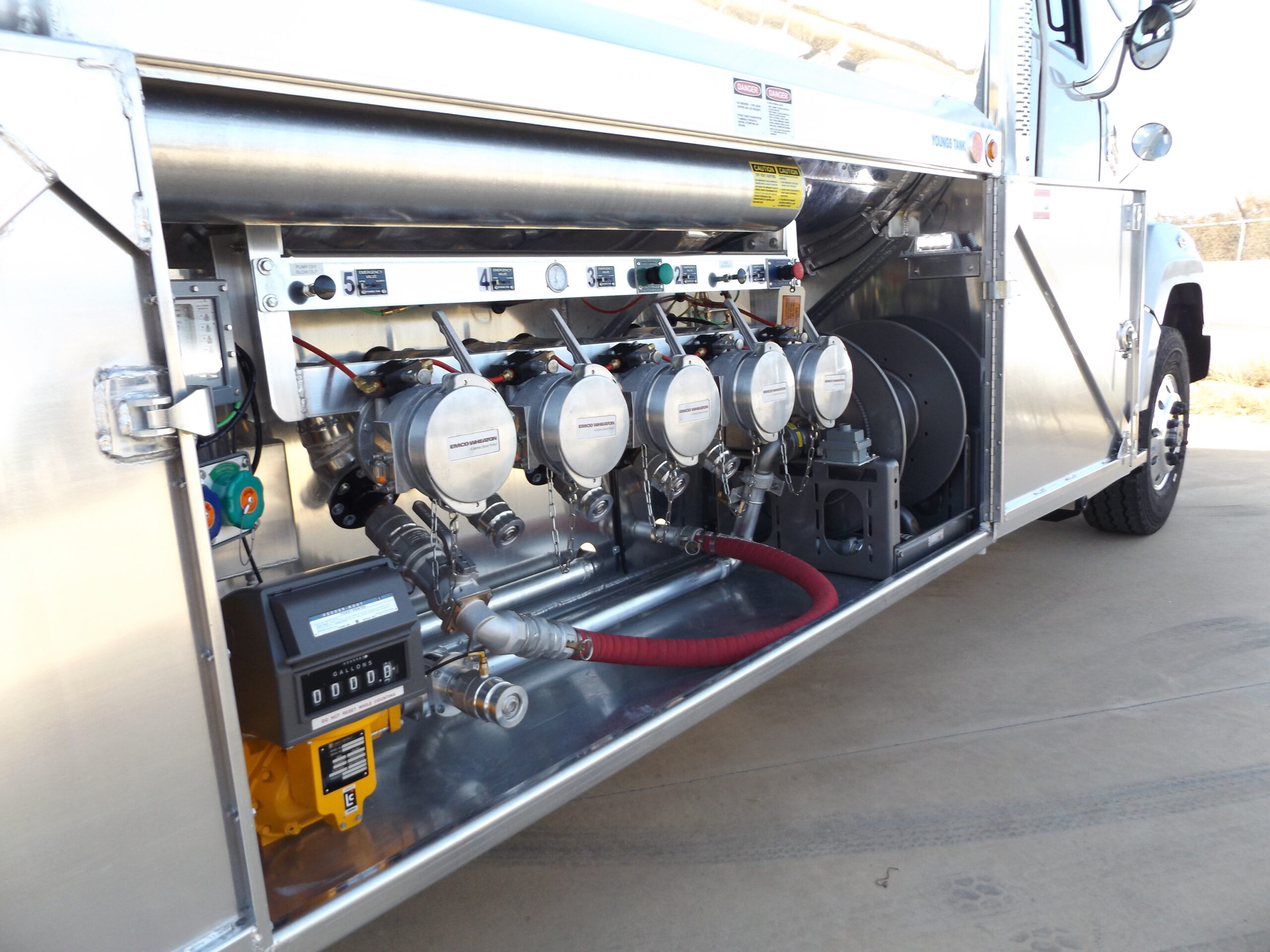

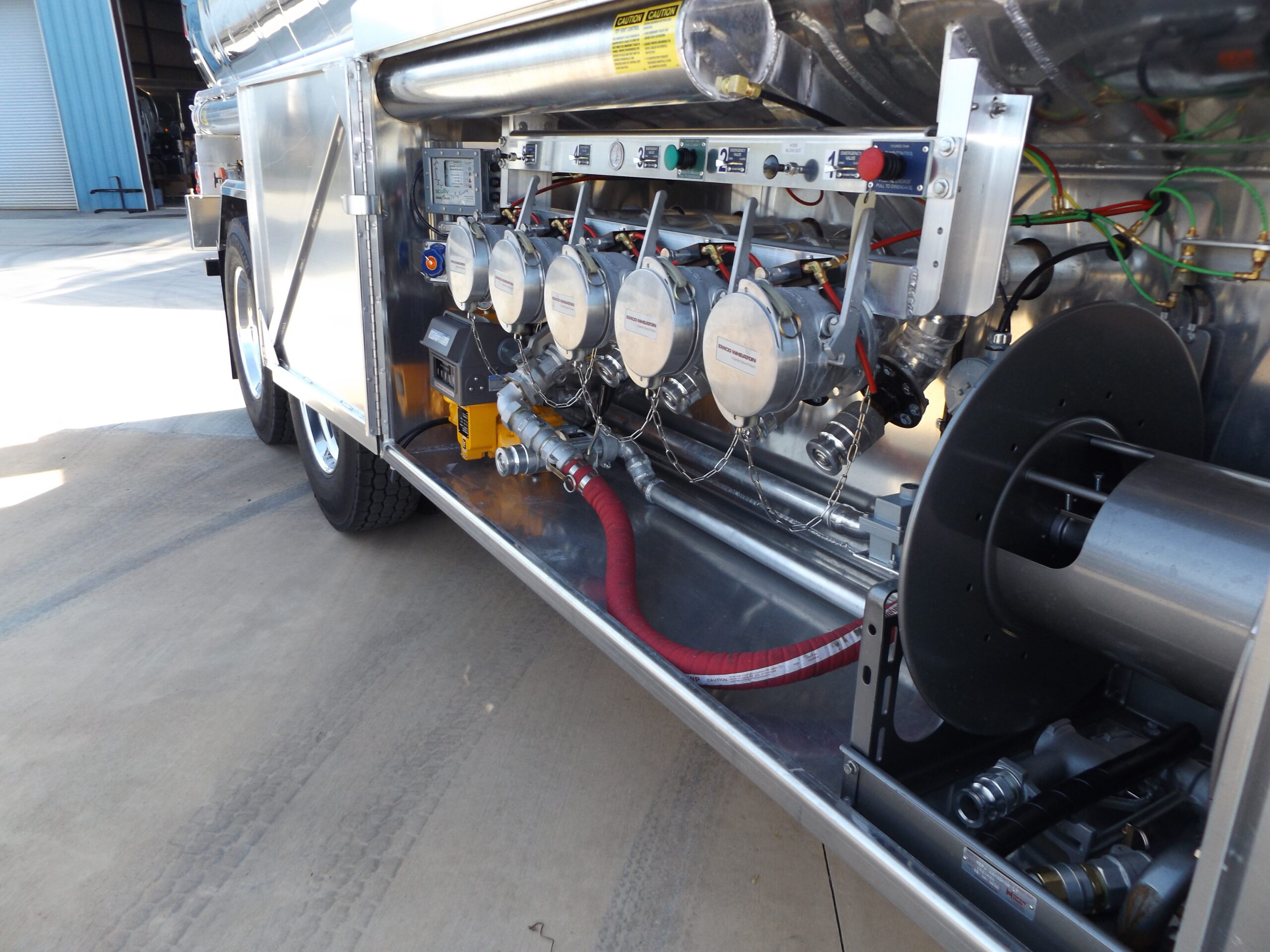

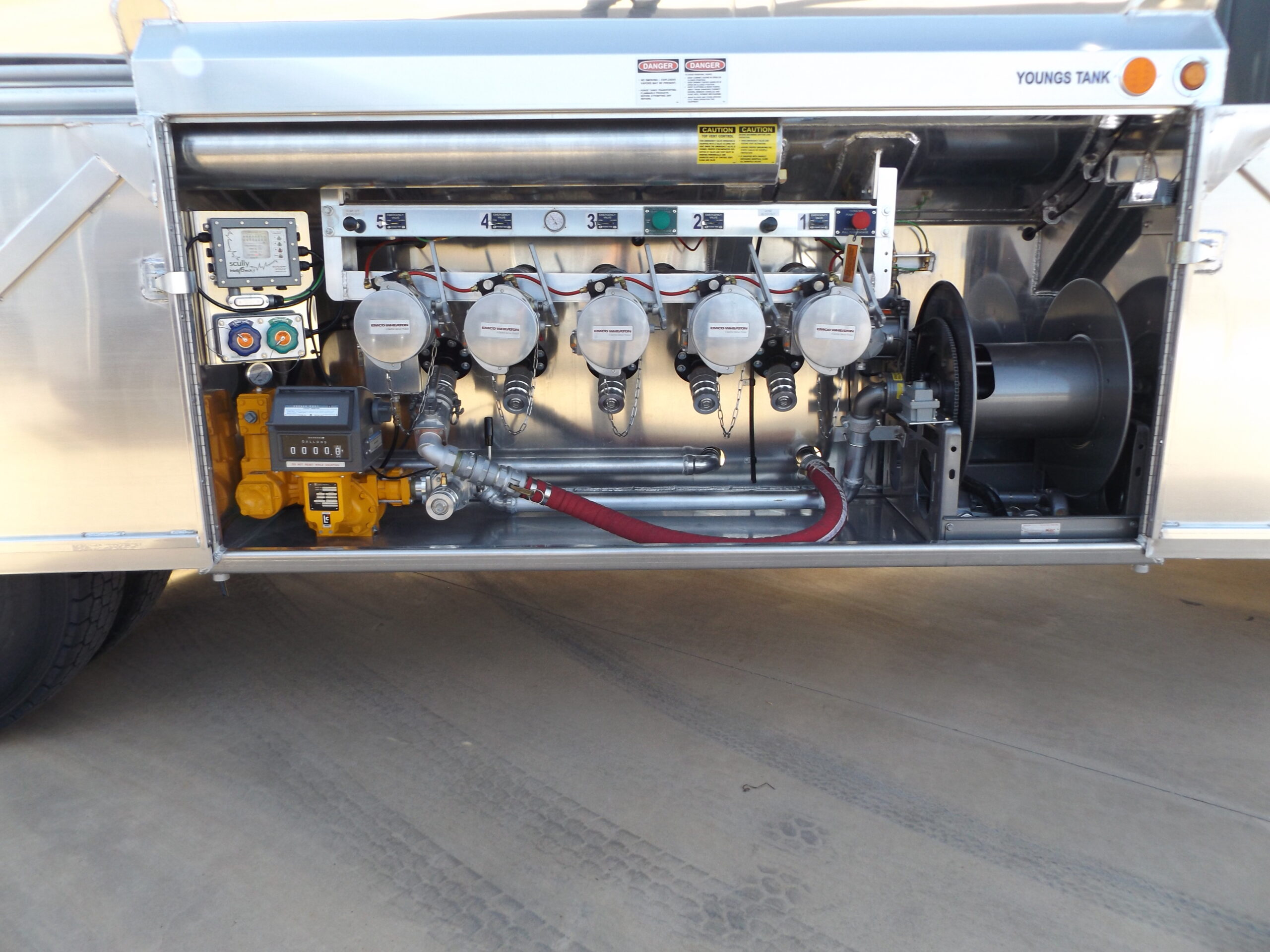

Valves

Openable adapters with (2) 4″ x 3″ unloading spouts; Emco-Wheaton air manifold behind bottom load adapters

Emergency Valves

3″ Emco-Wheaton air-operated with fusible plugs

Walkway

Expanded metal at top

Domes

TIONA 16″ with 10″ PAF (vent and sensor compatible)

Flashing

Full-length vapor proof with Betts in/out breathing vents

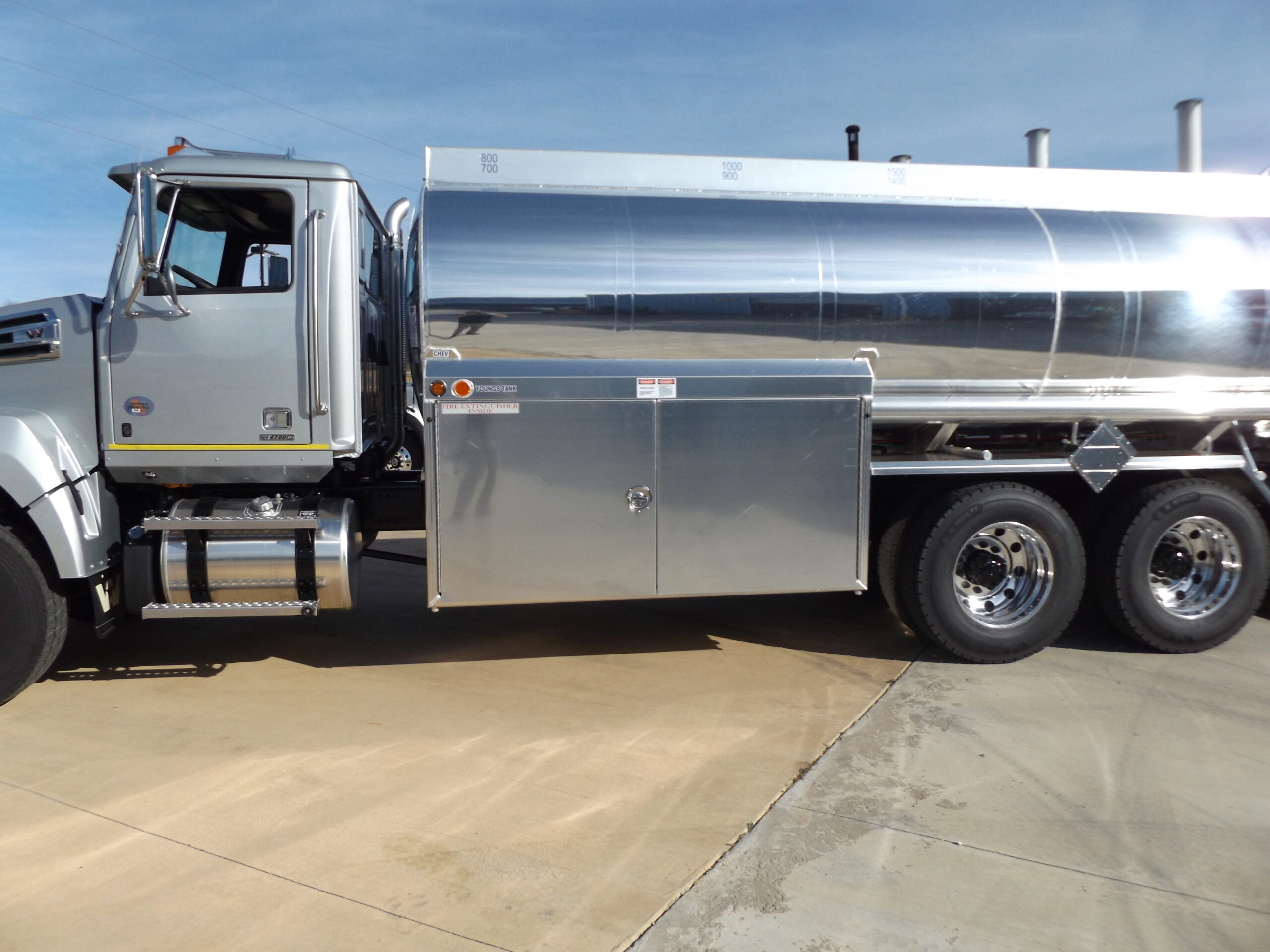

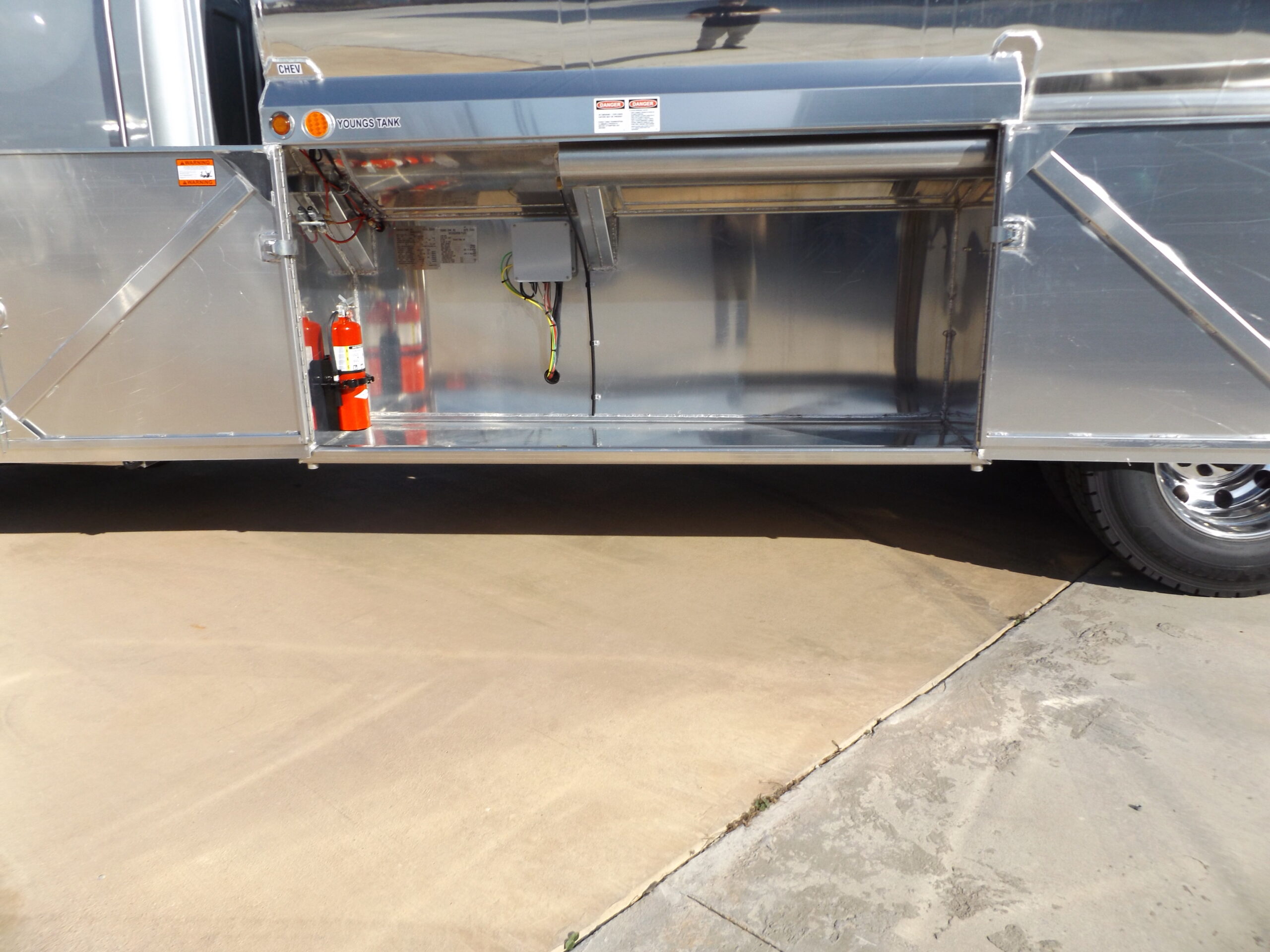

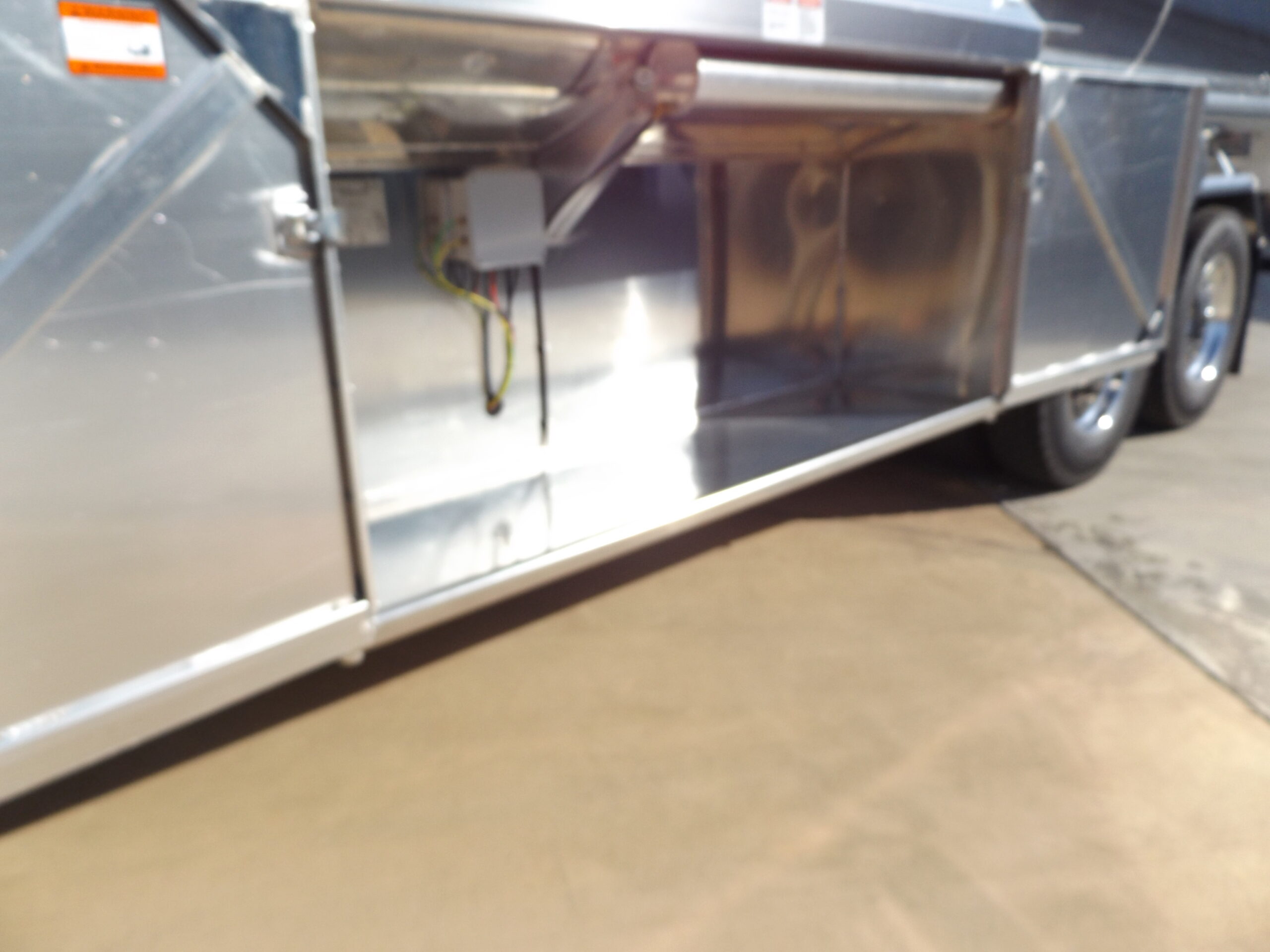

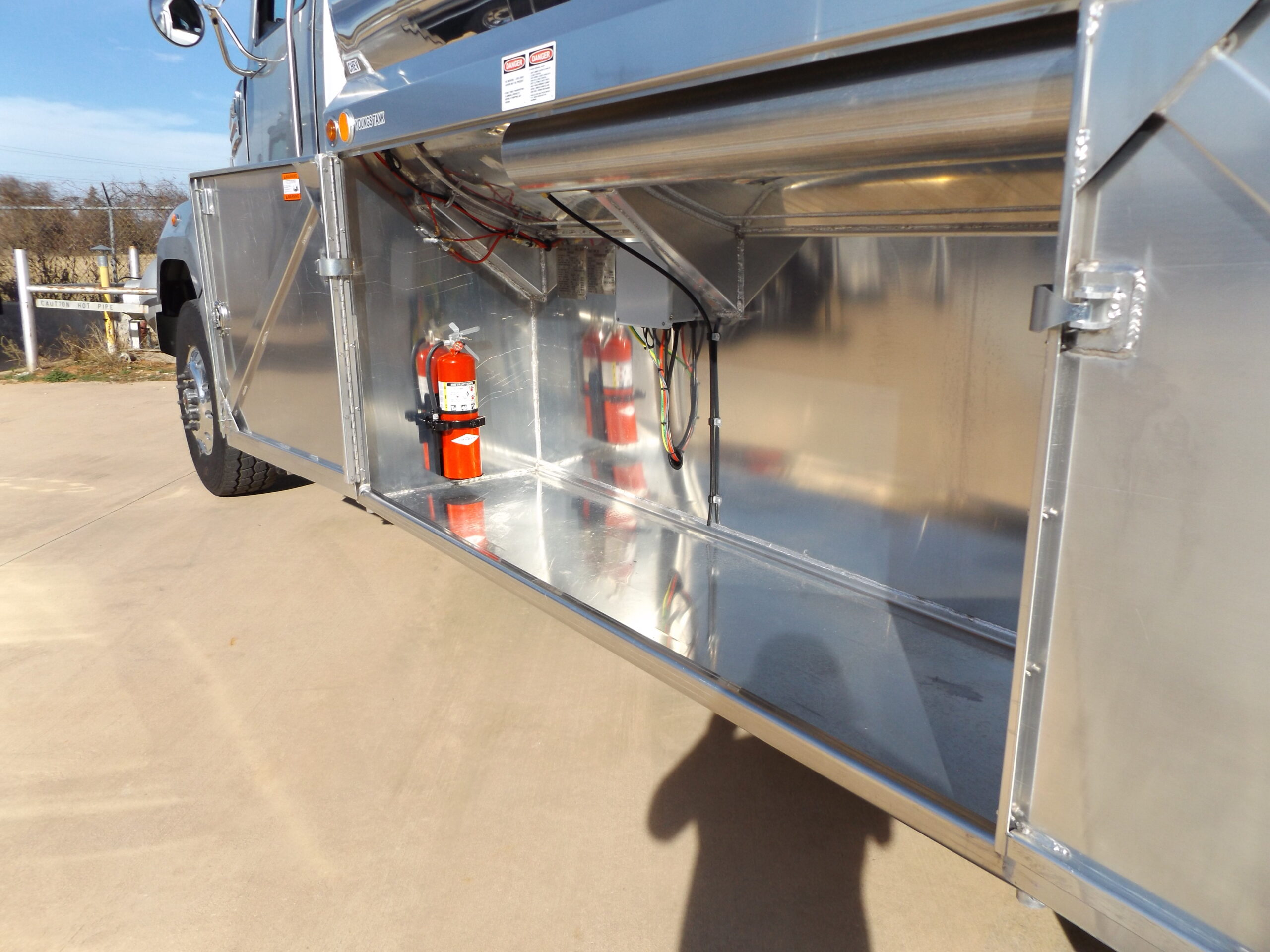

Cabinets

(1) Fully enclosed each side

Strapping

Texas Regulation (4,500 and 3,600 gallons)

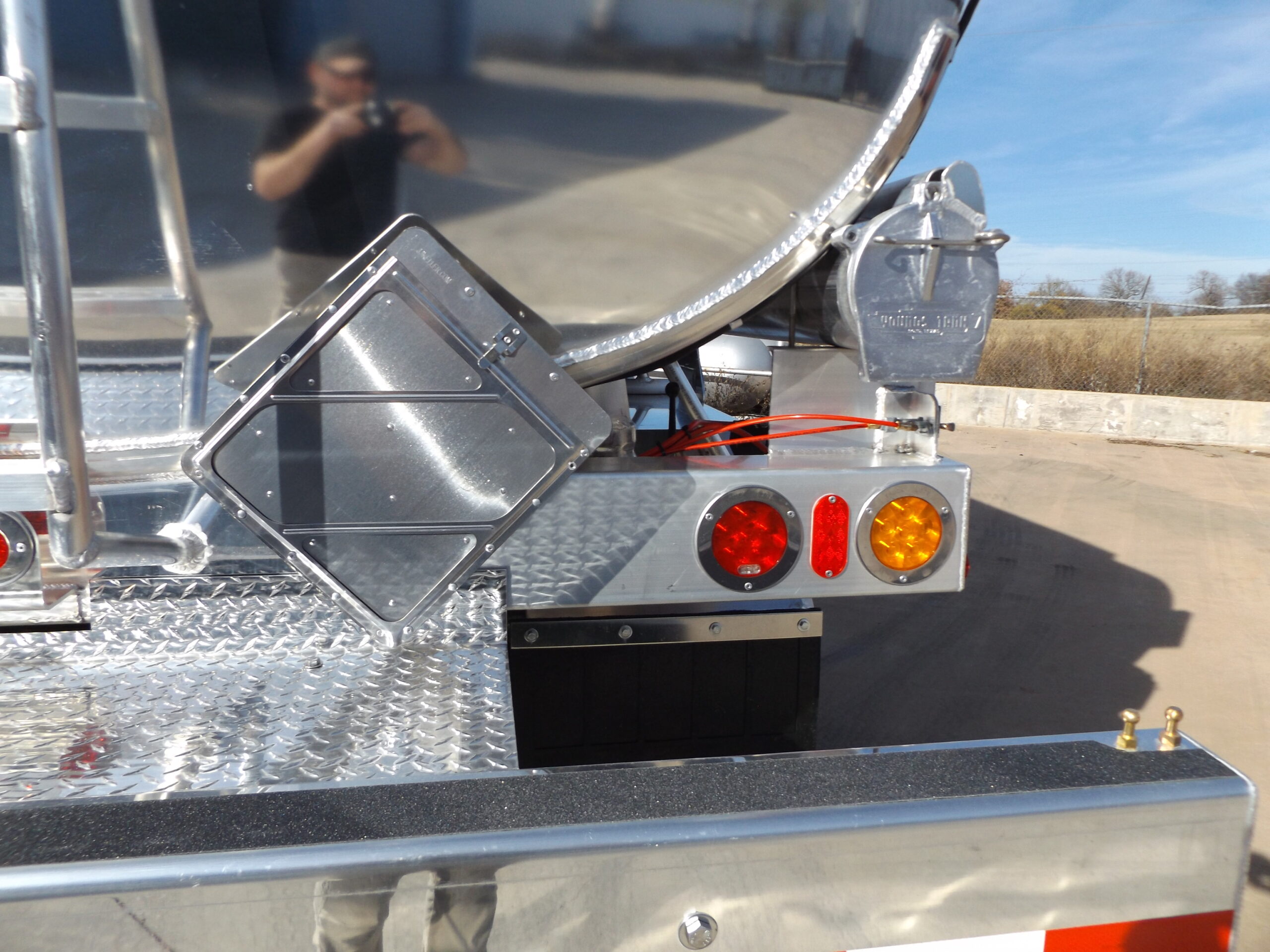

Lights

Truck-Lite LED with DOT reflectors

Markers

(2) Each compartment, set at rated capacity (not sealed); static cables

Paint & Number

Steel parts painted

Pump

Single pumping, delivery at curbside

Special Equipment

– Bolster-mounted truck tank
– Bottom loading with vapor recovery line at rear curbside
– Scully Intellicheck II with (2) sockets and Ground Hog
– Auxiliary input tied to vent system (vents must be open for Scully permit)
– (4) KT-3 placards
– Cabinet light in curbside cabinet
– DOT tests and inspections
– 1/4″ theoretical calibration chart
– DOT plate
