Youngs Tank 4 Compartment 4500 Gallon Tank A-273

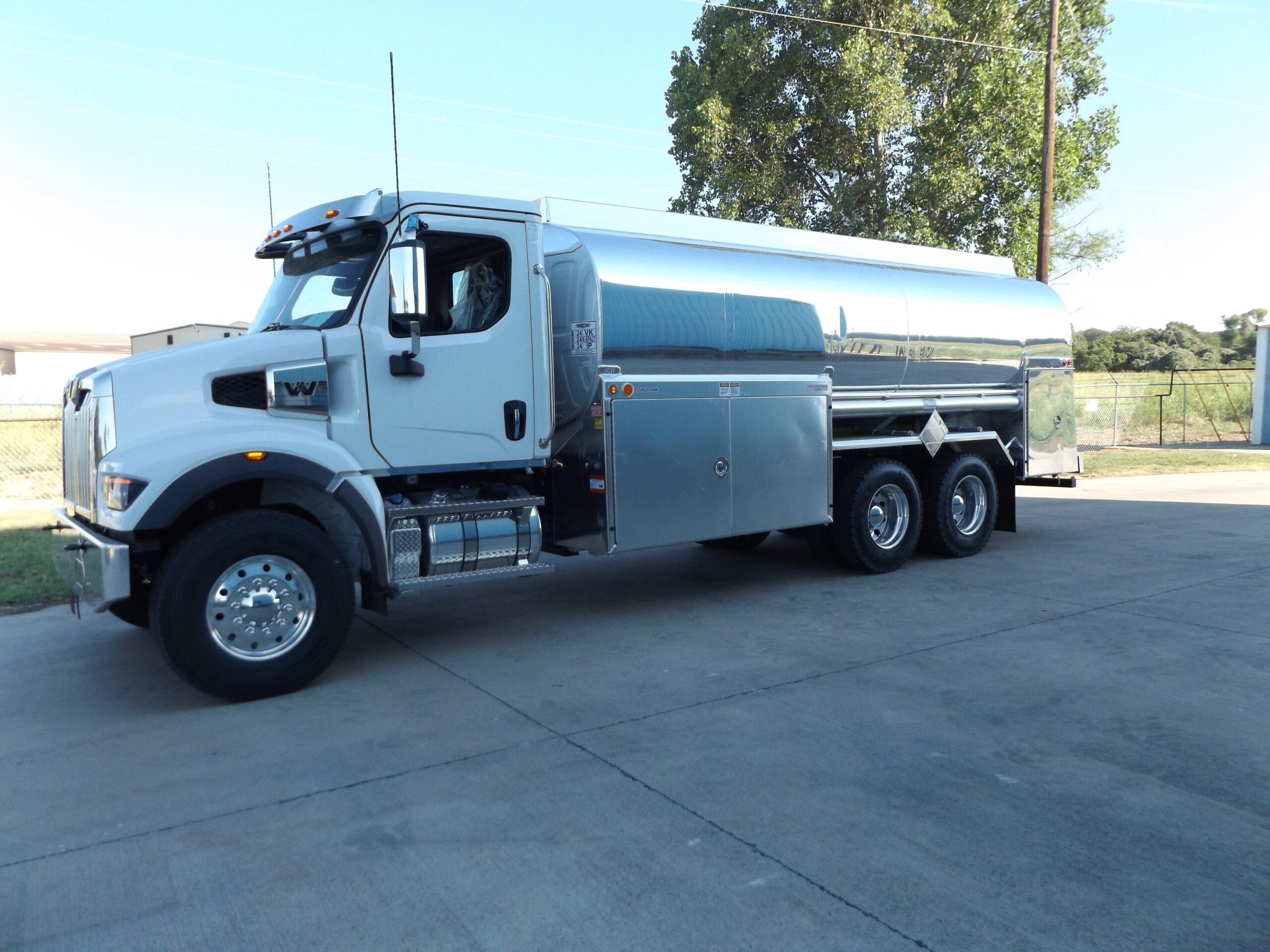

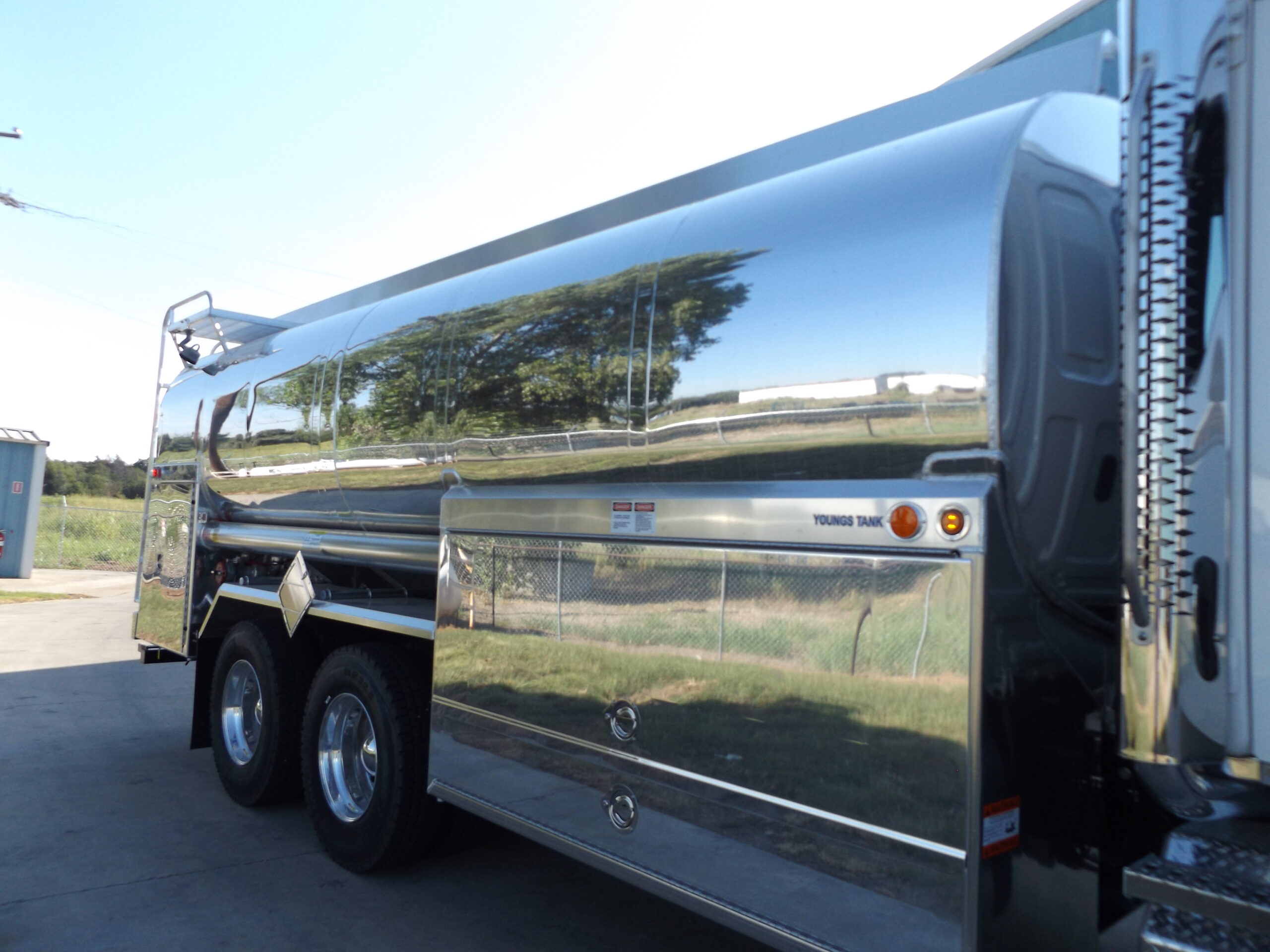

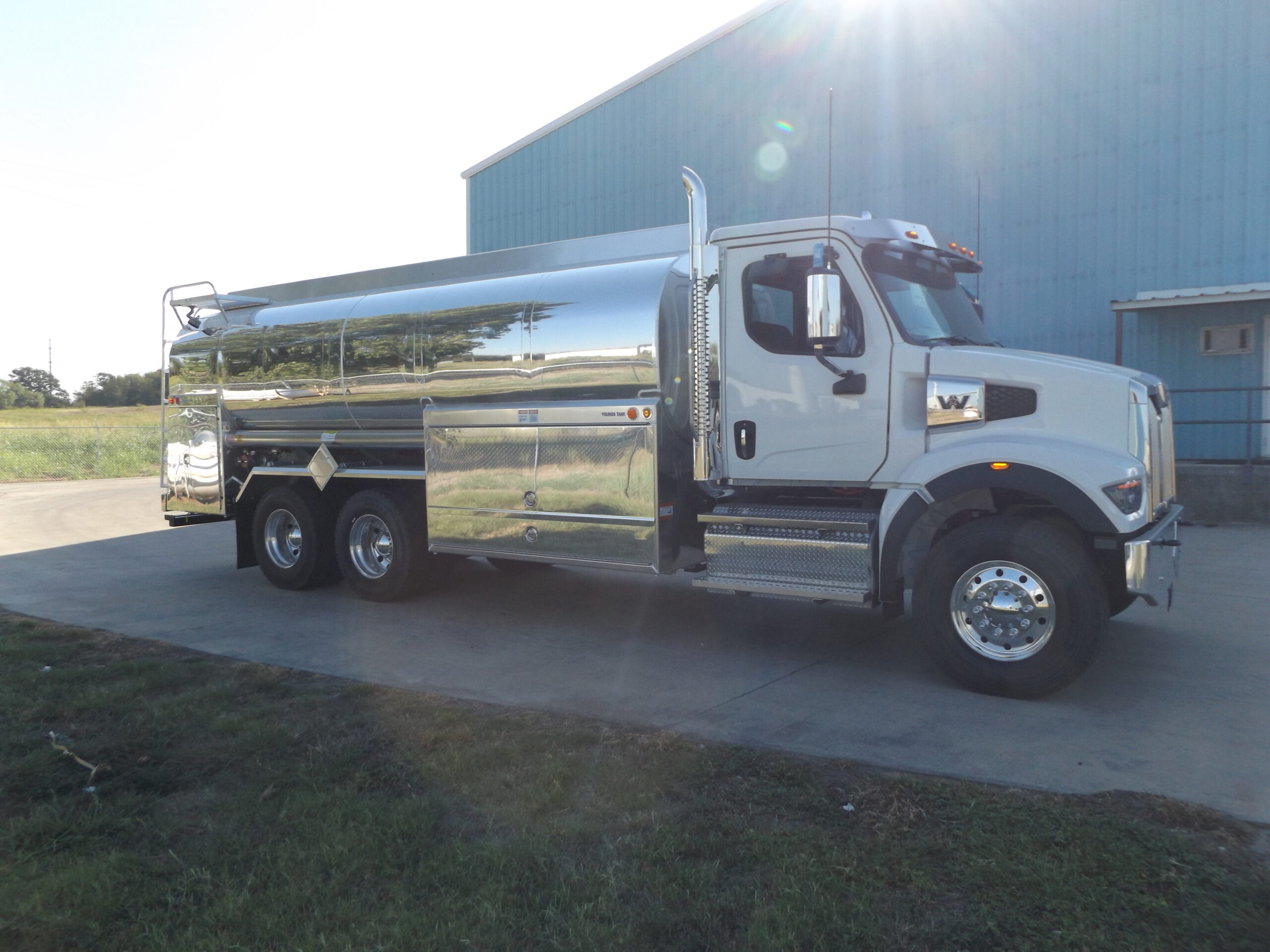

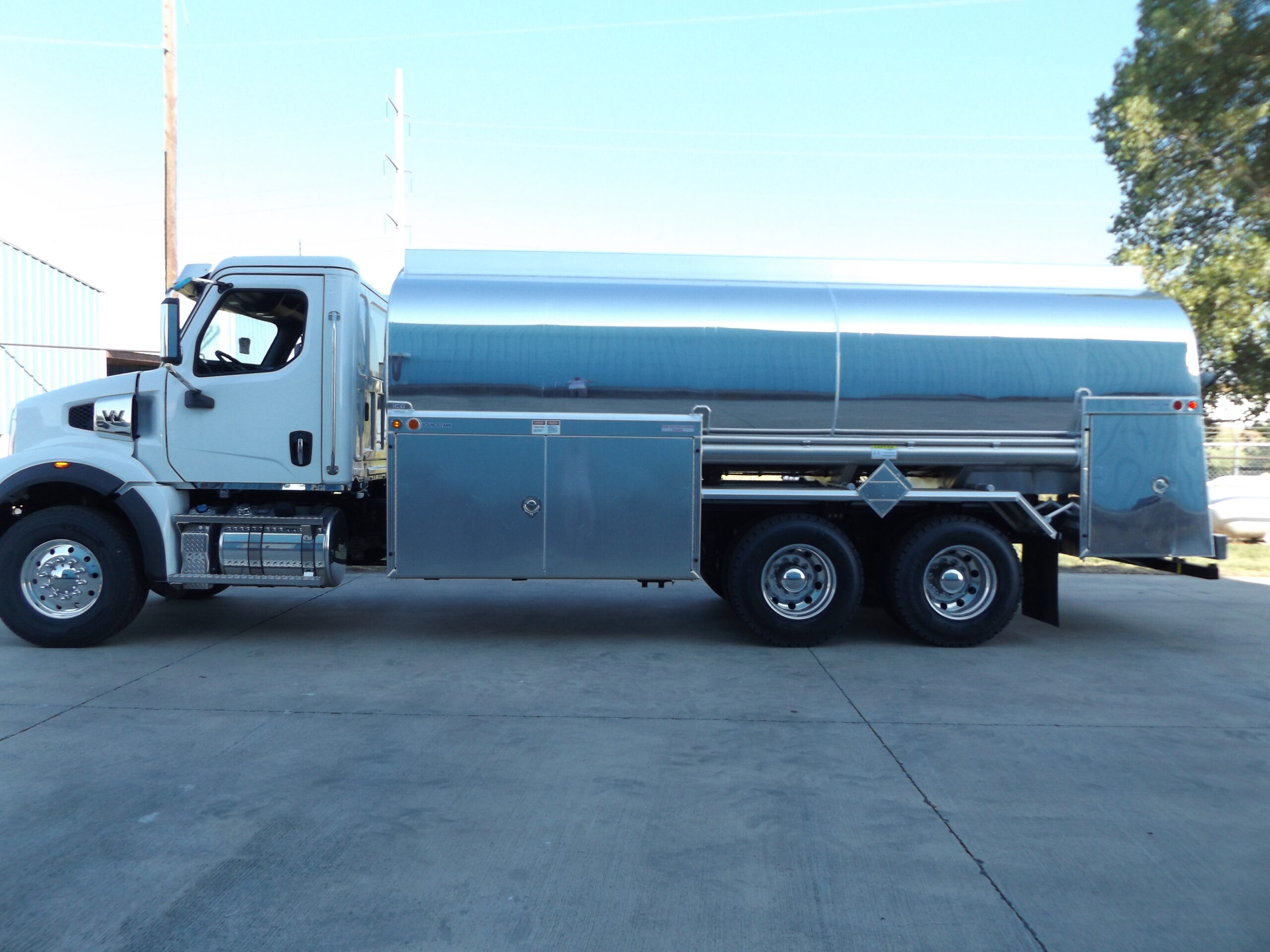

4 Compartment 4500 Gallon Bobtail Tank

This durable 4-compartment, 4,500-gallon tank is built for efficient liquid transport and optimized product separation. Designed for performance, reliability, and compliance, it’s ideal for multi-product delivery applications.

Product Gallery

Specifications

Type

Straight Elliptical Truck Tank

Capacity

4500 Gallon

Plus

75 Gallons for Chevron/Motiva

DOT MC

406

Commodity

Petroleum Products

Average Weight

6.7 #/Gal

Construction

Alum – 5454-H32 Shell, .190/.250 thk.; 5454-O Heads, .190/.225 thk. (End Heads and Shell are Bright Finish)

Number of compartments

4

Compartment Specs

Tailored to Customer Needs

Ladder

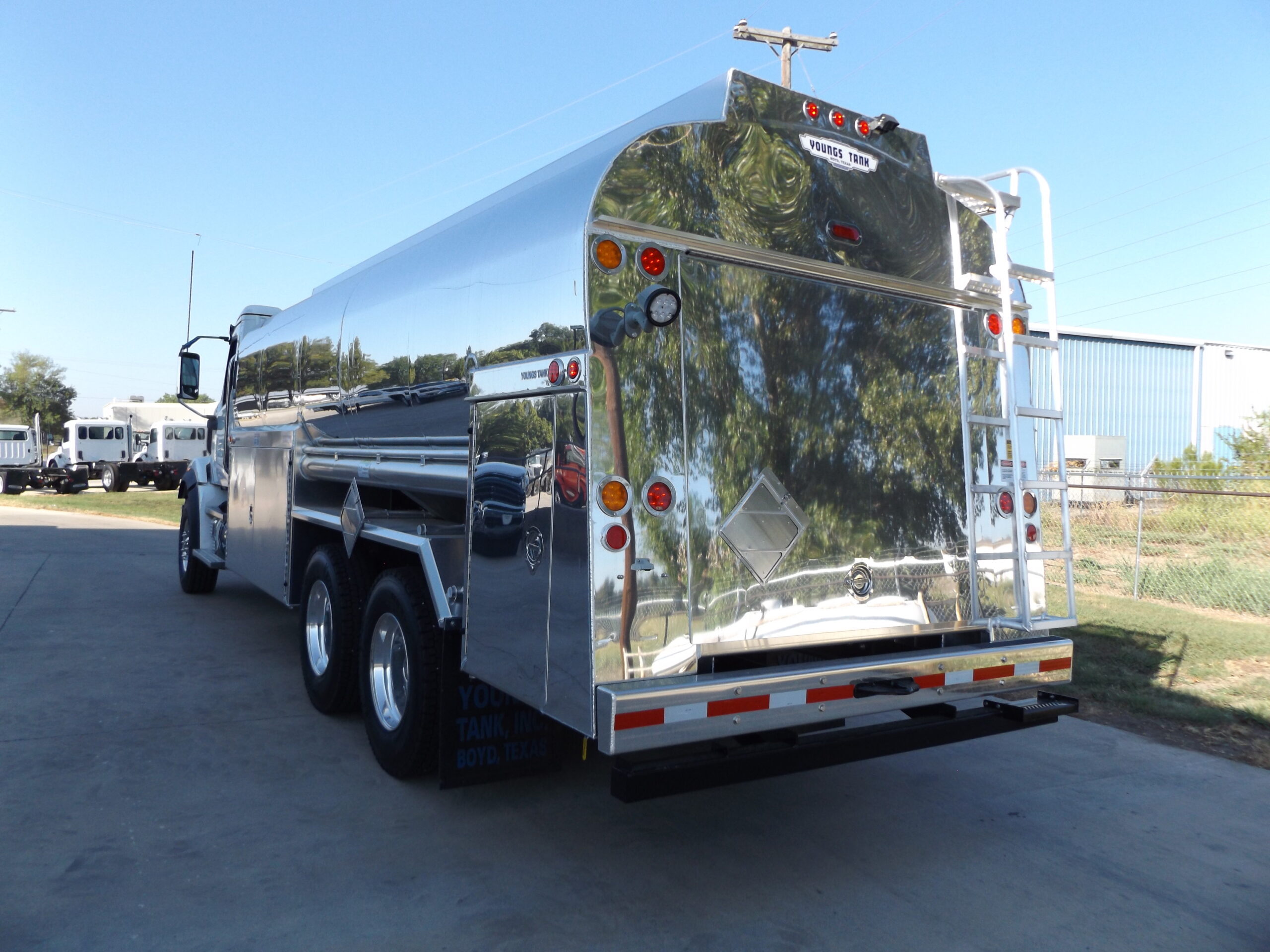

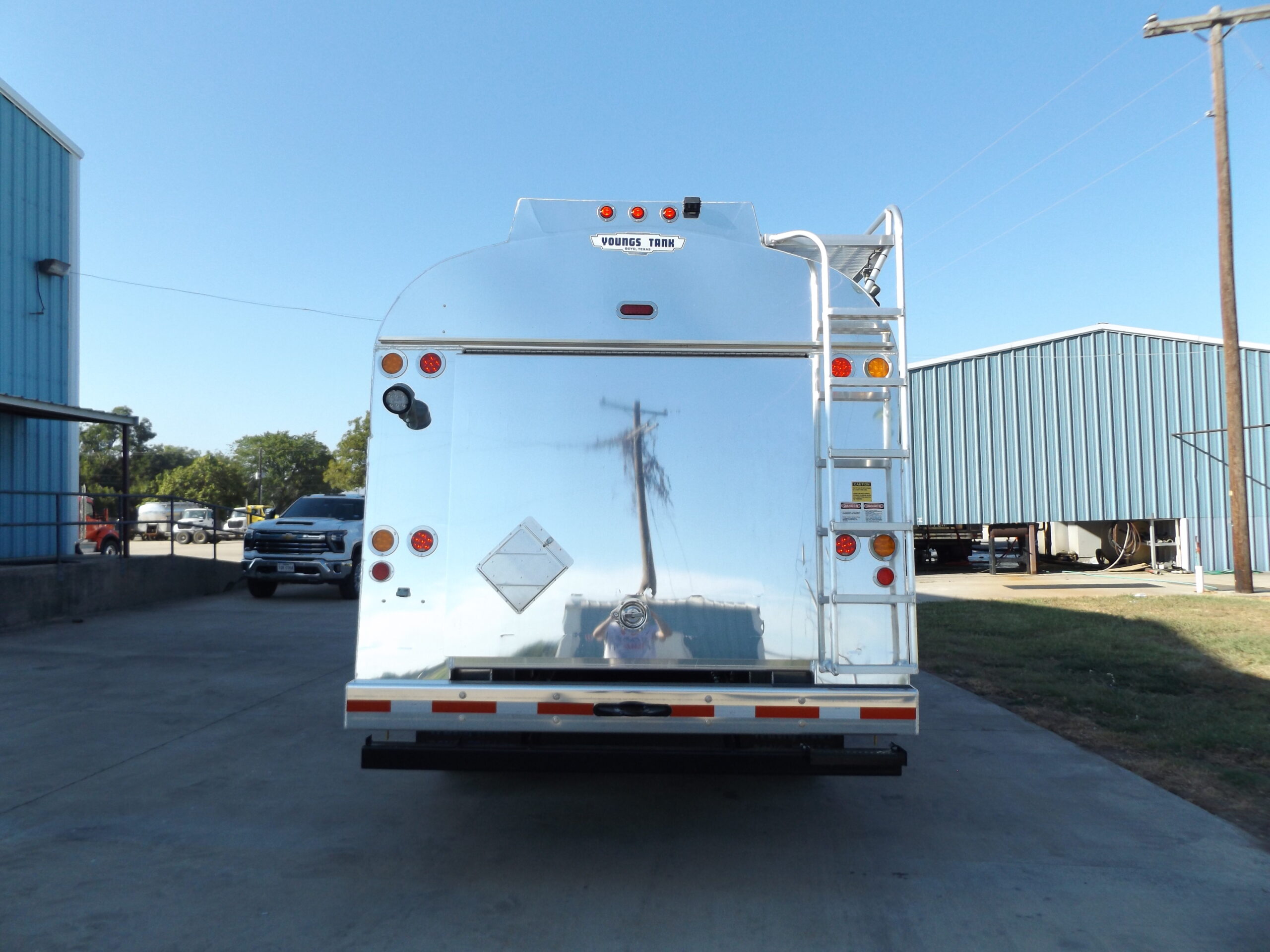

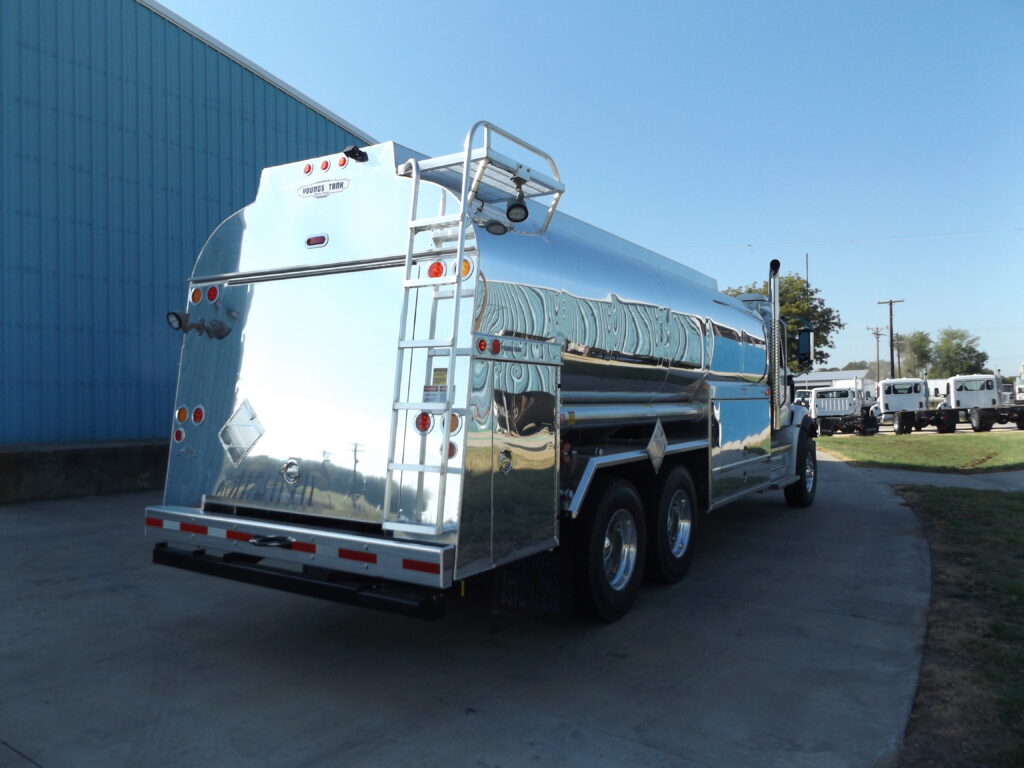

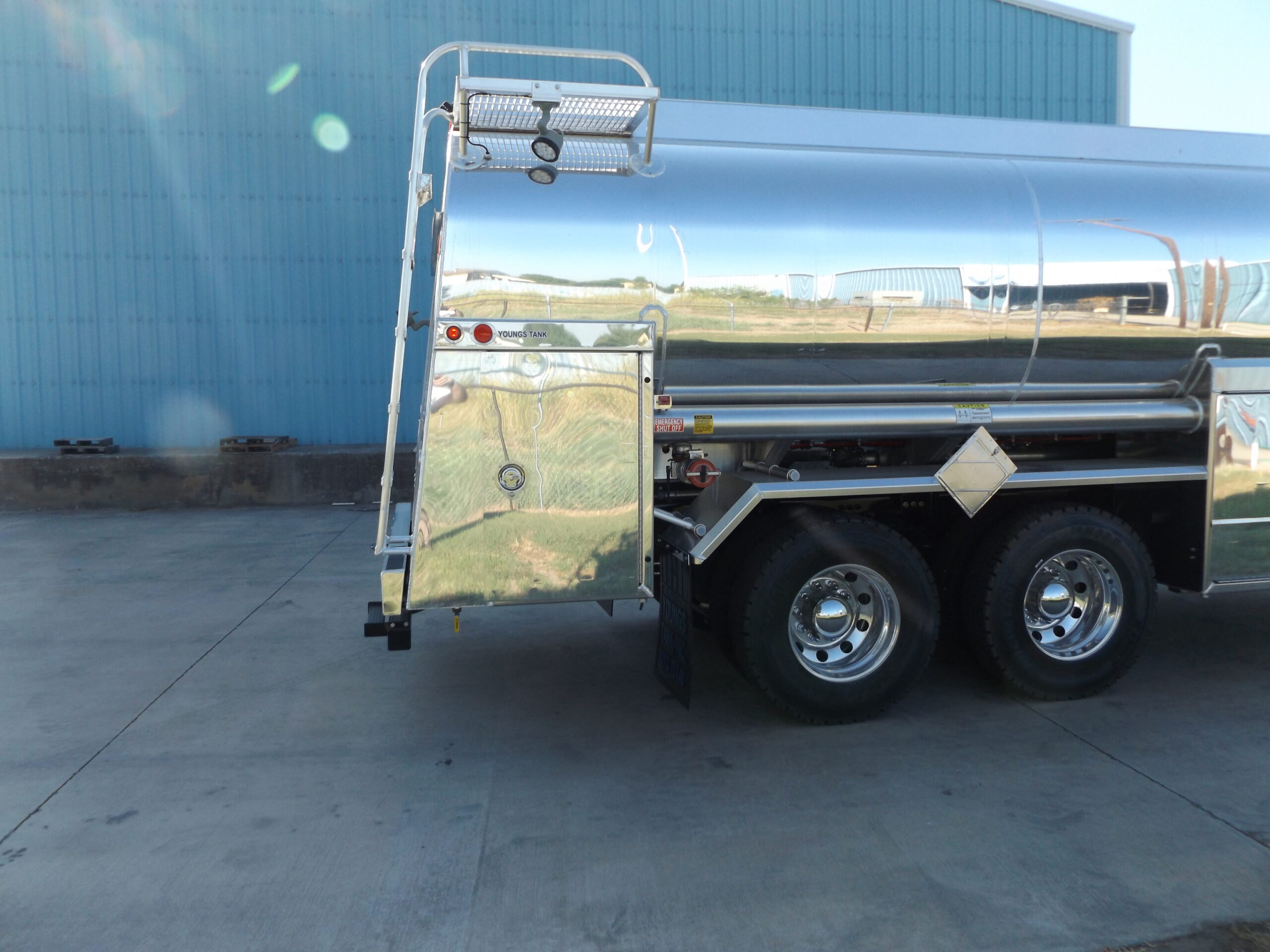

At Curbside Rear, 2′ x 3′ Platform at Top

Bumper

DOT Spec with Underride Tube – Alum Outer Cover

Fenders

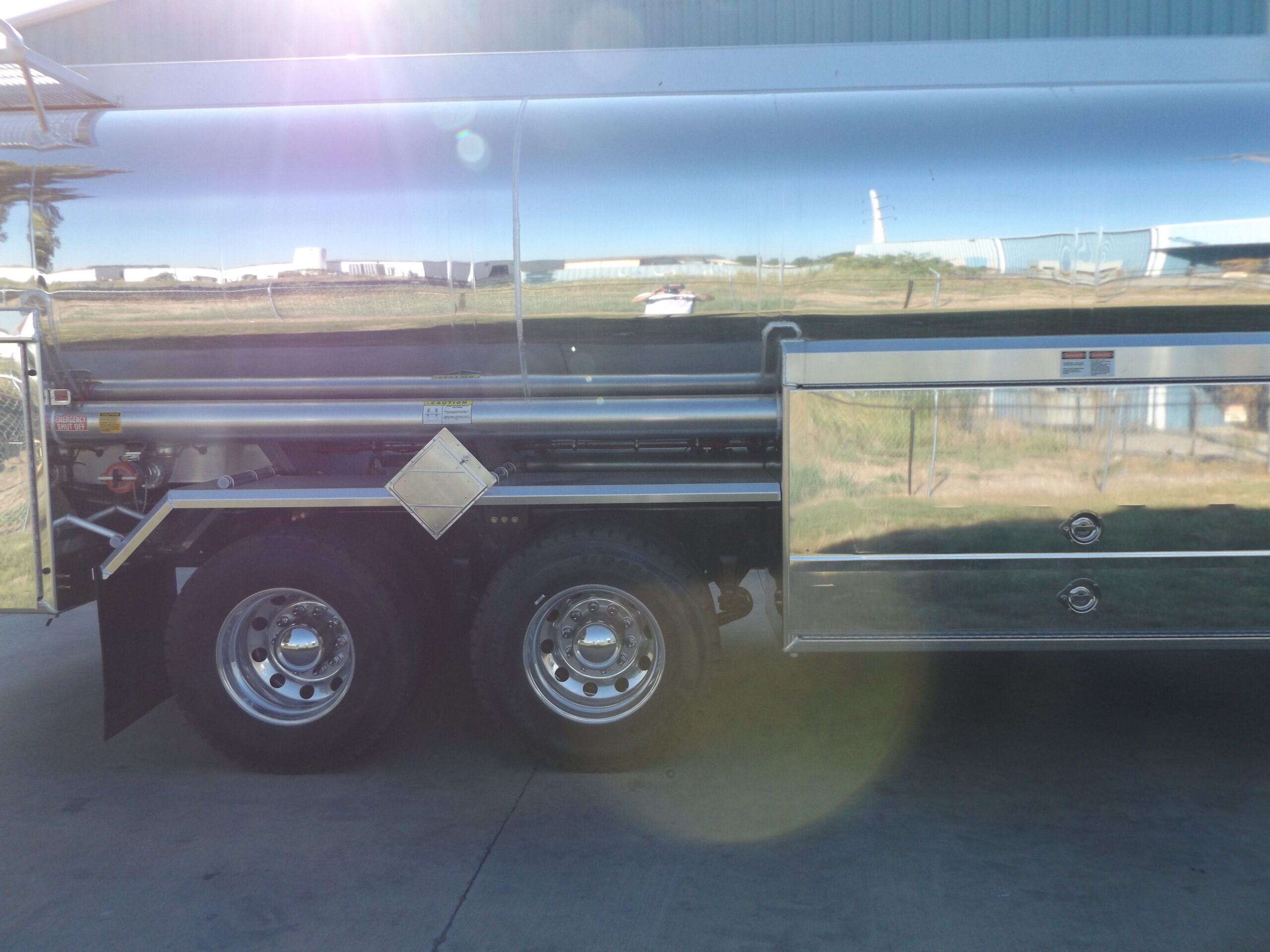

Alum – Jeep Style

Hose Tubes

7″ Hose Tube at each side, opens to Tray in Front Cabinet

Piping

3″ Alum to Curbside, 2″ Alum Discharge Piping from Pump to Rear

Vents

3″ (Vapor Recovery – Sequential Air Activated)

Valves

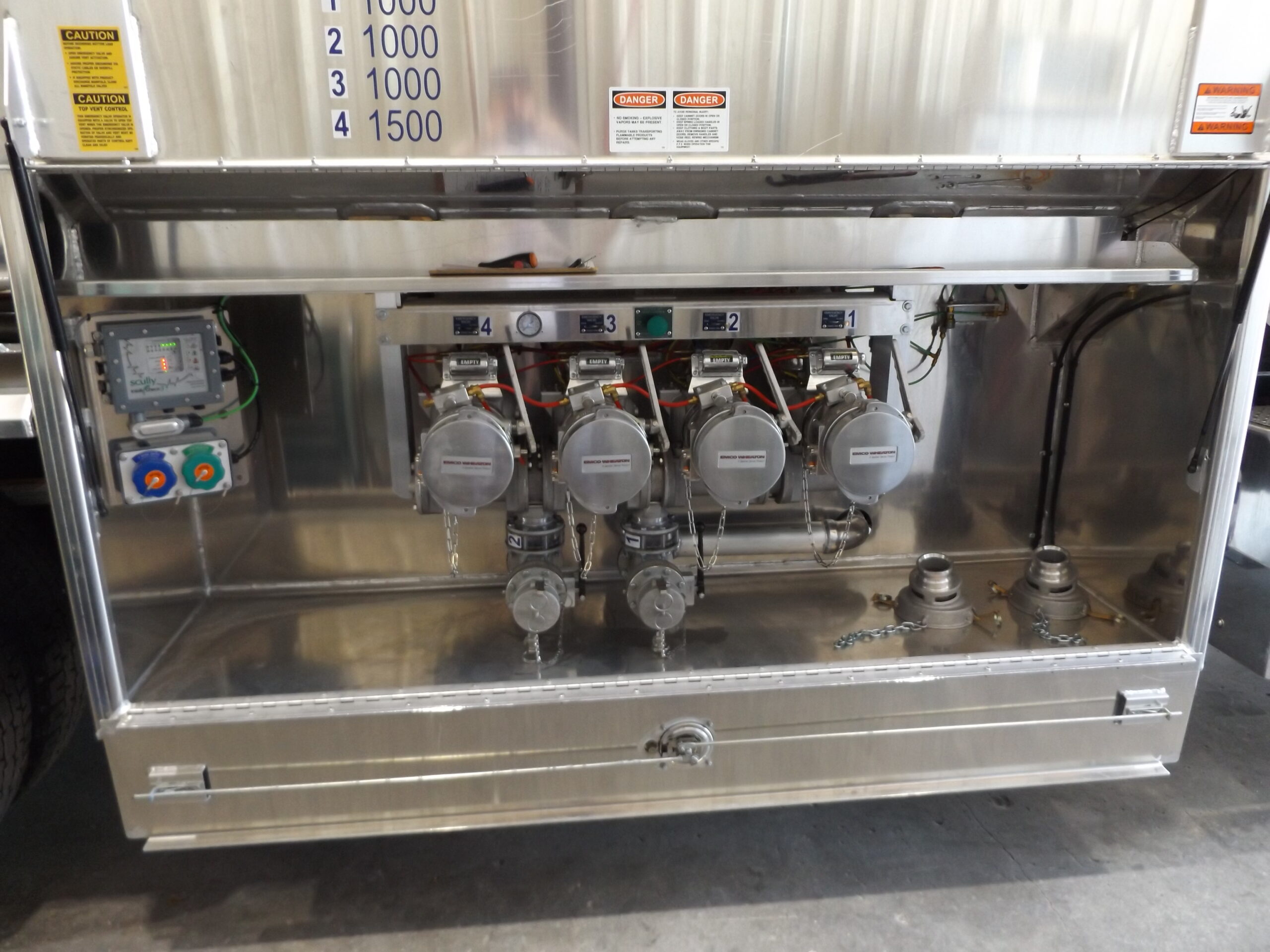

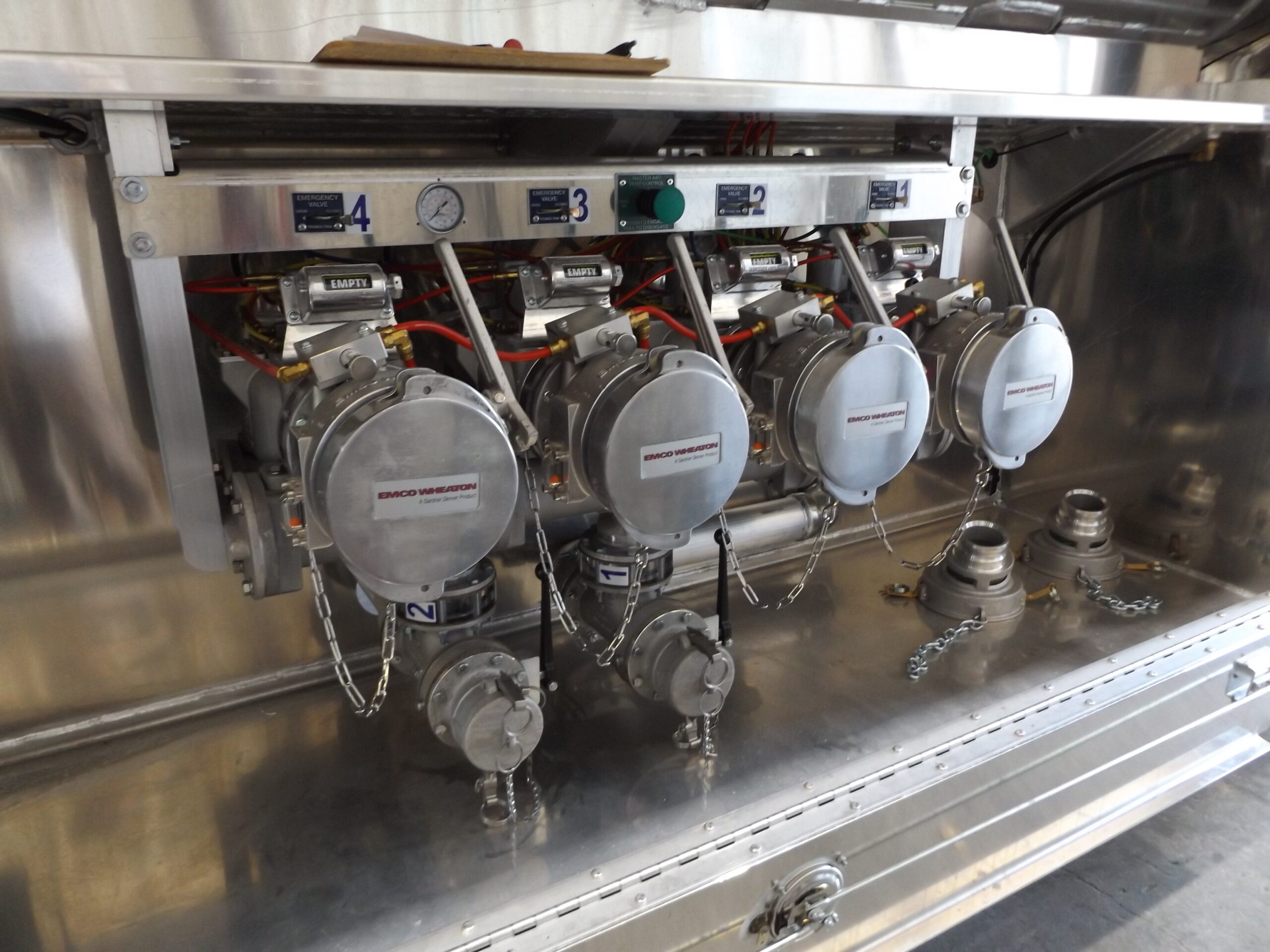

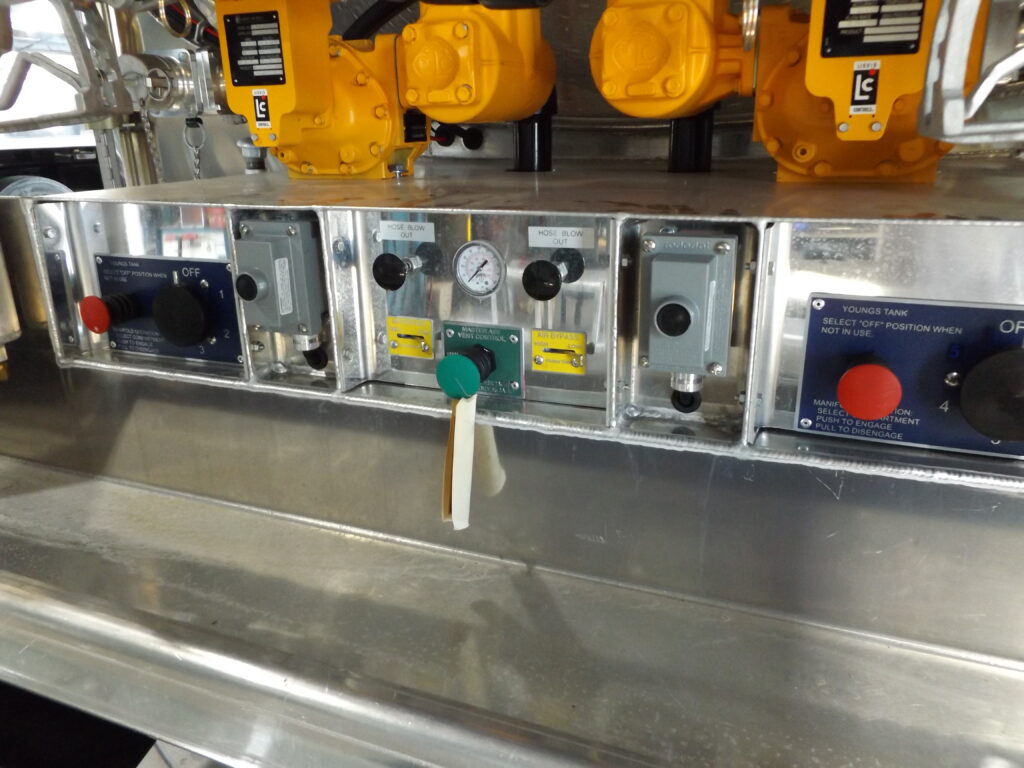

Openable Adapters With (2) 4″ x 3″ Unloading Spouts, Dual Air Manifold behind Bottom Load Adapters.

Emergency Valves

3″ Air Operated Emergency Valves / Air Remotes Curbside Front and Rear

Walkway

Expanded Metal at Top

Domes

TIONA 16″ With 10″ PAF (Vent and Sensor Compatible)

Flashing

Full Length Vapor Proof With Betts In/Out Breathing Vents

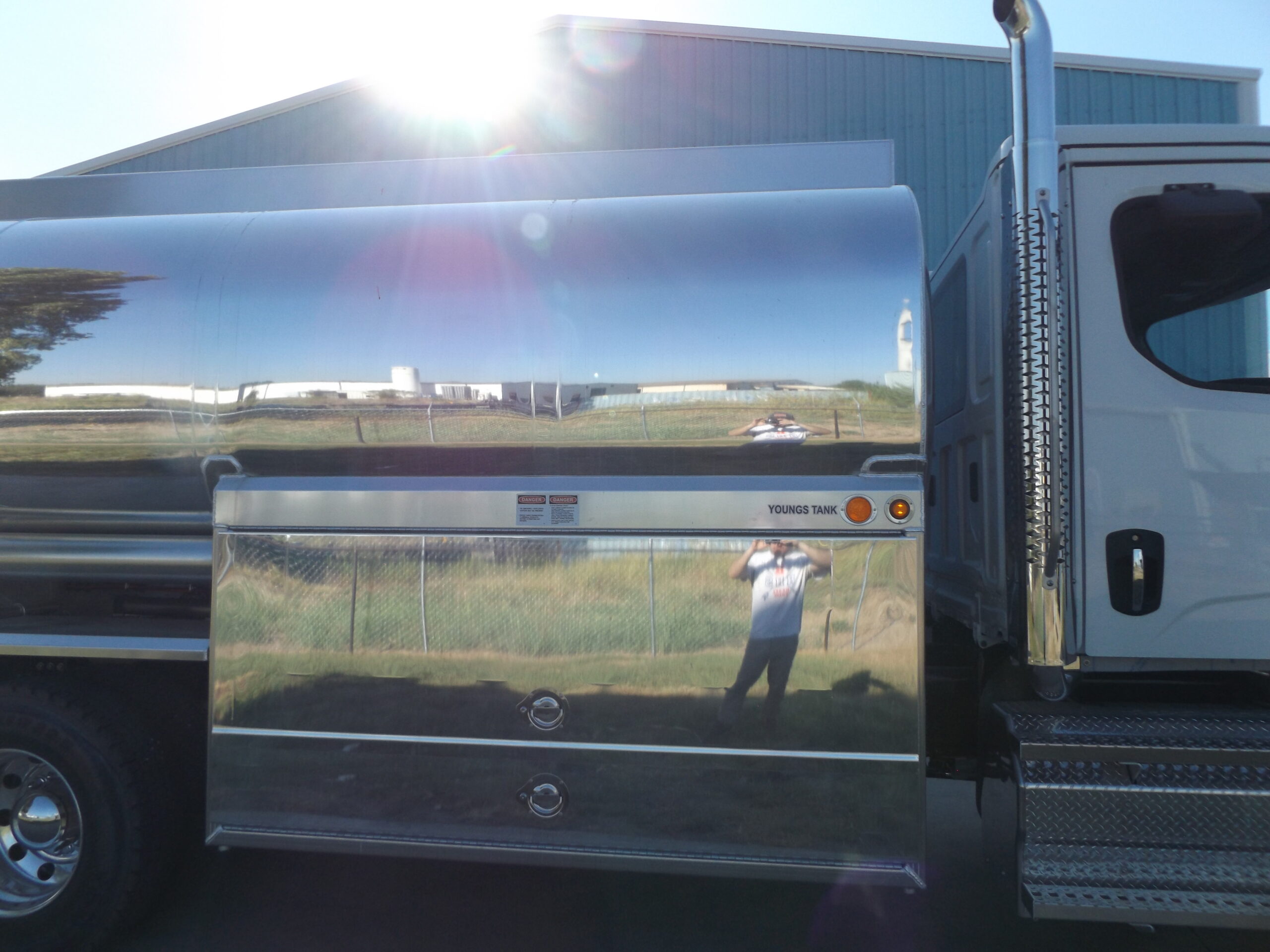

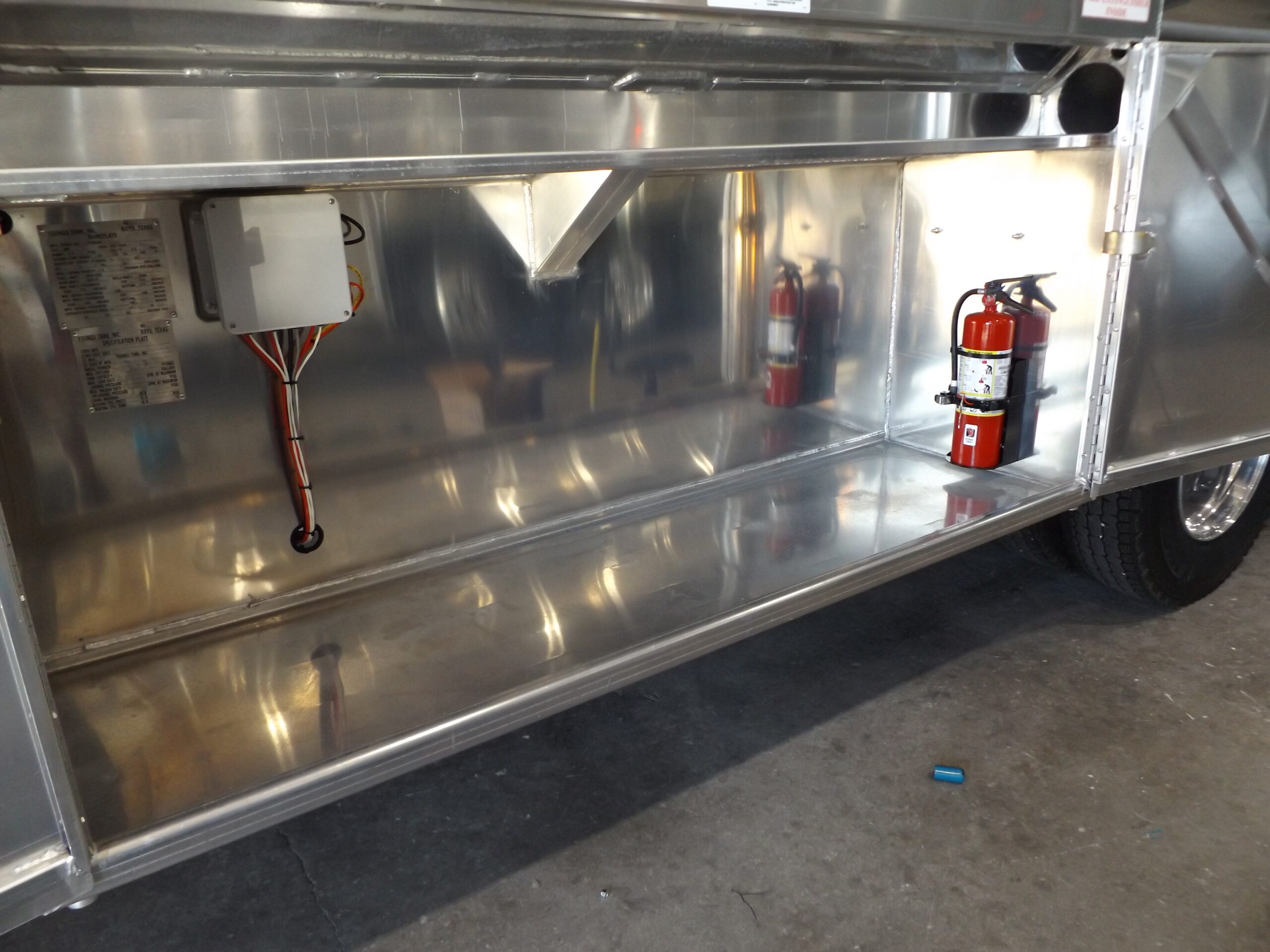

Cabinets

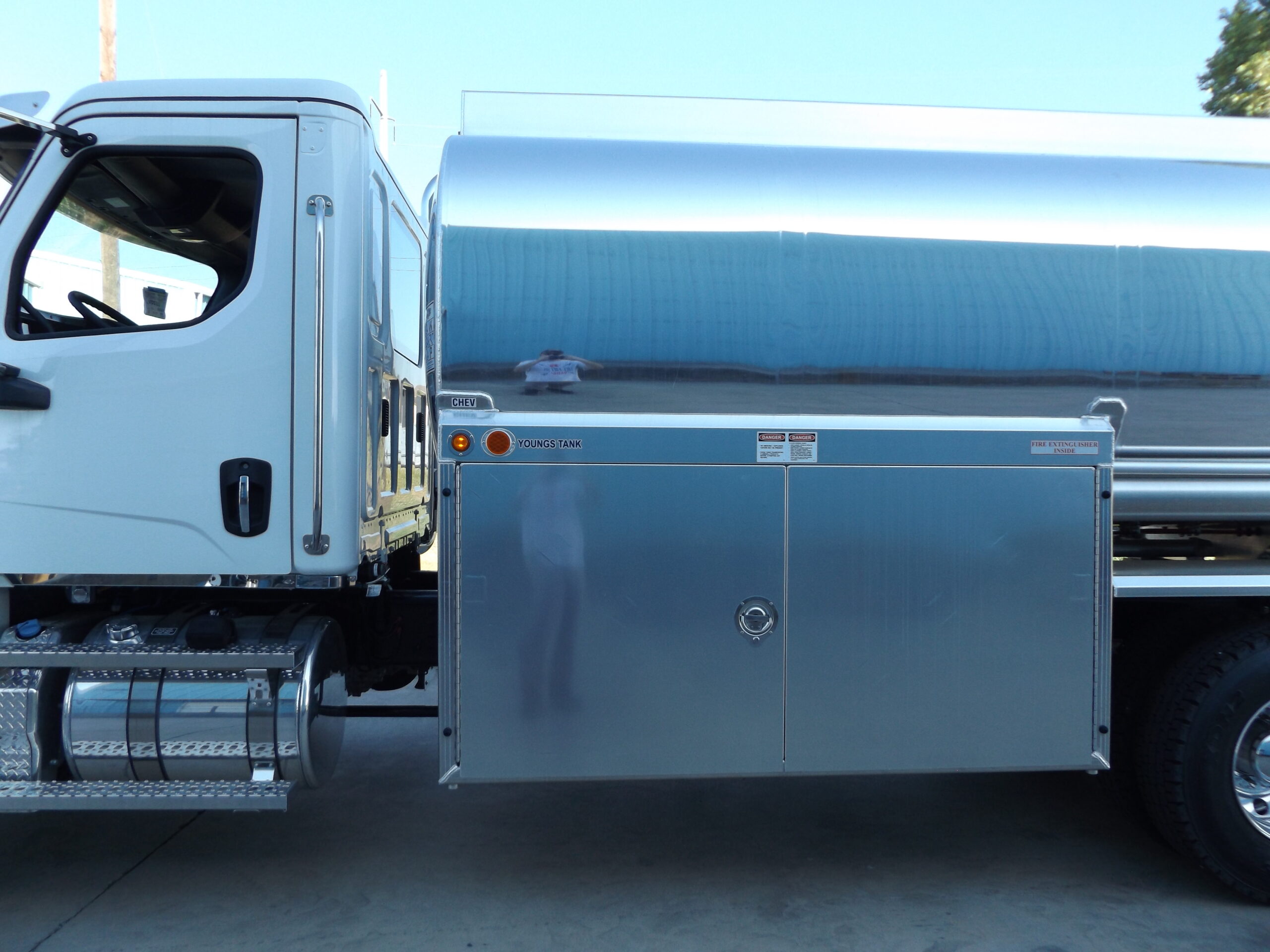

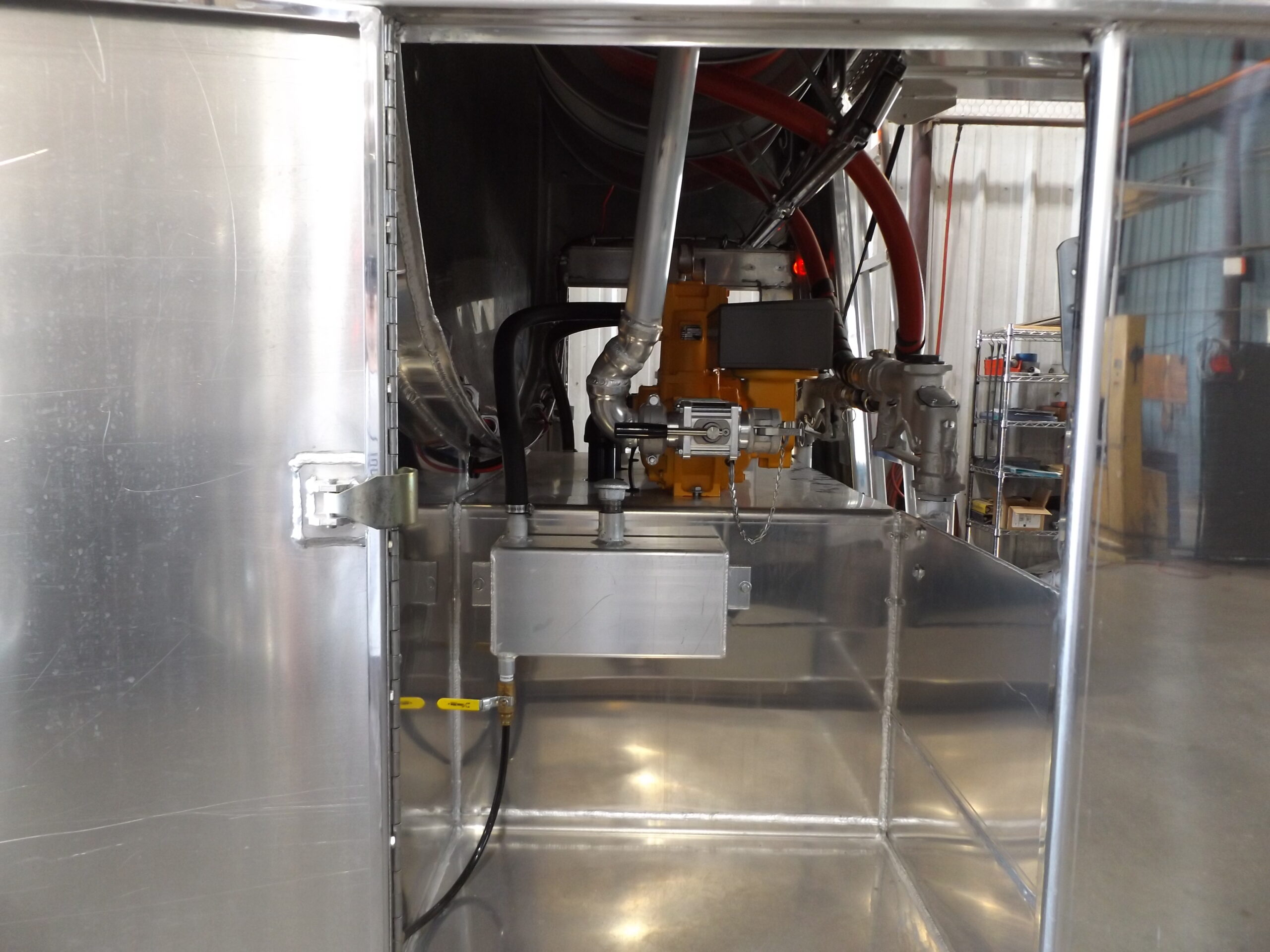

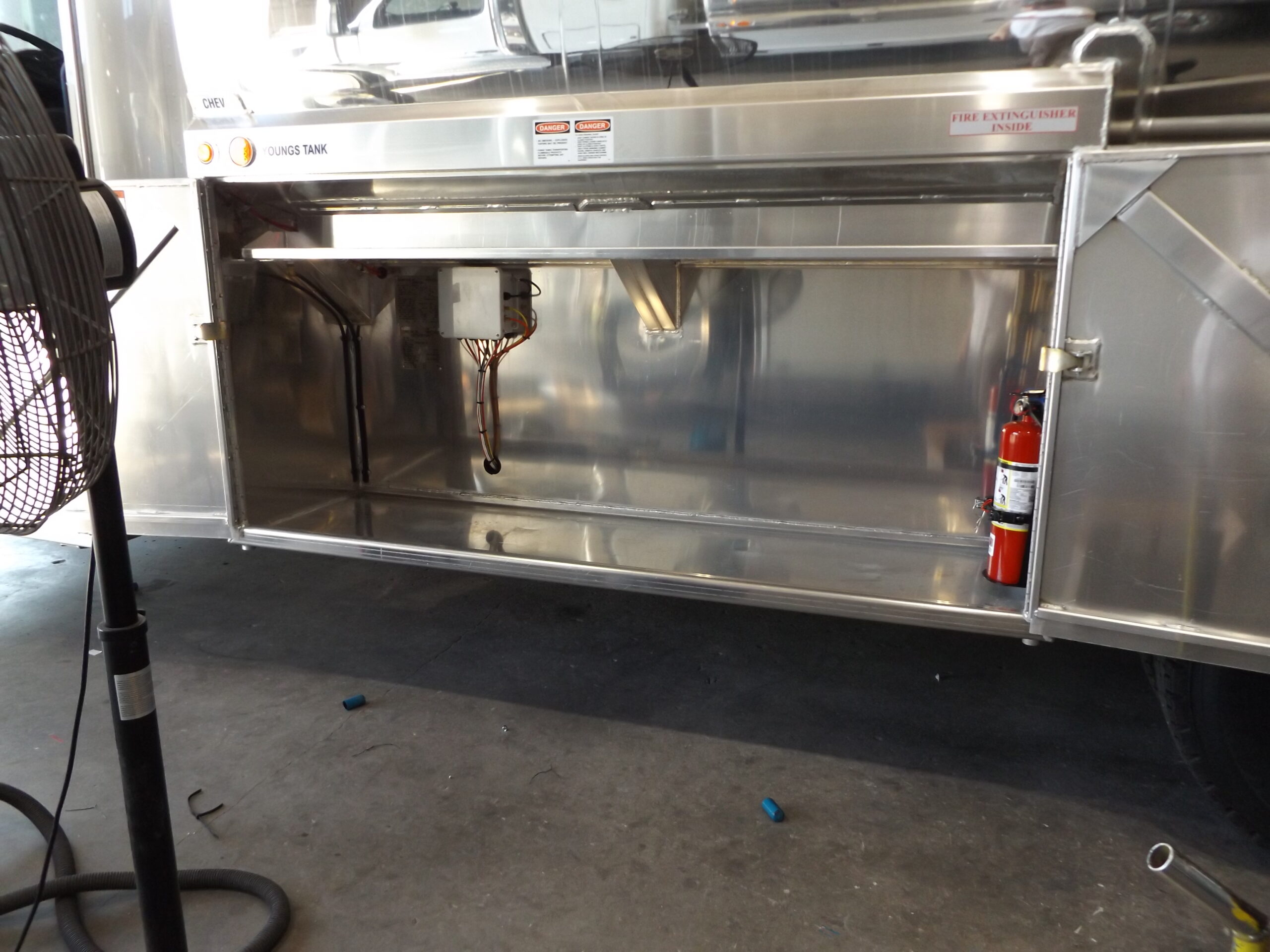

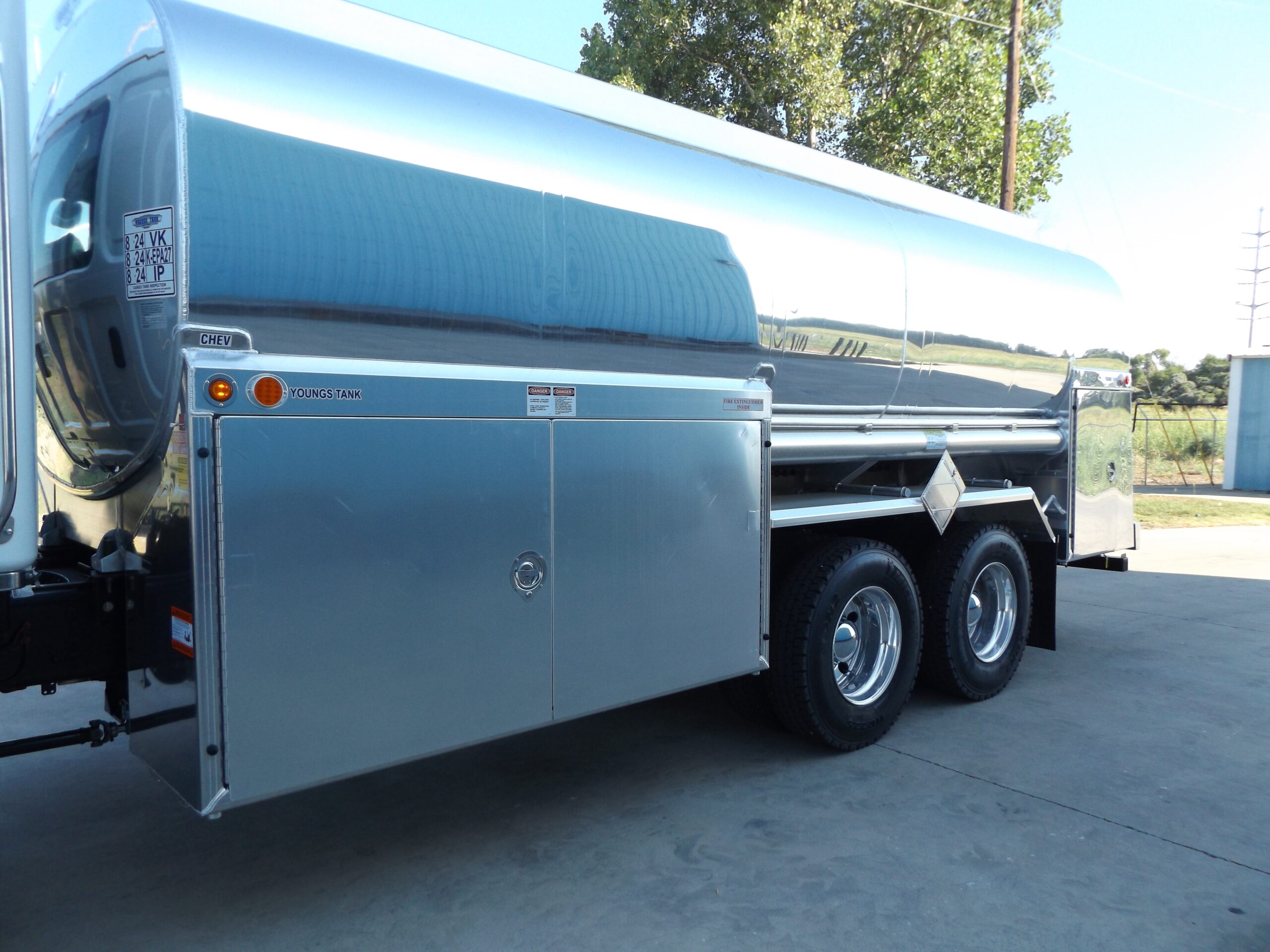

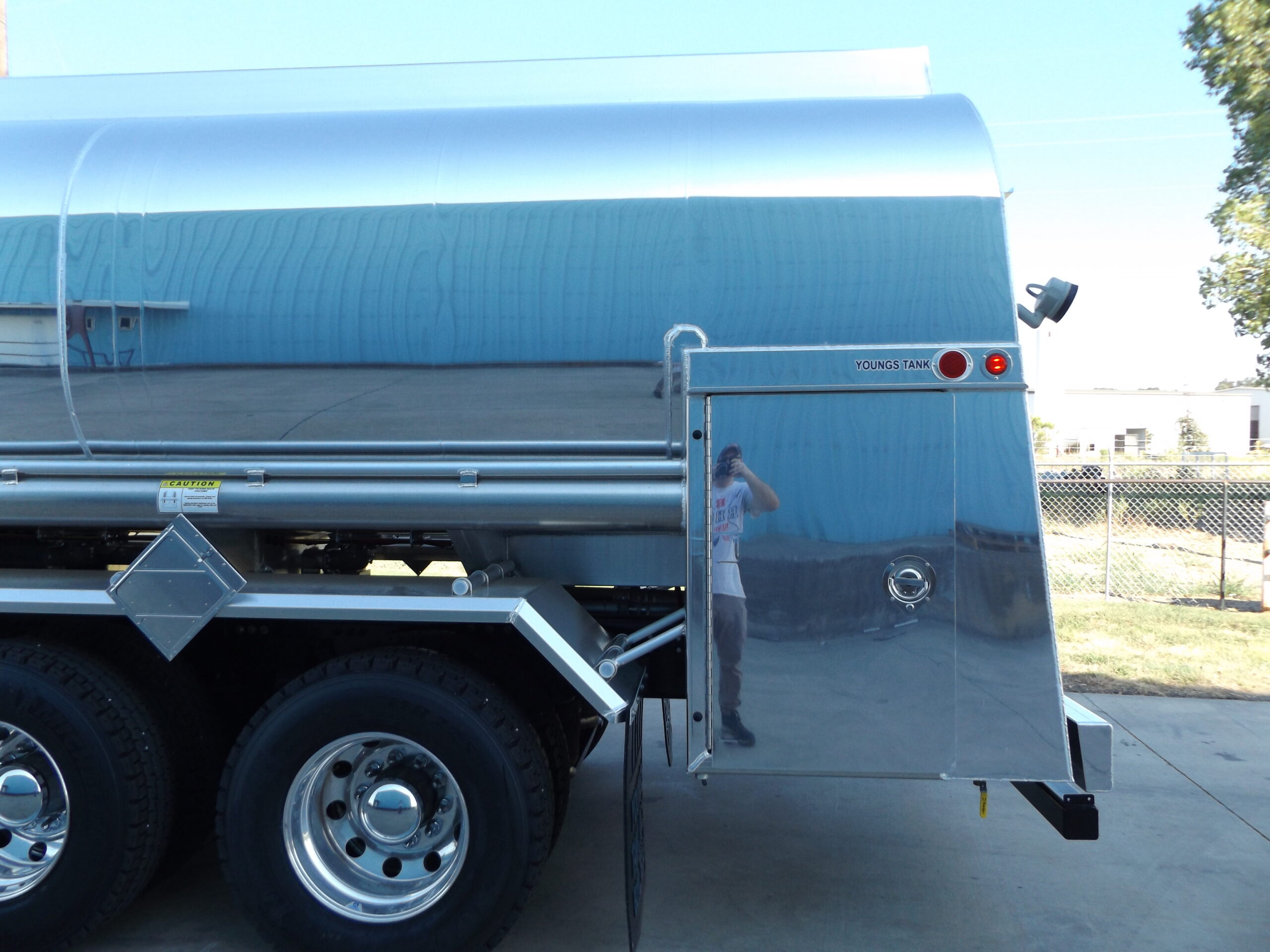

(1) Fully Enclosed each side at Front with Split Lift-Up at Curbside and Swing-Out at Streetside, (1) at Rear with Swing-Up Rear Door – Supported by Gas Springs with Side Doors.

Strapping

Texas Regulation (4500, 4500 Gallons), Not Set & Sealed by Weights and Measures

Markers

(2) Each Compartment, Set at Rated Capacity (Not Sealed), Static Cables

Paint & Number

Steel Parts Painted

Pump

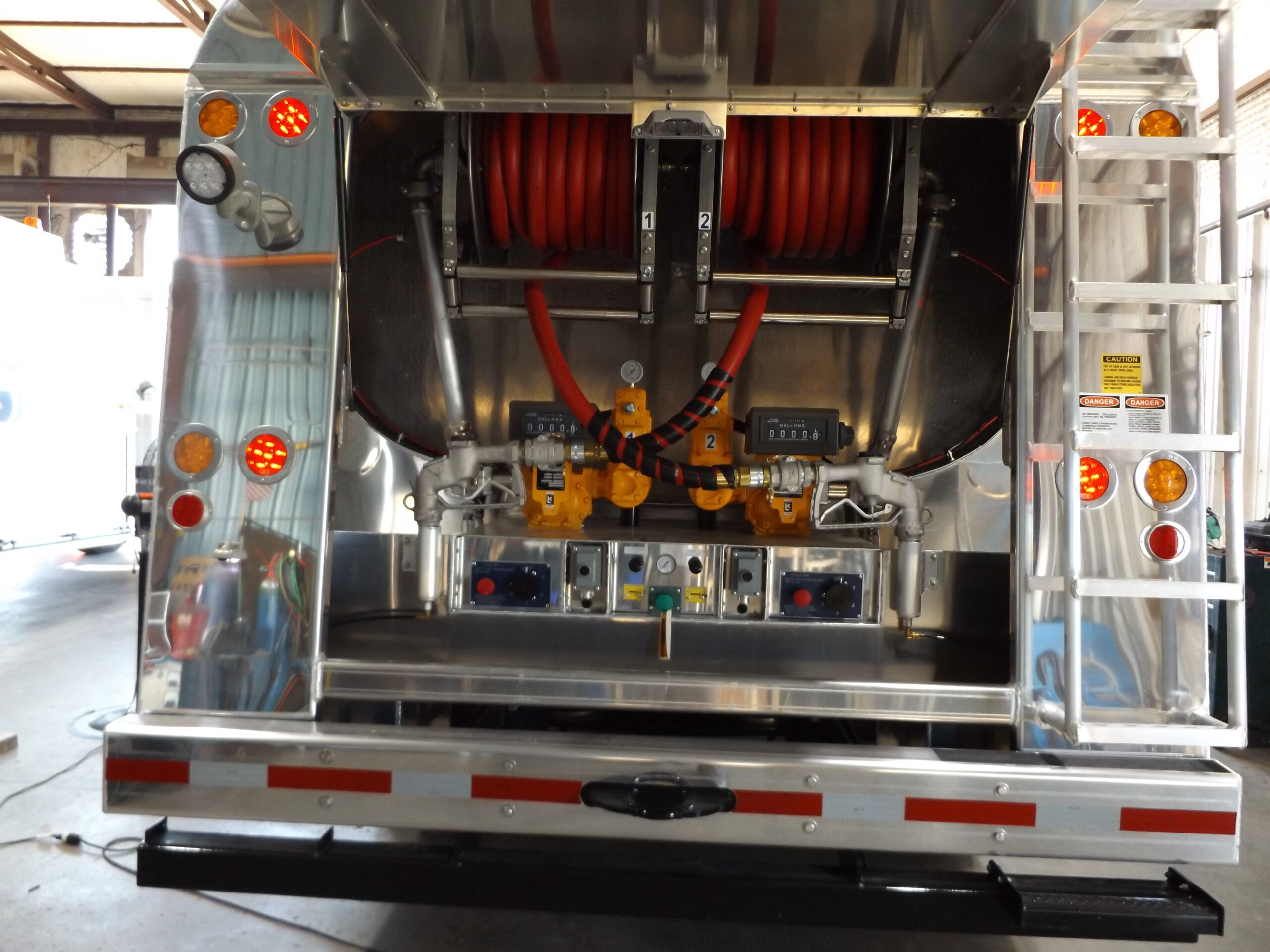

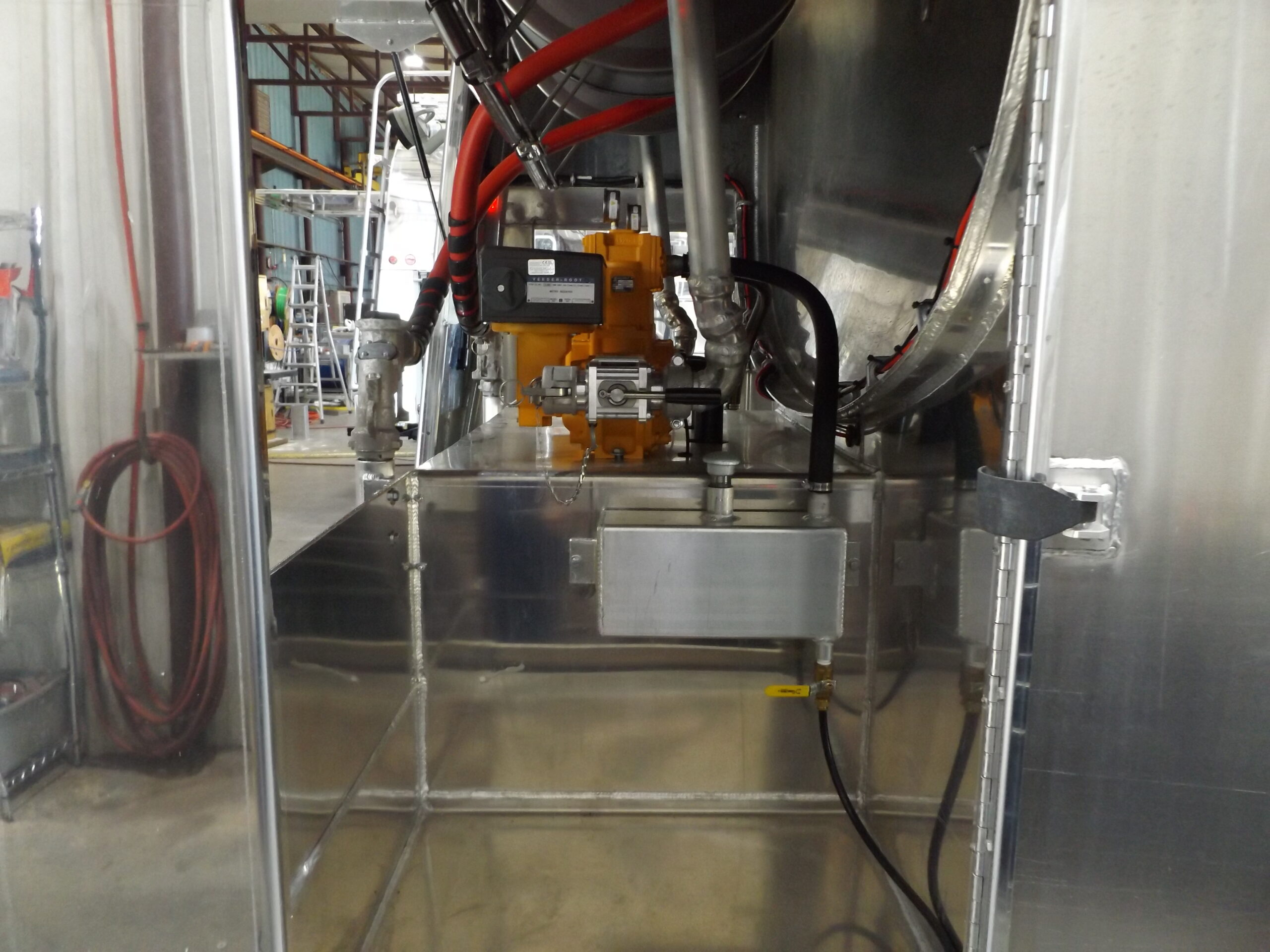

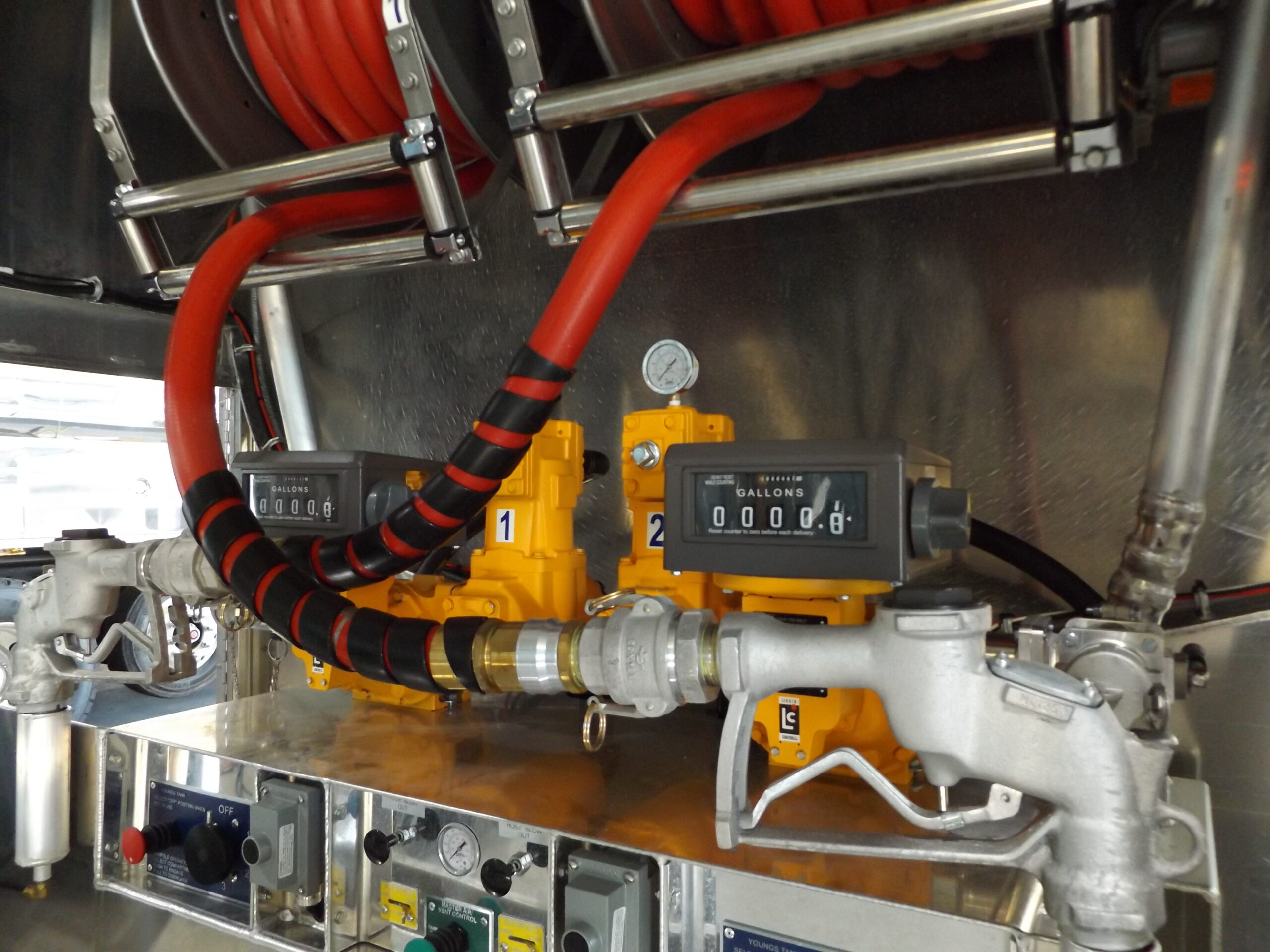

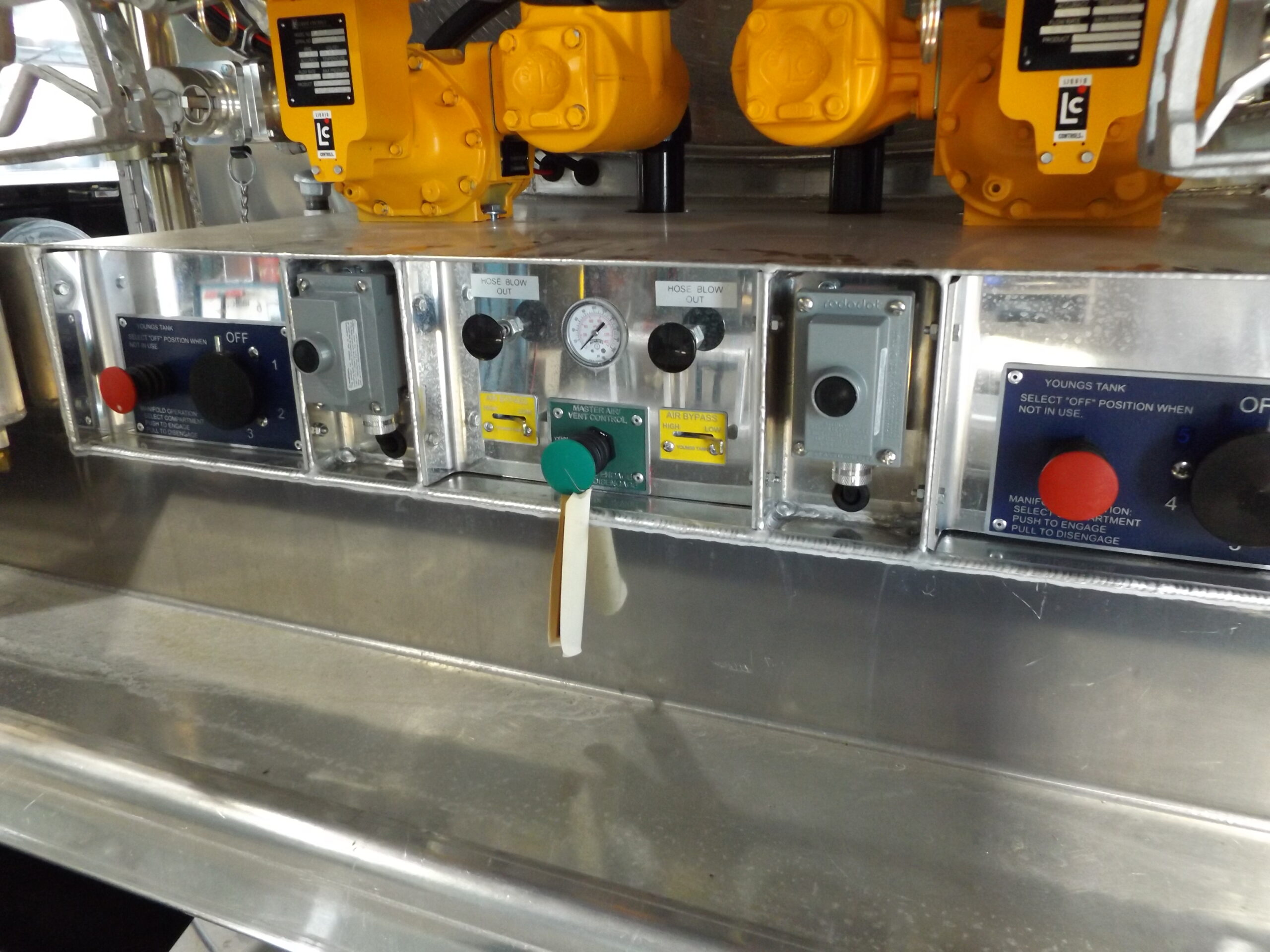

Dual Pumping – Delivery at Rear

Special Equipment

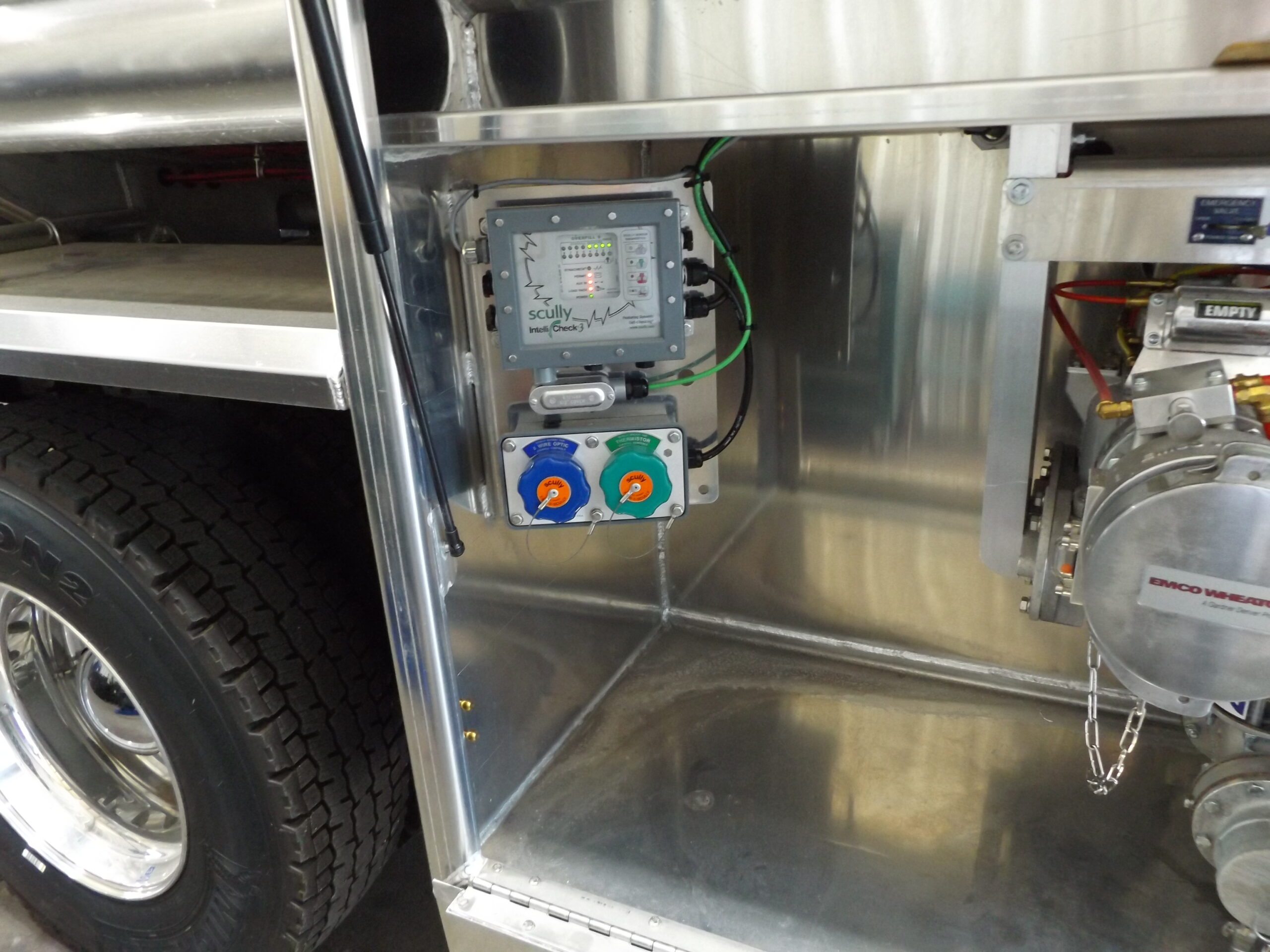

Bolster-Mounted Truck Tank Mounted to Truck, Bottom Loading With Vapor Recovery System at Rear of Tank, Scully Intellicheck Overfill With Duocept Sockets – Auxiliary Input Tied to Vent System so that Vents must be Open for Scully Permit, Ground Hog, (2) Pair Brass Static Lugs, (4) Slide-In Placards, Cabinet Light in Rear Cabinet, DOT Tests and Inspections, 1/4″ Theoretical Calibration Chart, DOT Plate.
