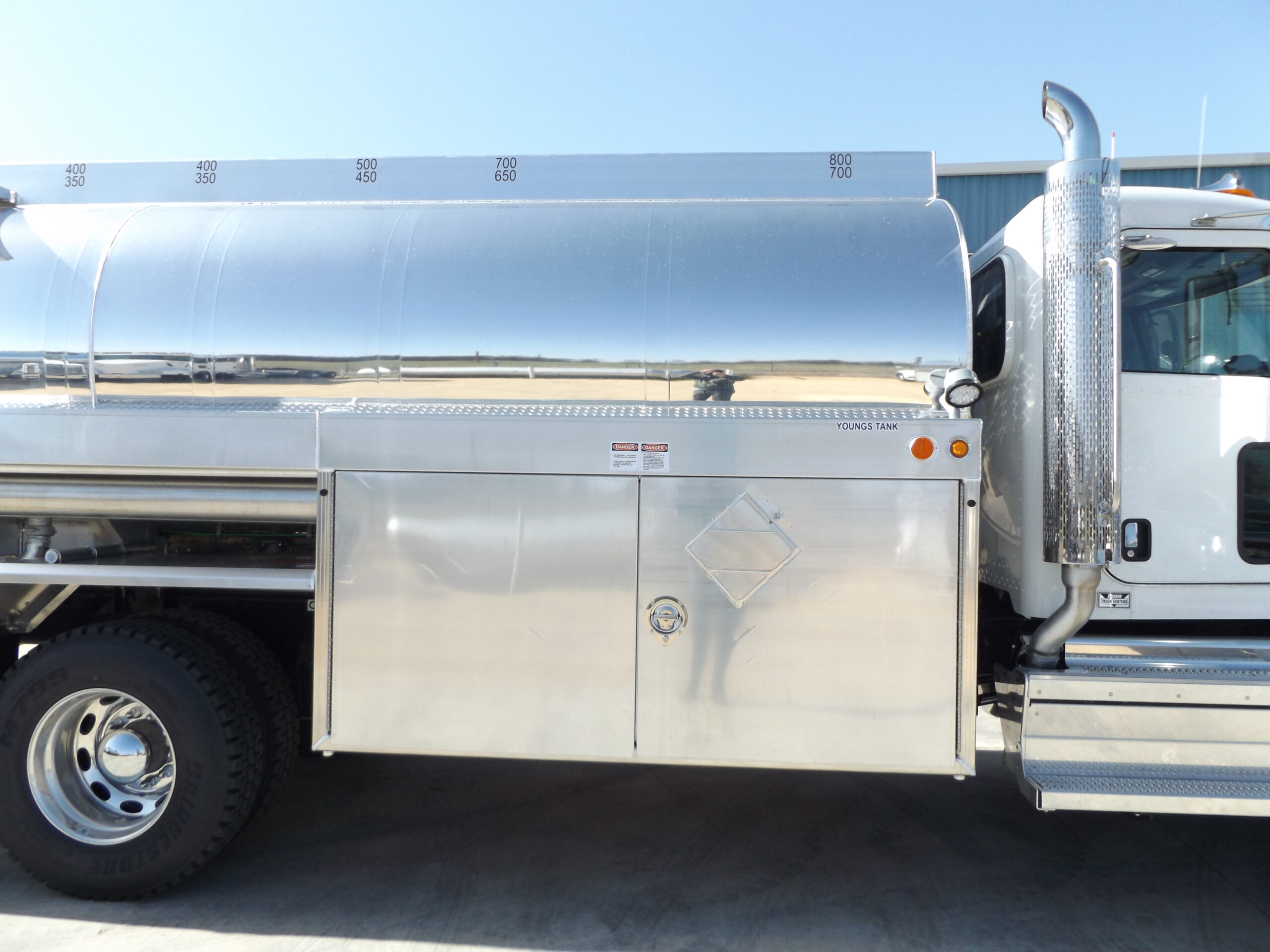

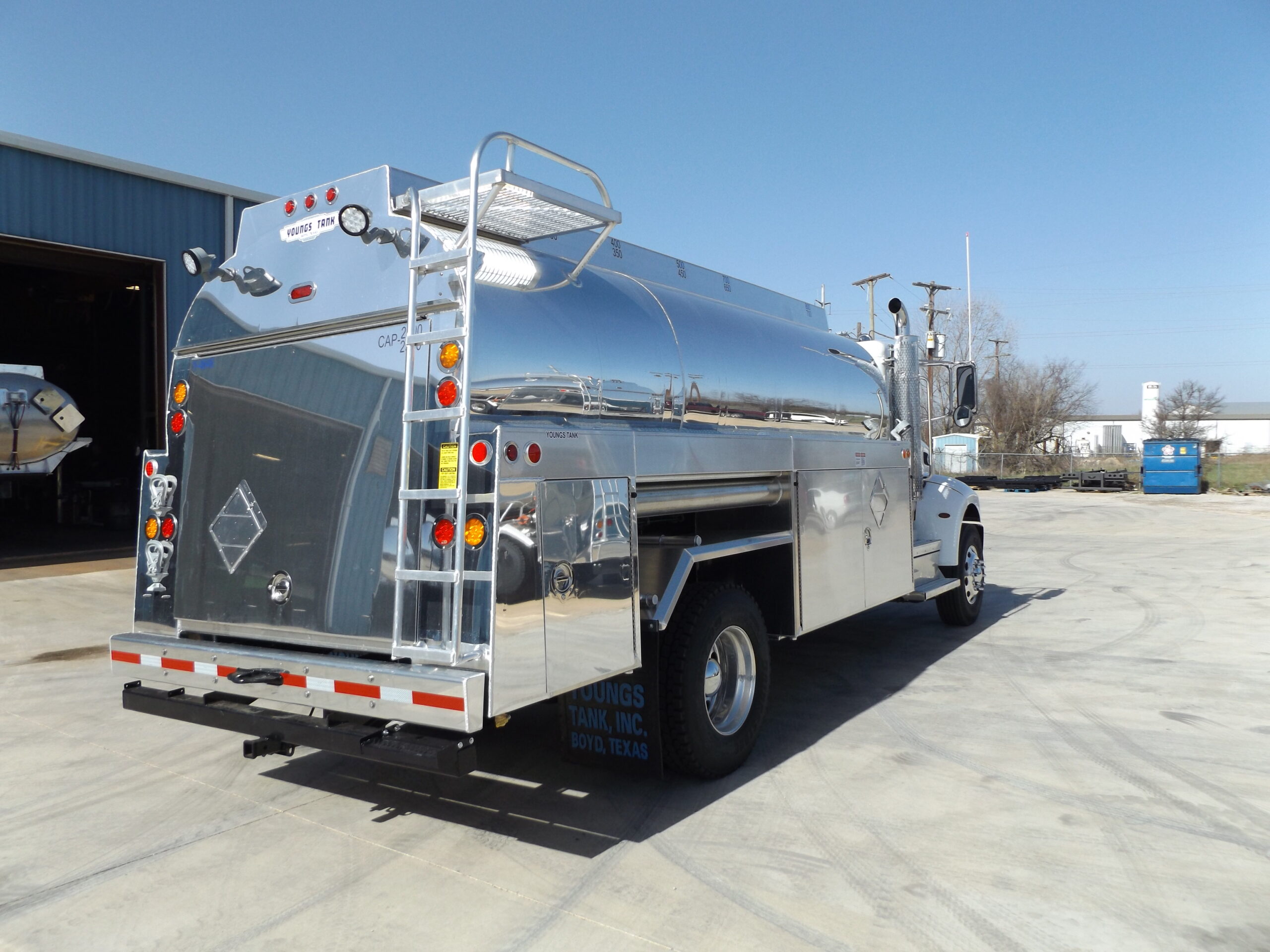

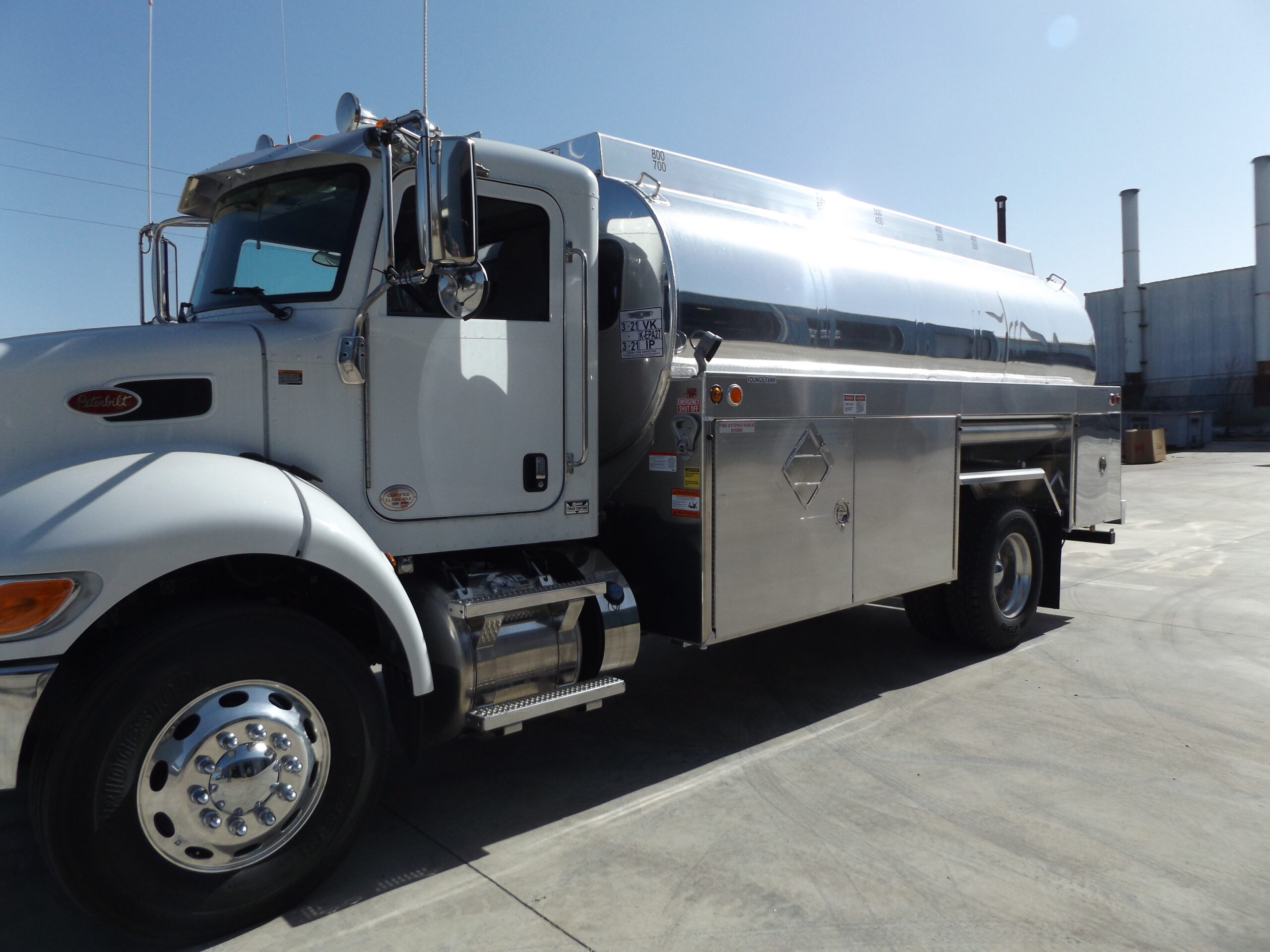

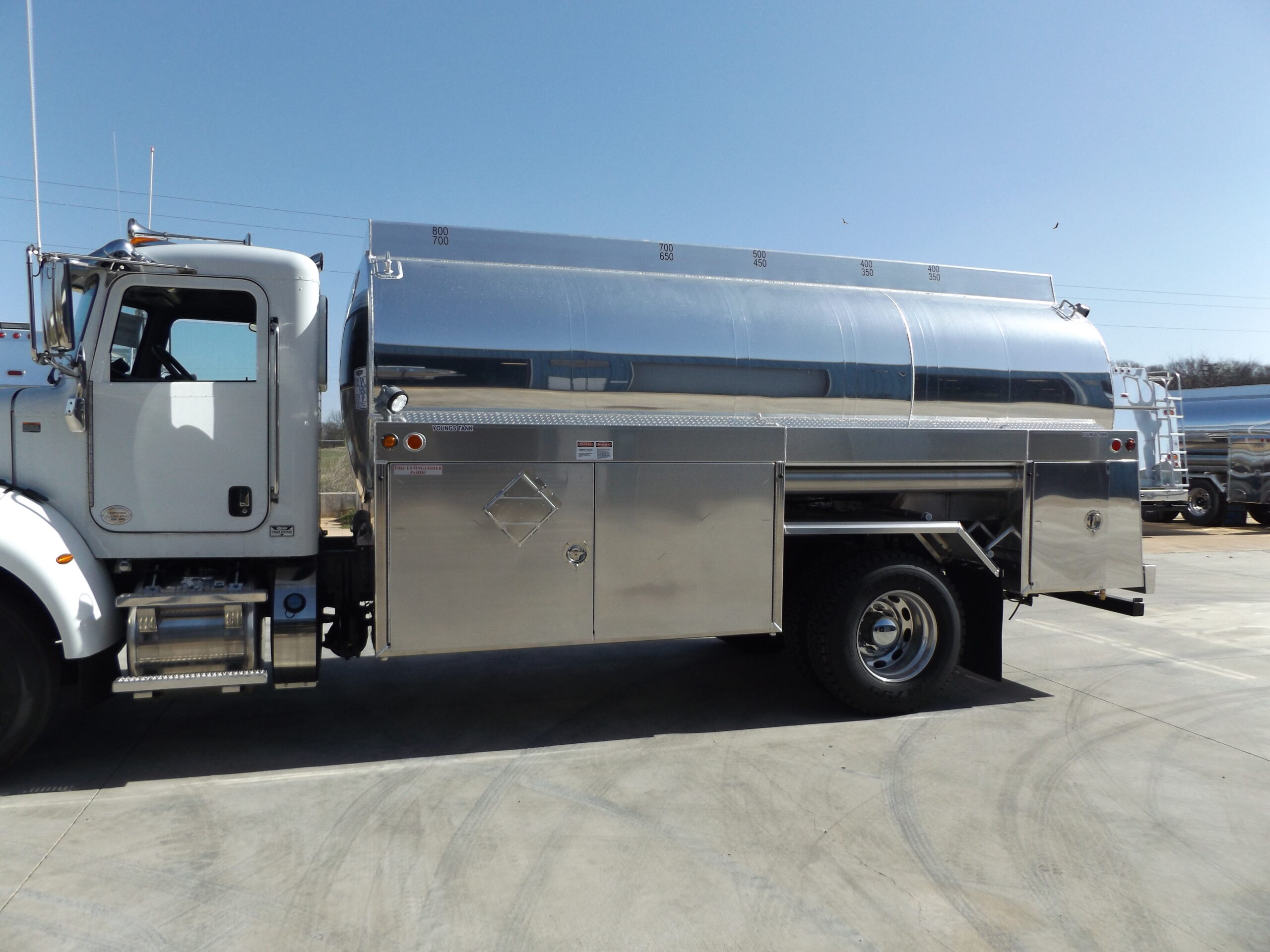

Youngs Tank 2800 Gallon Tank Truck

This durable 2,800-gallon tank is built for efficient liquid transport and optimized product separation. Designed for performance, reliability, and compliance, it’s ideal for multi-product delivery applications.

Product Gallery

Specifications

Type

Straight Elliptical Truck Tank

Capacity

2,800 Gallons

Plus

75 Gallons for Chevron/Motiva

DOT MC

406

Commodity

Petroleum Products

Average Weight

6.7 lbs/gallon

Construction

Aluminum 5454-H32 Shell (.190″), 5454-O Heads (.190″)

Number of compartments

Heads

Double

Compartment Specs

Tailored to Customer Needs

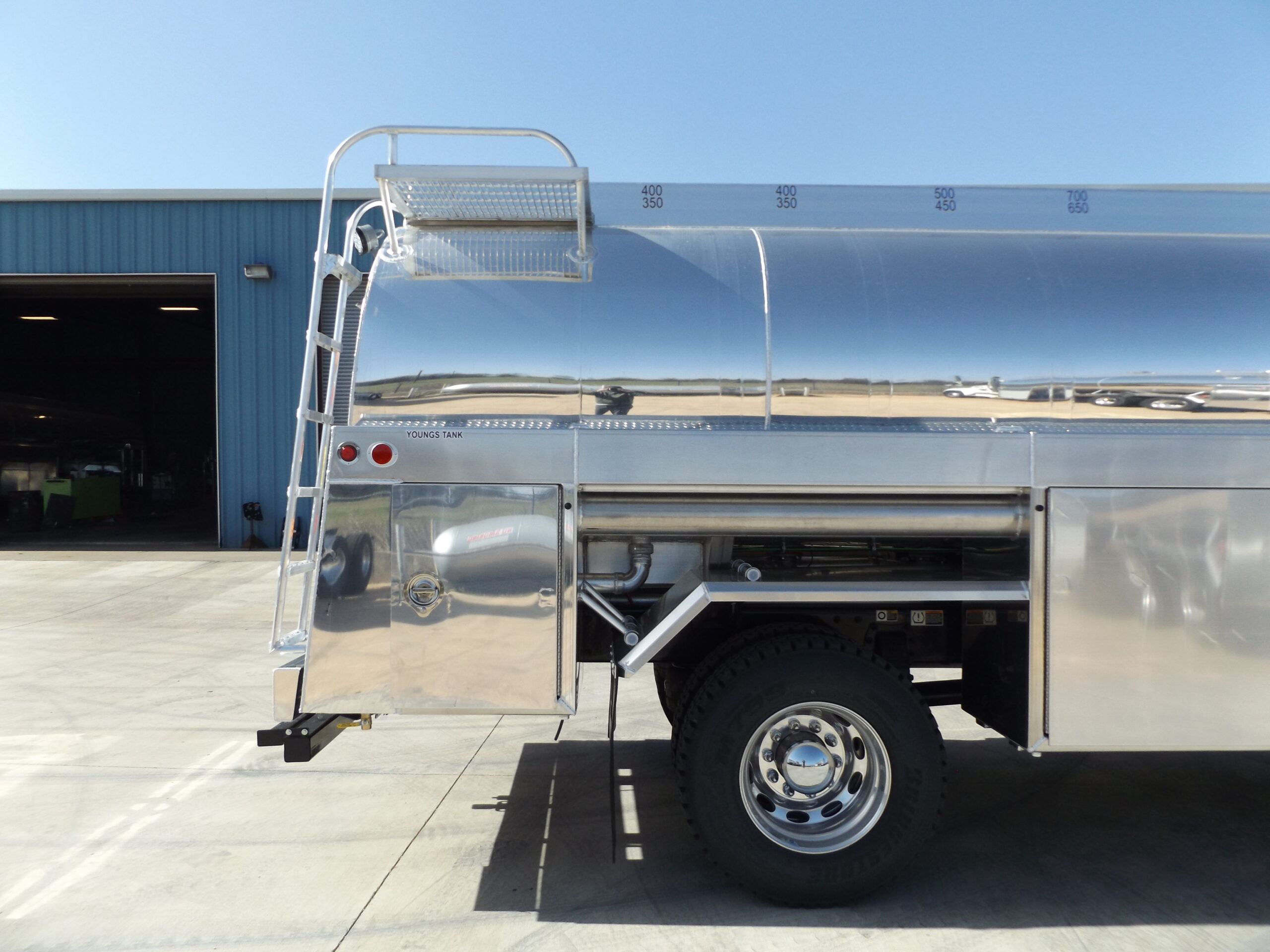

Ladder

Curbside rear with platform at top

Bumper

DOT spec – aluminum

Fenders

Aluminum Jeep-style

Mud Flaps

Yes

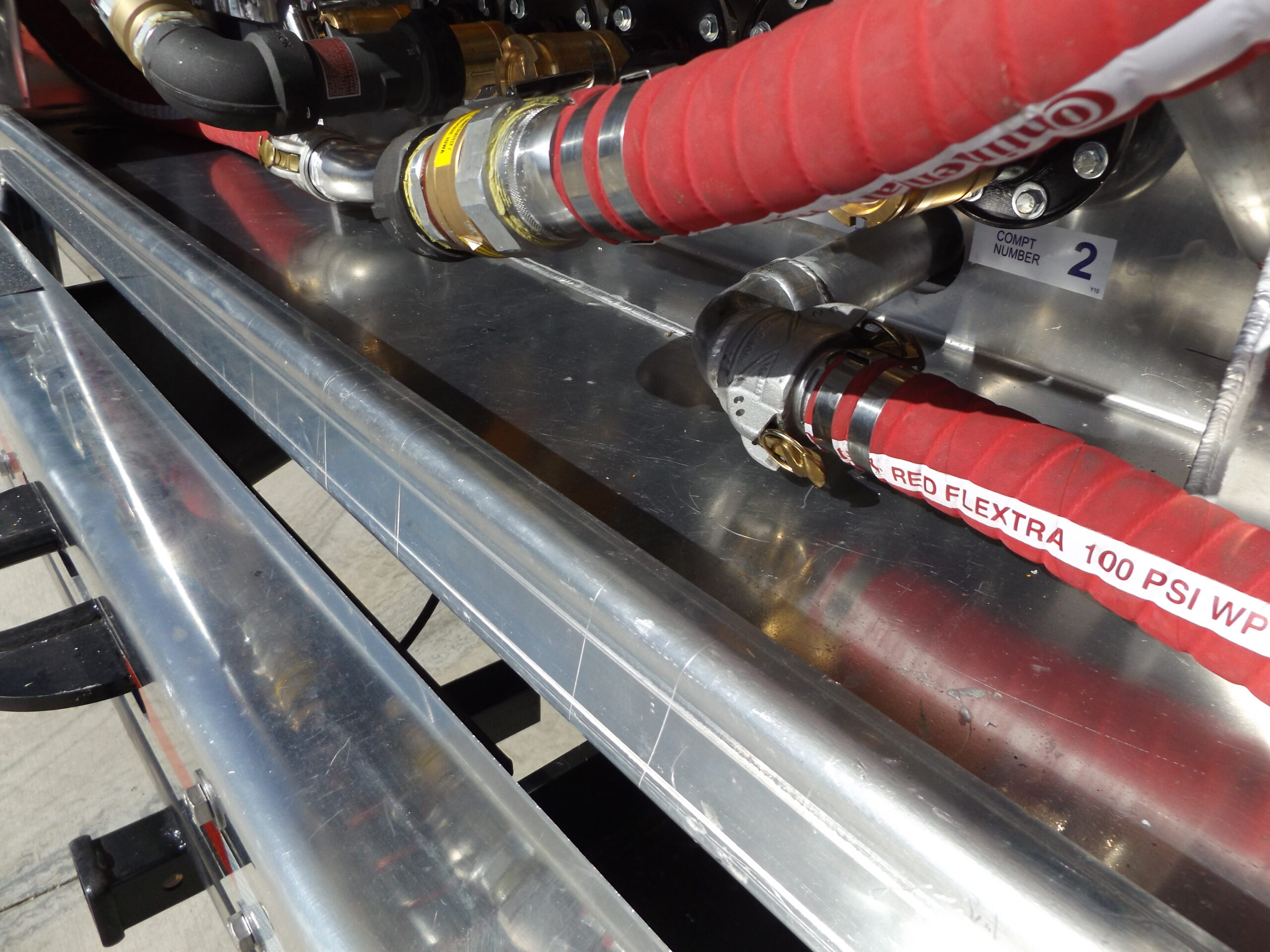

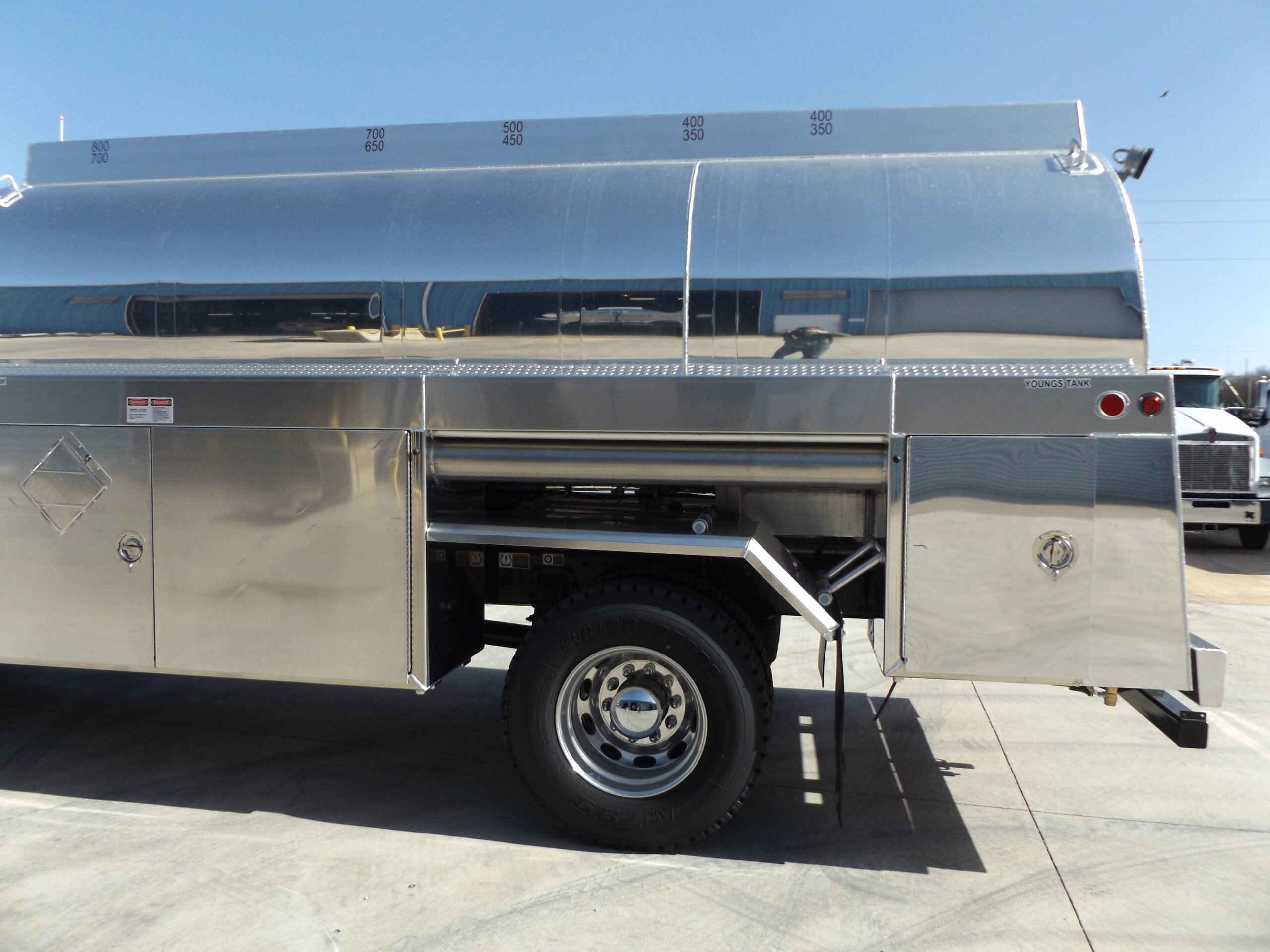

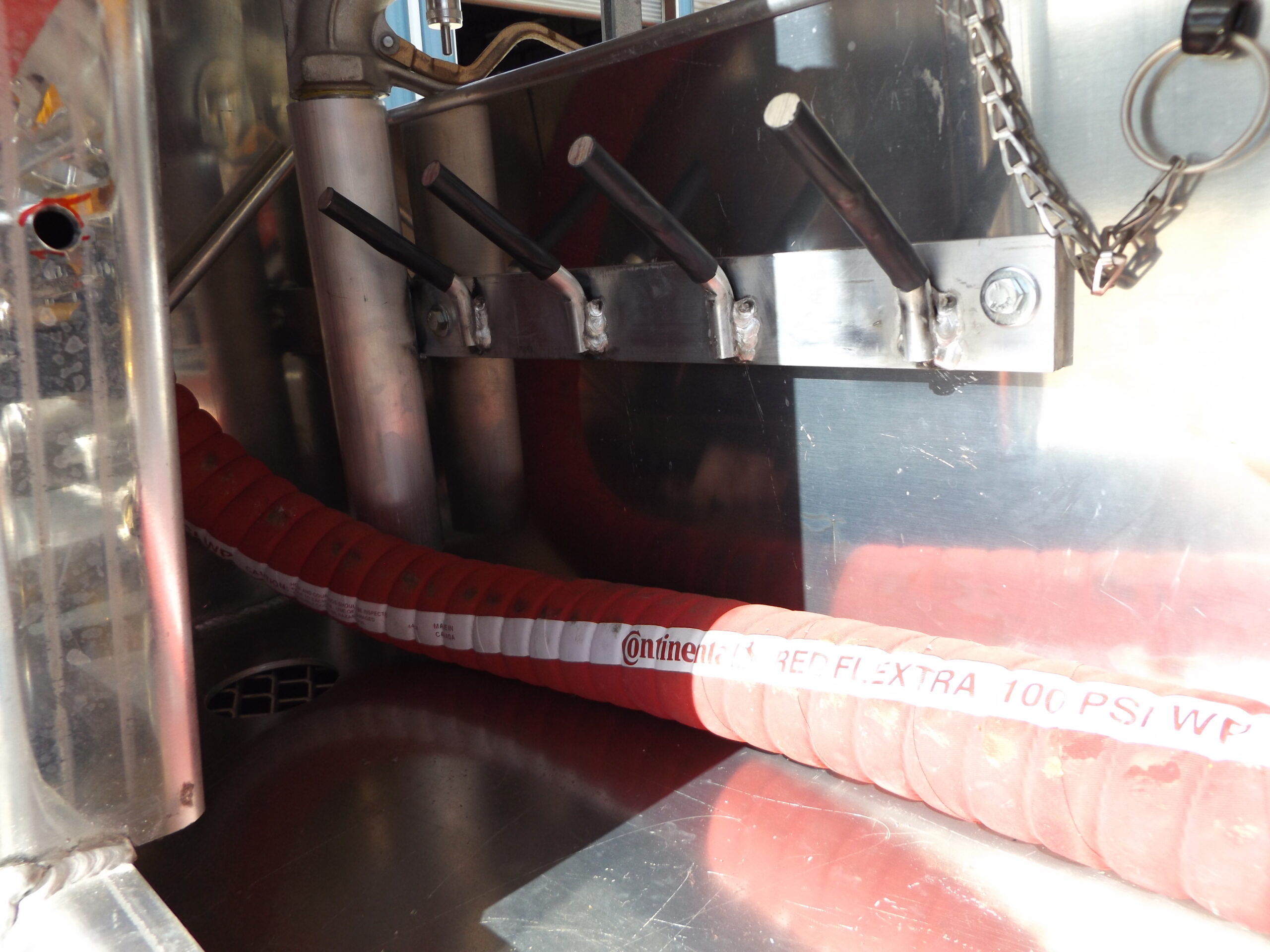

Hose Tubes

(1) 7″ hose tube each side, opening to trays in front cabinets

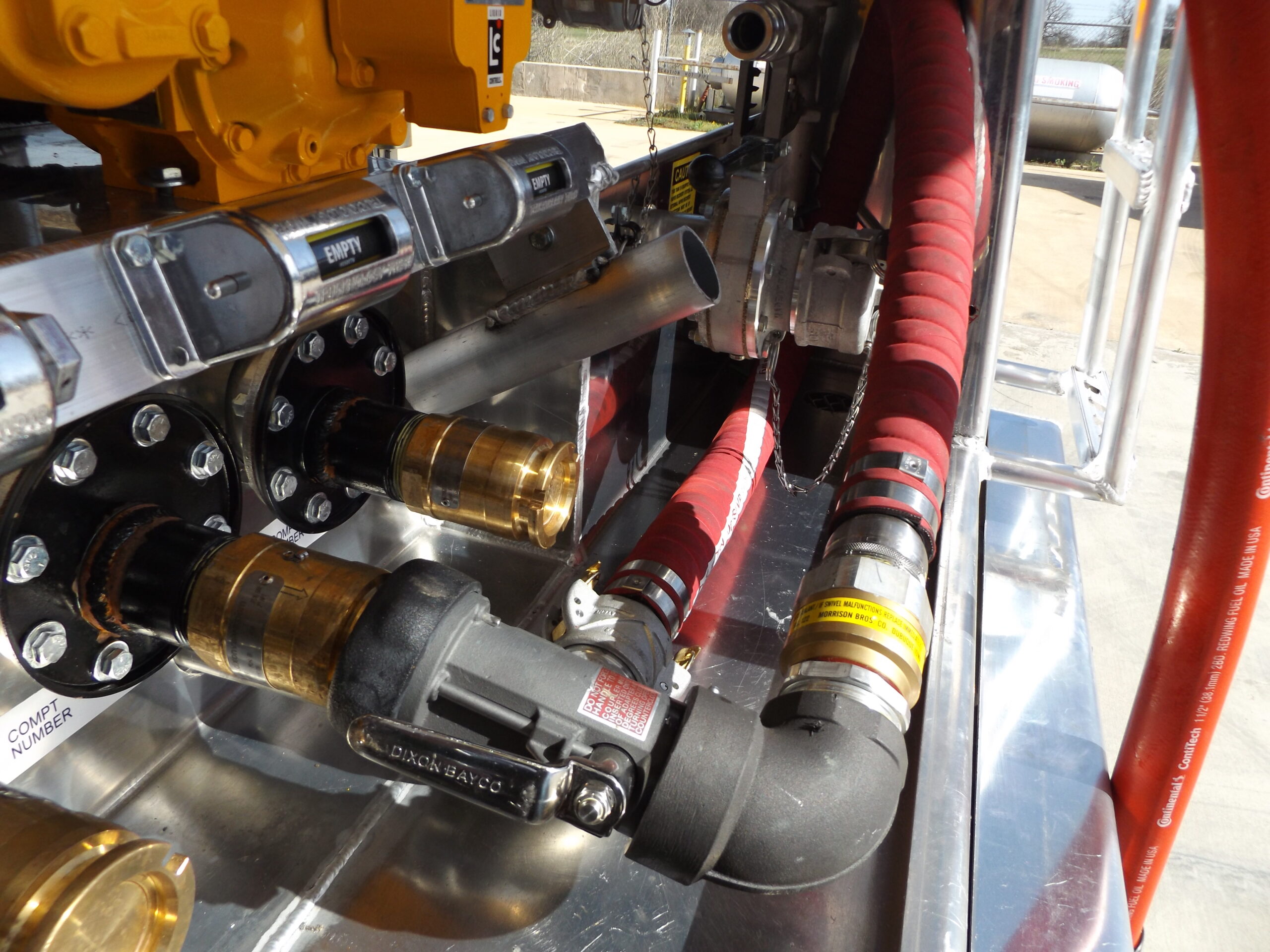

Piping

3″ Aluminum to curbside, 2″ discharge from pump to rear

Vents

3″ vapor recovery, sequential air activated

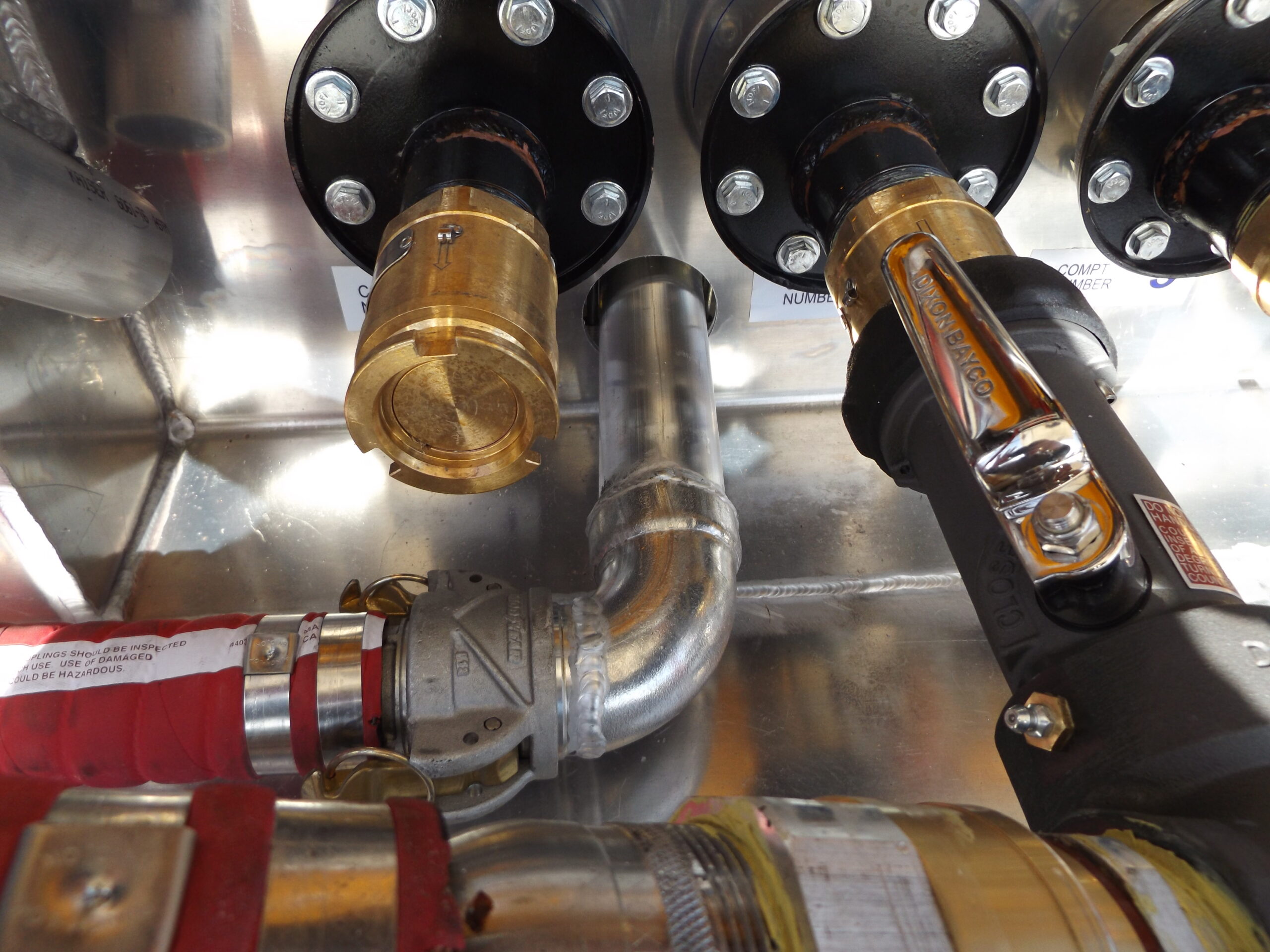

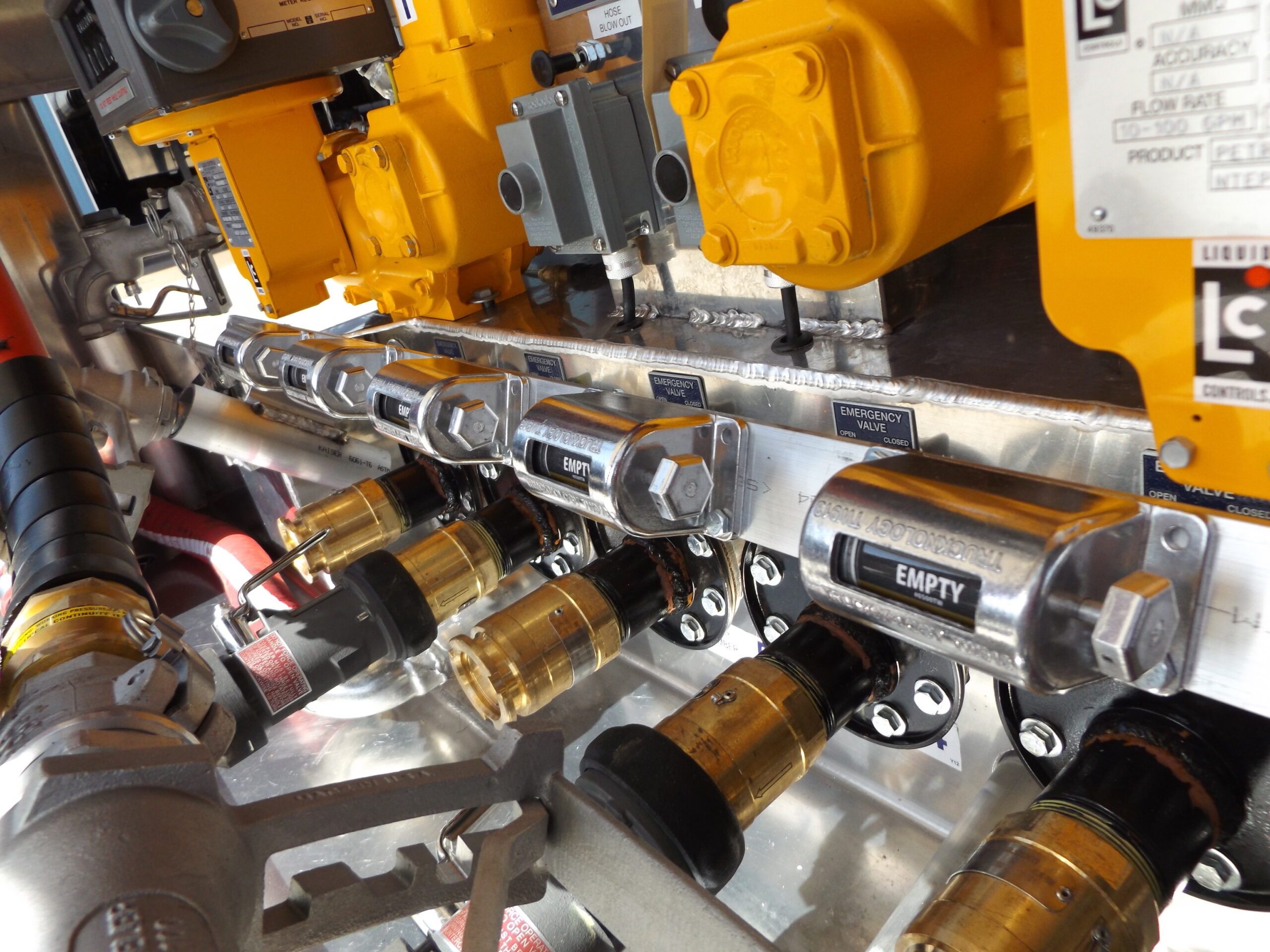

Valves

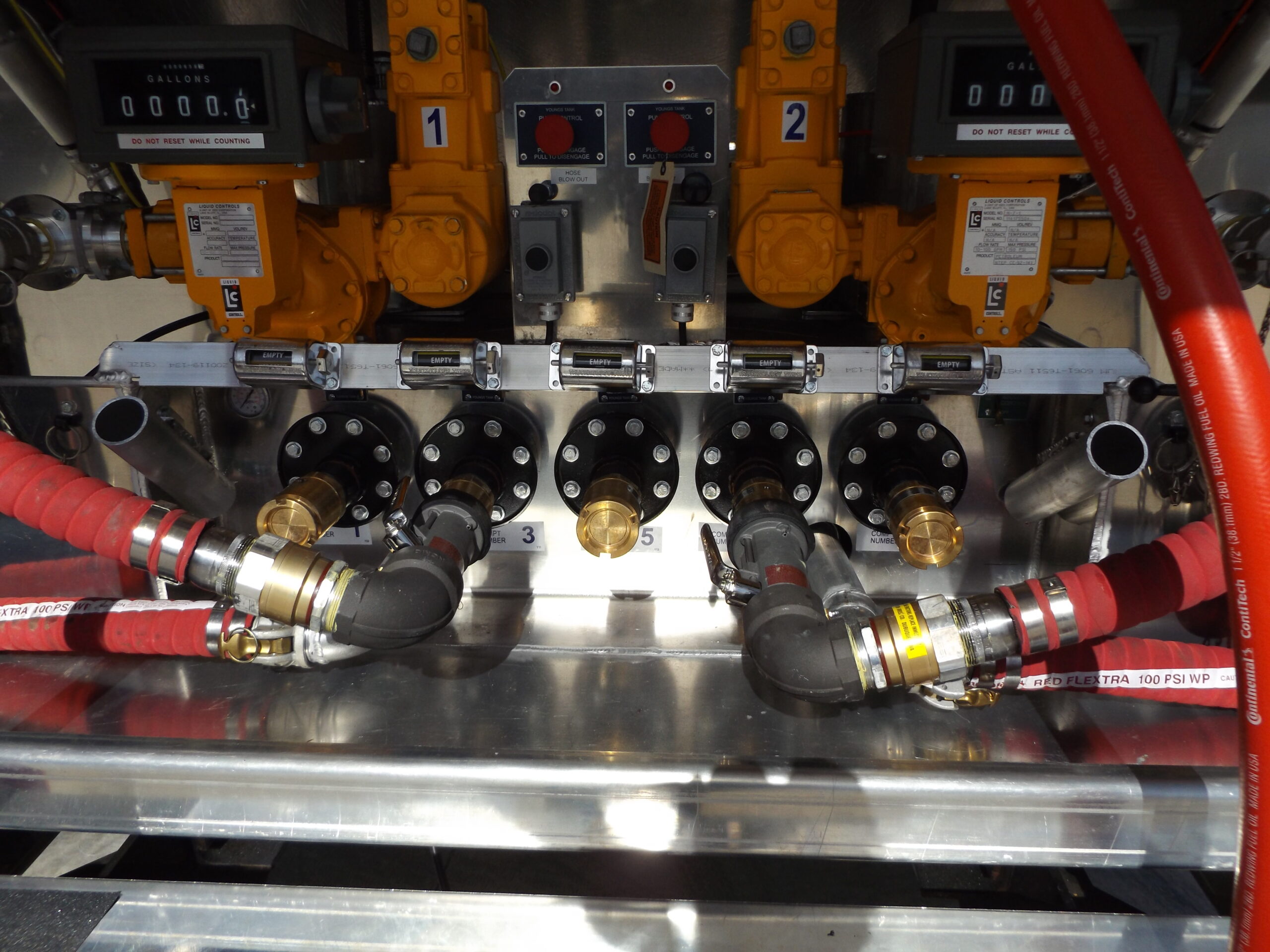

Openable adapters, Emco-Wheaton dual air manifold behind bottom load adapters, (2) 4″ x 3″ unloading spouts

Emergency Valves

3″ Emco-Wheaton air-operated

Walkway

Expanded metal at top

Domes

TIONA 16″ with 10″ PAF

Flashing

Full-length vapor proof

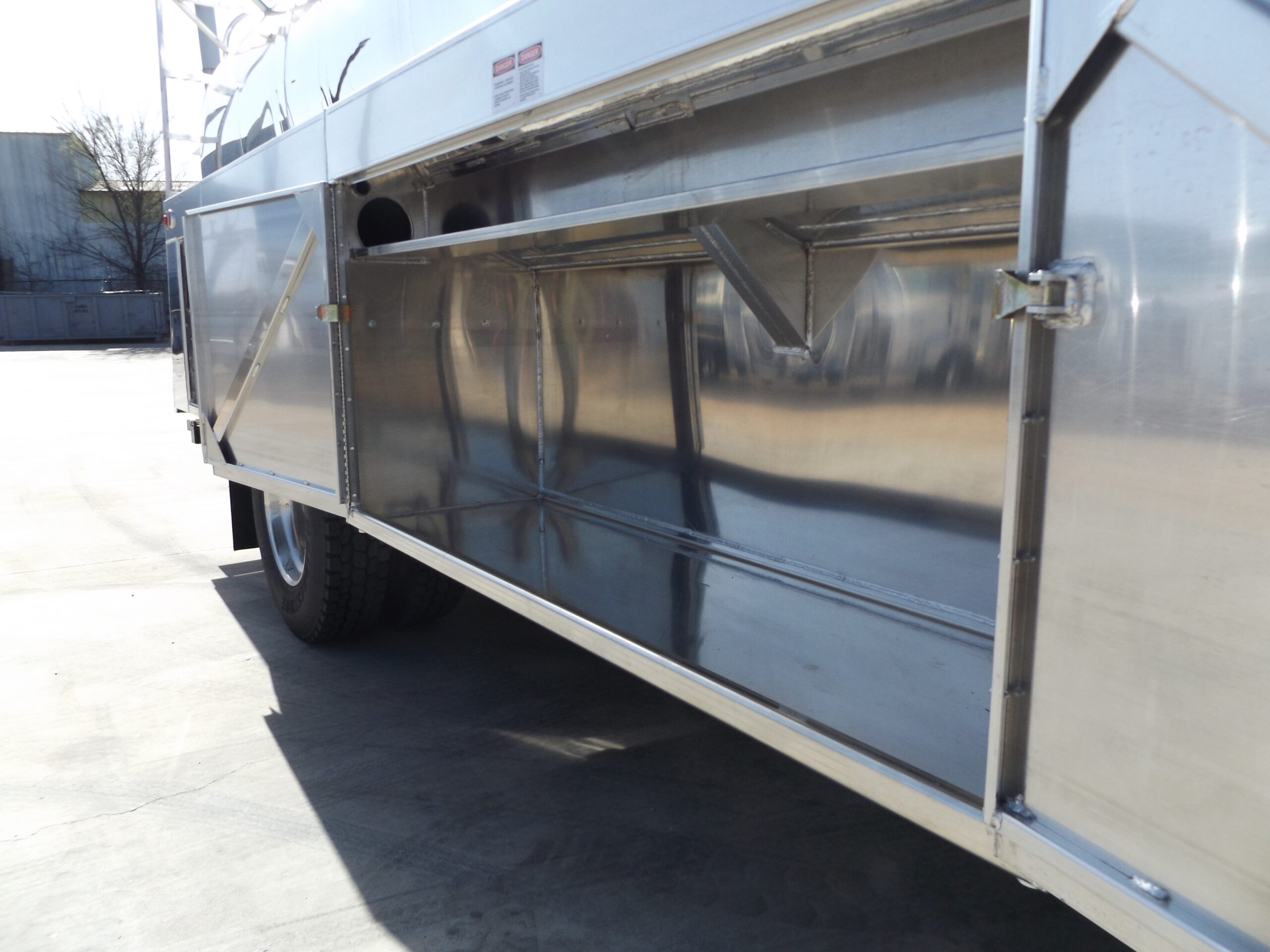

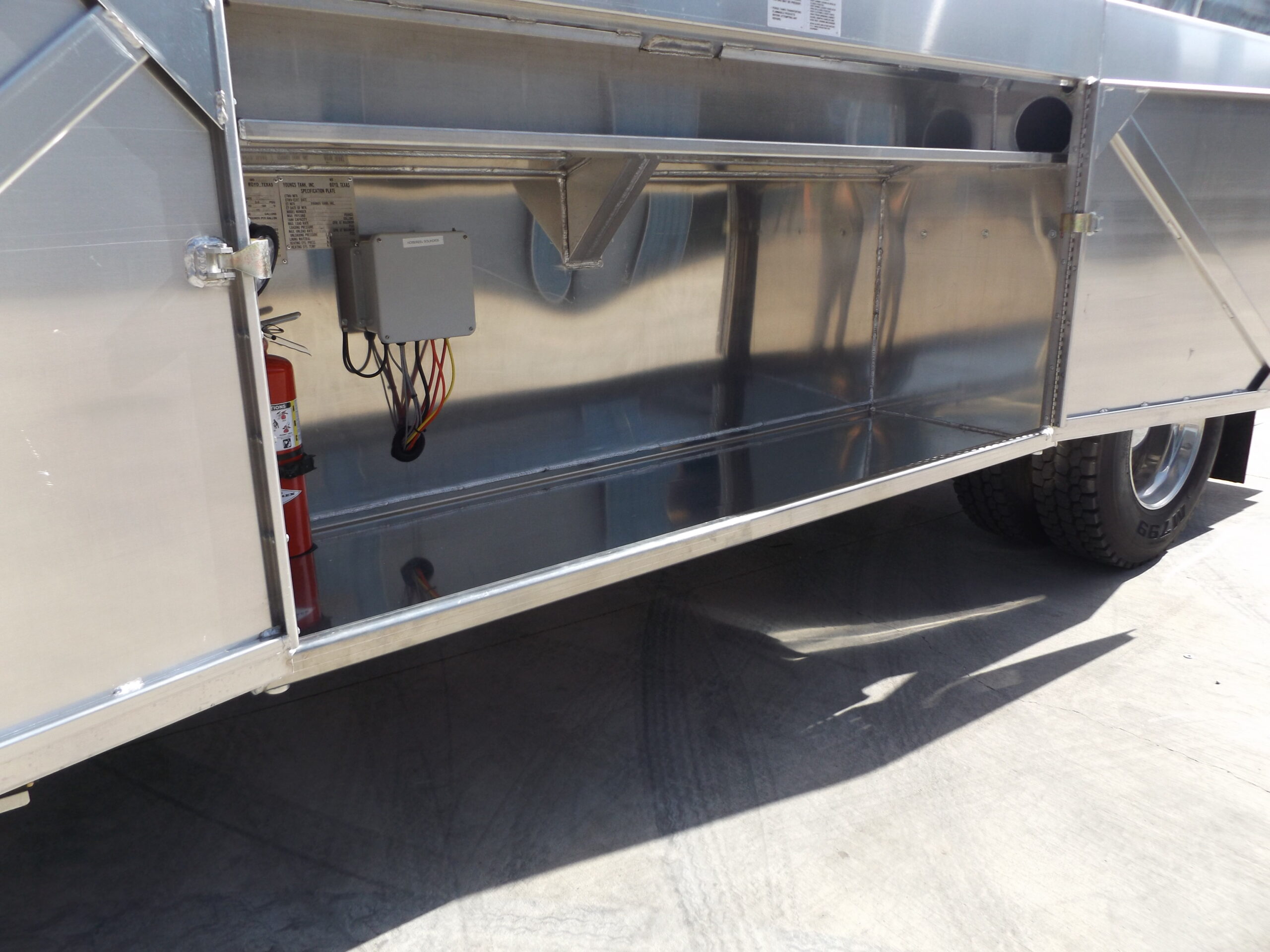

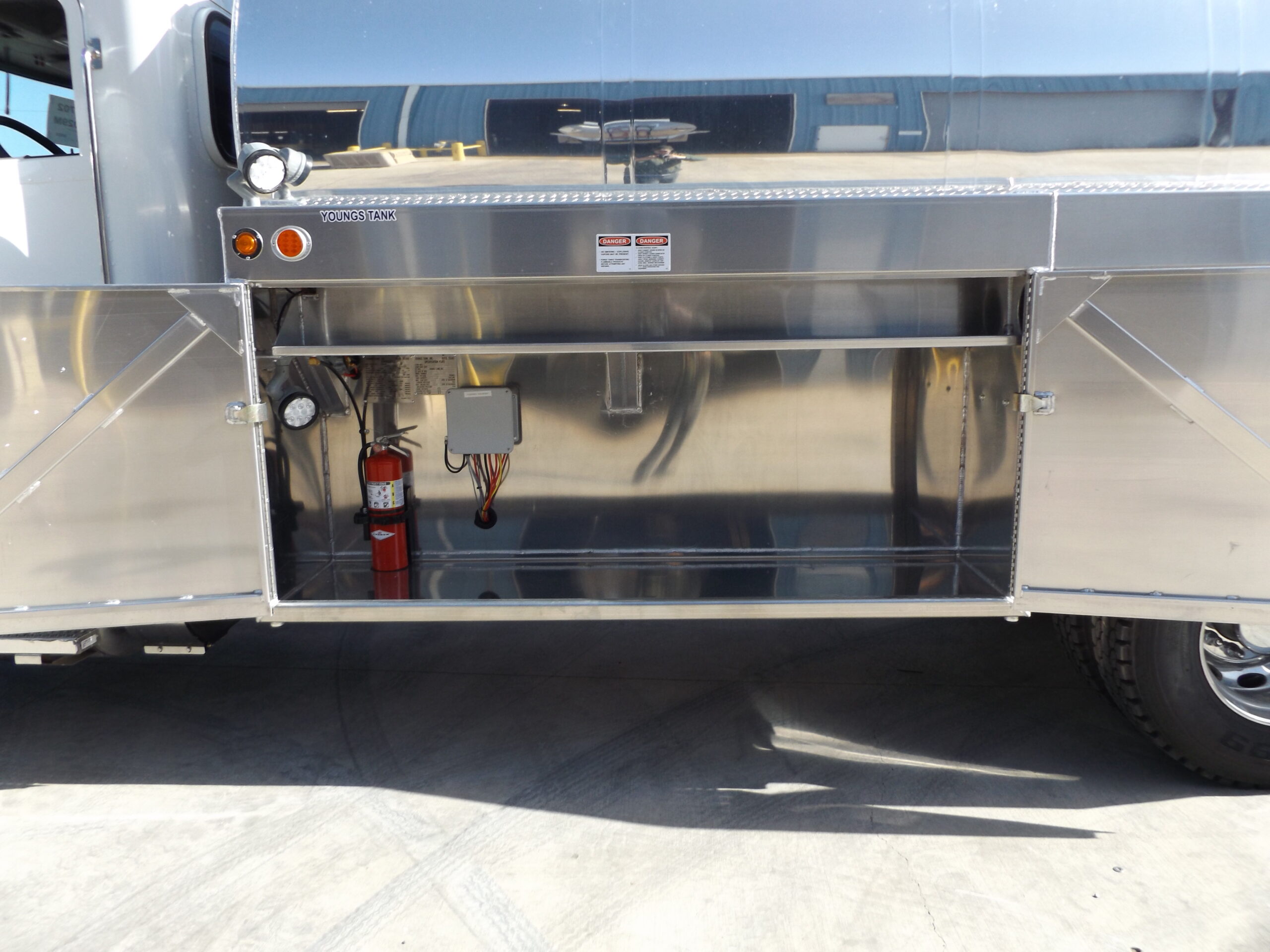

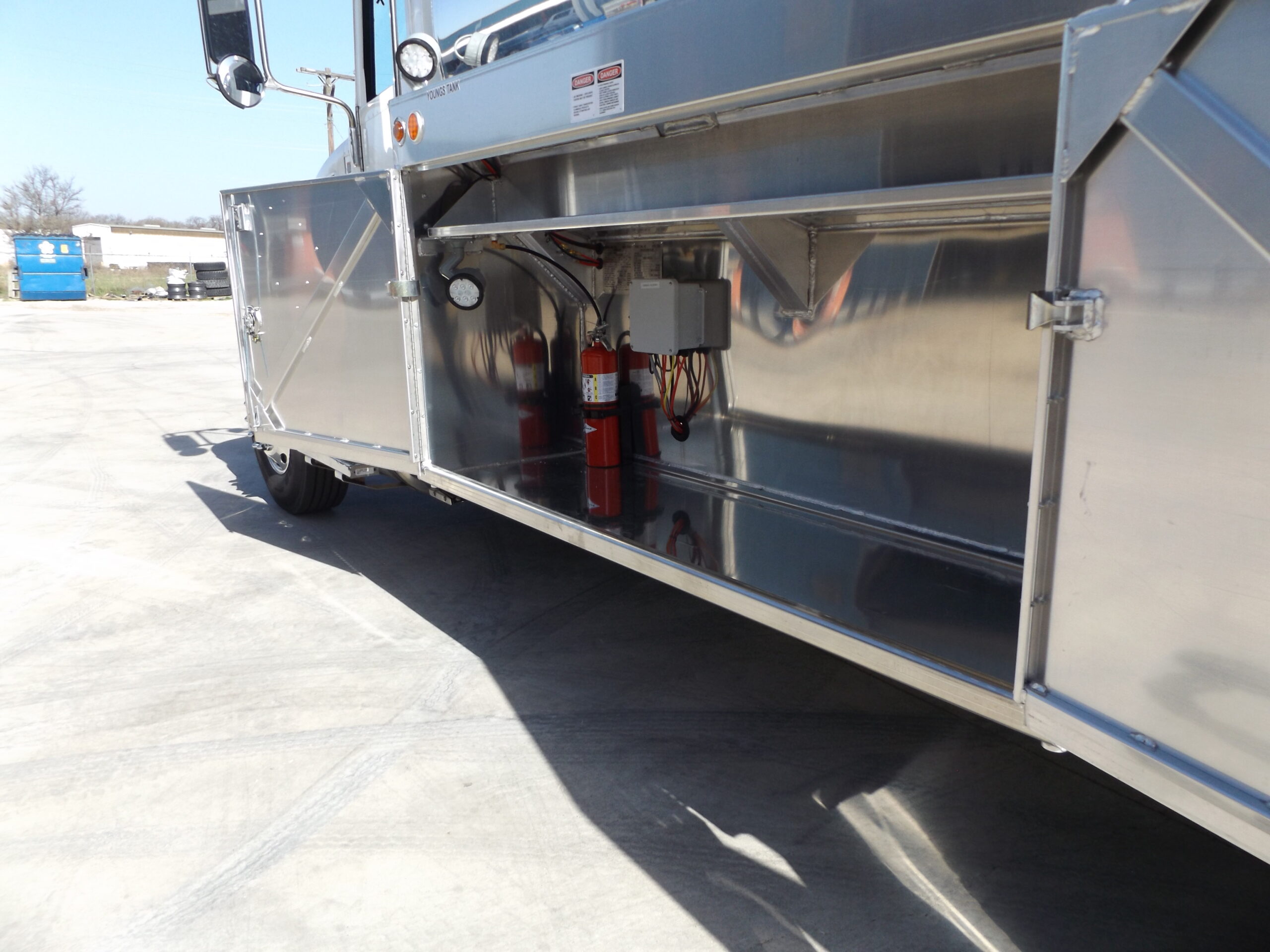

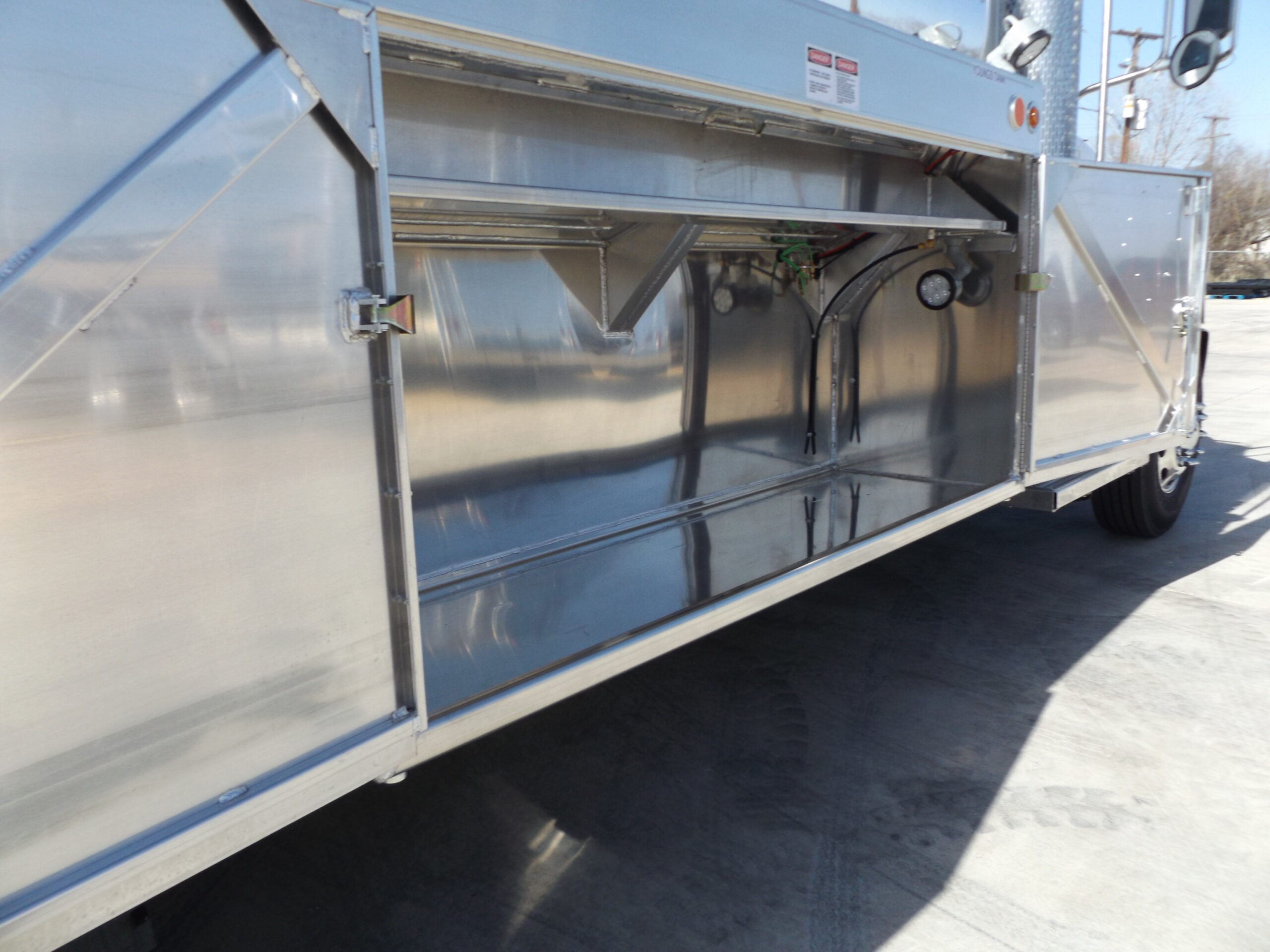

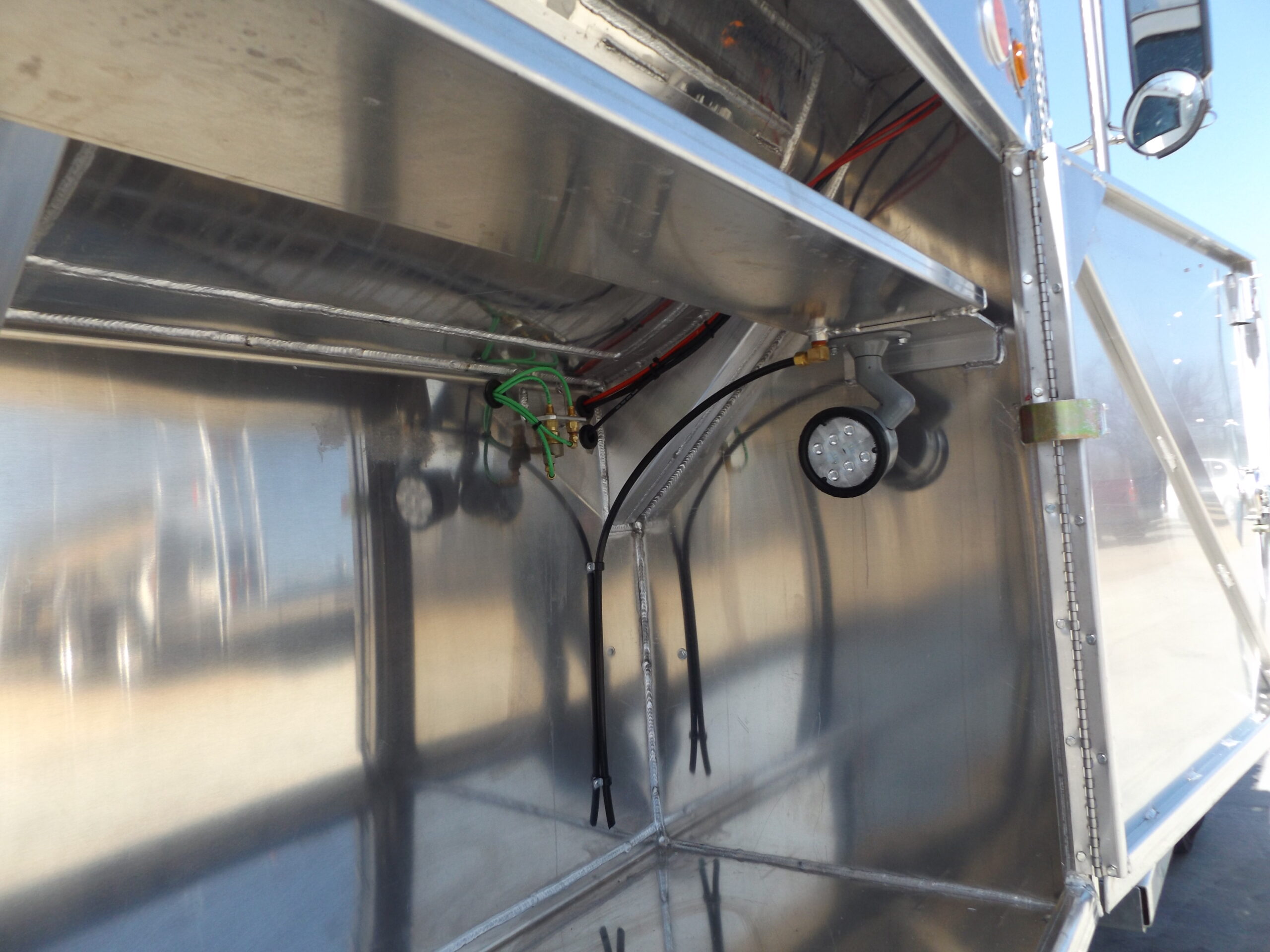

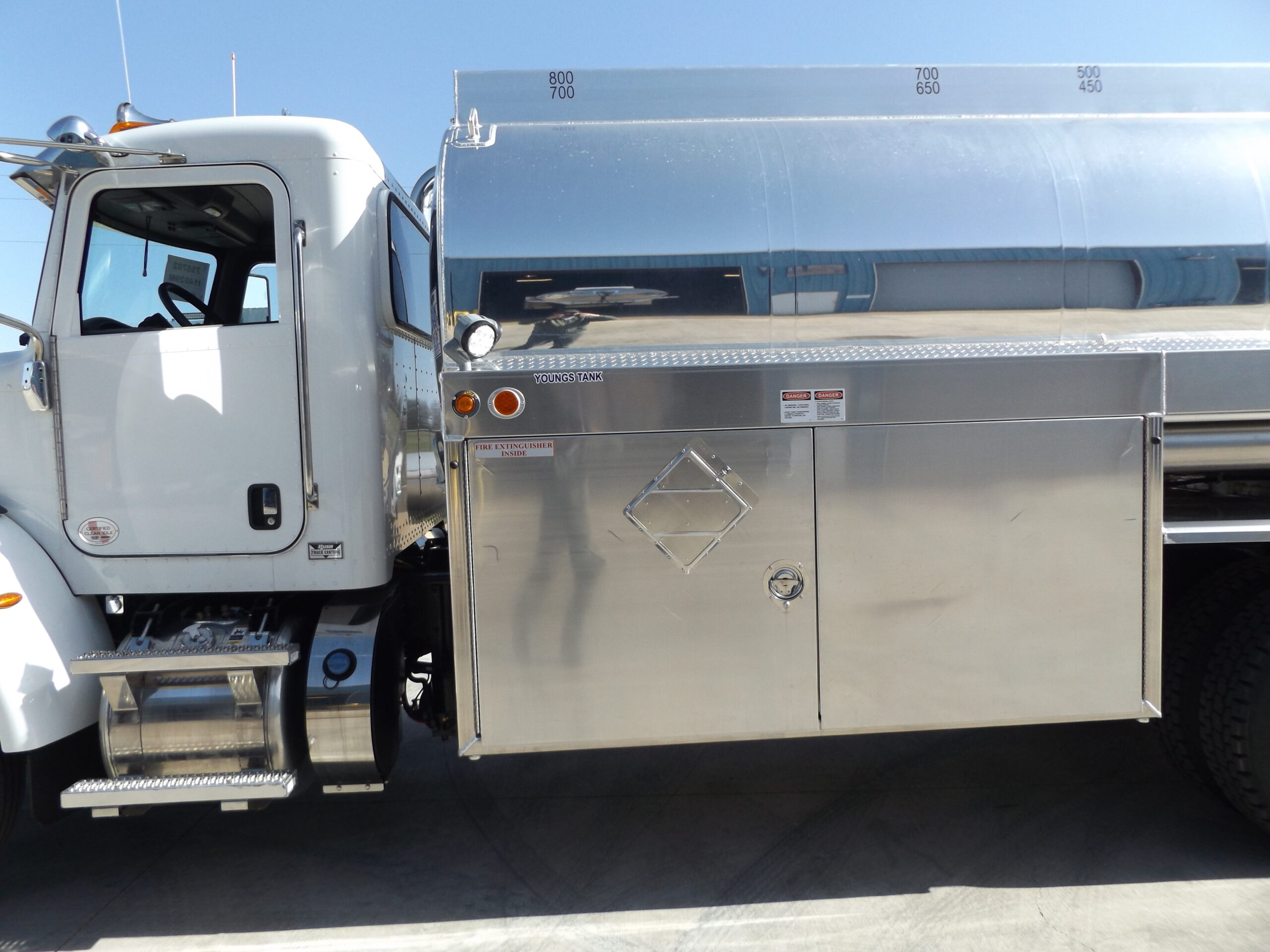

Cabinets

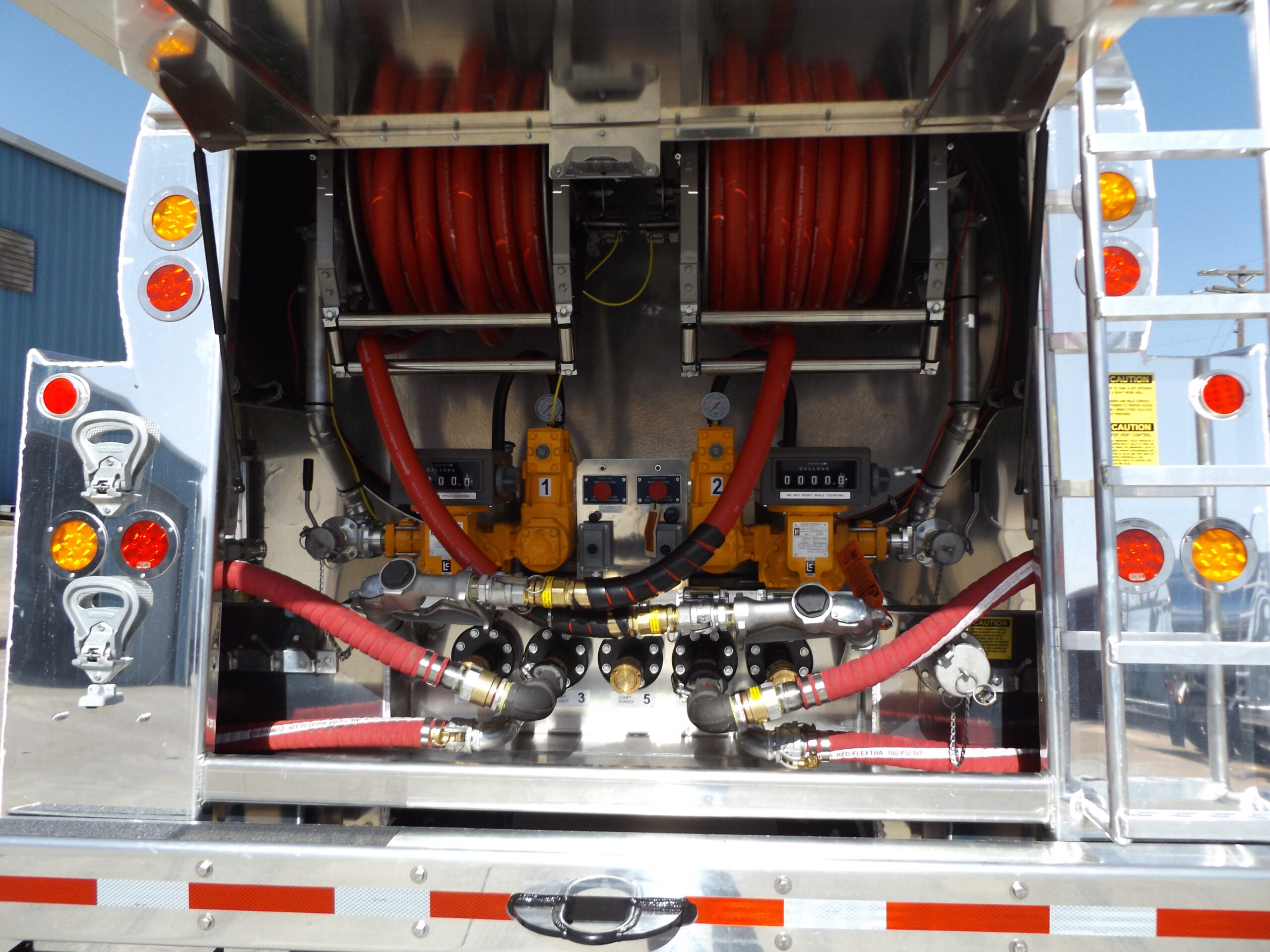

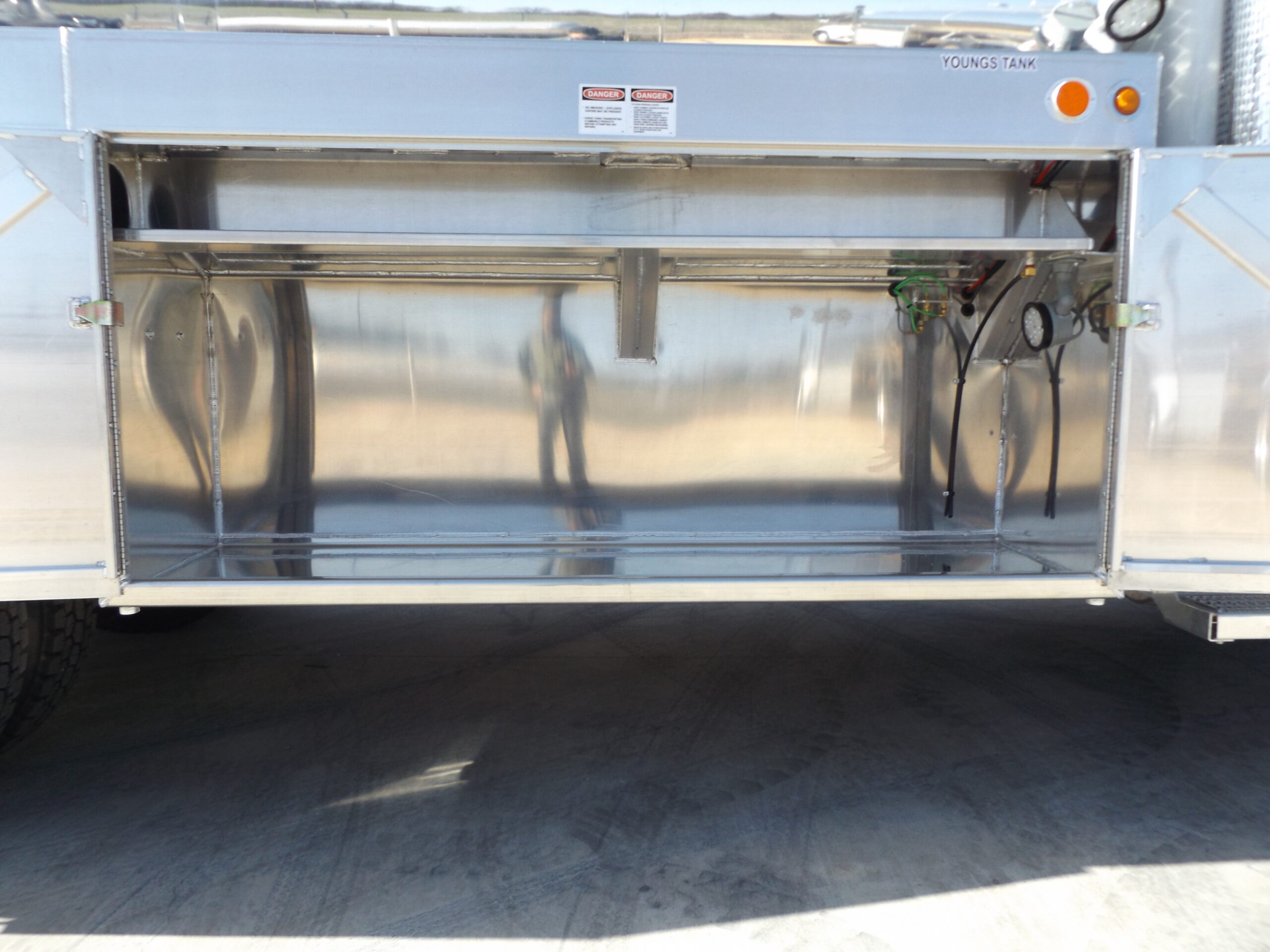

(1) Fully enclosed each front side, (1) rear cabinet with swing-up door and side doors (gas spring supported)

Strapping

Texas Regulation (2800 and 2500 gallons), not approved by Weights & Measures

Lights

Truck-Lite LED system with DOT reflectors

Markers

(2) Each compartment, set at rated capacity (not sealed); static cables

Paint & Number

Steel parts painted

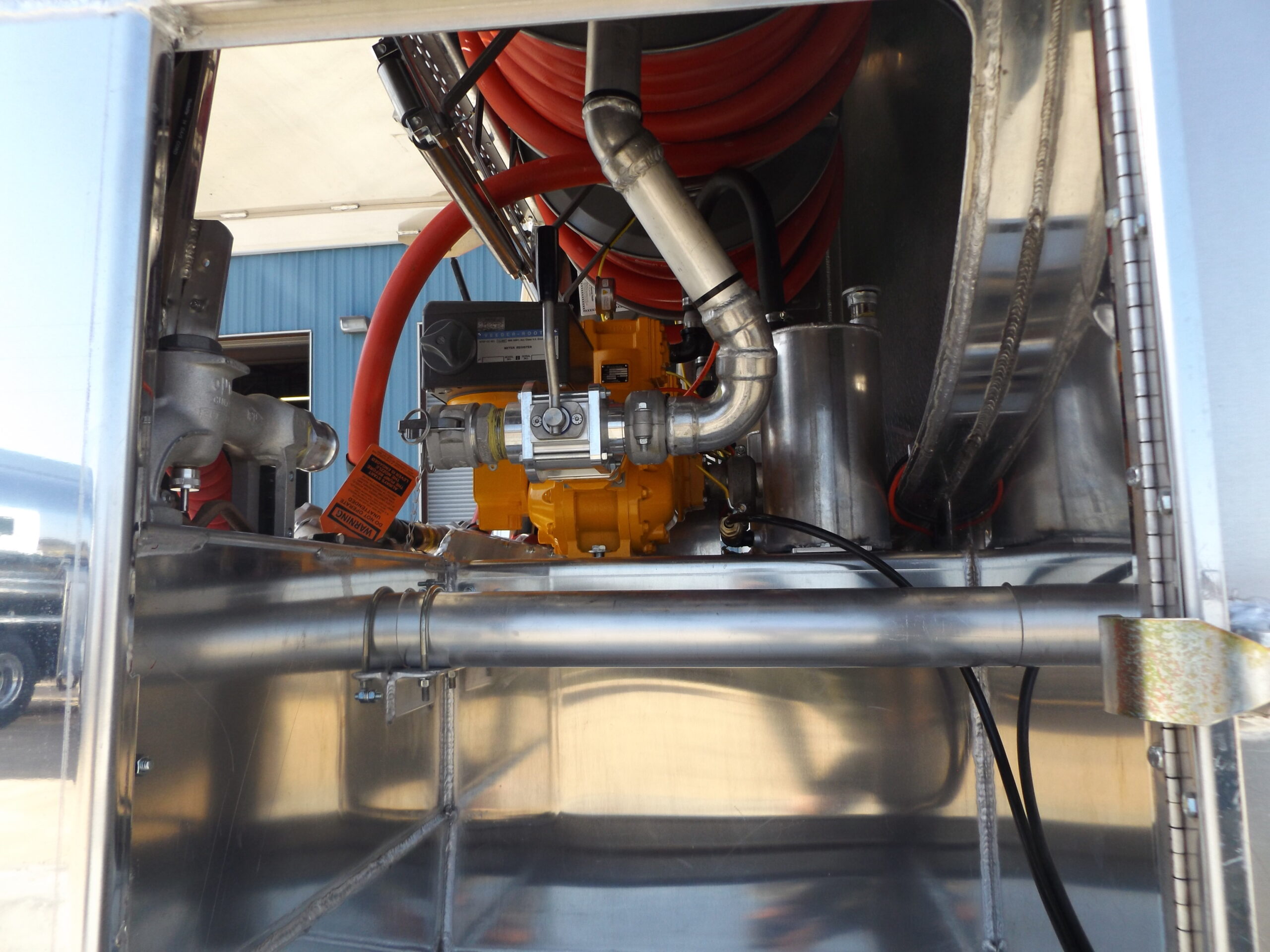

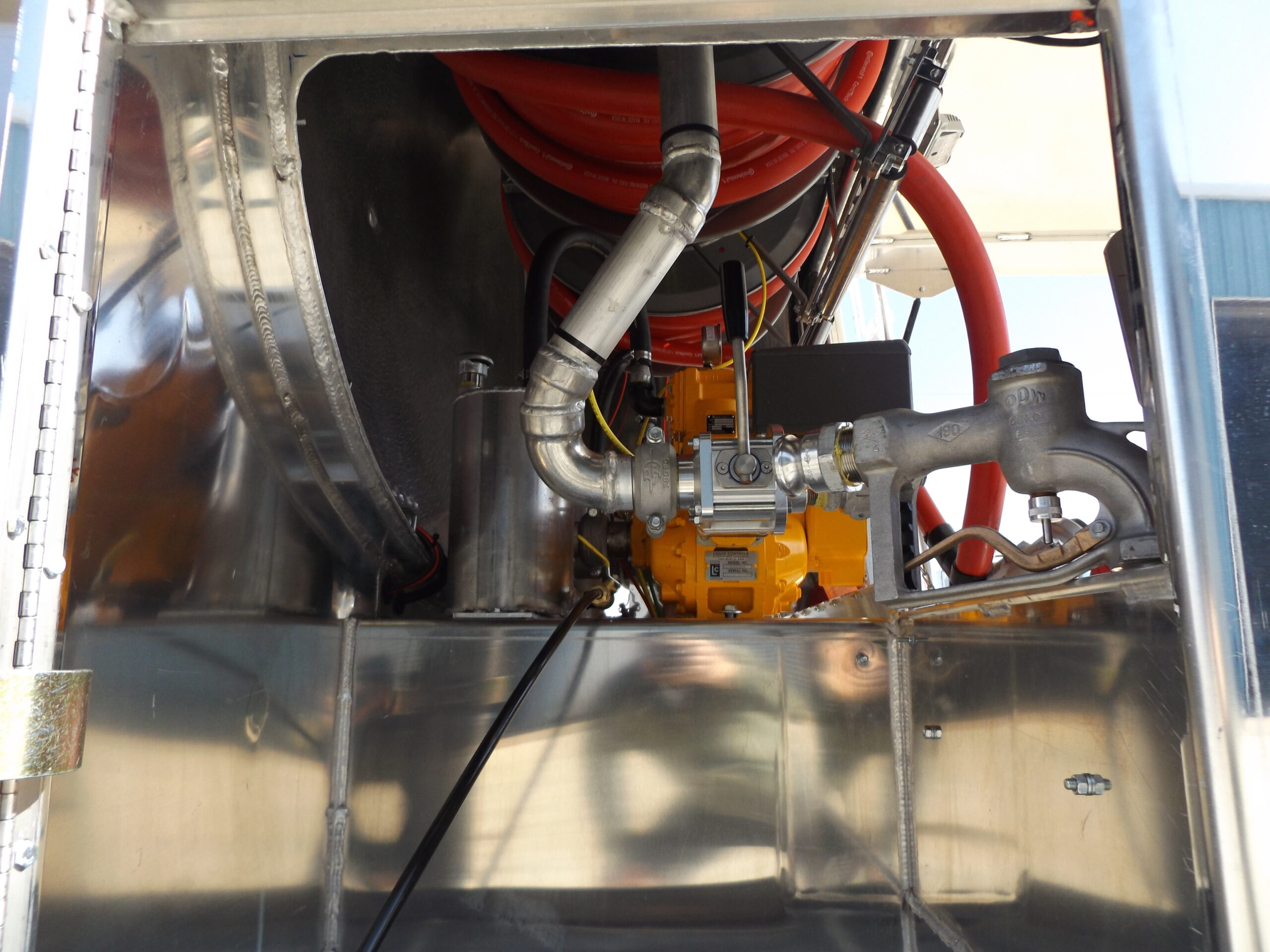

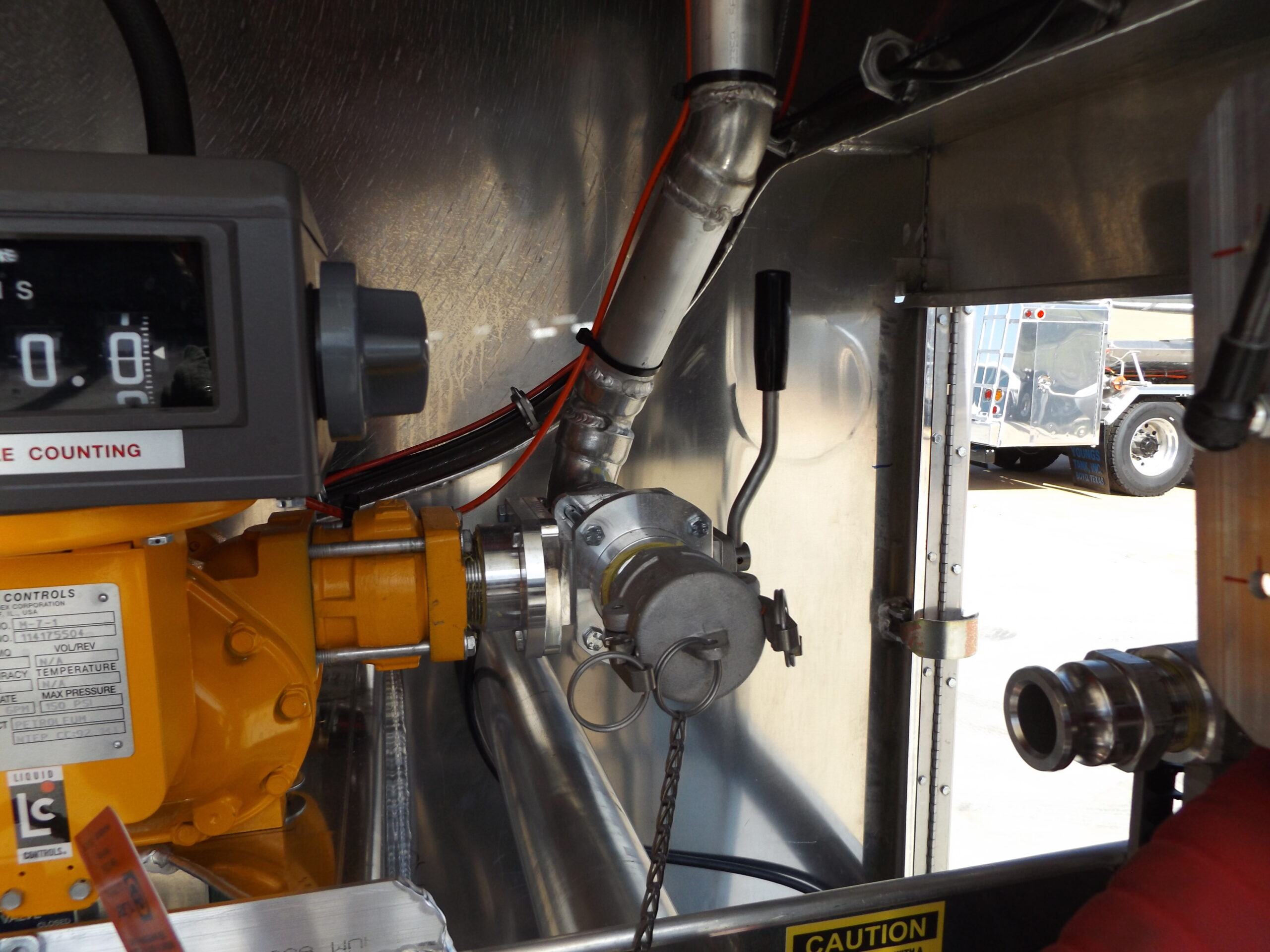

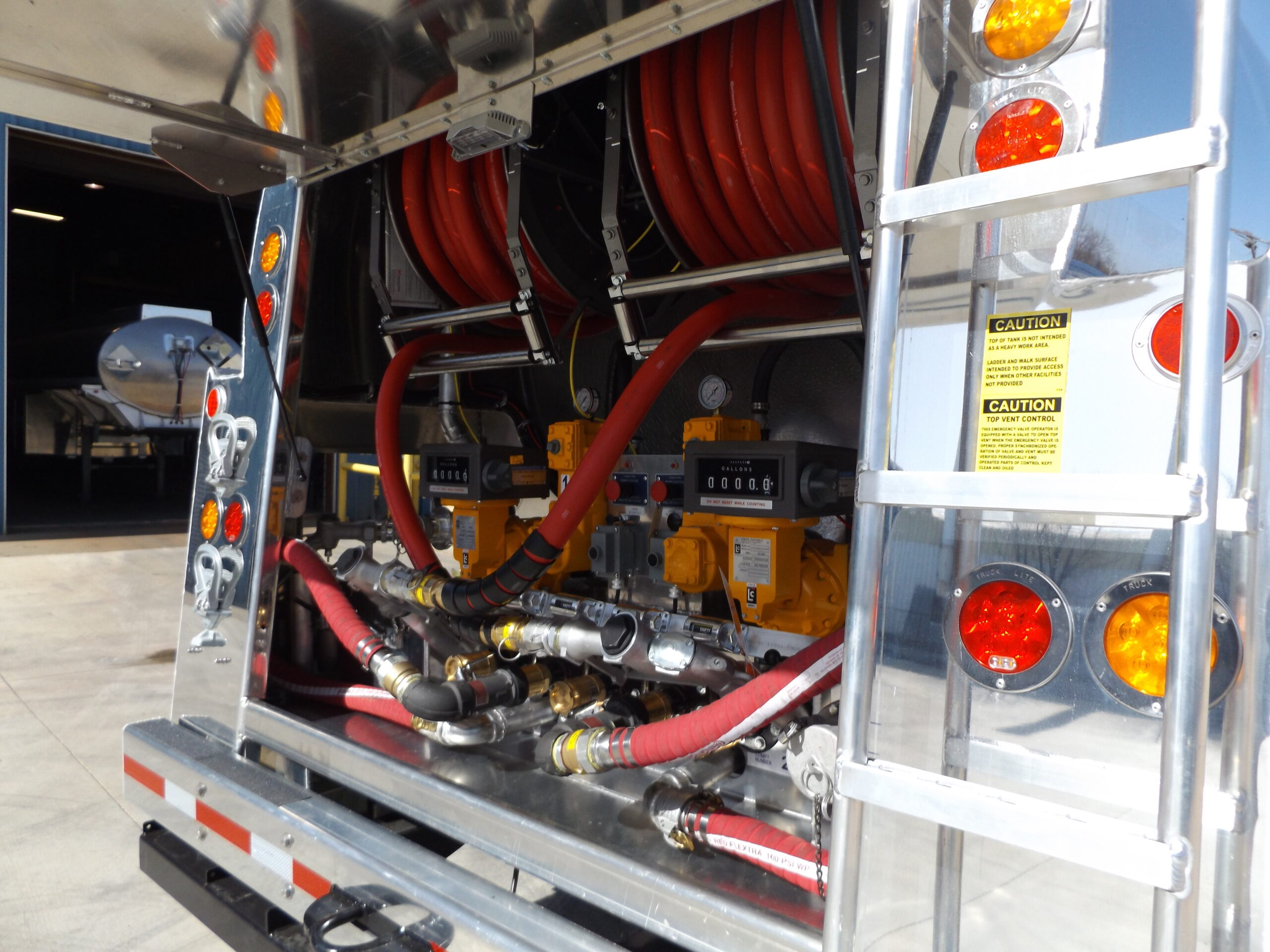

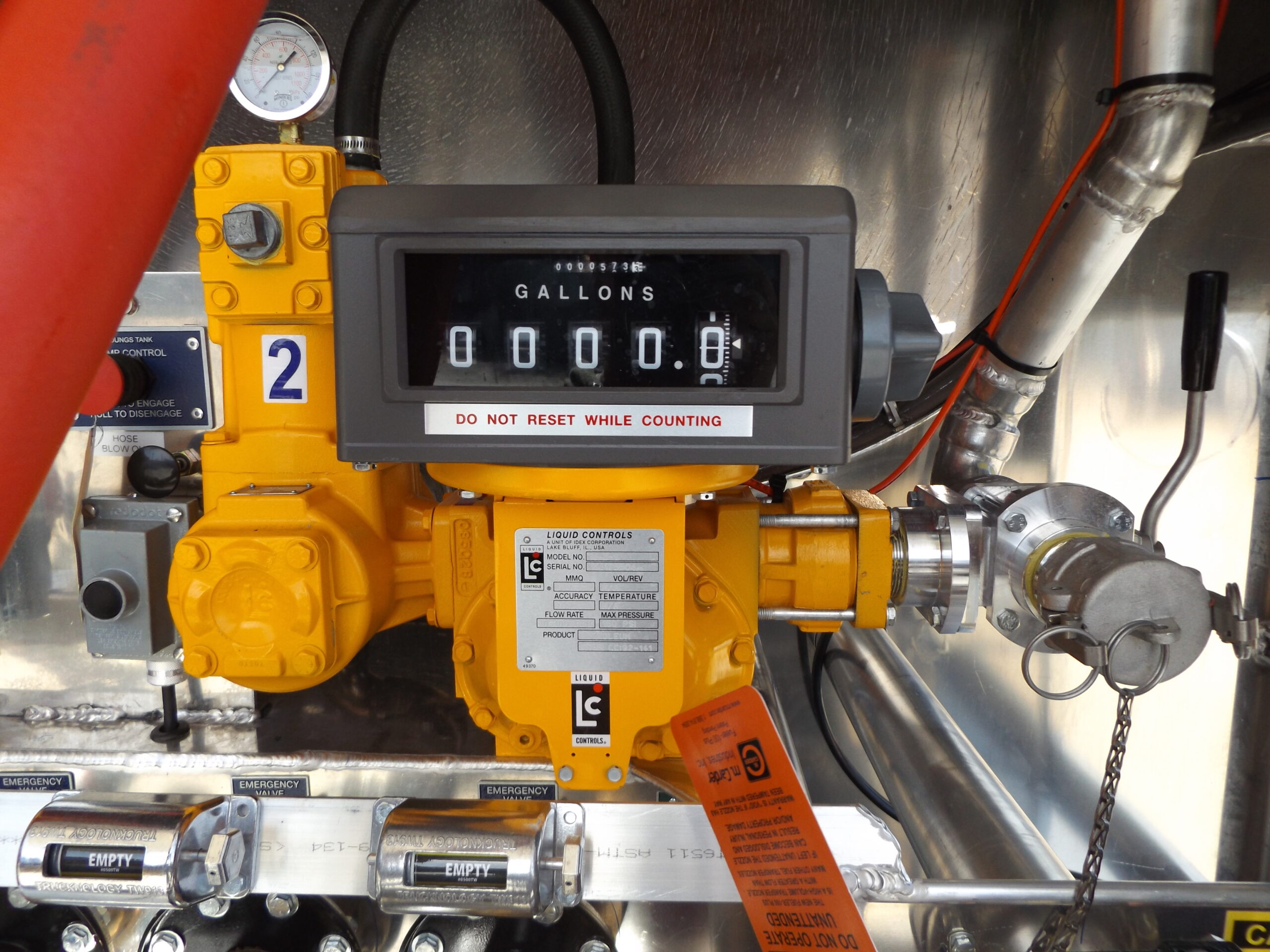

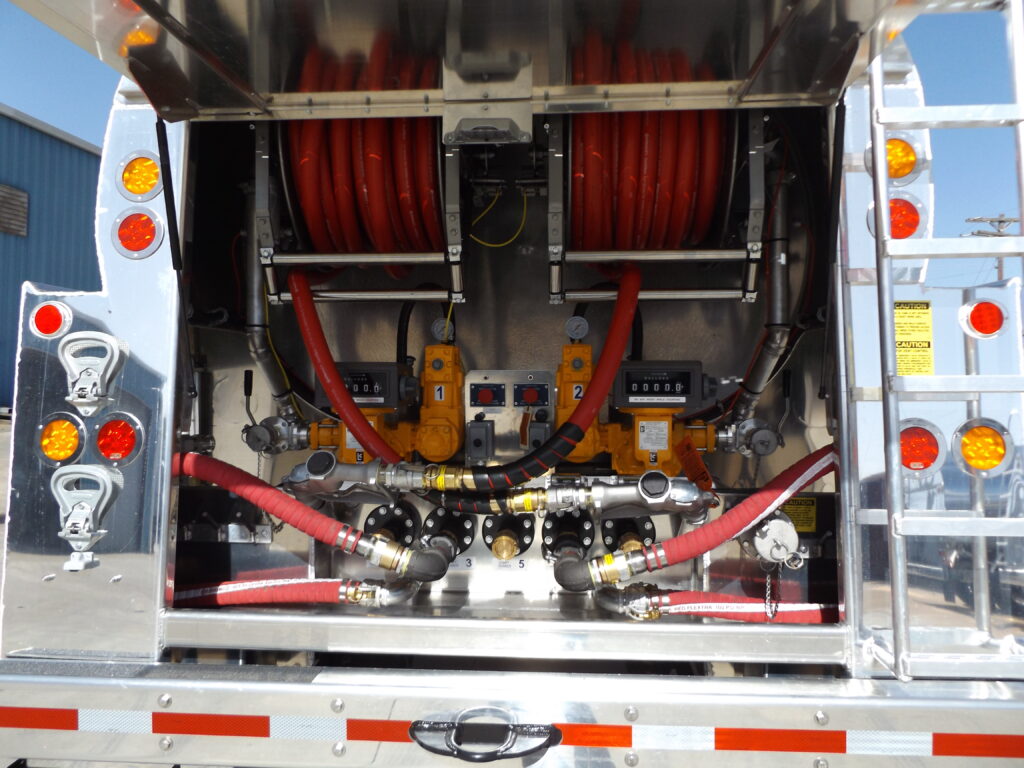

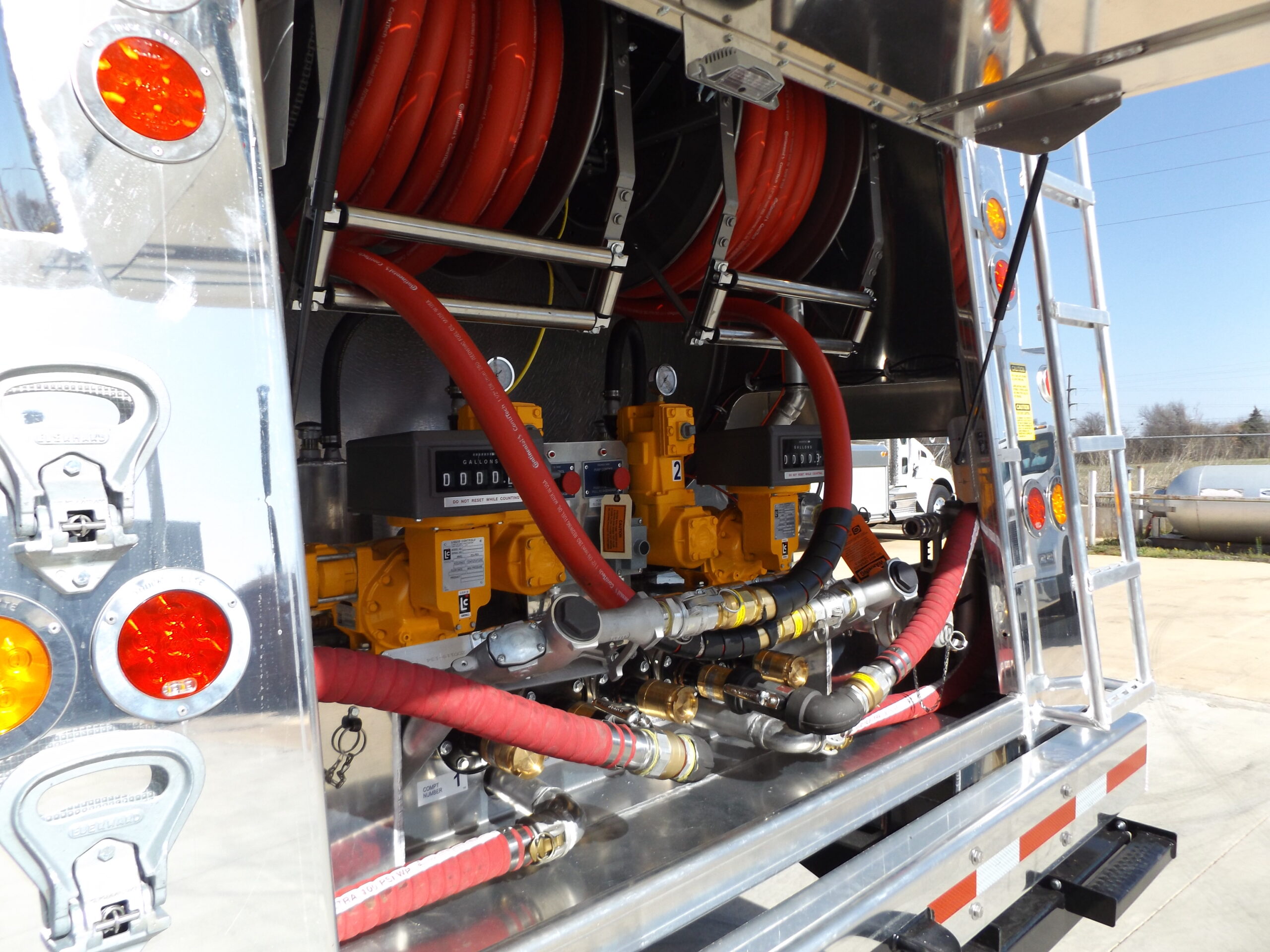

Pump

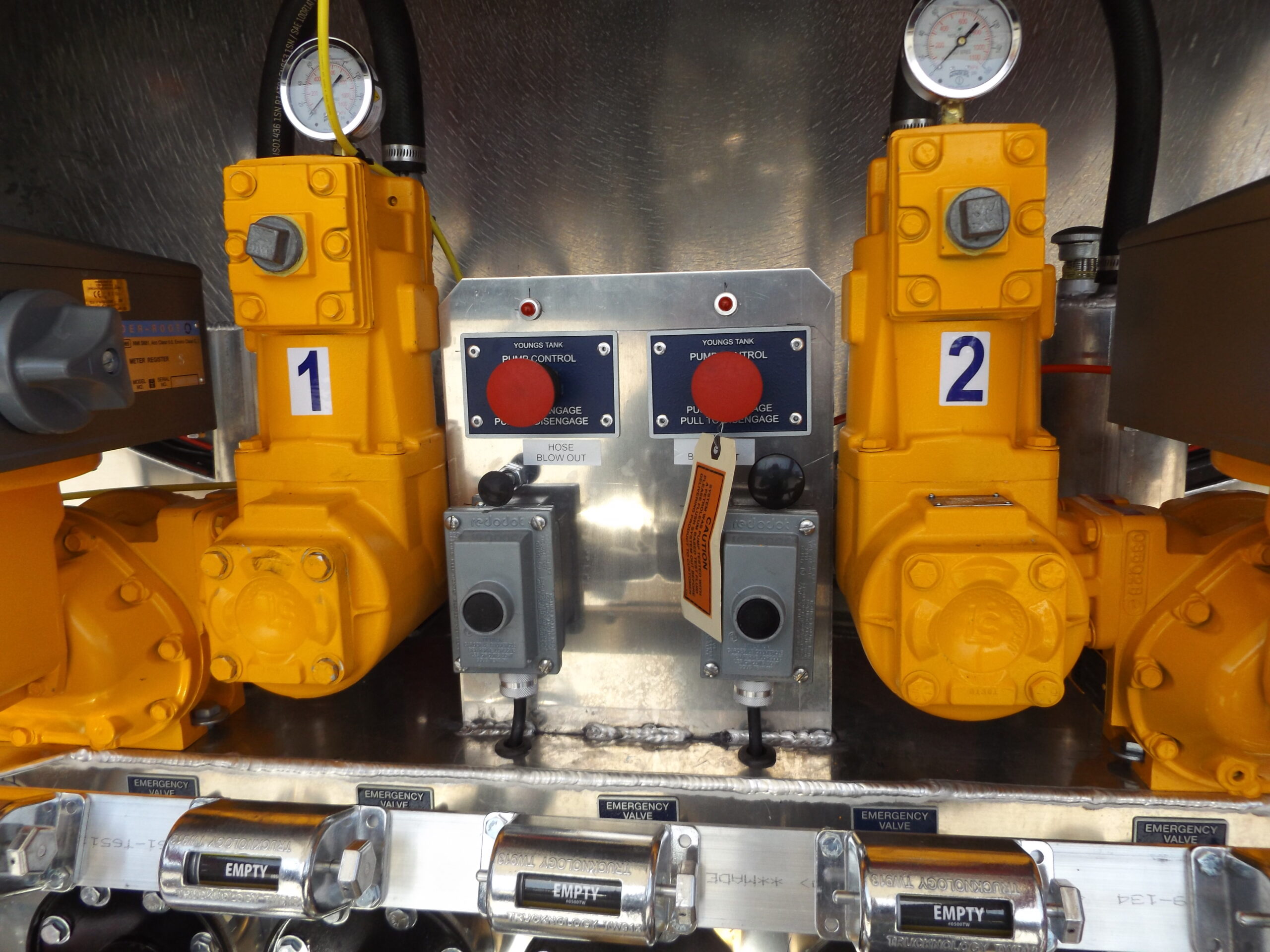

Dual pumping – delivery at rear

Special Equipment

– Bolster-mounted truck tank
– Bottom loading with vapor recovery system at rear
– Scully Intellicheck with (2) sockets
– Auxiliary input tied to vent system (vents must be open for Scully permit)
– Ground Hog
– (2) Pair brass static lugs
– (4) KT-3 placards

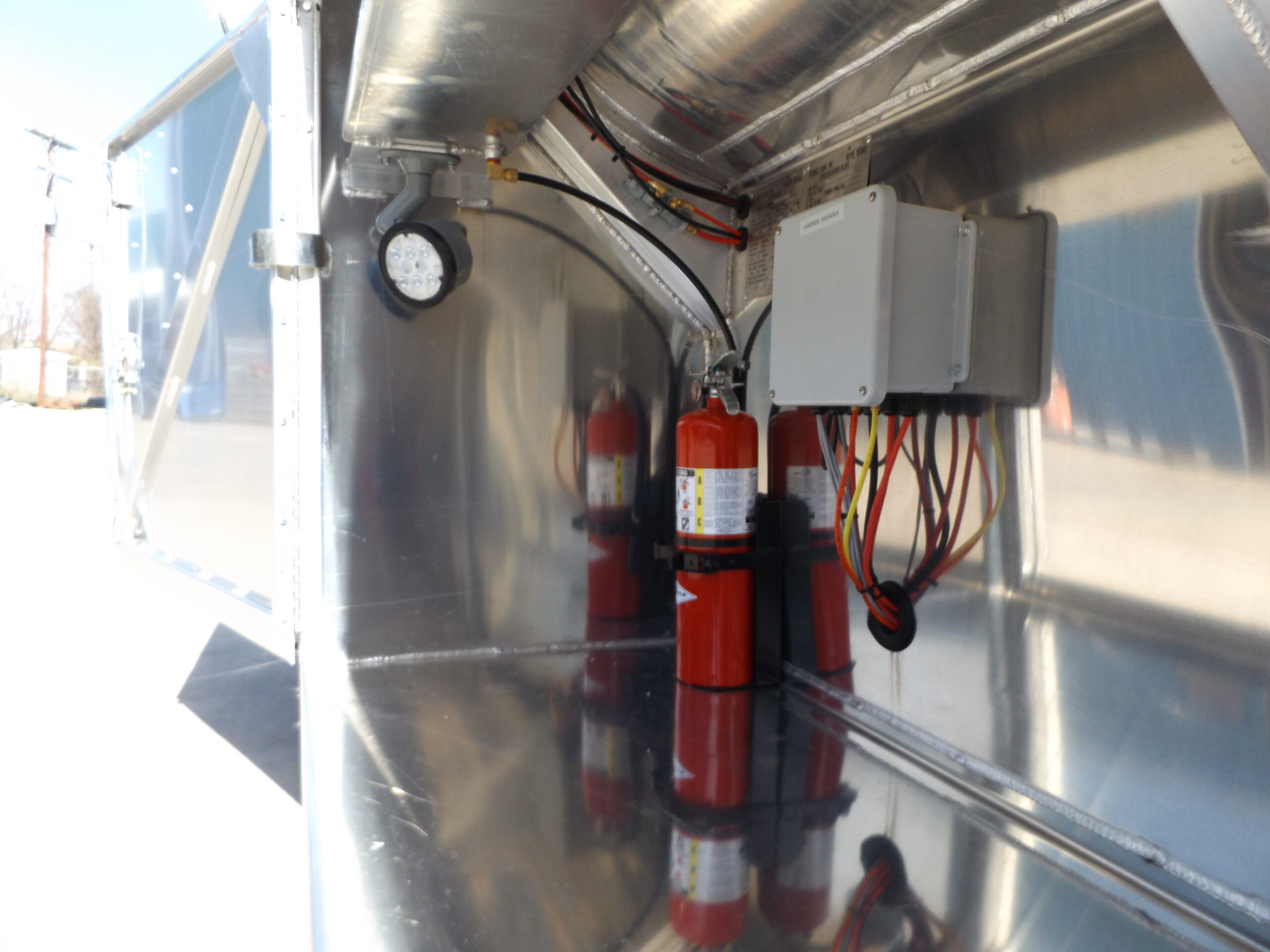

– Cabinet light in rear cabinet
– DOT tests and inspections
– 1/4″ theoretical calibration chart
– DOT plate
